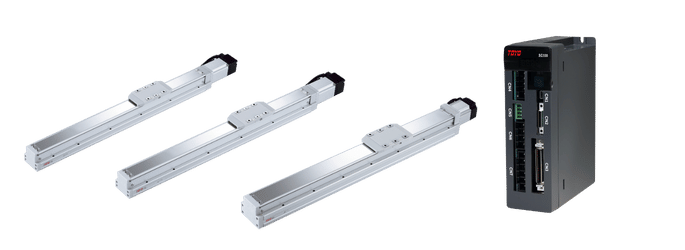

Ball Screw Linear Actuator

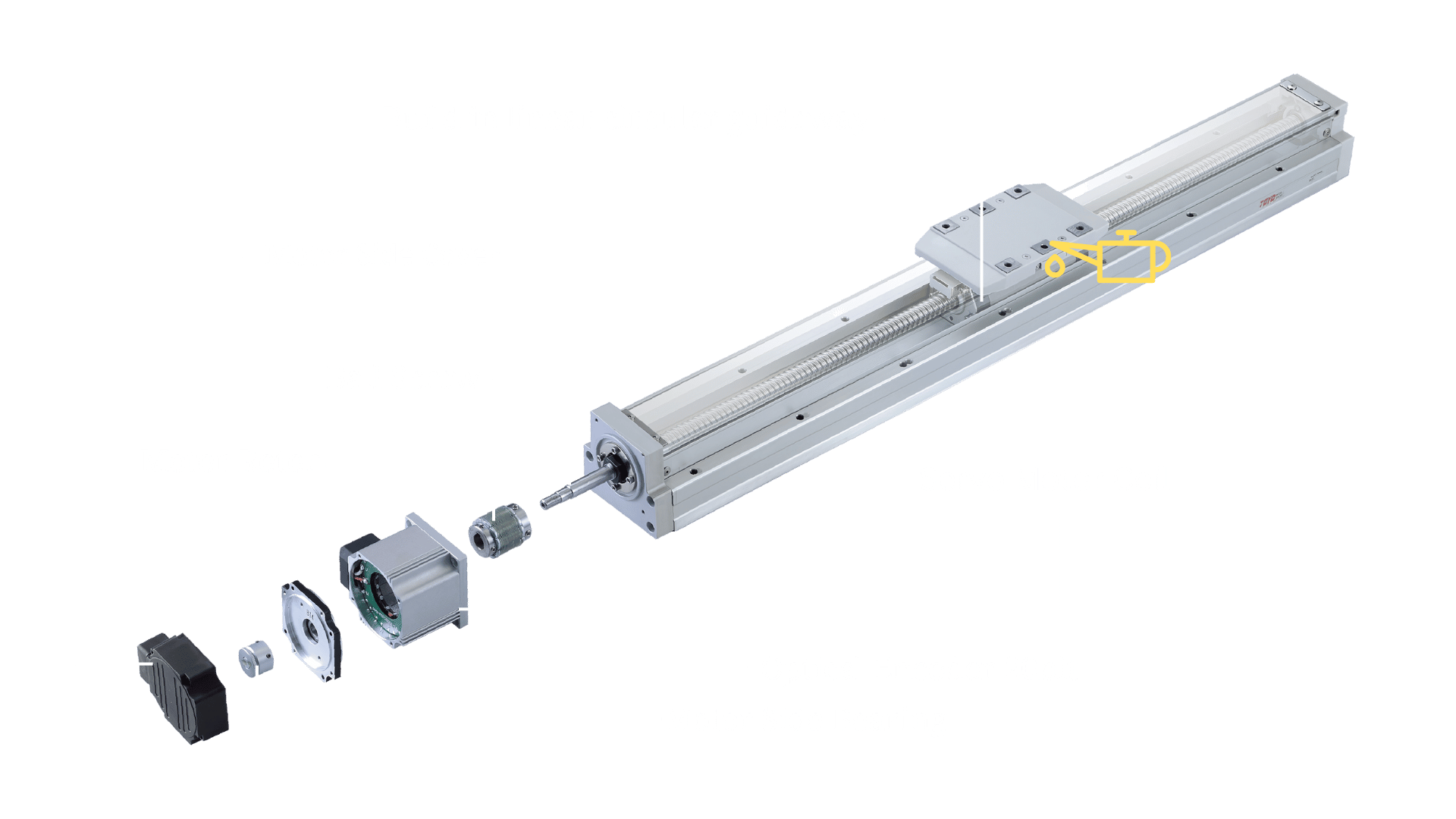

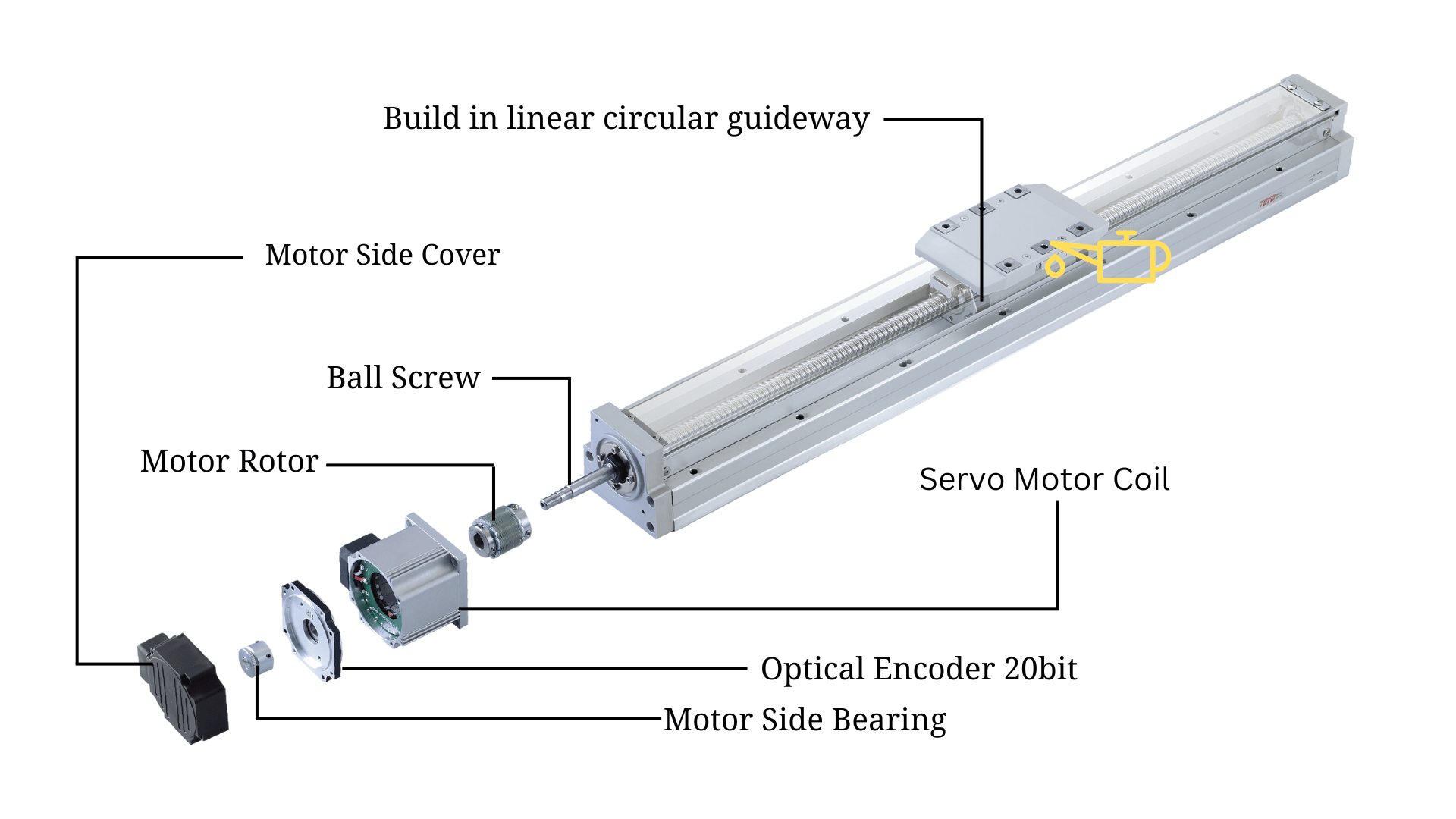

TOYO’s SGTH series is an electric actuator with a servo motor which is a highly precise and efficient device commonly used for motion control in automation systems. The servo motor which is used in SGTH series provides high-precision movement with fast response times and can hold positions precisely. The servo motor operates with a control system that adjusts the motor’s position, speed, and torque based on feedback from the encoder.
These electric actuators combined with servo motors offer a powerful solution for applications requiring precision in position and motion control. Their adaptability across various industries further underscores their importance in modern automation and robotics.
Features
- Standard stroke upto 1250 mm. Extended stroke can be achieved by connecting rack gear, guideway and aluminium extrusion.
- Smooth and precise movement. Ensured repeatability of +/- 0.005 mm.
- High speed and acceleration up to 1600 mm/s.
- Maximum payload up to 110 Kg.
Applications
Electric device assemble, Liquid filling, Welding, Press fitting of circuit board and Waferbox, Unit arrangement
Industries
TFT Display manufacturing, Semi-conductor manufacturing, LED Manufacturing

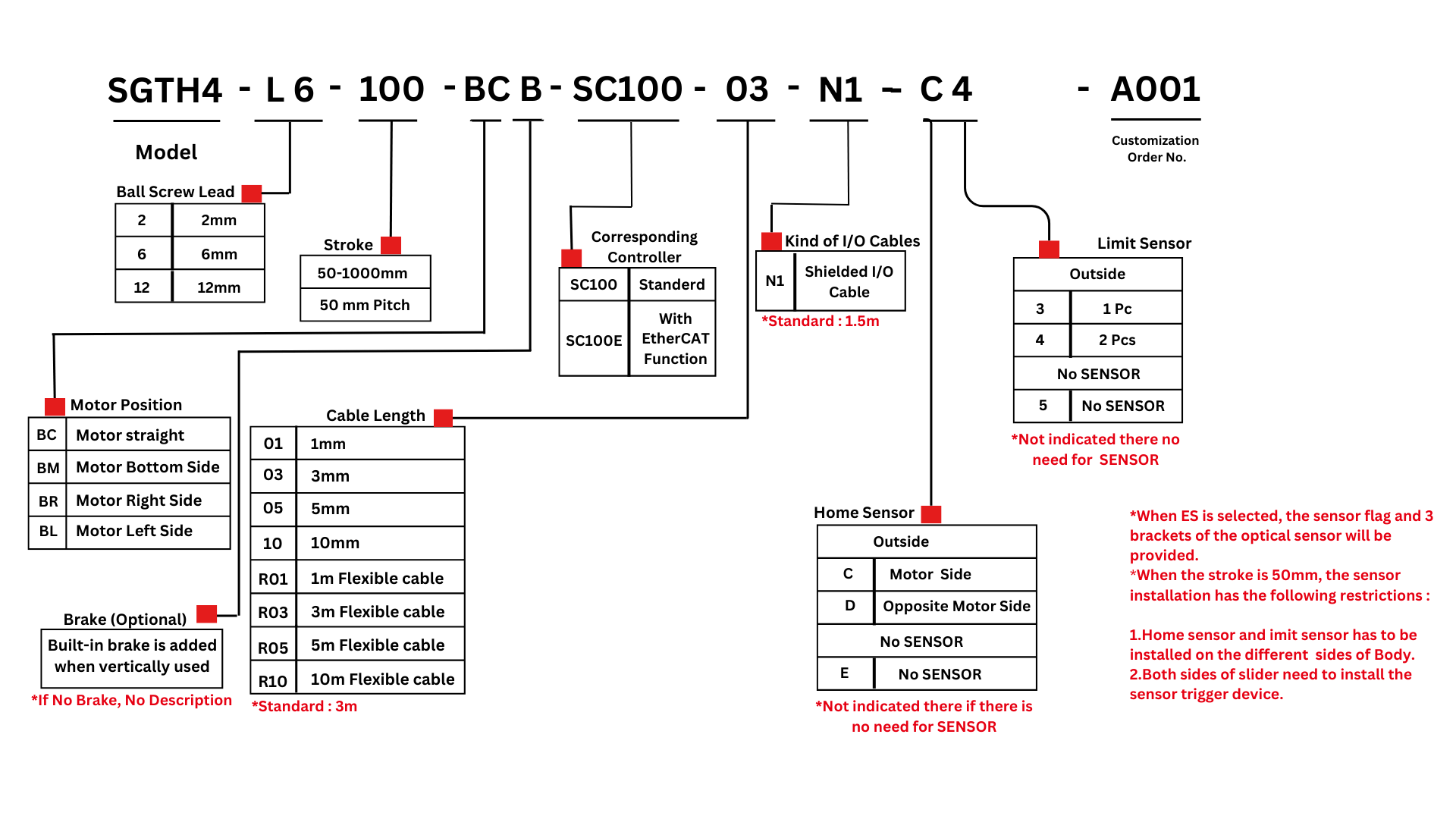

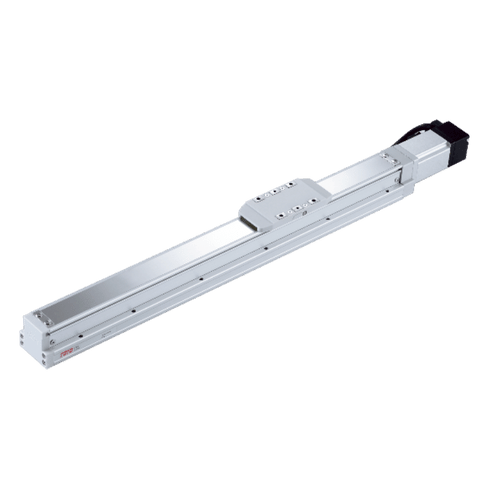

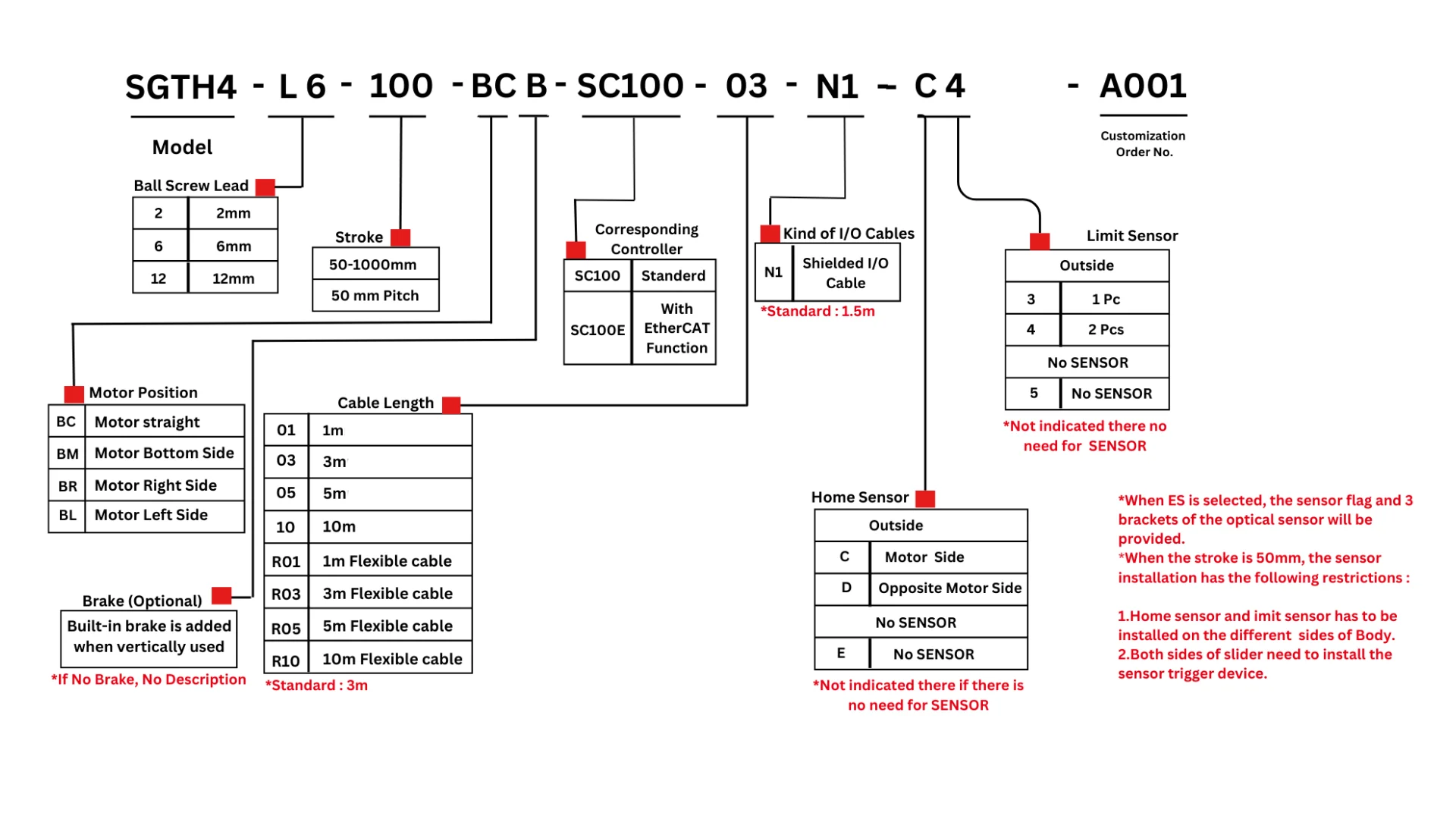

SGTH4 series
SGTH4 series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | 6 | 12 | ||
| Maximum Rotating Speed | mm | 3000 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 360 | 720 | ||
| Maximum Payload | Horizontal | kg | 25 | 20 | 20 | |
| Vertical | kg | 8 | 8 | 3.5 | ||
| Vertical with regenerative resistor | kg | 8 | 15 | 8 | ||
| Rated Thurst | N | 854 | 285 | 142 | ||
| Stroke (increments) | mm | 50-1000mm/50 intervals(50mm increments) | ||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2265 | 2537 | 1740 | |
| Basic Static load rating Coa | N | 4839 | 4569 | 3052 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 4835 | |||
| Static Horizontal | N | 12678 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | ||||
| Parts | AC Actuator with Motor Output | W | 100 | |||
| Ball Screw | mm | C7⌀10 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||

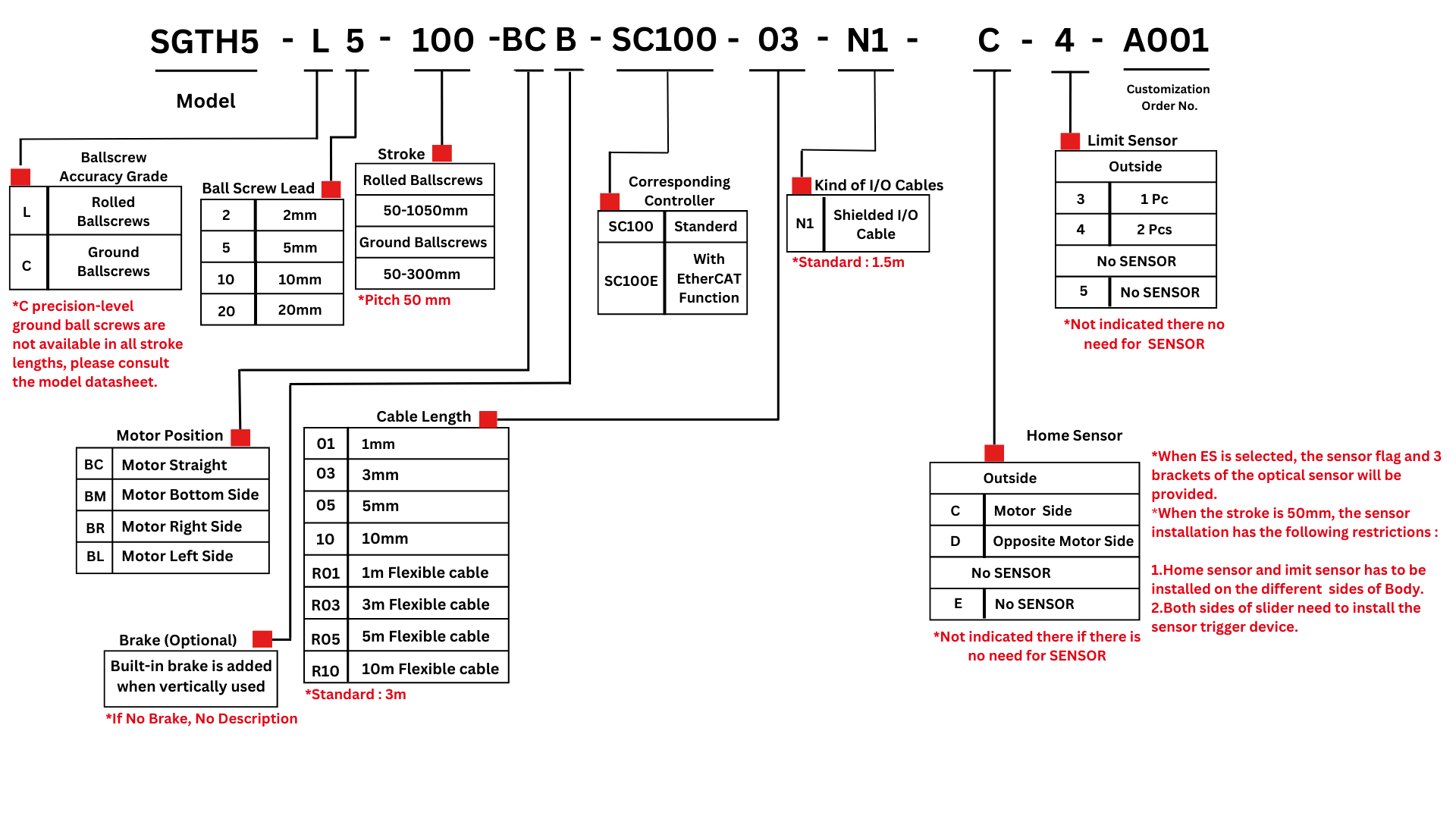

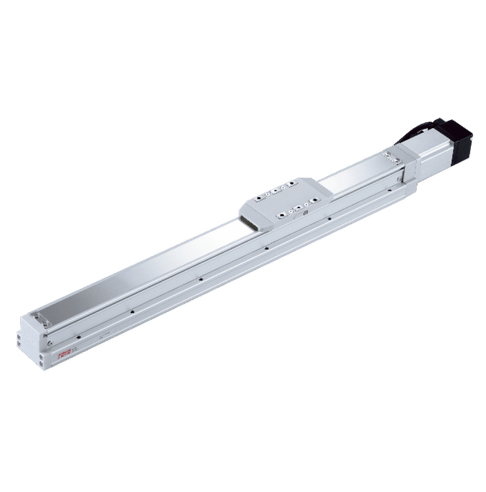

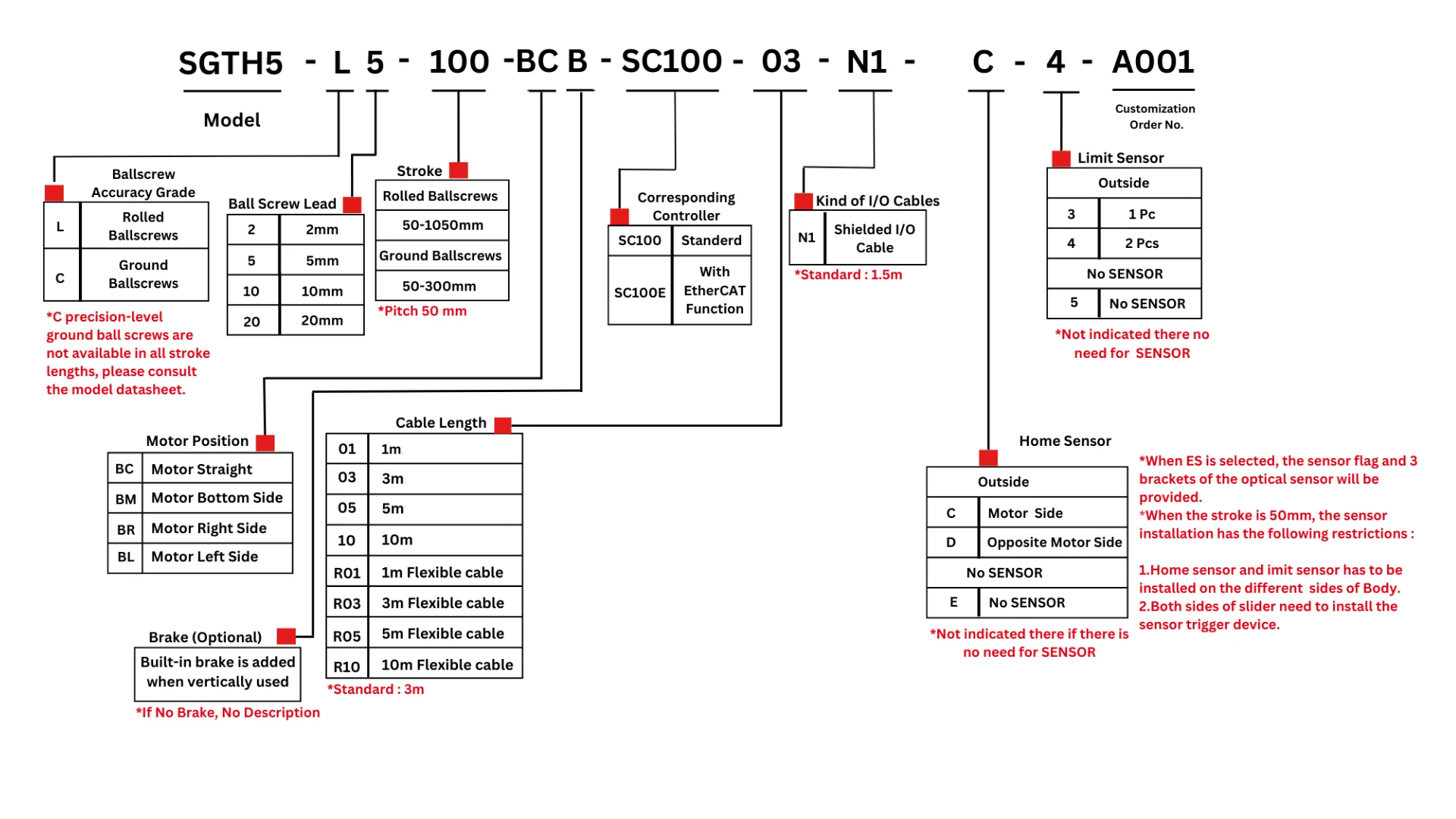

SGTH5 series
SGTH5 series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Specification | Repeatability | mm | (+/-0.005) | ||||
|---|---|---|---|---|---|---|---|
| Lead | mm | 5 | 10 | 20 | 40 | ||
| Maximum Rotating Speed(mm/s) | rpm | 3600 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | 2400 | ||
| Maximum Payload | Horizontal | kg | 120 | 110 | 75 | 16 | |
| Vertical (For Non-generative power) | kg | 40 | 25 | 11 | 9 | ||
| Verical(external 50W regenerative registor) | Kg | 50 | 30 | 18 | 15 | ||
| Rated Thurst | N | 1389 | 694 | 347 | 174 | ||
| Stroke Pitch | mm | 50-1200mm/50 intervals(50mm pitch) | |||||
| Maximum Acceleration | G | 0.15 | 0.31 | 0.61 | 1.22 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 13428 | 11223 | 5667 | 9656 | |
| Basic Static load rating Coa | N | 29671 | 24456 | 11182 | 20274 | ||
| Linear Guide | Dynamic Horizontal | N | 7866 | ||||
| Static Horizontal | N | 78400 | |||||
| Fixed Bearing | Bsic Dynamic load rating Cr | N | 9666 | ||||
| Static Load rating Cor | N | 6400 | |||||
| Parts | AC Actuator with Motor Output | W | 100 | ||||
| Ball Screw | mm | C7 X ⌀20 | |||||
| Linear Guide | mm | W15XH12.5 | |||||
| Ball Screw | mm | 14 X 12 | |||||
| Home Sensor | Outside | T64N2(NPN) | |||||

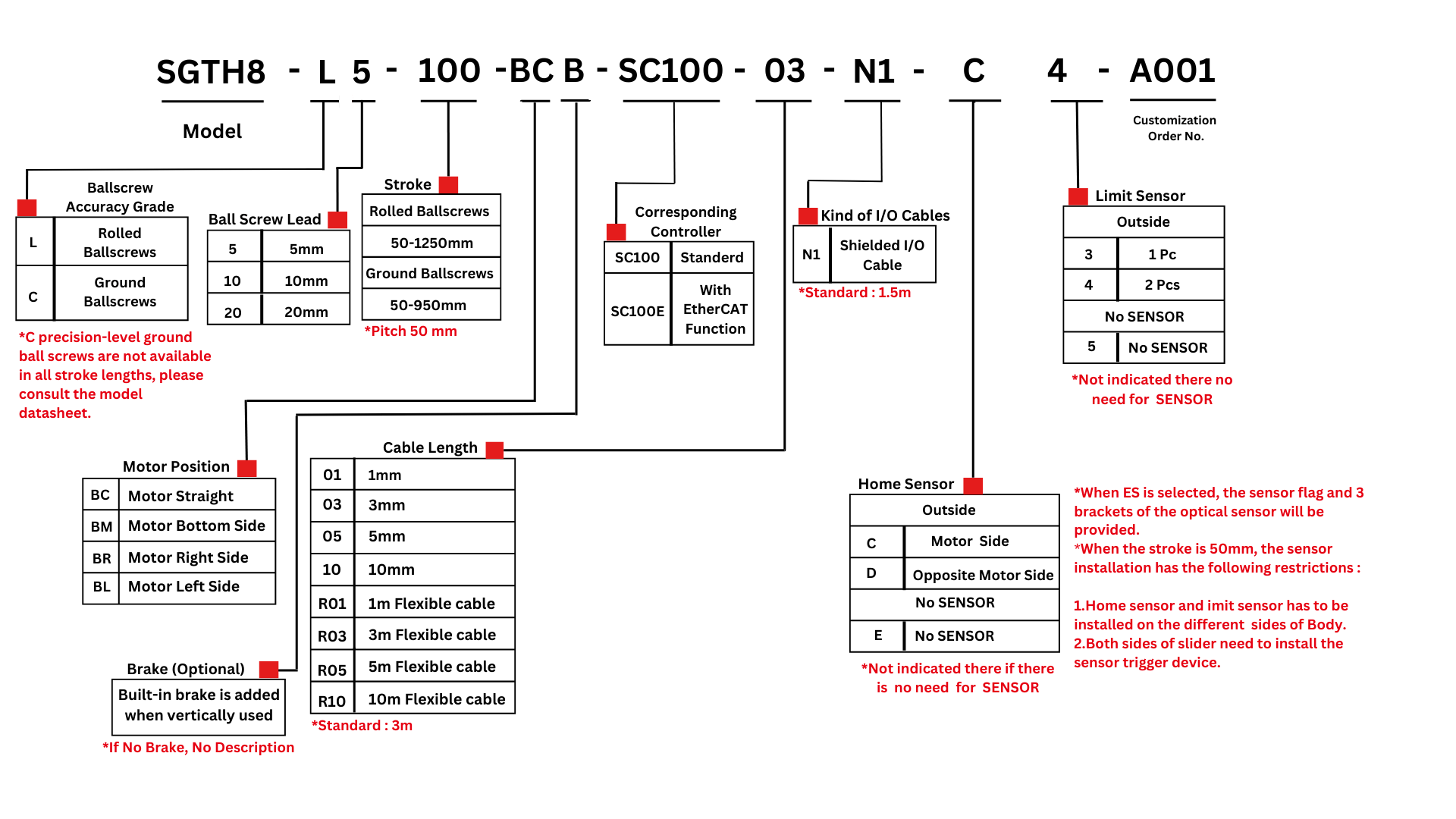

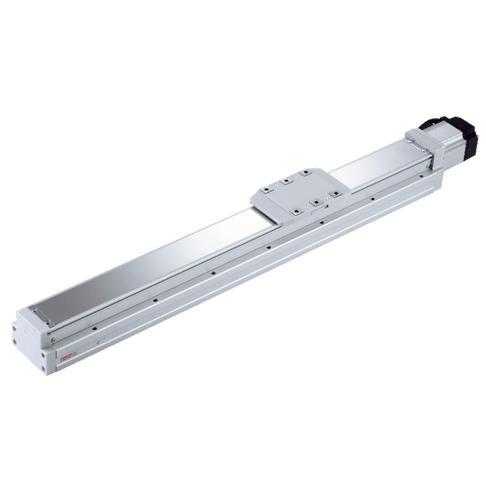

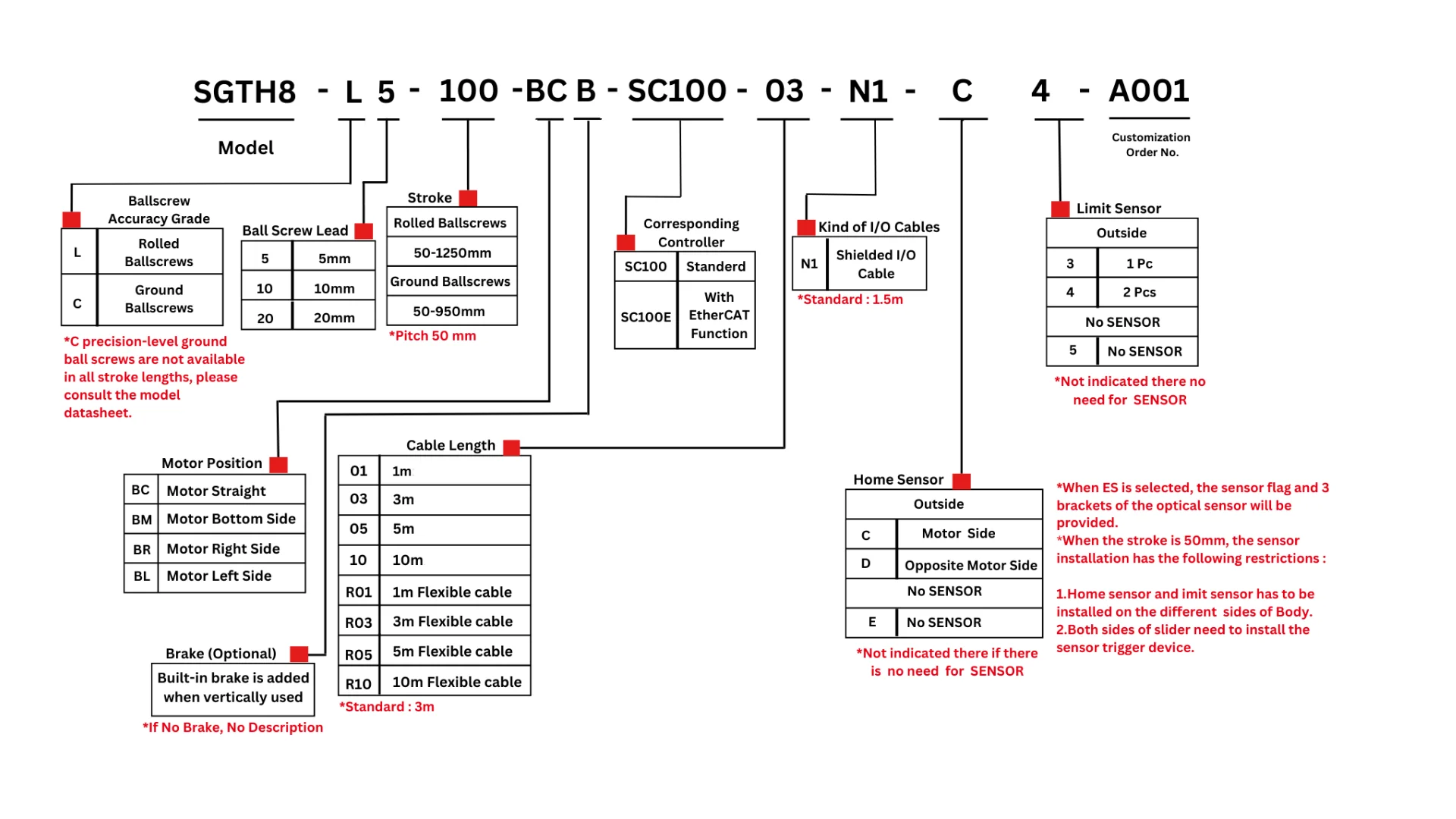

SGTH8 series
SGTH8 series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1250mm/50 intervals(50mm increments) | 50~950mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | |
|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 100 | 80 | 40 | |
| Vertical | kg | 15 | 8 | 3 | ||
| Vertical with regenerative resistor | kg | 30 | 20 | 8 | ||
| Rated Thurst | N | 683 | 341 | 174 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | 6300 | 4152 | |
| Basic Static load rating Coa | N | 15088 | 11596 | 7439 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 18620 | |||
| Static Horizontal | N | 34230 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | |||
| Static load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 200 | |||
| Ball Screw | mm | ⌀16 | ||||
| Coupling | mm | 10X14/11 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||

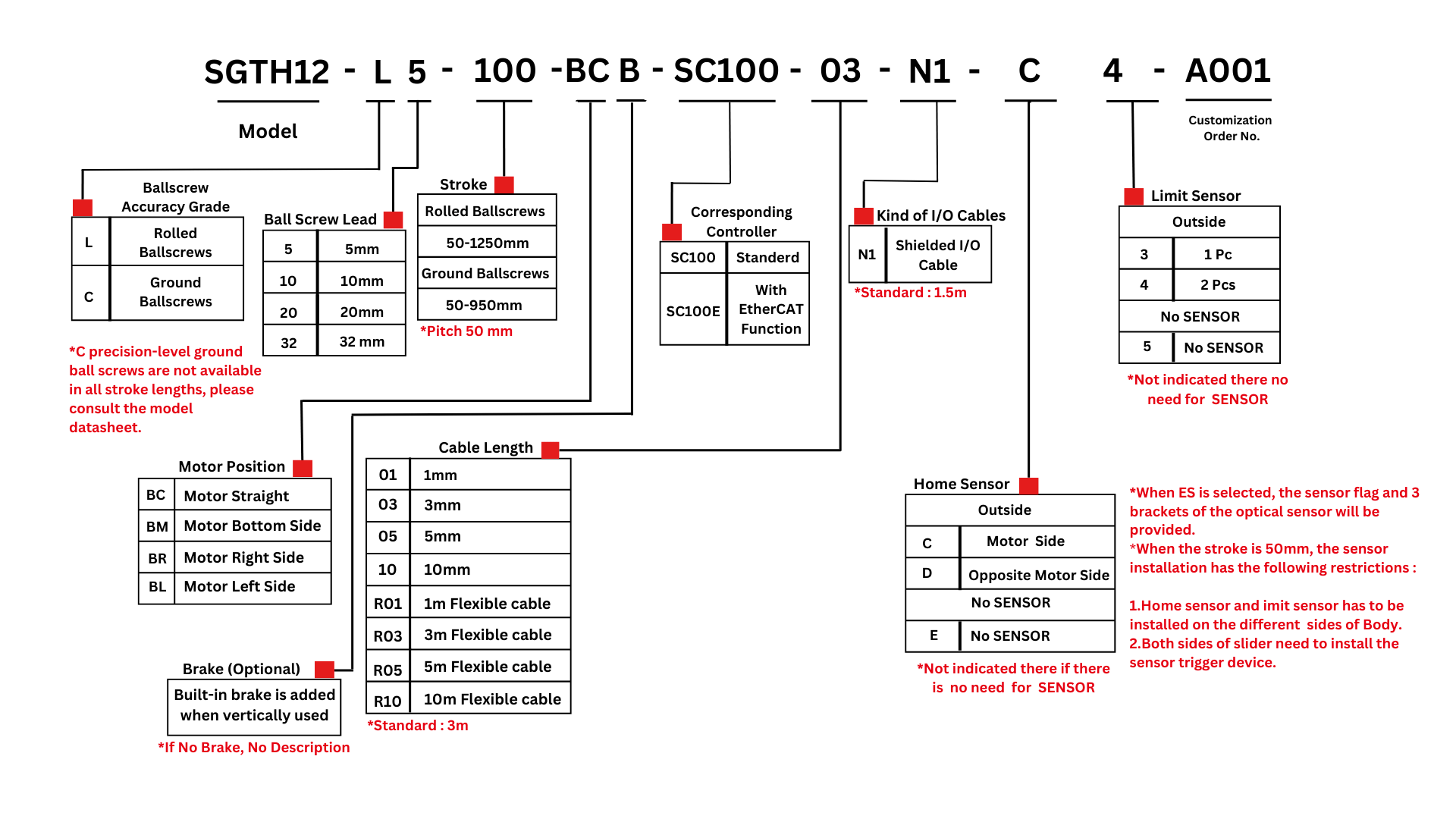

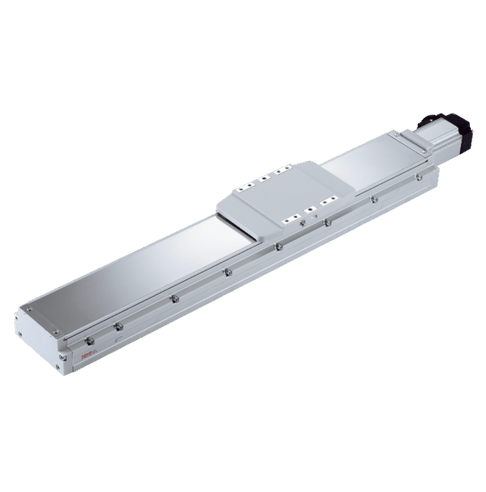

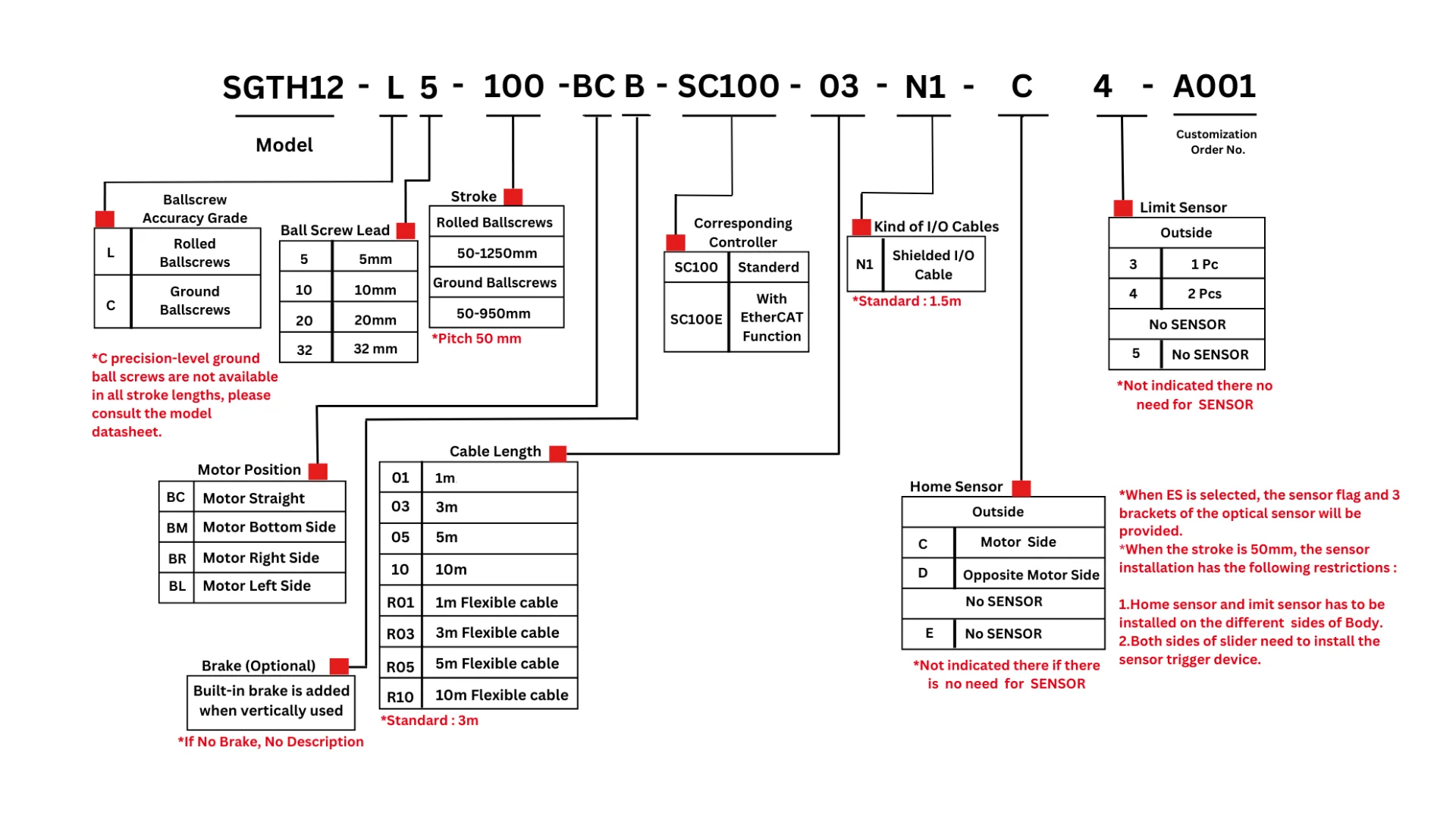

SGTH12 series
SGTH12 series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1250mm/50 intervals(50mm increments) | 50~900mm/50 intervals(50mm increments) | ||||
| Lead | mm | 5 | 10 | 20 | 32 | ||
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | 1920 | ||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | 30 | |
| Vertical | kg | 33 | 22 | 10 | 8 | ||
| Rated Thurst | N | 1388 | 694 | 347 | 218 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 11570 | 6300 | 4152 | 7326 | |
| Basic Static load rating Coa | N | 23030 | 11596 | 7439 | 14157 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 51128 | ||||
| Static Horizontal | N | 84518 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | ||||
| Static load rating Cor | N | 5060 | |||||
| Parts | AC Actuator with Motor Output | W | 400 | ||||
| Ball Screw | mm | ⌀16 | |||||
| Coupling | mm | 10X14 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||

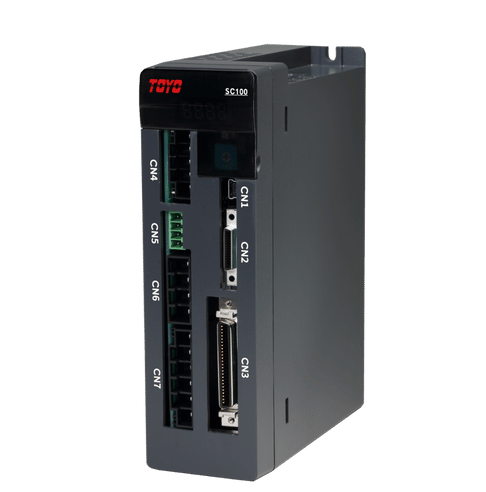

SC100 Controller
| Features | Multi-function Motor Controller Driver | Designed and developed specifically for servo motor driving and control our controller-driver allows for high-speed, high precision movement. |
|---|---|---|
| Quick, Easy motion control Software Application | Intuitive, easy to learn motion control software application provides automatic gain tuning. | |
| Shock Suppression | Suppression reduces low-frequency vibration makes our lineup a top choice for robot and long-stroke applications. | |
| Multi-mode Communication Interface | The controller-driver multi-mode communication interface provides pulse input, serial RS-485 Modbus, IO Positional encoding, analog output, pulse delivery monitoring control. Also the controller-driver accepts EtherCAT expansion modules to allow control of up to 255 axes. | |
| Great Price Performace Ratio | Our module's careful, intuitive integration of multiple functions provides customers with easy installation, right-out-of-the-box |
