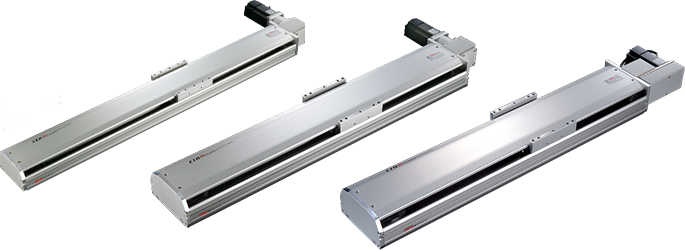

Belt Type Linear Actuator

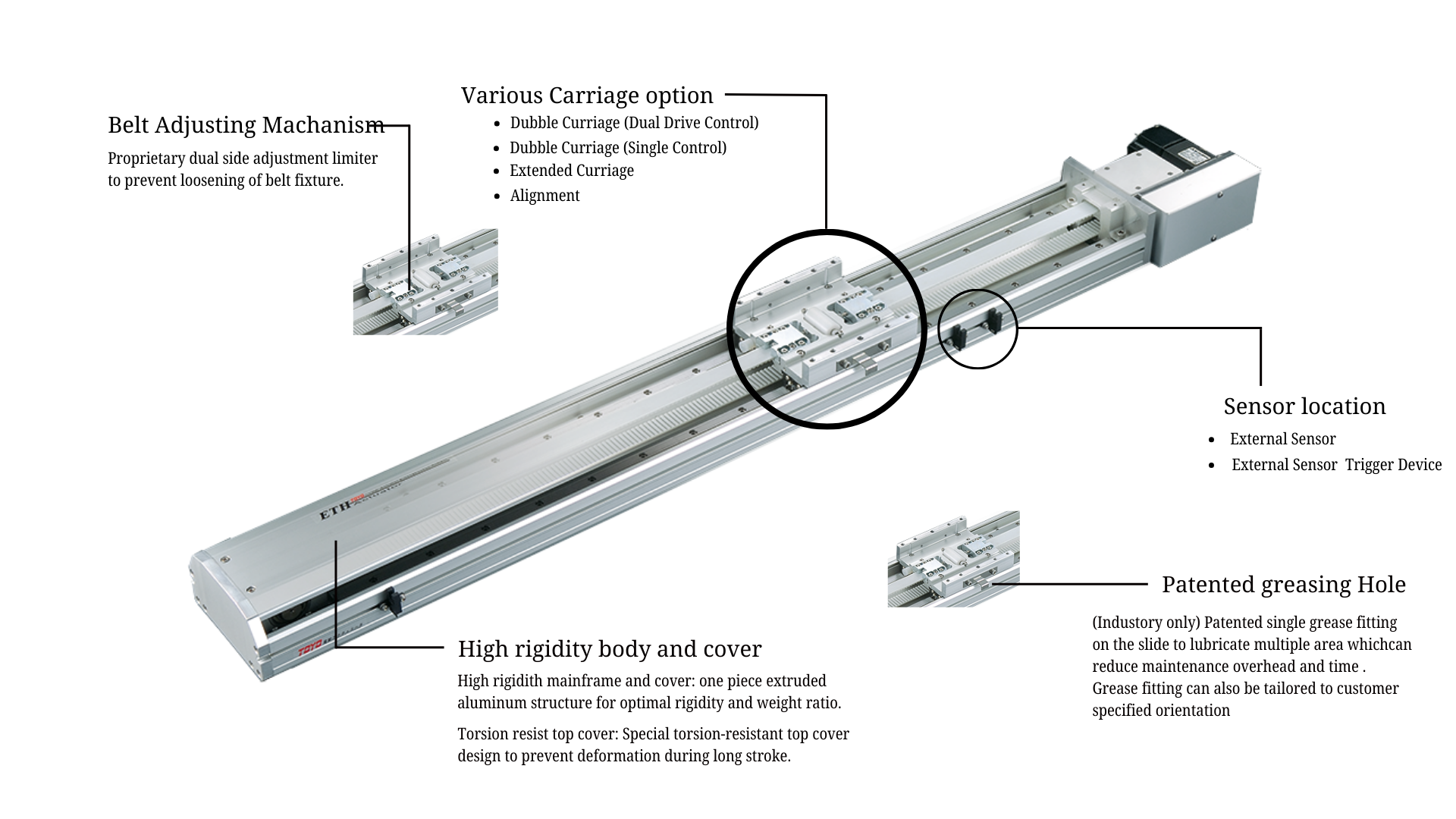

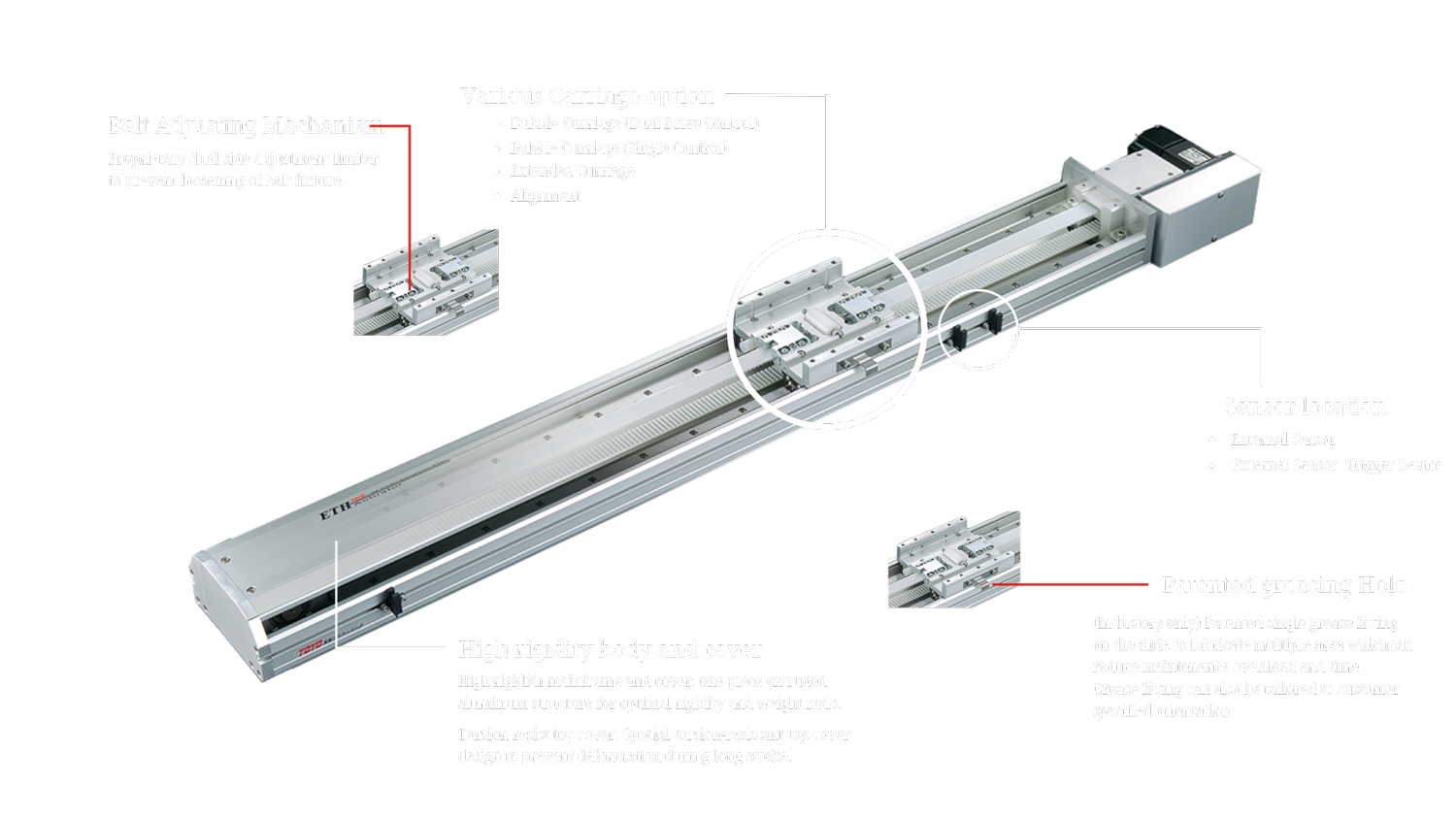

Toyo’s belt-type electric actuator is a specific type of linear motion system that employs an electric motor to drive a belt mechanism, facilitating linear movement. The actuator is powered by an electric motor to generate rotational motion. The Motor connects to a belt mechanism, belt is looped around pulleys or rollers, with one end connected to the motor shaft and the other attached to the load or carriage that needs to be moved linearly. When the motor rotates, it drives the belt, causing it to move along the pulleys or rollers. This movement is then transferred to the load, resulting in linear motion.
Features
- High speed, longer stroke, can be apply in a long-distance movement required application
- Stepper or Actuator with Motor can be used
- Compact structure design resulting in lower cost and time saving
- Supports the stroke up to 5000mm and speed can be up to 5000mm/s
- Highest speed is based on maximum Actuator with Motor’s RPM (3000) & stepper motor’s RPM(300)
- Providing +/- 0.04 mm of repeatability
Applications
High speed conveyor, Tape cutting device, Parts shifting between CNC machine, Printer, Adhesive dispenser
Industries
TFT Display manufacturing, Food industry, Packing machinery, LED Manufacturing, CNC Machining

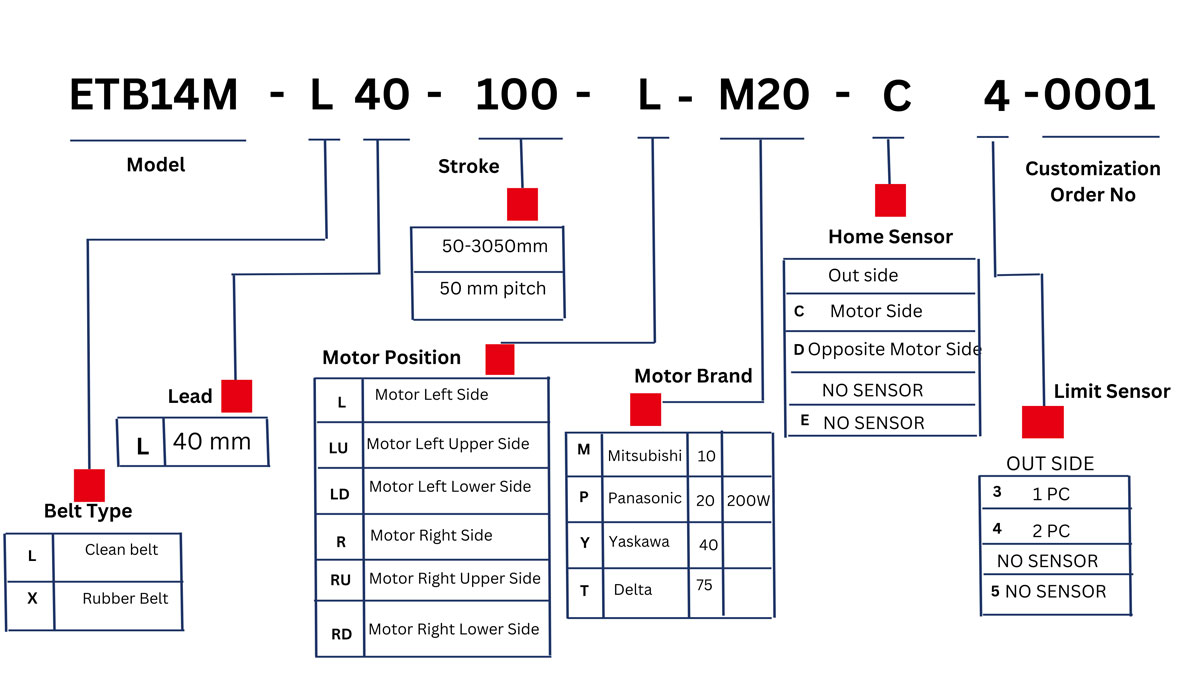

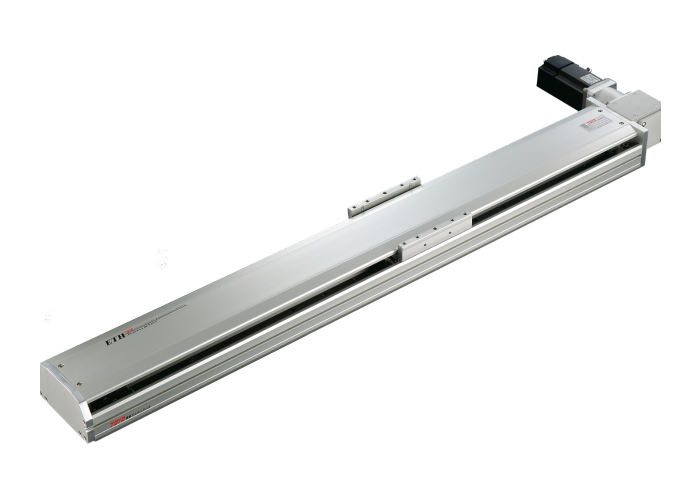

ETB14M series
ETB14M series specification
| Specification | Repeatability (mm) | (+/-0.04) | ||
|---|---|---|---|---|
| Lead(mm) | 40 | |||
| Maximum Speed(mm/s) | 2000 | |||
| Maximum Payload | Horizontal | 25 | ||
| Vertical | NA | |||
| Rated Thurst (N) | 100 | |||
| Stroke Pitch(mm) | 50-3050mm/ 50 mm pitch | |||
| Parts | AC Actuator with Motor Output(w) | 200 | ||
| Blet Width | 22 | |||
| High Rigidity Linear Guide(mm) | W15XH12.5 | |||
| Home Sensor | Outside | EE-SX672(NPN) | ||
Acceleration and declaration value set to 0.4 second

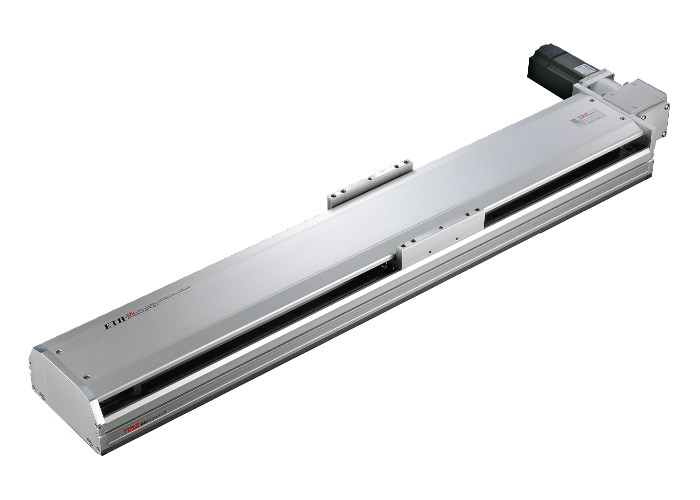

ETB17M series
ETB17M series specification
| Specification | Repeatability (mm) | (+/-0.04) | ||
|---|---|---|---|---|
| Lead(mm) | 40 | |||
| Maximum Speed(mm/s) | 2000 | |||
| Maximum Payload | Horizontal | 25 | ||
| Vertical | NA | |||
| Rated Thurst (N) | 100 | |||
| Stroke Pitch(mm) | 50-3050mm/ 50 mm pitch | |||
| Parts | AC Actuator with Motor Output(w) | 200 | ||
| Blet Width | 22 | |||
| High Rigidity Linear Guide(mm) | W15XH12.5 | |||
| Home Sensor | Outside | EE-SX672(NPN) | ||
Acceleration and declaration value set to 0.4 second

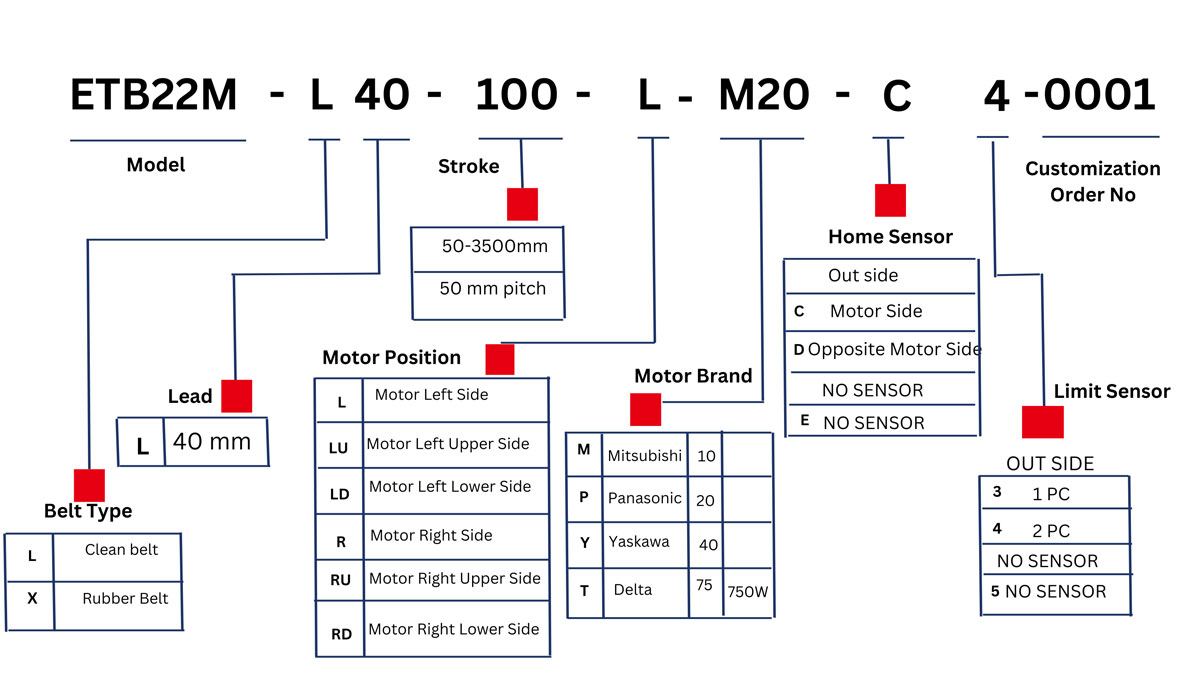

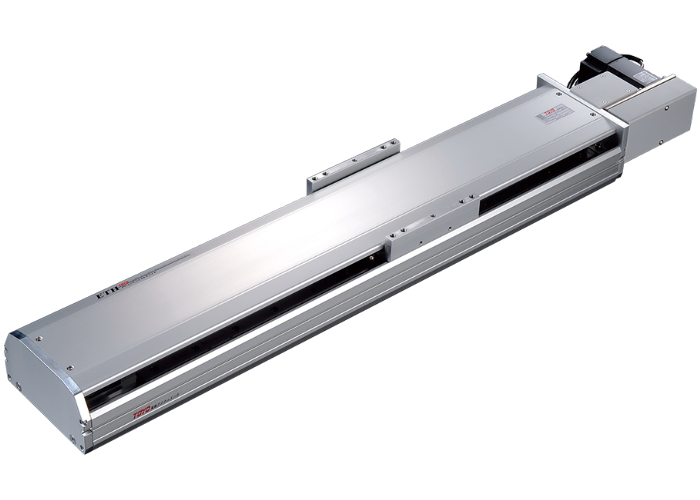

ETB22M series
ETB22M series specification
| Specification | Repeatability (mm) | (+/-0.04) | ||
|---|---|---|---|---|
| Lead(mm) | 40 | |||
| Maximum Speed(mm/s) | 2000 | |||
| Maximum Payload | Horizontal | 85 | ||
| Vertical | NA | |||
| Rated Thurst (N) | 367 | |||
| Stroke Pitch(mm) | 50-3050mm/ 50 mm pitch | |||
| Parts | AC Actuator with Motor Output(w) | 750 | ||
| Blet Width | 50 | |||
| High Rigidity Linear Guide(mm) | W23XH18 | |||
| Home Sensor | Outside | EE-SX672(NPN) | ||
Acceleration and declaration value set to 0.4 second
