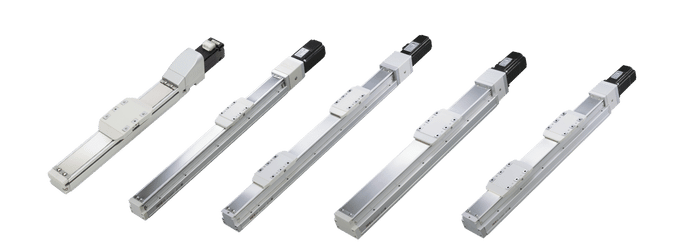

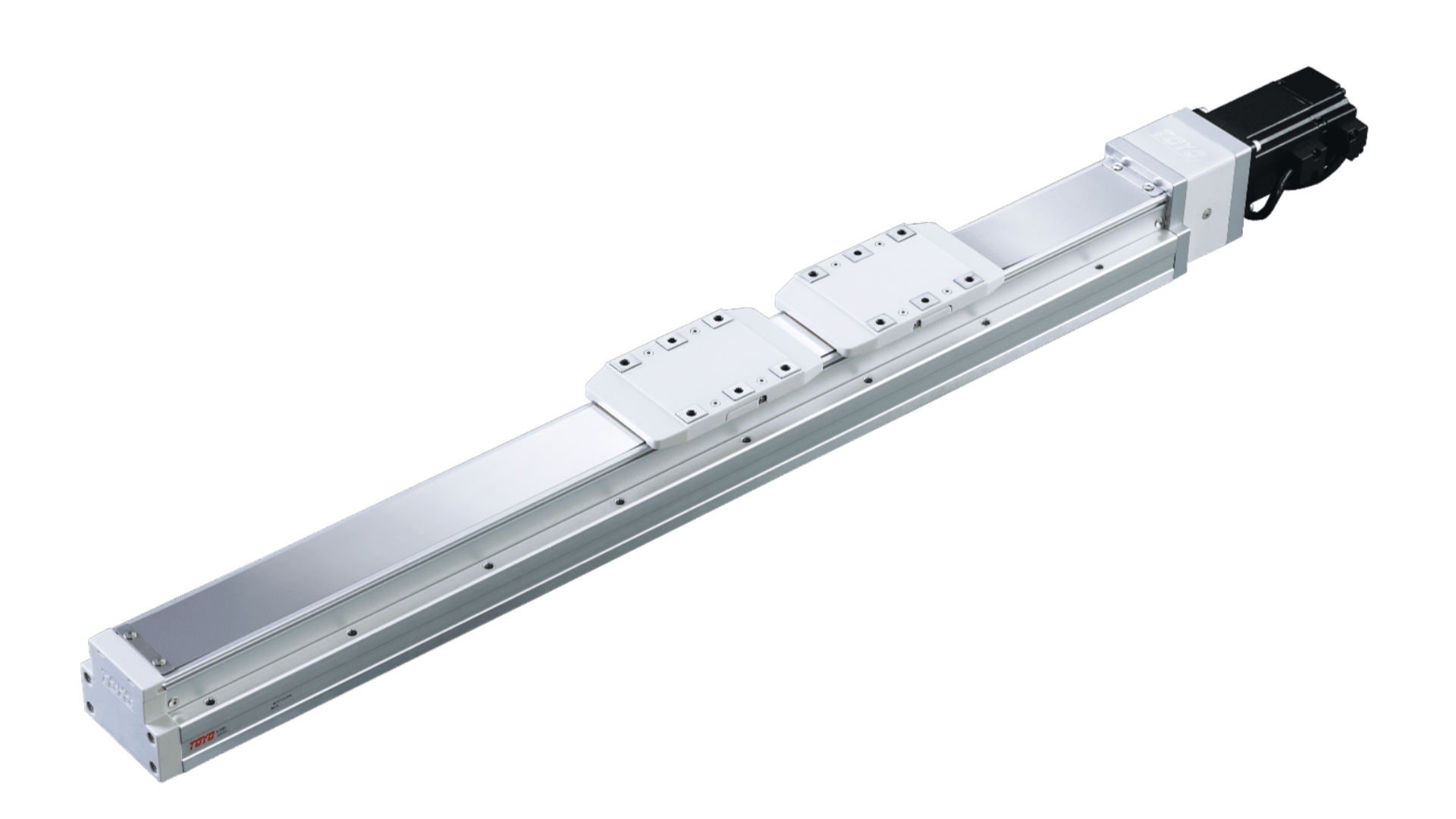

Ball Screw Actuator
Screw-driven linear actuators are highly efficient and precise devices employed across diverse sectors for converting rotational input into controlled linear motion, with a range of mechanical designs tailored for specific performance and application requirements.
Utilize recirculating balls between the screw shaft and nut, reducing friction through rolling contact, which enhances efficiency and load-carrying capacity. Ball screws are commonly rated for precision applications due to their minimal backlash characteristics.
Features
- Standard stroke upto 1250 mm. Extended stroke can be achieved by connecting rack gear, guideway and aluminium extrusion
- Smooth and precise movement. Ensured repeatability of +/- 0.005 mm.
- High speed and acceleration up to 1600 mm/s.
- Maximum payload up to 110 Kg.
Applications
Industrial automation, Robotics, Automotive steering systems, Cobots, Wafer handling robot, Scara robot
Industries
Industrial robot industry, TFT display manufacturing, Semi-conductor manufacturing, LED manufacturing, Material handling industry

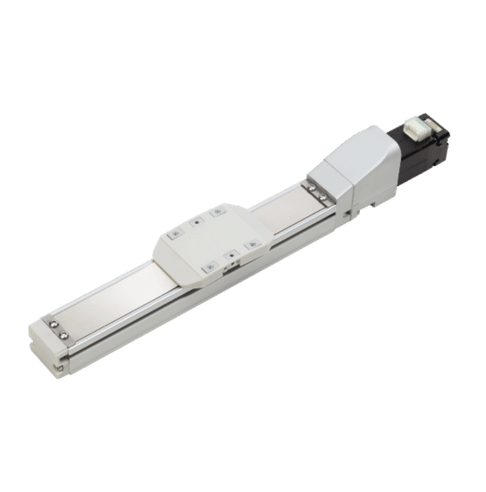

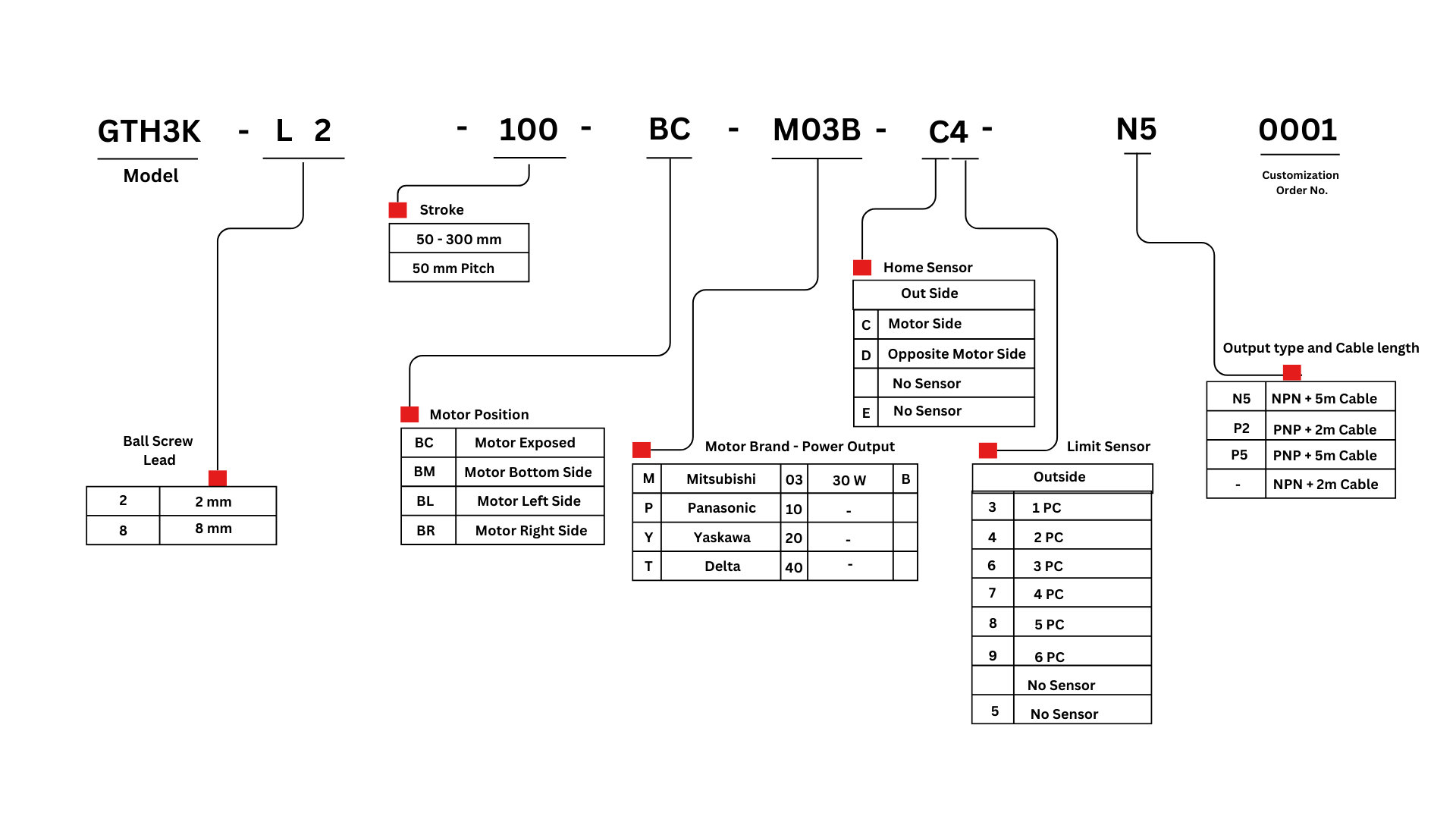

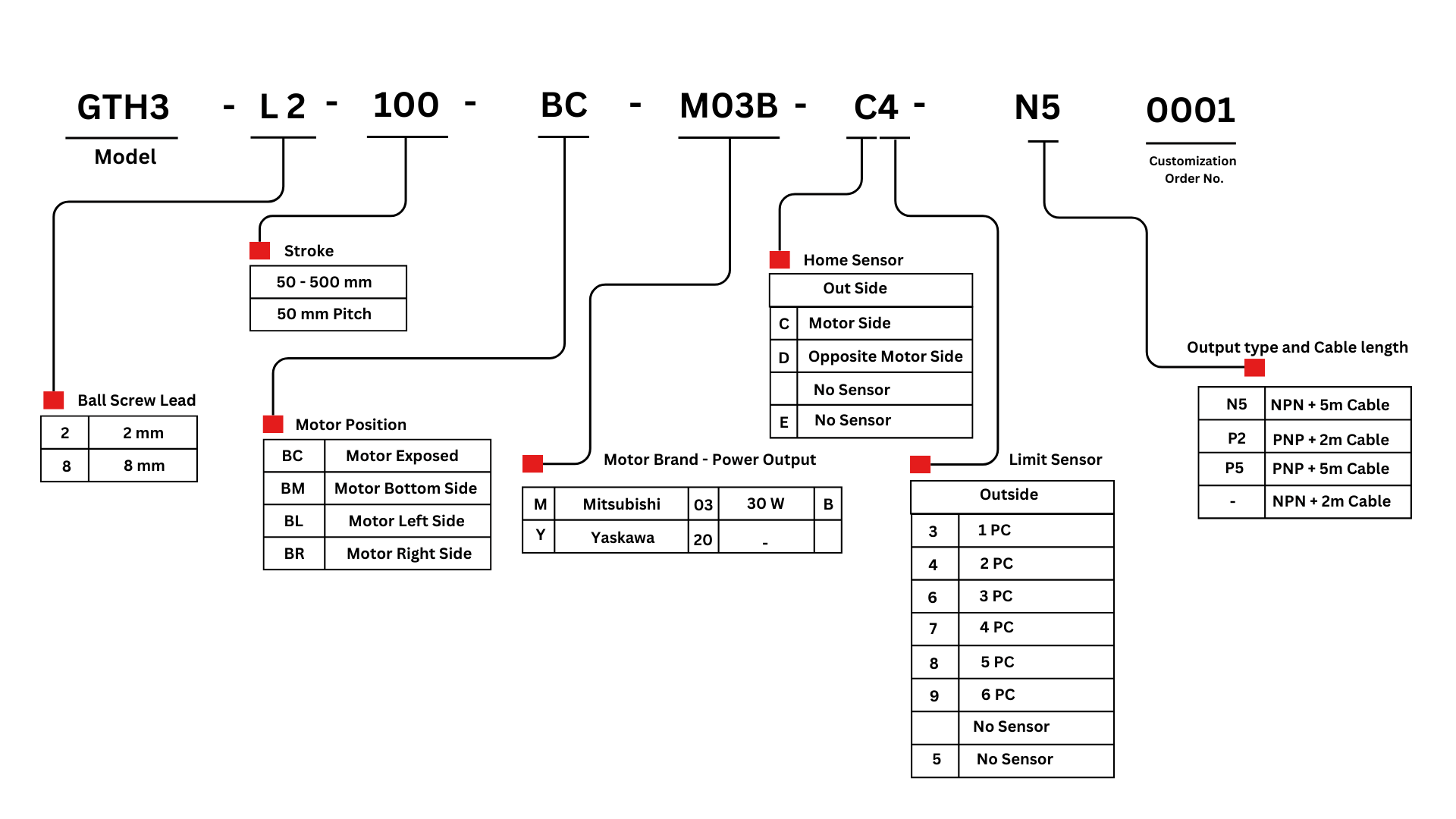

GTH3 series
GTH3 series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | ||
|---|---|---|---|---|---|
| Lead | mm | 2 | 8 | ||
| Maximum Rotating Speed | mm | 3000 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 480 | ||
| Maximum Payload | Horizontal | kg | 13 | 10 | |
| Vertical | kg | 5 | 2 | ||
| Rated Thurst | N | 352 | 88 | ||
| Stroke (increments) | mm | 50~500mm/50 intervals(50mm increments) | |||
| Maximum Acceleration | G | 0.3 | 0.3 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 1811 | 862 | |
| Basic Static load rating Coa | N | 2774 | 1099 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 3144 | ||
| Static Horizontal | N | 6707 | |||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 2819 | ||
| Static load rating Cor | N | 1342 | |||
| Parts | AC Actuator with Motor Output | W | 30 | ||
| Ball Screw | mm | 07θ6 | |||
| Coupling | mm | 4X5 | |||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||

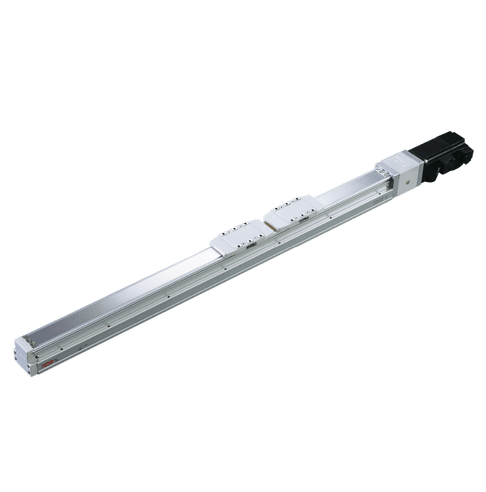

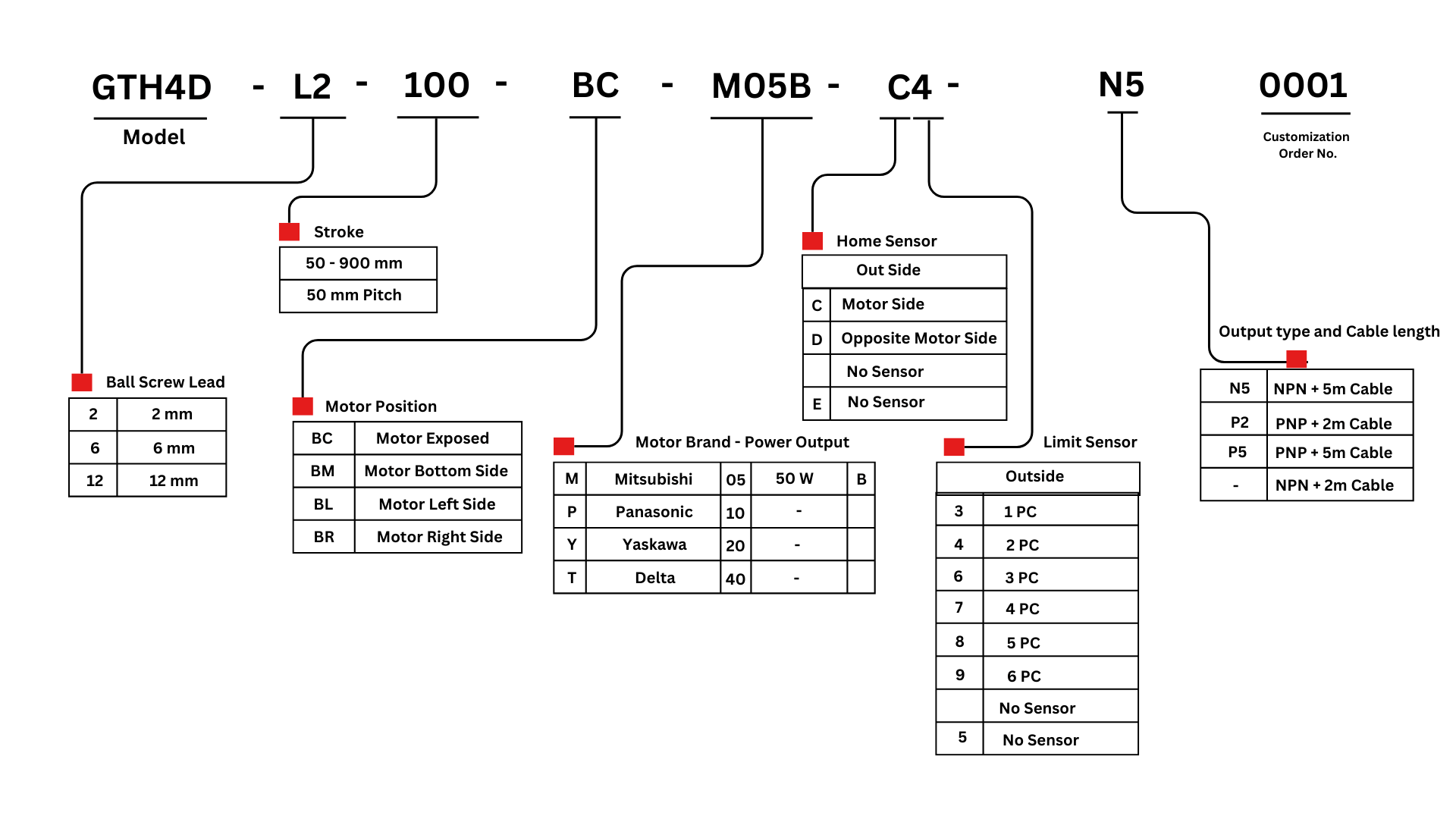

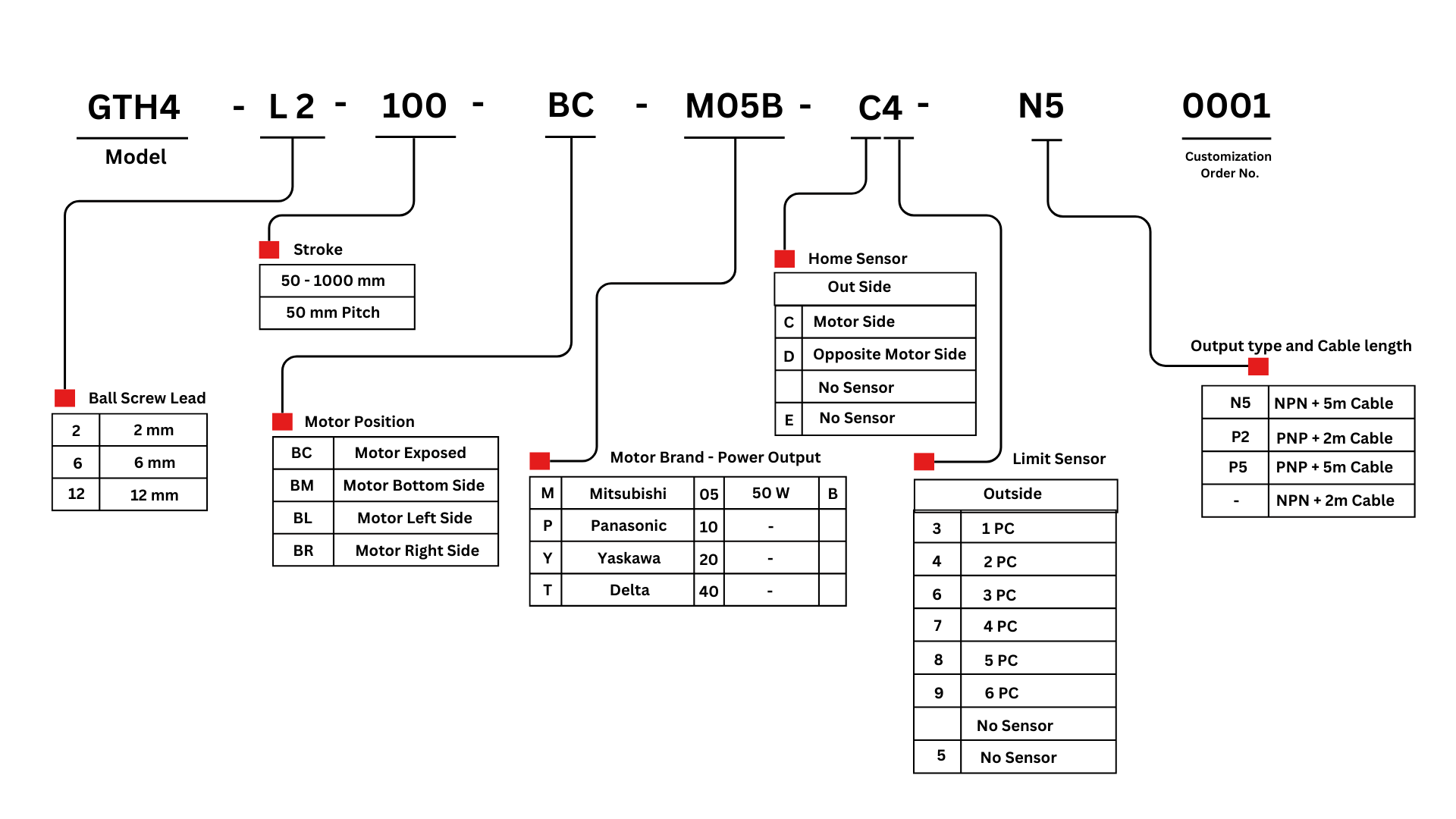

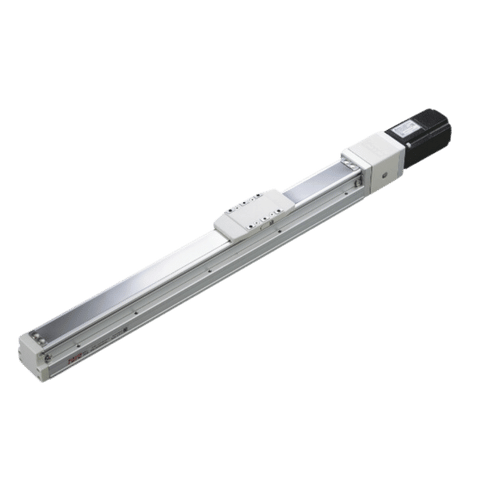

GTH4-50W series
GTH4-50W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | 6 | 12 | ||
| Maximum Rotating Speed | mm | 3000 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 360 | 720 | ||
| Maximum Payload | Horizontal | kg | 25 | 20 | 12 | |
| Vertical | kg | 8 | 5 | 2 | ||
| Rated Thurst | N | 424 | 141 | 71 | ||
| Stroke (increments) | mm | 50-1000mm/50 intervals(50mm increments) | ||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2265 | 2537 | 1740 | |
| Basic Static load rating Coa | N | 4839 | 4569 | 3052 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 4835 | |||
| Static Horizontal | N | 12678 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | Parts | AC Actuator with Motor Output | W | 50 |
| Ball Screw | mm | C7θ10 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||

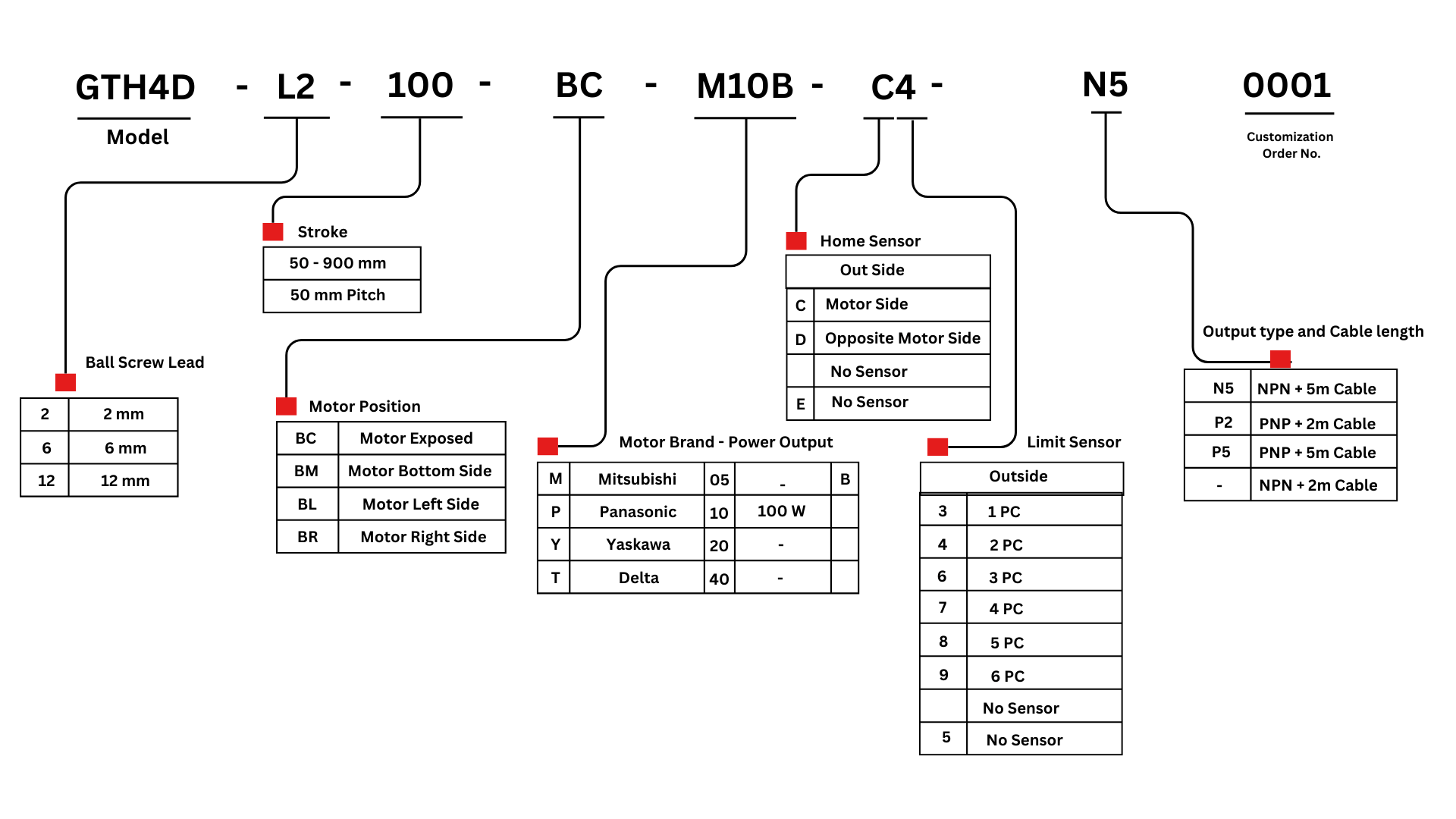

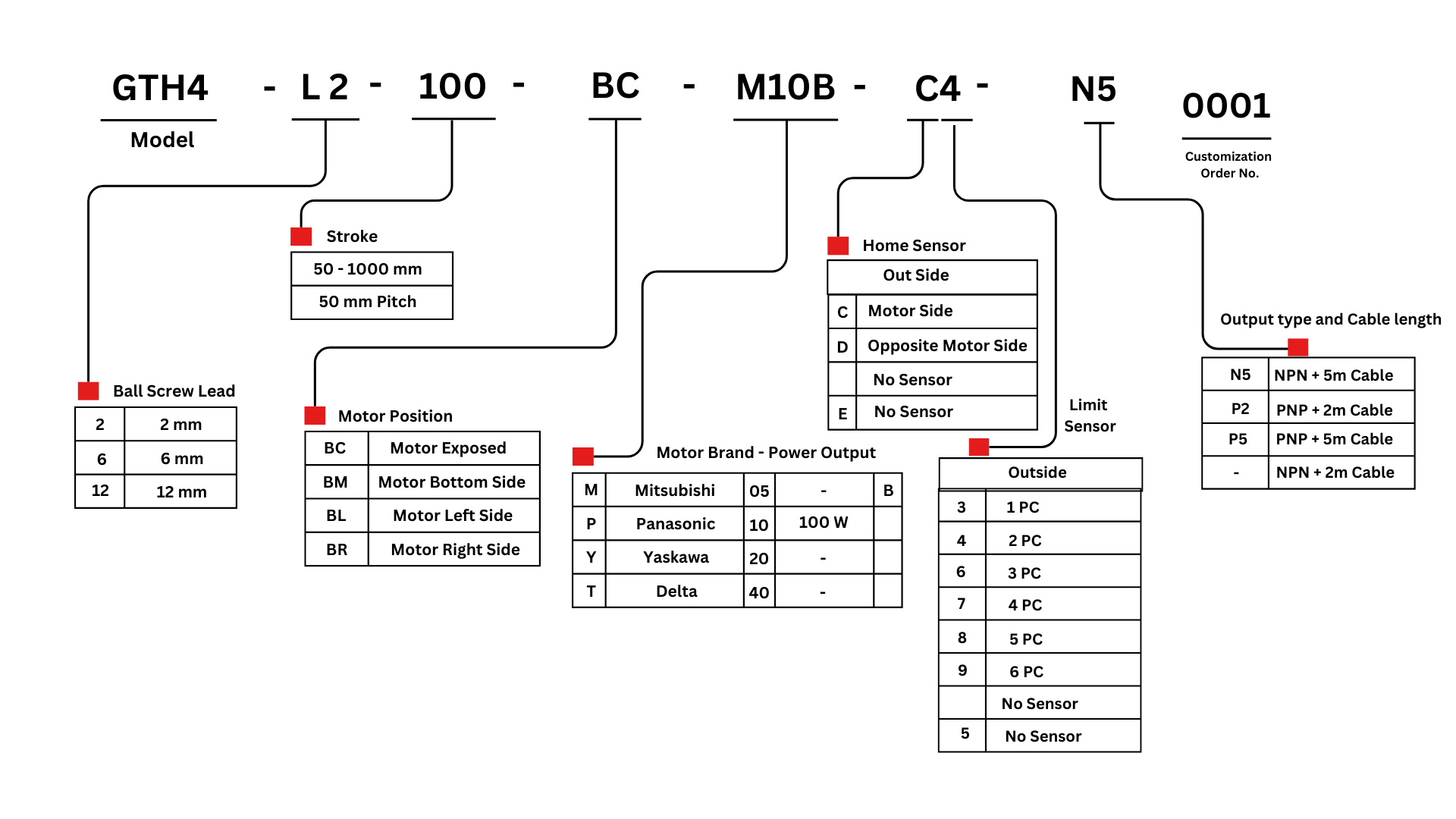

GTH4-100W series
GTH4-100W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | 6 | 12 | ||
| Maximum Rotating Speed | mm | 3000 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 360 | 720 | ||
| Maximum Payload | Horizontal | kg | 25 | 20 | 20 | |
| Vertical | kg | 8 | 8 | 3.5 | ||
| Vertical with regenerative resistor | kg | 8 | 15 | 8 | ||
| Rated Thurst | N | 854 | 285 | 142 | ||
| Stroke (increments) | mm | 50-1000mm/50 intervals(50mm increments) | ||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2265 | 2537 | 1740 | |
| Basic Static load rating Coa | N | 4839 | 4569 | 3052 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 4835 | |||
| Static Horizontal | N | 12678 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | ||||
| Parts | AC Actuator with Motor Output | W | 100 | |||
| Ball Screw | mm | C7θ10 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||

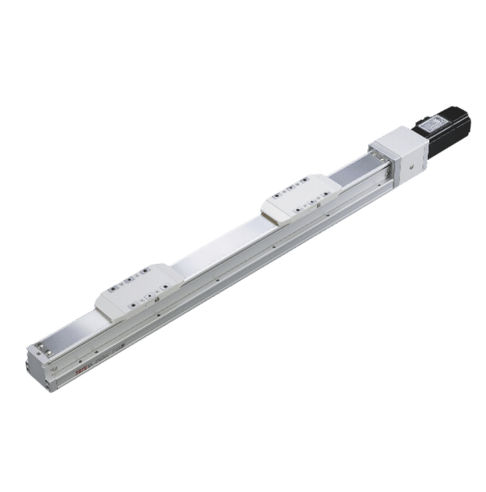

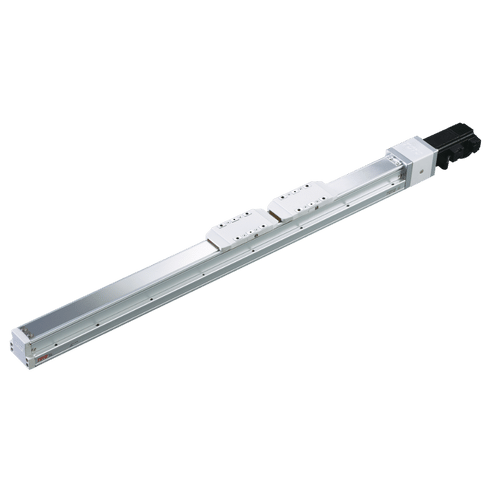

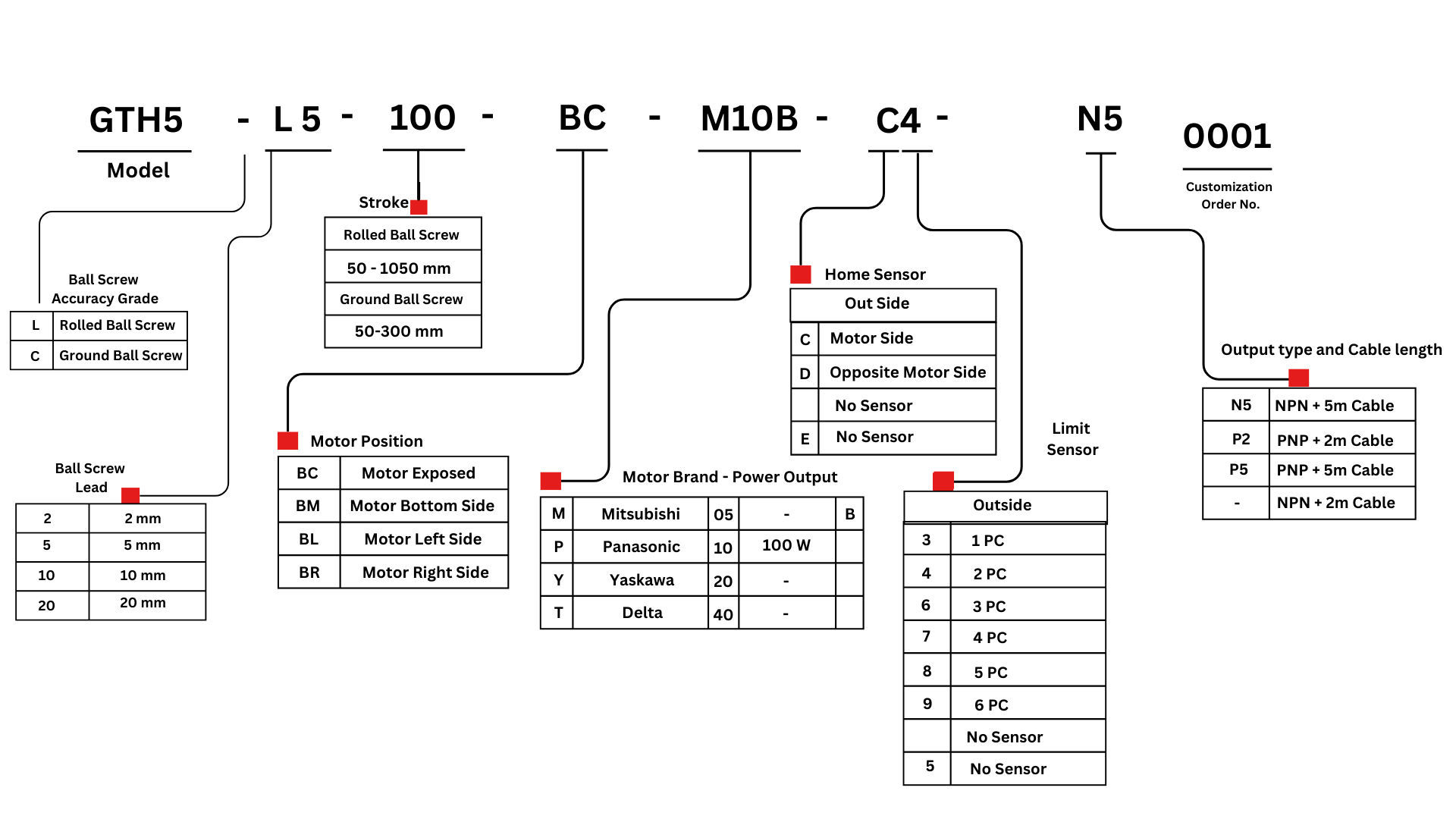

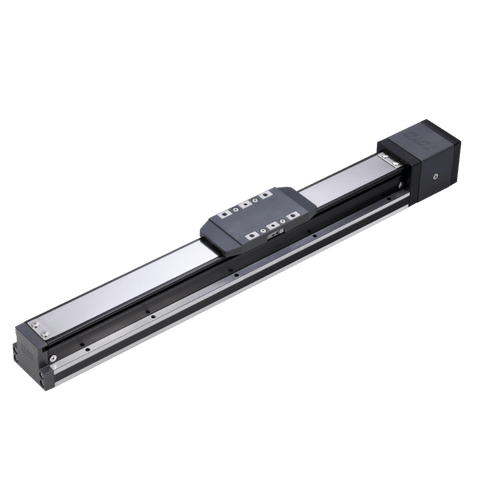

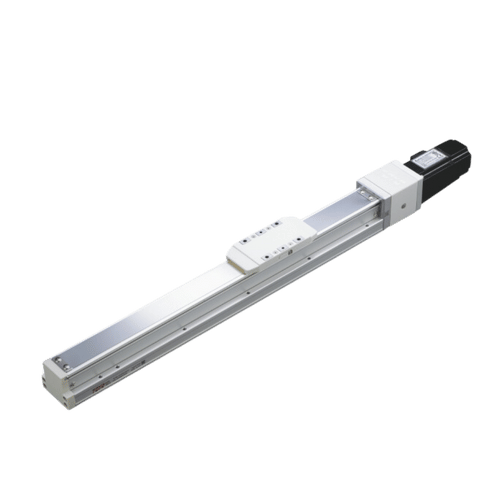

GTH5-100W series
GTH5-100W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1050mm/50 intervals(50mm increments) | 50~300mm/50 intervals(50mm increments) | ||||
| Lead | mm | 2 | 5 | 10 | 20 | ||
| Maximum Rotating Speed | rpm | 3000 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 30 | 40 | 24 | 12 | |
| Vertical | kg | 10 | 10 | 5 | 2.5 | ||
| Vertical with regenerative resistor | kg | 10 | 12 | 6 | 3 | ||
| Rated Thurst | N | 854 | 341 | 170 | 85 | ||
| Maximum Acceleration | G | 0.1 | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2411 | 4829 | 4680 | 11284 | |
| Basic Static load rating Coa | N | 5779 | 7836 | 7649 | 20410 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 5904 | ||||
| Static Horizontal | N | 16904 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | ||||
| Static load rating Cor | N | 2880 | |||||
| Parts | AC Actuator with Motor Output | W | 100 | ||||
| Ball Screw | mm | θ12 | |||||
| Coupling | mm | 7X8 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||

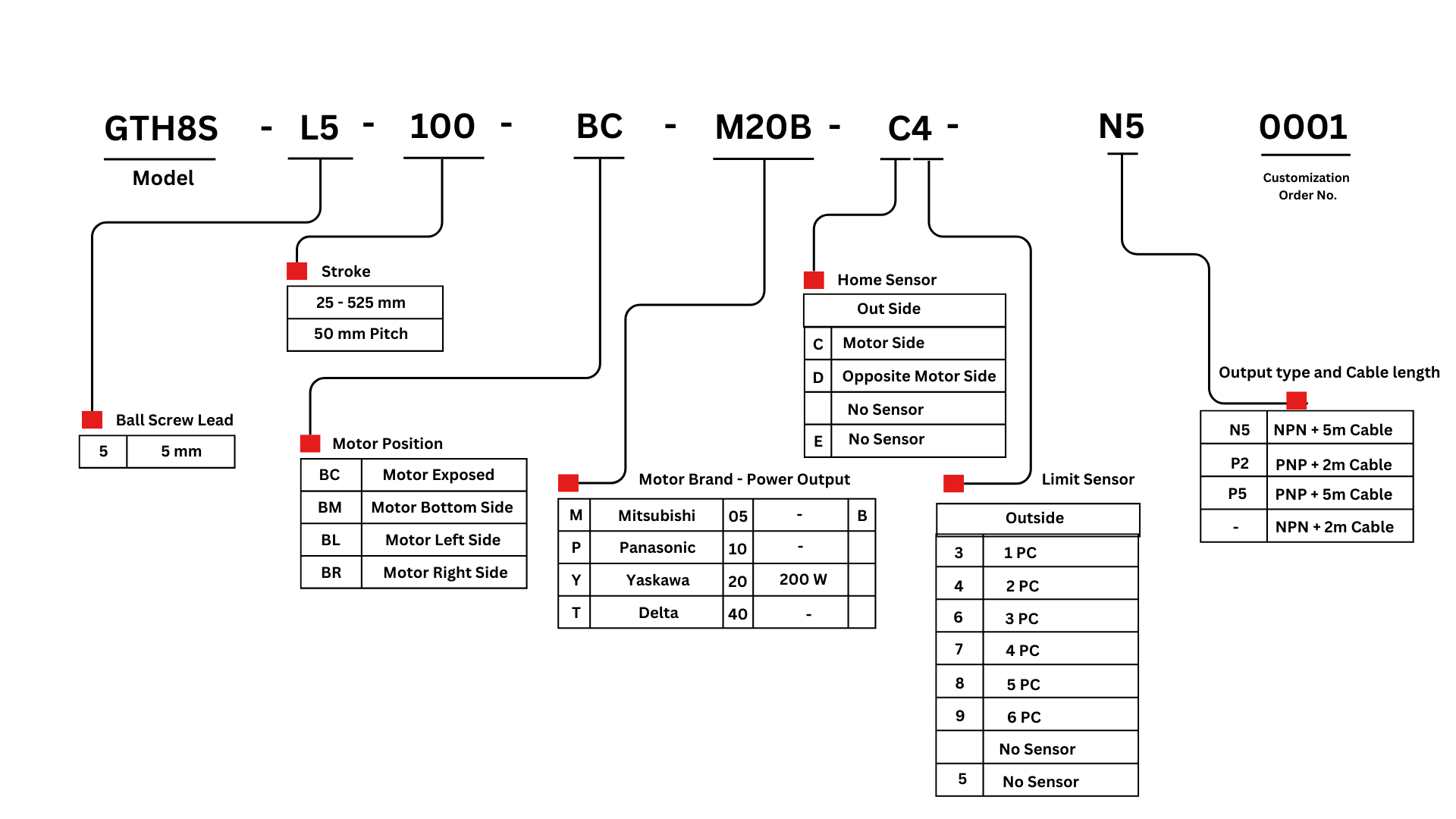

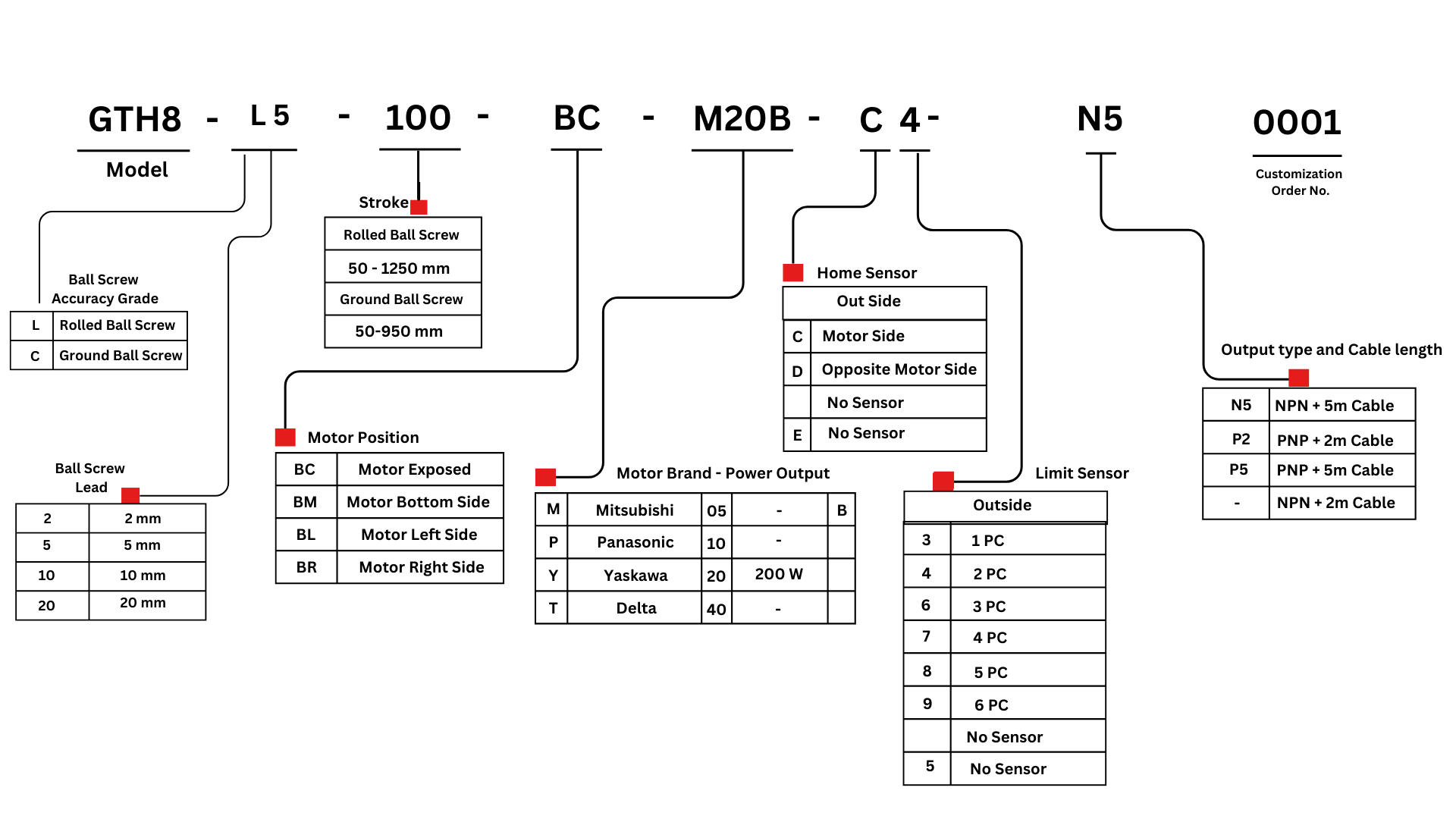

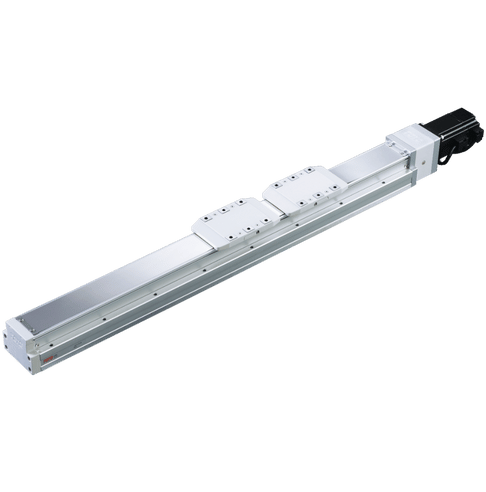

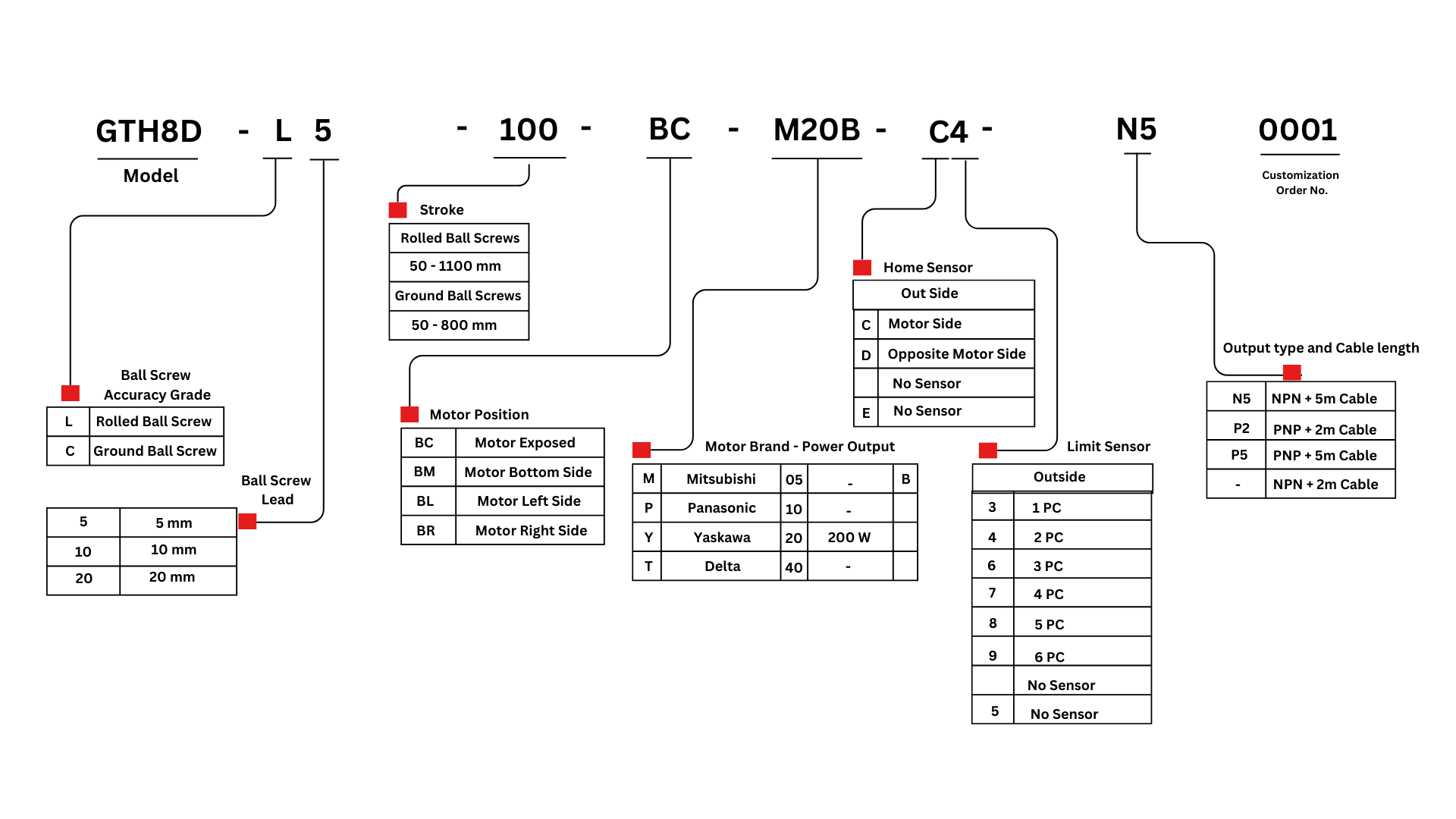

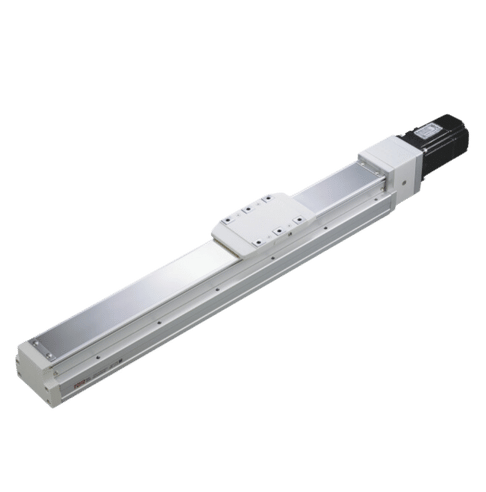

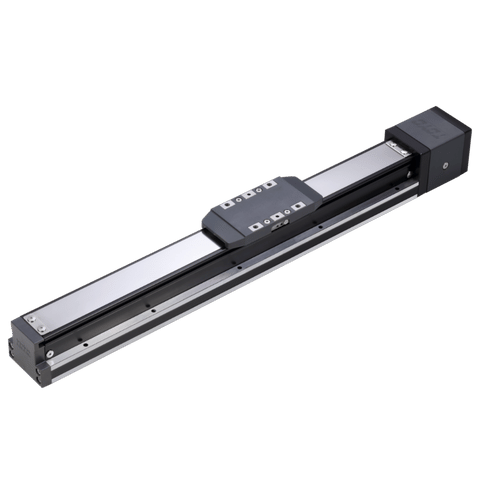

GTH8-200W series
GTH8-200W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1250mm/50 intervals(50mm increments) | 50~950mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | |
|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 100 | 80 | 40 | |
| Vertical | kg | 15 | 8 | 3 | ||
| Vertical with regenerative resistor | kg | 30 | 20 | 8 | ||
| Rated Thurst | N | 683 | 341 | 174 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | 6300 | 4152 | |
| Basic Static load rating Coa | N | 15088 | 11596 | 7439 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 18620 | |||
| Static Horizontal | N | 34230 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | |||
| Static load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 200 | |||
| Ball Screw | mm | θ16 | ||||
| Coupling | mm | 10X14/11 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||

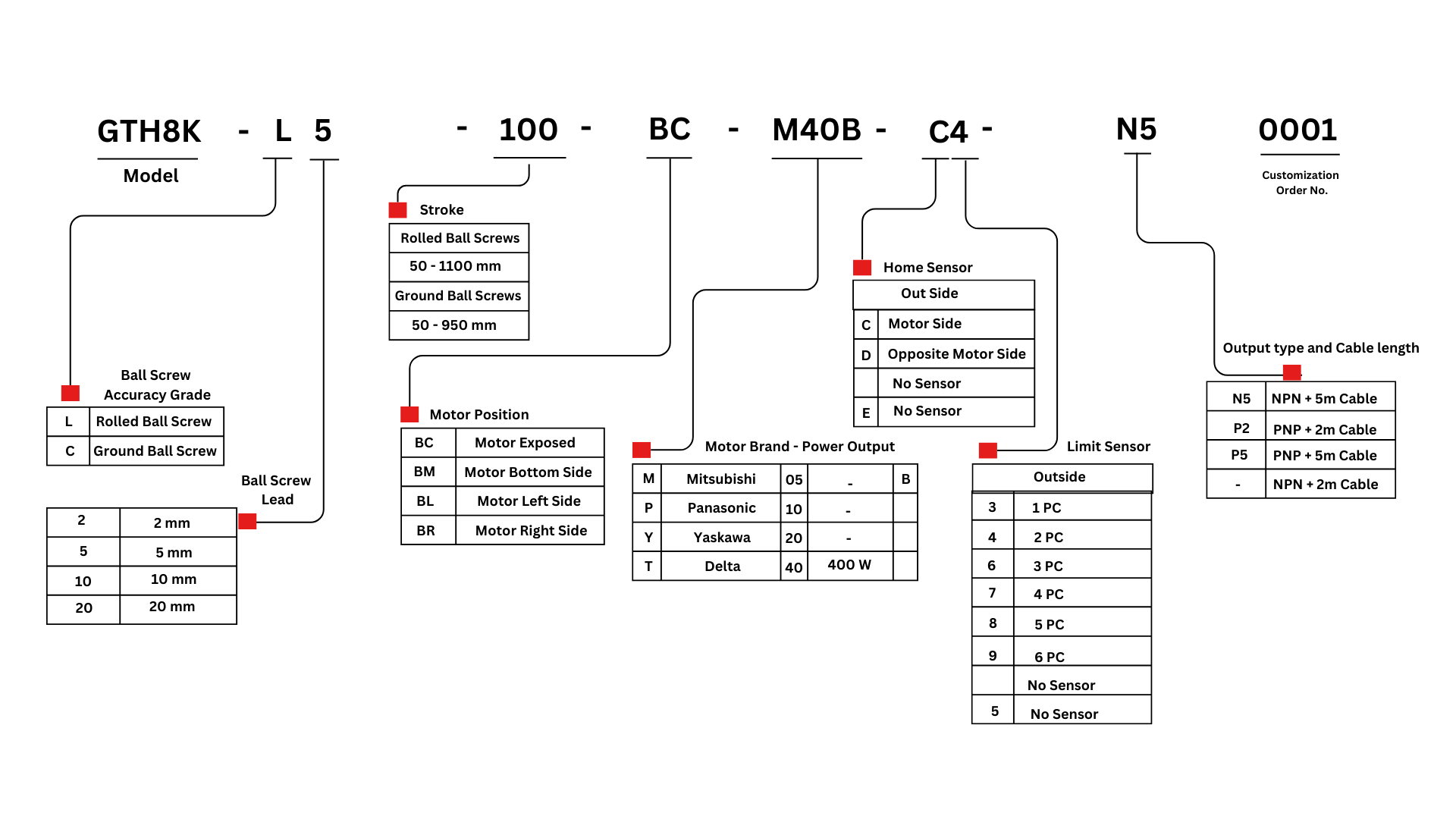

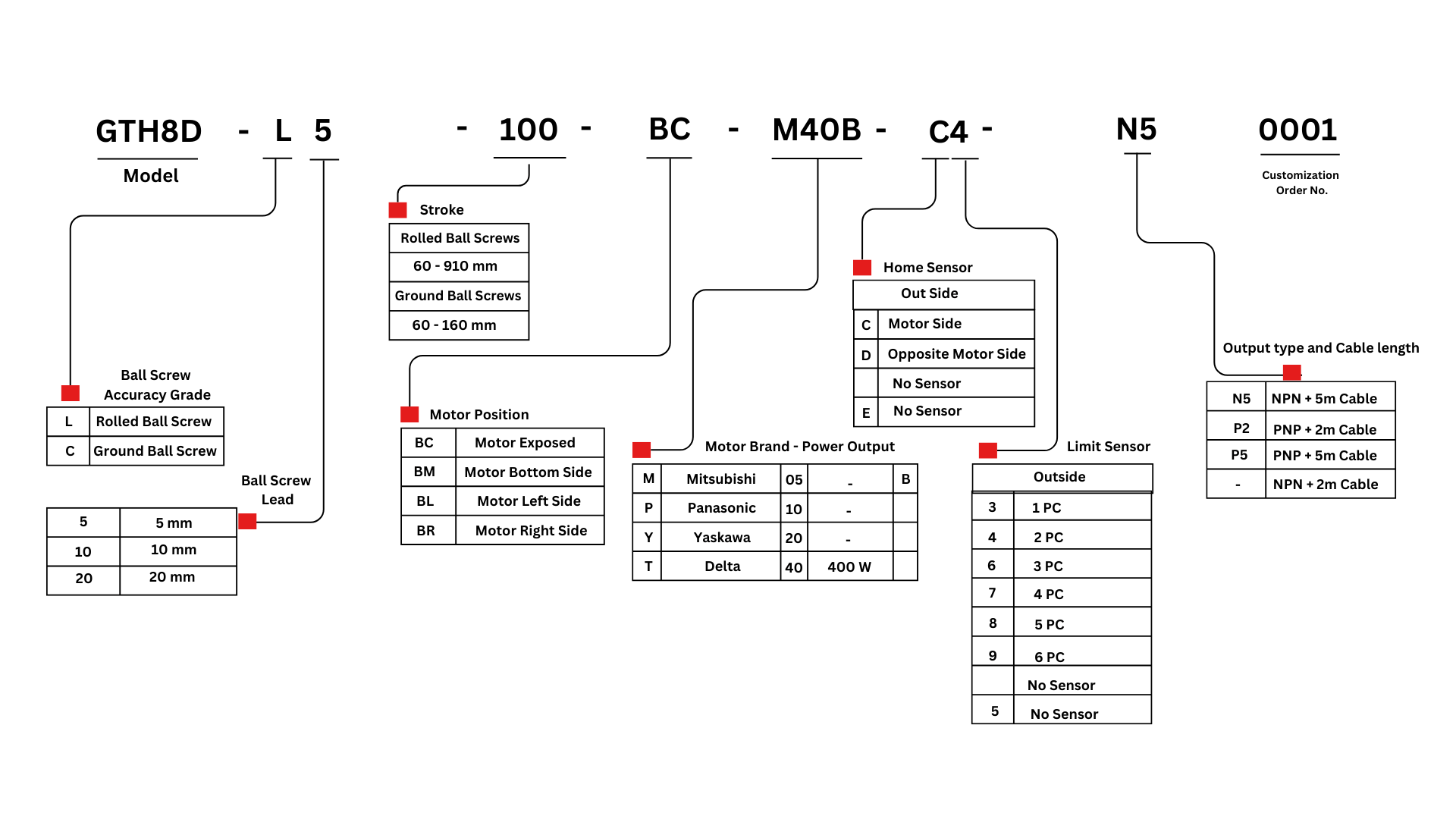

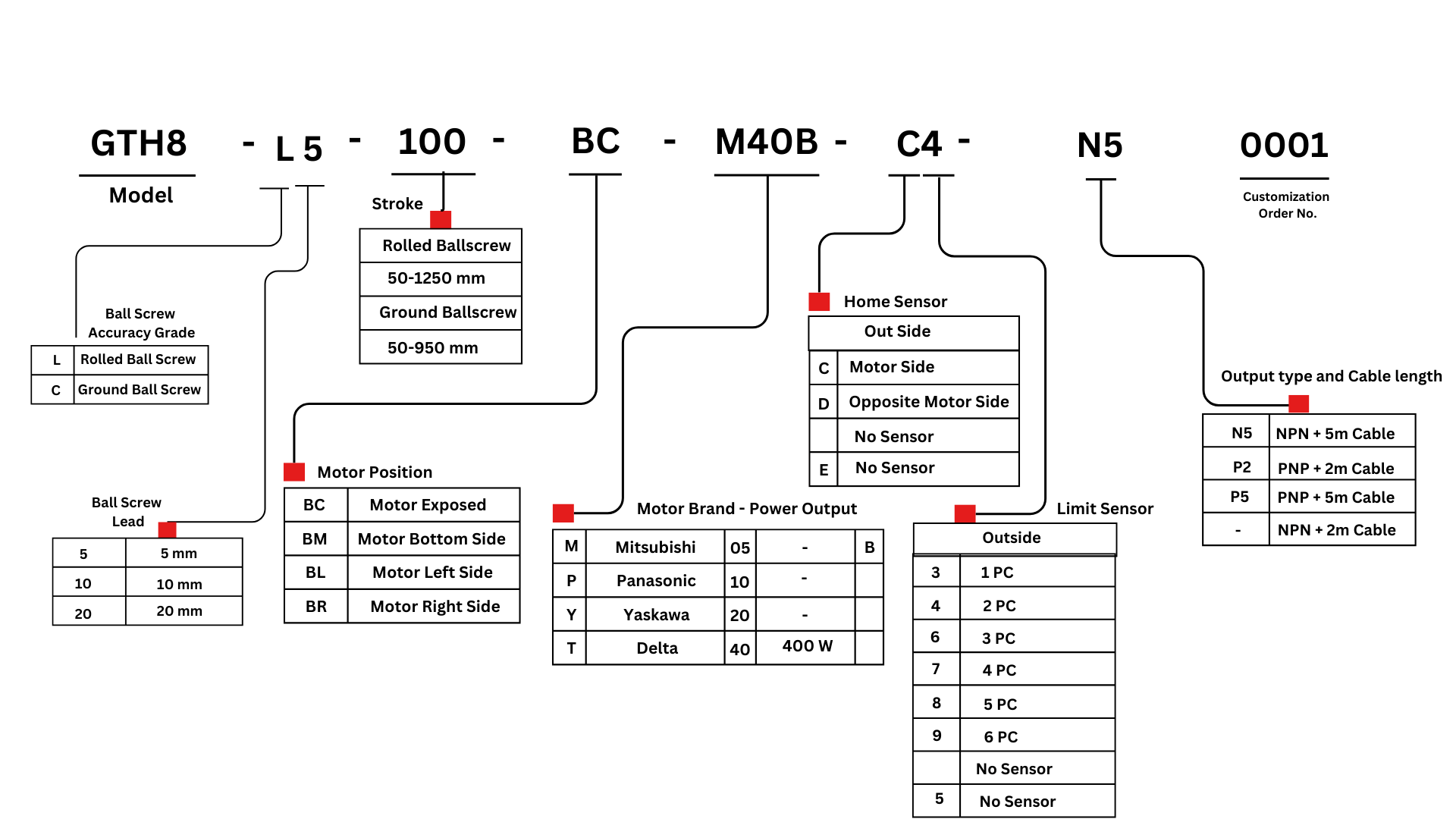

GTH8-400W series
GTH8-400W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1250mm/50 intervals(50mm increments) | 50~950mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | |
|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | |
| Vertical | kg | 33 | 21 | 8 | ||
| Vertical with regenerative resistor | kg | 30 | 30 | 15 | ||
| Rated Thurst | N | 1388 | 694 | 347 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | 6300 | 4152 | |
| Basic Static load rating Coa | N | 15088 | 11596 | 7439 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 18620 | |||
| Static Horizontal | N | 34230 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | |||
| Static load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 400 | |||
| Ball Screw | mm | θ16 | ||||
| Coupling | mm | 10X14 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||

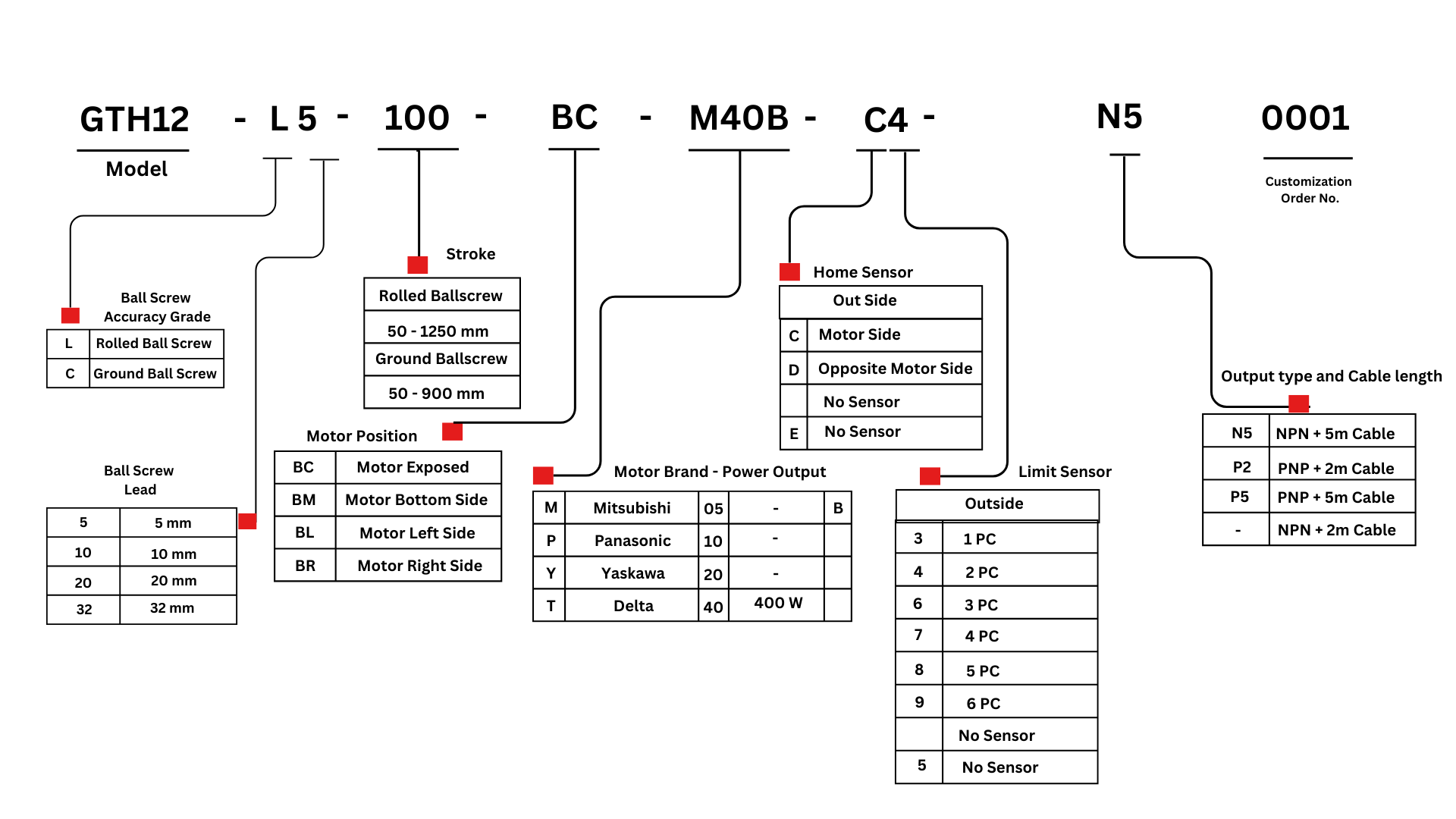

GTH12-400W series
GTH12-400W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1250mm/50 intervals(50mm increments) | 50~900mm/50 intervals(50mm increments) | ||||
| Lead | mm | 5 | 10 | 20 | 32 | ||
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | 1920 | ||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | 30 | |
| Vertical | kg | 33 | 22 | 10 | 8 | ||
| Rated Thurst | N | 1388 | 694 | 347 | 218 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 11570 | 6300 | 4152 | 7326 | |
| Basic Static load rating Coa | N | 23030 | 11596 | 7439 | 14157 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 51128 | ||||
| Static Horizontal | N | 84518 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | ||||
| Static load rating Cor | N | 5060 | |||||
| Parts | AC Actuator with Motor Output | W | 400 | ||||
| Ball Screw | mm | θ16 | |||||
| Coupling | mm | 10X14 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||

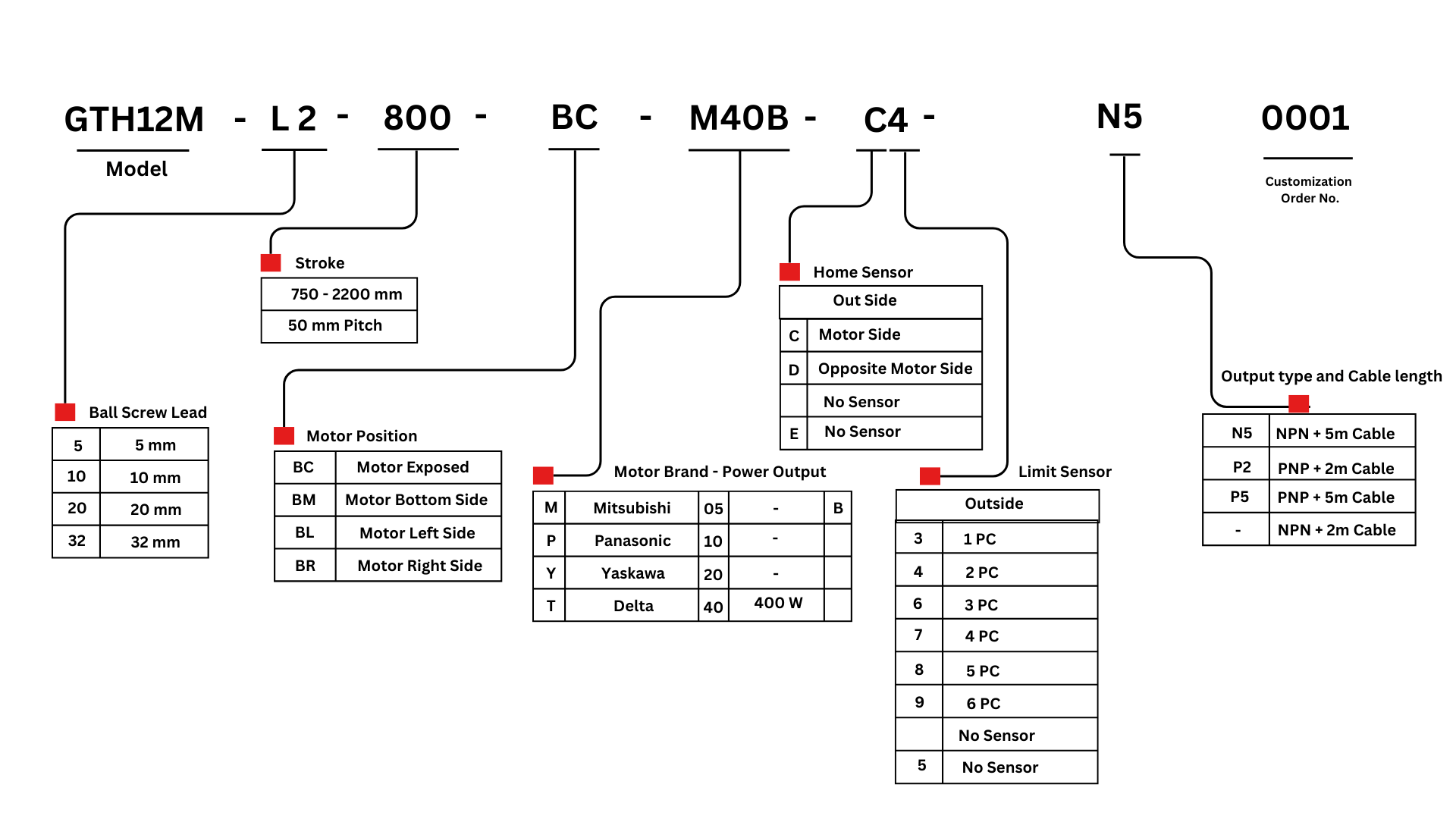

GTH12M-400W series
GTH12M-400W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | ||||
|---|---|---|---|---|---|---|---|
| Lead | mm | 5 | 10 | 20 | 32 | ||
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | 1920 | ||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | 30 | |
| Vertical | kg | 33 | 22 | 10 | 8 | ||
| Rated Thurst | N | 33 | 22 | 10 | 8 | ||
| Stroke (increments) | mm | 750-2200mm/50 intervals(50mm increments) | |||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 11570 | 6300 | 4152 | 7326 | |
| Basic Static load rating Coa | N | 23023 | 11596 | 7439 | 14157 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 51128 | ||||
| Static Horizontal | N | 84518 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | ||||
| Static load rating Cor | N | 5060 | Parts | AC Actuator with Motor Output | W | 400 | |
| Ball Screw | mm | C7θ16 | |||||
| Coupling | mm | 10X14 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||

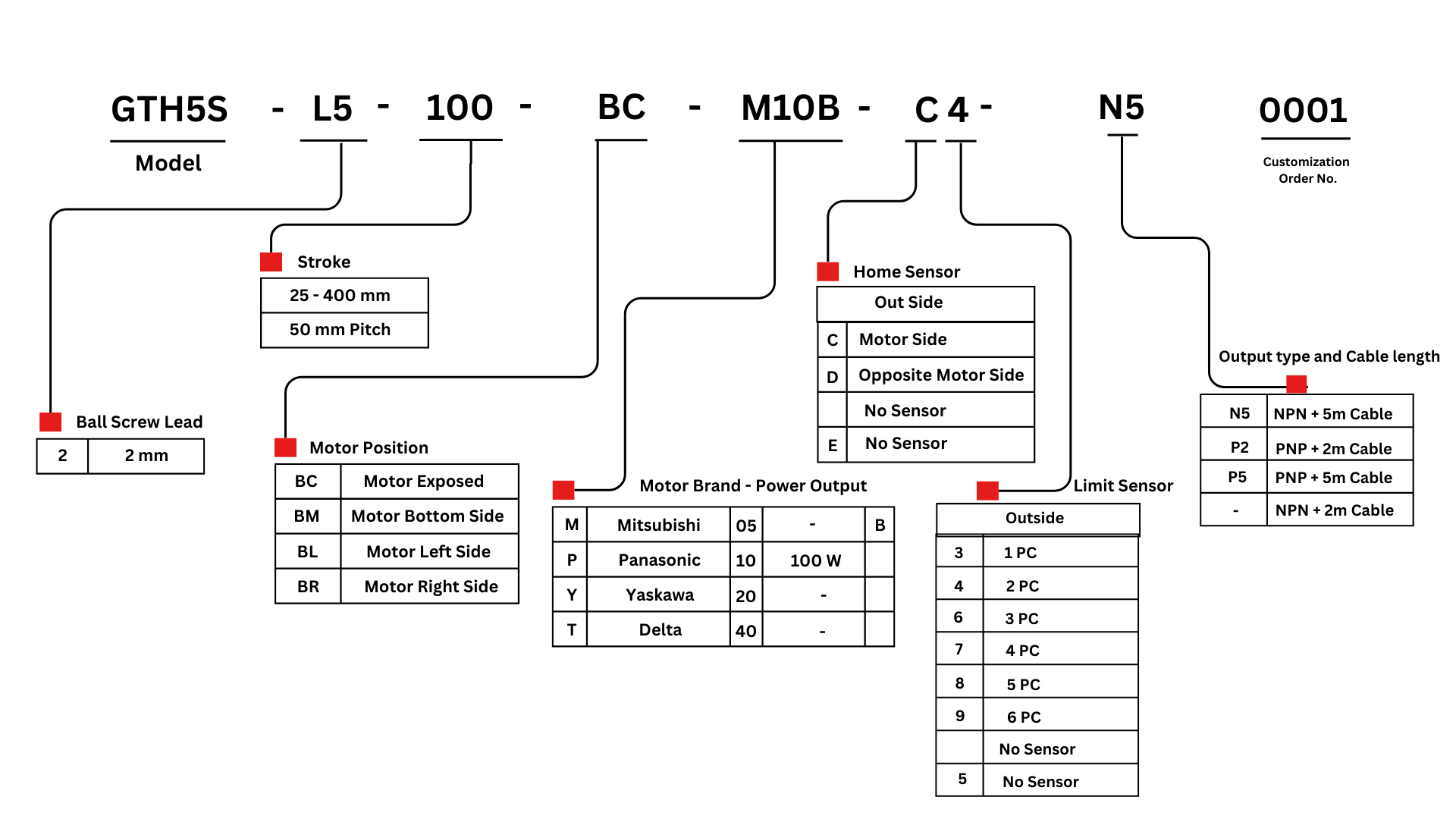

GTH5S series
GTH5S series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | ||||
| Maximum Rotating Speed | rpm | 3000 | ||||
| Maximum Linear Speed | mm/s | 100 | ||||
| Maximum Payload | Horizontal | kg | 30 (Dual Carriage) | |||
| Vertical | kg | 10 (Dual Carriage) | ||||
| Vertical with regenerative resistor | Kg | 12 (Dual Carriage) | ||||
| Rated Thurst | N | 854 | ||||
| Stroke (increments) | mm | 25-400mm/25 intervals(25mm increments) | ||||
| Maximum Acceleration | G | 0.1 | ||||
| Ball Screw | Basic Dynamic load rating Ca | N | 2411 | |||
| Basic Static load rating Coa | N | 5779 | ||||
| Linear Guide | Dynamic Horizontal(100km) | N | 5904 | |||
| Static Horizontal | N | 16904 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | ||||
| Parts | AC Actuator with Motor Output | W | 100 | |||
| Ball Screw | mm | C7θ12 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||

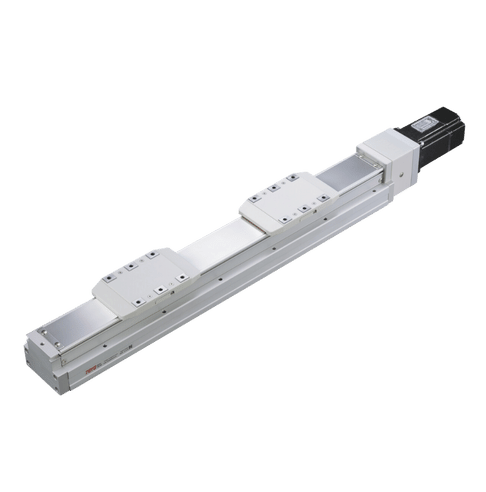

GTH8S-200W series
GTH8S-200W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 5 | ||||
| Maximum Rotating Speed | rpm | 3600 | ||||
| Maximum Linear Speed | mm/s | 300 | ||||
| Maximum Payload | Horizontal | kg | 100 (Dual Carriage) | |||
| Vertical | kg | 15 (Dual Carriage) | ||||
| Vertical with regenerative resistor | Kg | 30 (Dual Carriage) | ||||
| Rated Thurst | N | 683 | ||||
| Stroke (increments) | mm | 25-525mm/25 intervals(25mm increments) | ||||
| Maximum Acceleration | G | 0.3 | ||||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | |||
| Basic Static load rating Coa | N | 15088 | ||||
| Linear Guide | Dynamic Horizontal(100km) | N | 18620 | |||
| Static Horizontal | N | 34230 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | |||
| Static load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 200 | |||
| Ball Screw | mm | C7θ16 | ||||
| Coupling | mm | 10X14/11 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
GTH8S-400W series
GTH8S-400W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 5 | ||||
| Maximum Rotating Speed | rpm | 3600 | ||||
| Maximum Linear Speed | mm/s | 300 | ||||
| Maximum Payload | Horizontal | kg | 110 (Dual Carriage) | |||
| Vertical | kg | 33 (Dual Carriage) | ||||
| Vertical with regenerative resistor | Kg | 33 (Dual Carriage) | ||||
| Rated Thurst | N | 1388 | ||||
| Stroke (increments) | mm | 25-525 mm/25 intervals(25mm increments) | ||||
| Maximum Acceleration | G | 0.3 | ||||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | |||
| Basic Static load rating Coa | N | 15088 | ||||
| Linear Guide | Dynamic Horizontal(100km) | N | 18620 | |||
| Static Horizontal | N | 34230 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | |||
| Static load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 400 | |||
| Ball Screw | mm | C7θ16 | ||||
| Coupling | mm | 10X14 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
GTH4D series
GTH4D-50W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | 6 | 12 | ||
| Maximum Rotating Speed | rpm | 3000 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 360 | 720 | ||
| Maximum Payload | Horizontal | kg | 25 | 20 | 12 | |
| Vertical | kg | 8 | 5 | 2 | ||
| Rated Thurst | N | 424 | 141 | 71 | ||
| Stroke (increments) | mm | 50-900mm/25 intervals(50mm increments) | ||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2265 | 2537 | 1740 | |
| Basic Static load rating Coa | N | 4839 | 4569 | 3052 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 11179 | |||
| Static Horizontal | N | 20538 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | ||||
| Parts | AC Actuator with Motor Output | W | 50 | |||
| Ball Screw | mm | C7θ10 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
GTH4D series
GTH4D-100W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | 6 | 12 | ||
| Maximum Rotating Speed | rpm | 3000 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 360 | 720 | ||
| Maximum Payload | Horizontal | kg | 25 | 20 | 20 | |
| Vertical | kg | 8 | 8 | 3.5 | Vertical with regenerative resistor | kg | 8 | 15 | 8 |
| Rated Thurst | N | 854 | 285 | 142 | ||
| Stroke (increments) | mm | 50-900mm/50 intervals(50mm increments) | ||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2265 | 2537 | 1740 | |
| Basic Static load rating Coa | N | 4839 | 4569 | 3052 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 11179 | |||
| Static Horizontal | N | 20538 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | ||||
| Parts | AC Actuator with Motor Output | W | 100 | |||
| Ball Screw | mm | C7θ10 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
GTH5D series
GTH5D-100W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 60~910mm/50 intervals(50mm increments) | 60~160mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 2 | 5 | 10 | 20 | |
|---|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3000 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 30 | 40 | 24 | 12 | |
| Vertical | kg | 10 | 10 | 5 | 2.5 | ||
| Vertical with regenerative resistor | kg | 10 | 12 | 6 | 3 | ||
| Rated Thurst | N | 854 | 341 | 170 | 85 | ||
| Maximum Acceleration | G | 0.1 | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2411 | 4829 | 4680 | 11284 | |
| Basic Static load rating Coa | N | 5779 | 7836 | 7649 | 20410 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 13661 | ||||
| Static Horizontal | N | 27384 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | ||||
| Static load rating Cor | N | 2880 | |||||
| Parts | AC Actuator with Motor Output | W | 100 | ||||
| Ball Screw | mm | θ12 | |||||
| Coupling | mm | 7X8 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||
GTH8D series
GTH8D-200W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1100mm/50 intervals(50mm increments) | 50~800mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | ||
|---|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | |||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | |||
| Maximum Payload | Horizontal | kg | 100 | 80 | 40 | ||
| Vertical | kg | 15 | 8 | 3 | |||
| Vertical with regenerative resistor | kg | 30 | 20 | 8 | |||
| Rated Thurst | N | 683 | 341 | 174 | |||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | |||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | 6300 | 4152 | ||
| Basic Static load rating Coa | N | 15088 | 11596 | 7439 | |||
| Linear Guide | Dynamic Horizontal(100km) | N | 30164 | ||||
| Static Horizontal | N | 34230 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | ||||
| Static load rating Cor | N | 5060 | |||||
| Parts | AC Actuator with Motor Output | W | 200 | ||||
| Ball Screw | mm | θ16 | |||||
| Coupling | mm | 10X14/11 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||
GTH8D series
GTH8D-400W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1100mm/50 intervals(50mm increments) | 50~800mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | ||
|---|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | |||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | |||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | ||
| Vertical | kg | 33 | 21 | 8 | |||
| Vertical with regenerative resistor | kg | 33 | 30 | 15 | |||
| Rated Thurst | N | 1388 | 694 | 347 | |||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | |||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | 6300 | 4152 | ||
| Basic Static load rating Coa | N | 15088 | 11596 | 7439 | |||
| Linear Guide | Dynamic Horizontal(100km) | N | 30164 | ||||
| Static Horizontal | N | 34230 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | ||||
| Static load rating Cor | N | 5060 | |||||
| Parts | AC Actuator with Motor Output | W | 400 | ||||
| Ball Screw | mm | θ16 | |||||
| Coupling | mm | 10X14 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||
GTH12D series
GTH12D-400W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 40~1040mm/50 intervals(50mm increments) | 40~690mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | 32 | |
|---|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | 1920 | ||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | 30 | |
| Vertical | kg | 33 | 22 | 10 | 8 | ||
| Rated Thurst | N | 1388 | 694 | 347 | 218 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 11570 | 6300 | 4152 | 7326 | |
| Basic Static load rating Coa | N | 23030 | 11596 | 7439 | 14157 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 89593 | ||||
| Static Horizontal | N | 154034 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | ||||
| Static load rating Cor | N | 5060 | |||||
| Parts | AC Actuator with Motor Output | W | 400 | ||||
| Ball Screw | mm | θ16 | |||||
| Coupling | mm | 10X14 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||
GTH3K series
GTH3K-30W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | ||||
|---|---|---|---|---|---|---|---|
| Lead | mm | 2 | 8 | ||||
| Maximum Rotating Speed | rpm | 3000 | 3600 | ||||
| Maximum Linear Speed | mm/s | 100 | 480 | ||||
| Maximum Payload | Horizontal | kg | 13 | 10 | |||
| Vertical | kg | 5 | 2 | ||||
| Rated Thurst | N | 352 | 88 | ||||
| Stroke (increments) | mm | 50~300 mm/50 intervals(50mm increments) | |||||
| Maximum Acceleration | G | 0.3 | 0.3 | ||||
| Ball Screw | Basic Dynamic load rating Ca | N | 1811 | 862 | |||
| Basic Static load rating Coa | N | 2774 | 1099 | ||||
| Linear Guide | Dynamic Horizontal(100km) | N | 3144 | ||||
| Static Horizontal | N | 6707 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 2819 | ||||
| Static load rating Cor | N | 1342 | |||||
| Parts | AC Actuator with Motor Output | W | 30 | ||||
| Ball Screw | mm | C7θ6 | |||||
| Coupling | mm | 4X5 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||

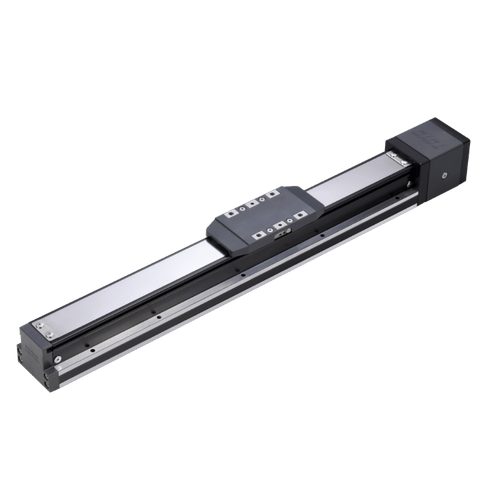

GTH4K series

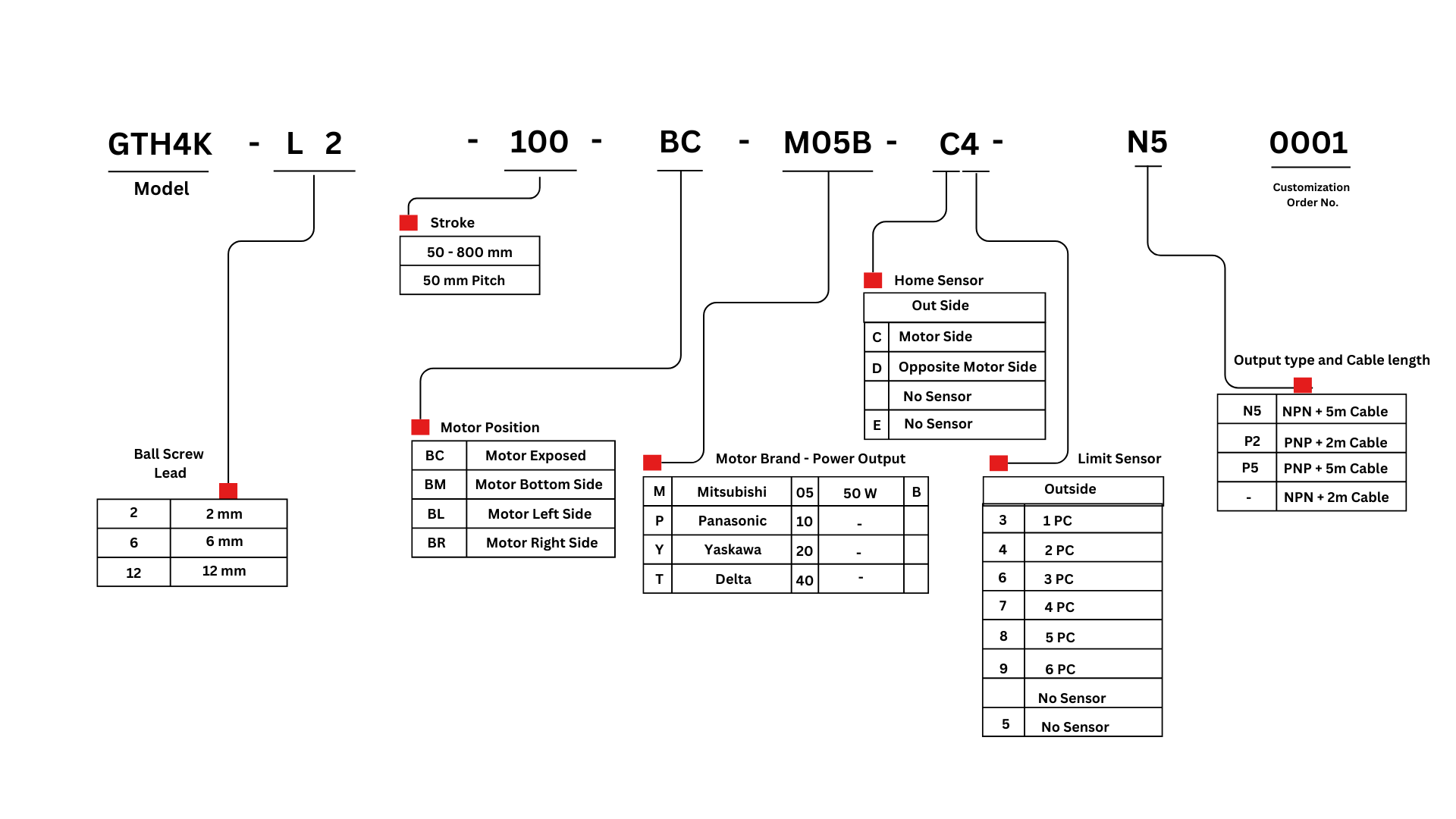

GTH4K-50W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | 6 | 12 | ||
| Maximum Rotating Speed | rpm | 3000 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 360 | 720 | ||
| Maximum Payload | Horizontal | kg | 25 | 20 | 12 | |
| Vertical | kg | 8 | 5 | 2 | ||
| Rated Thurst | N | 424 | 141 | 71 | ||
| Stroke (increments) | mm | 50~800 mm/50 intervals(50mm increments) | ||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2265 | 2537 | 1740 | |
| Basic Static load rating Coa | N | 4839 | 4569 | 3052 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 4835 | |||
| Static Horizontal | N | 12678 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | ||||
| Parts | AC Actuator with Motor Output | W | 50 | |||
| Ball Screw | mm | C7θ10 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
GTH4K series
GTH4K-100W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | Repeatability | mm | ±0.005 | |||
|---|---|---|---|---|---|---|
| Lead | mm | 2 | 6 | 12 | ||
| Maximum Rotating Speed | rpm | 3000 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 360 | 720 | ||
| Maximum Payload | Horizontal | kg | 25 | 20 | 20 | |
| Vertical | kg | 8 | 8 | 3.5 | ||
| Vertical with regenerative resistor | kg | 8 | 15 | 8 | ||
| Rated Thurst | N | 854 | 285 | 142 | ||
| Stroke (increments) | mm | 50~800 mm/50 intervals(50mm increments) | ||||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2265 | 2537 | 1740 | |
| Basic Static load rating Coa | N | 4839 | 4569 | 3052 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 4835 | |||
| Static Horizontal | N | 12678 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | |||
| Static load rating Cor | N | 2880 | ||||
| Parts | AC Actuator with Motor Output | W | 100 | |||
| Ball Screw | mm | C7θ10 | ||||
| Coupling | mm | 7X8 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
GTH5K series
GTH5K-100W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~800mm/50 intervals(50mm increments) | 50~300mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 2 | 5 | 10 | 20 | |
|---|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3000 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 100 | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | 30 | |
| Vertical | kg | 30 | 40 | 24 | 12 | ||
| Vertical with regenerative resistor | kg | 10 | 12 | 6 | 3 | ||
| Rated Thurst | N | 854 | 341 | 170 | 85 | ||
| Maximum Acceleration | G | 0.1 | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 2411 | 4829 | 4680 | 11284 | |
| Basic Static load rating Coa | N | 5779 | 7836 | 7649 | 20410 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 5904 | ||||
| Static Horizontal | N | 16904 | |||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 5361 | ||||
| Static load rating Cor | N | 2880 | |||||
| Parts | AC Actuator with Motor Output | W | 100 | ||||
| Ball Screw | mm | θ12 | |||||
| Coupling | mm | 7X8 | |||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | |||||
GHT8K series
GTH8K-200W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1100mm/50 intervals(50mm increments) | 50~950mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | |
|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 100 | 80 | 40 | |
| Vertical | kg | 15 | 8 | 3 | ||
| Vertical with regenerative resistor | kg | 30 | 20 | 8 | ||
| Rated Thurst | N | 683 | 341 | 174 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | 6300 | 4152 | |
| Basic Static load rating Coa | N | 15088 | 11596 | 7439 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 18620 | |||
| Static Horizontal | N | 34230 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | |||
| Static load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 200 | |||
| Ball Screw | mm | θ16 | ||||
| Coupling | mm | 10X14/11 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
GTH8K series
GTH8K-400W series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Additional Keyway for motor drive parts | |||
|---|---|---|---|
| Code | Instructions | ||
| Keyway Groove | Motor position | Shipment type | |
| CMK | Single limited to the motor side | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKY | Double | BC | Keyway Coupling |
| BL/BR/BM | Keyway Belt pulley | ||
| SKN | Double | BC | Without Coupling |
| BL/BR/BM | Without Belt pulley | ||
| Performance | BallScrew Accuracy Grade Code | L | C | ||||
|---|---|---|---|---|---|---|---|
| BallScrew Accuracy Grade | C7 Rolled Ballscrew | C5 Ground Ballscrew | |||||
| Repeatability | mm | ±0.005 | ±0.003 | ||||
| Stroke (increments) | mm | 50~1100mm/50 intervals(50mm increments) | 50~950mm/50 intervals(50mm increments) | ||||
| Performance | Lead | mm | 5 | 10 | 20 | |
|---|---|---|---|---|---|---|
| Maximum Rotating Speed | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | kg | 110 | 88 | 40 | |
| Vertical | kg | 33 | 21 | 8 | ||
| Vertical with regenerative resistor | kg | 33 | 30 | 15 | ||
| Rated Thurst | N | 1388 | 694 | 347 | ||
| Maximum Acceleration | G | 0.3 | 0.3 | 0.6 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 8042 | 6300 | 4152 | |
| Basic Static load rating Coa | N | 15088 | 11596 | 7439 | ||
| Linear Guide | Dynamic Horizontal(100km) | N | 18620 | |||
| Static Horizontal | N | 34230 | ||||
| Fixed Bearing | Basic Dynamic load rating Cr | N | 8447 | |||
| Static load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 400 | |||
| Ball Screw | mm | θ16 | ||||
| Coupling | mm | 10X14 | ||||
| Home Sensor | Outside | T64N2(NPN+2M Cable) | ||||
