Belt Type Linear Actuator

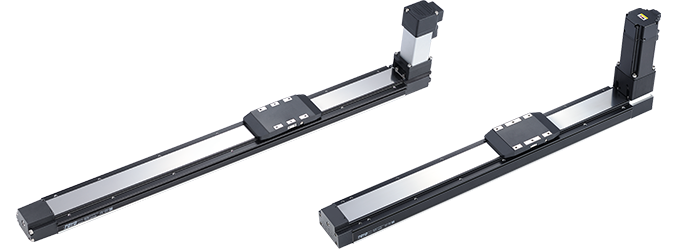

GLTB series also called economical series for low profile applications. GLTB belt-type actuators provide efficient and precise linear motion for a wide range of industrial and commercial applications, offering advantages such as smooth operation, low maintenance, and cost-effectiveness. Understanding the principles of operation and considering key factors can help in selecting the right belt-type actuator for specific requirements.
Features
- Economical series for low profile applications.
- Maximum stroke 3000 mm
- Stepper or Actuator with Motor can be used
- Compact structure design resulting in lower cost and time saving
- Providing +/- 0.04 mm of repeatability
Applications
Tape Cutting Device, Parts shifting between CNC machine, Printer, Adhesive dispenser, Conveyor line
Industries
Solar Energy, TFT Display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining

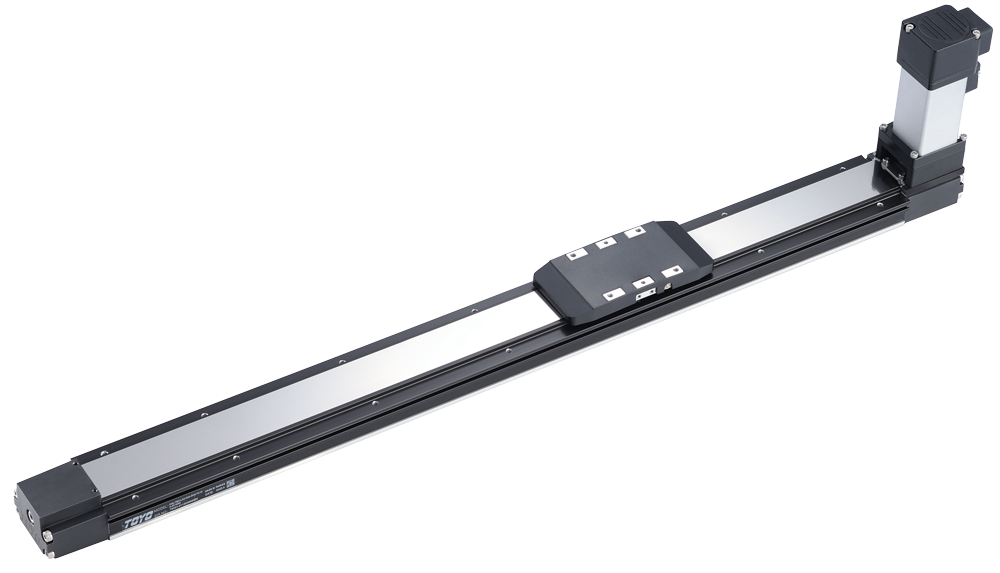

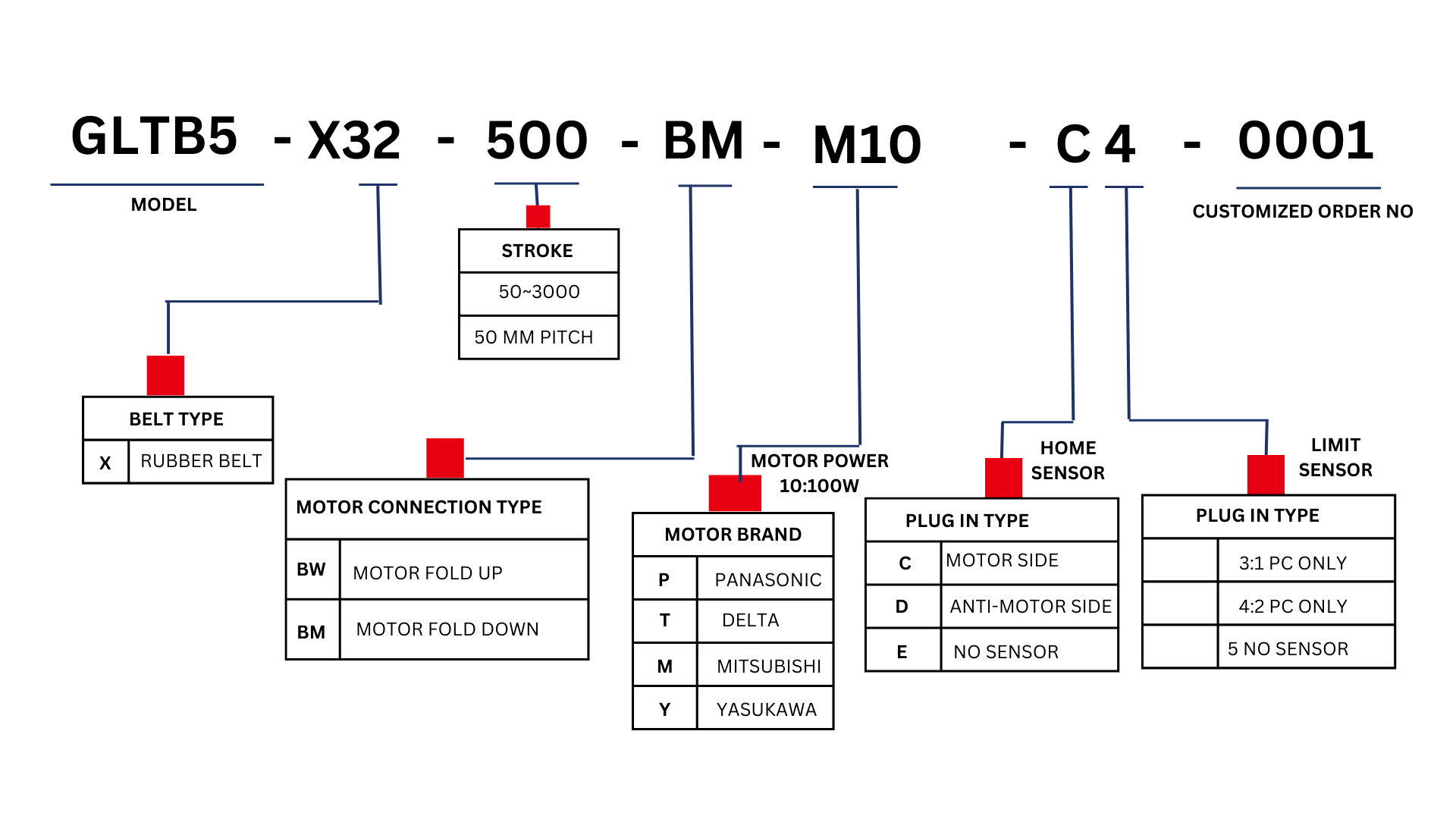

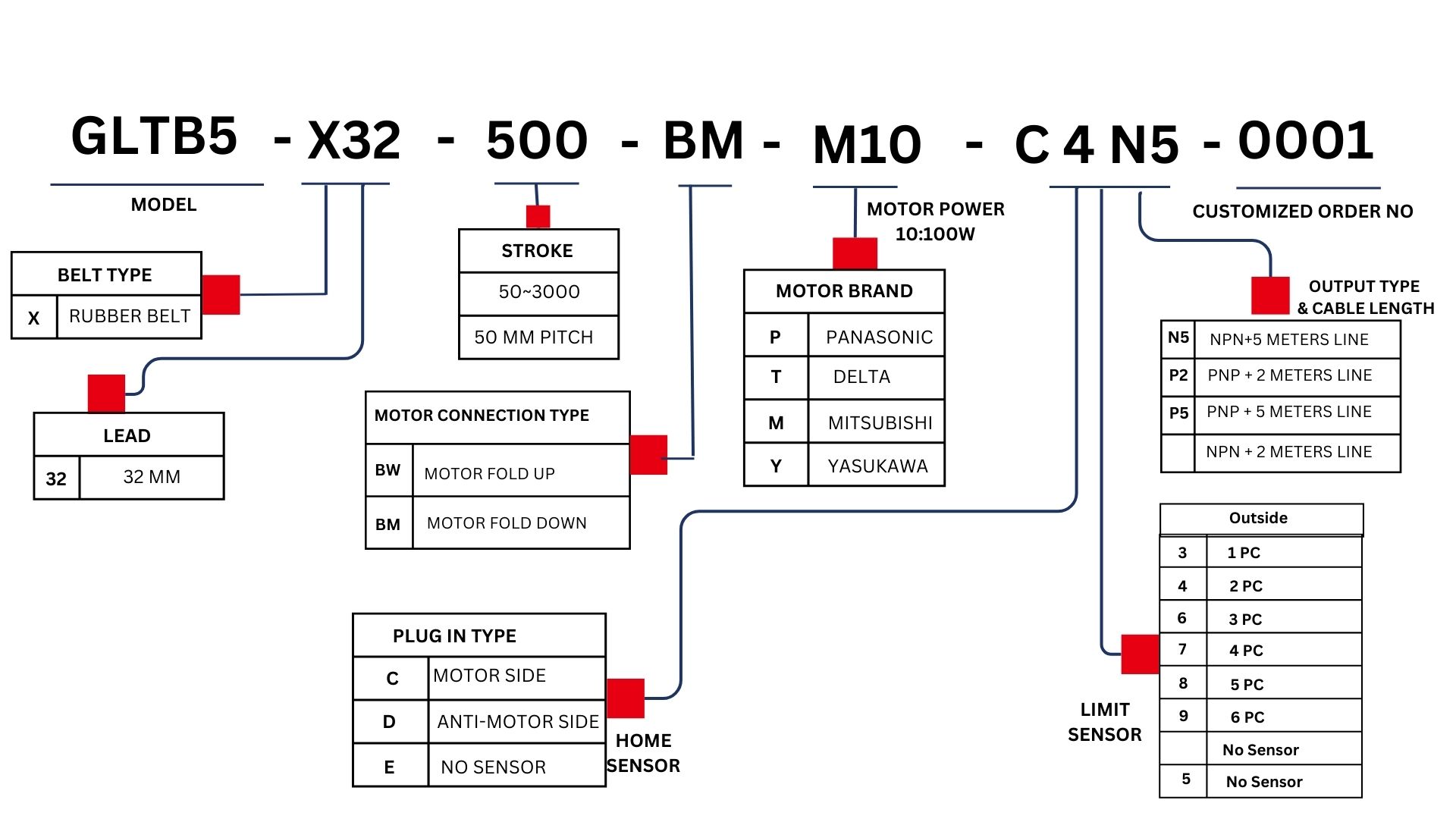

GLTB5-100W series
GLTB5-100W series specification
| Performance | Repeatability | mm | +/-0.04 | |
|---|---|---|---|---|
| Lead | mm | 32 | ||
| Maximum Rotating Speed | rpm | 3600 | ||
| Maximum Linear Speed | mm/s | 1920 | ||
| Maximum Payload | Horizontal | kg | 5 | |
| Vertical | kg | NA | ||
| Rated Thrust | N | 53 | ||
| Stroke | N | 50-3000mm/50 intervals (50 Increments) | ||
| Maximum Acceleration | G | 0.65 | ||
| Belt | Tis | N | 28 | |
| Timax | N | 31 | ||
| Part | AC Servo Moter Output | W | 100 | |
| Skin Tightness | mm | 9 | ||
| Coupling | Outside | T64N2 (NPN+2 meters wire) | ||

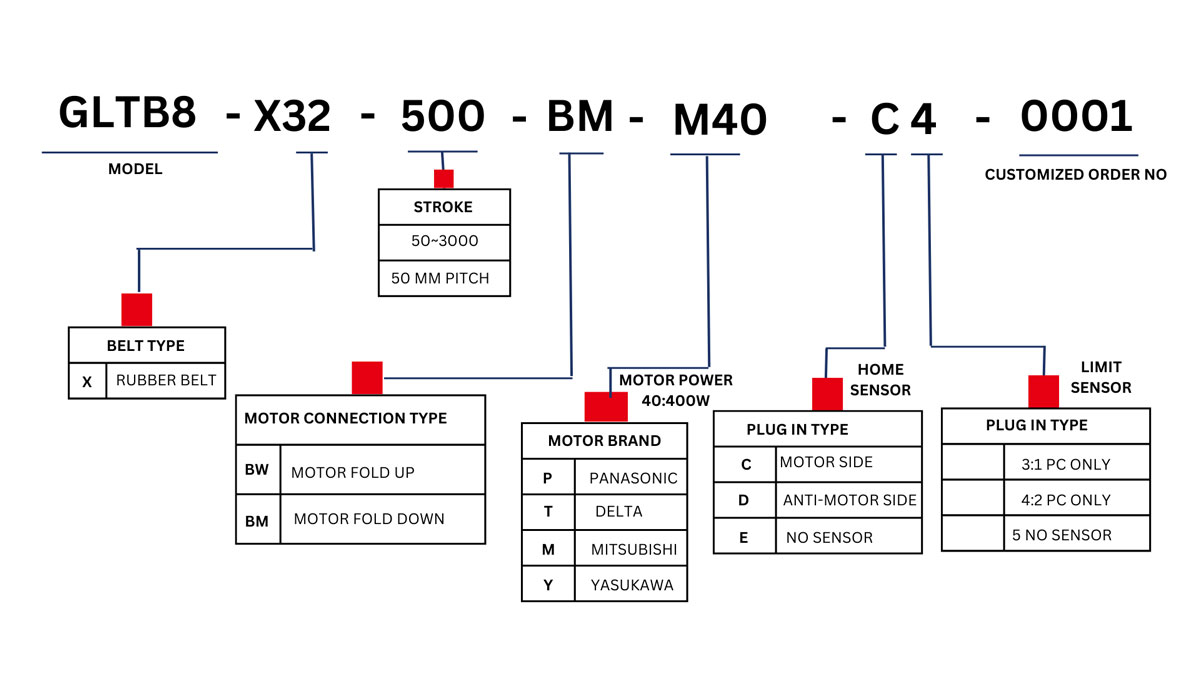

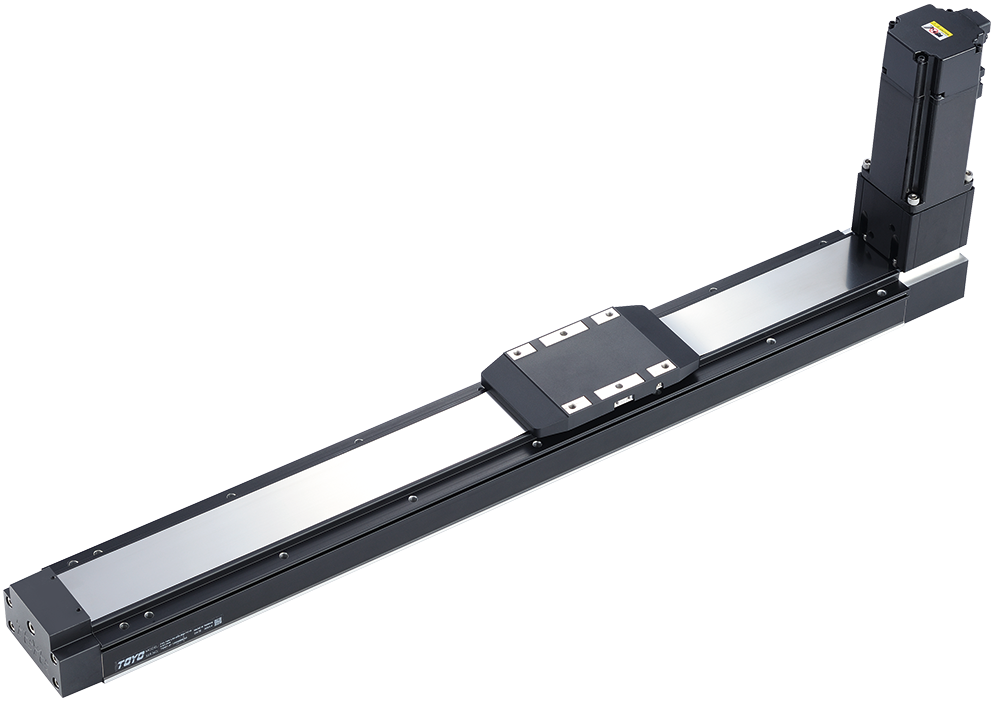

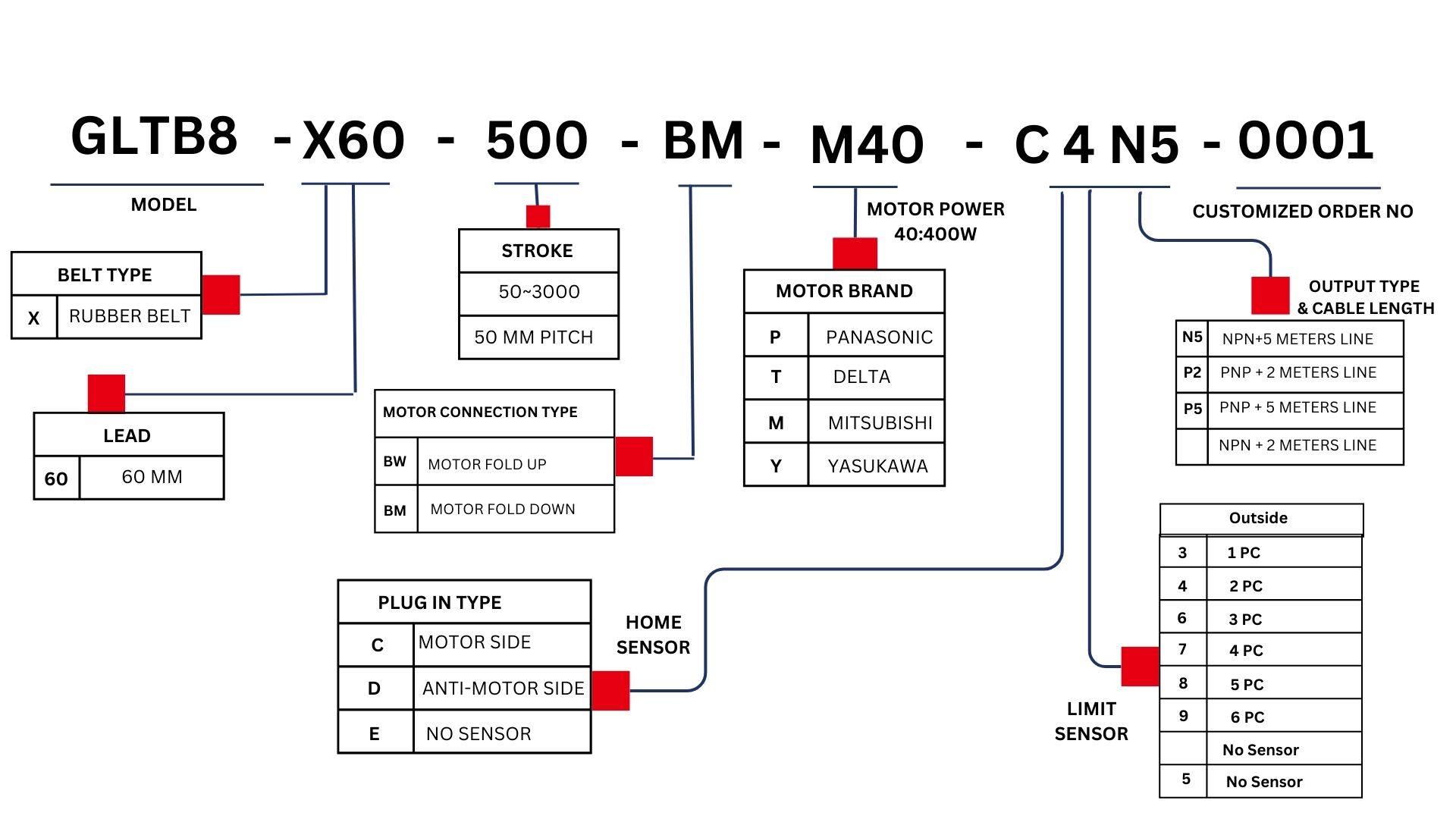

GLTB8-400W series
GLTB8-400W series specification
| Performance | Repeatability | mm | +/-0.04 | |
|---|---|---|---|---|
| Lead | mm | 30 | ||
| Maximum Rotating Speed | rpm | 3000 | ||
| Maximum Linear Speed | mm/s | 3000 | ||
| Maximum Payload | Horizontal | kg | 8 | |
| Vertical | kg | NA | ||
| Rated Thrust | N | 116 | ||
| Stroke | N | 50-3000mm/50 intervals (50 Increments) | ||
| Maximum Acceleration | G | 1.22 | ||
| Belt | Tis | N | 37 | |
| Timax | N | 42 | ||
| Part | AC Servo Moter Output | W | 400 | |
| Skin Tightness | mm | 8 | ||
| Coupling | Outside | T64N2 (NPN+2 meters wire) | ||
