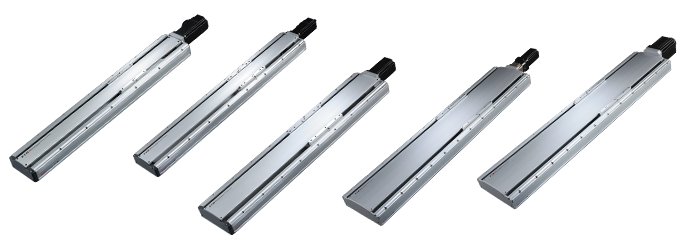

Ball Screw Linear Actuator
Toyo’s electric actuator with ball screw mechanism is a linear motion device used in applications like positioning, pick and place, carrying, press fitting machines etc. Actuator is powered by an electric motor, ball screw is a mechanical component that translates rotary motion into linear motion, nut is typically fixed to the moving part of the actuator, such as a carriage or slide. As the ball screw rotates, the nut moves along the screw.

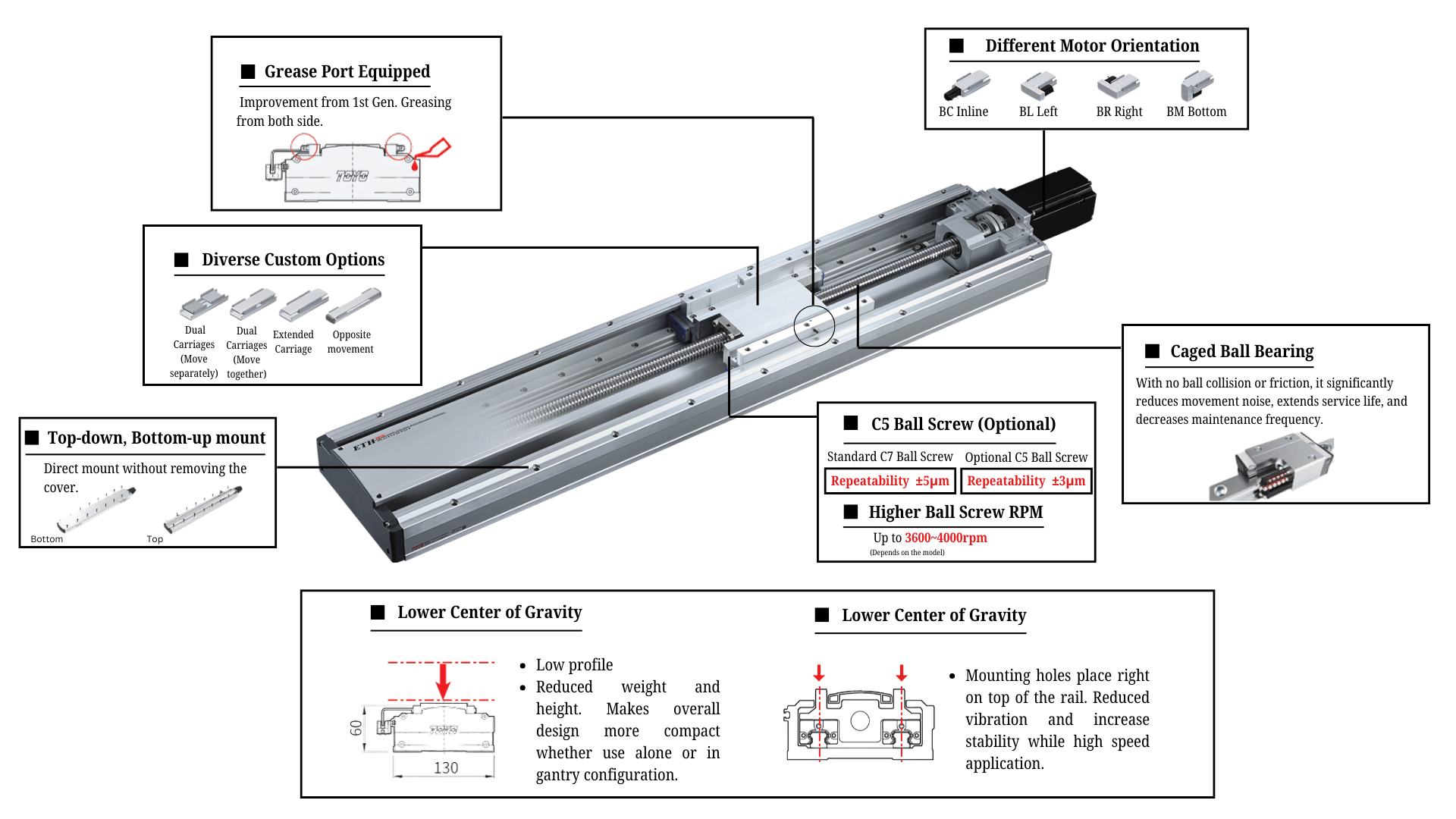

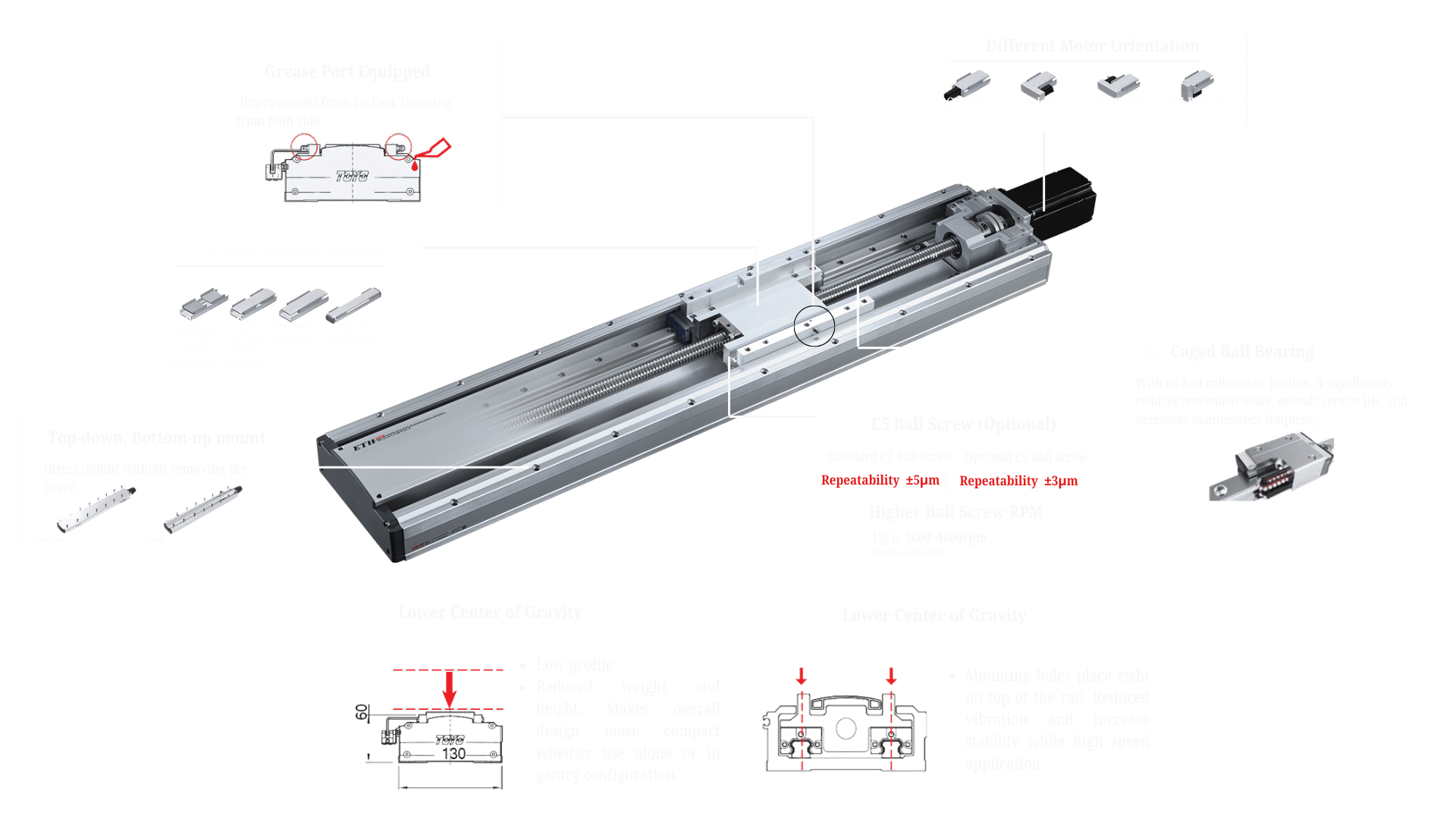

Features
- High accuracy and steady moment with secure reliability and quality
- Stepper or Actuator with Motor can be used
- Providing +/- 0.01 mm of repeatability
- Can support payload from 5 Kg to 150 Kg.
Applications
Electric device assemble, Liquid filling, Welding, Press fitting of circuit board and Waferbox, Unit arrangement
Industries
TFT Display manufacturing, Semi-conductor manufacturing, LED Manufacturing

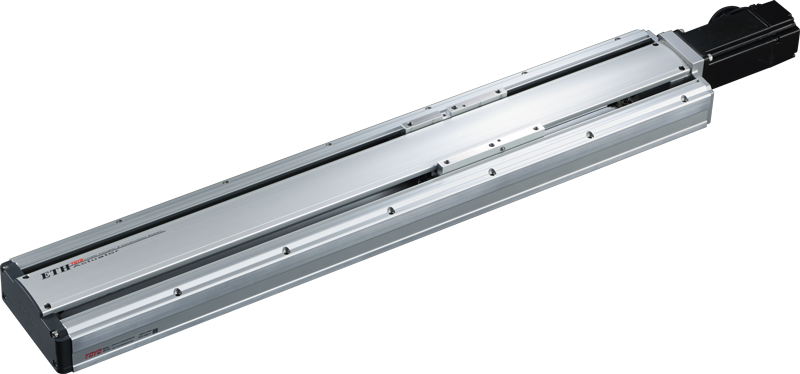

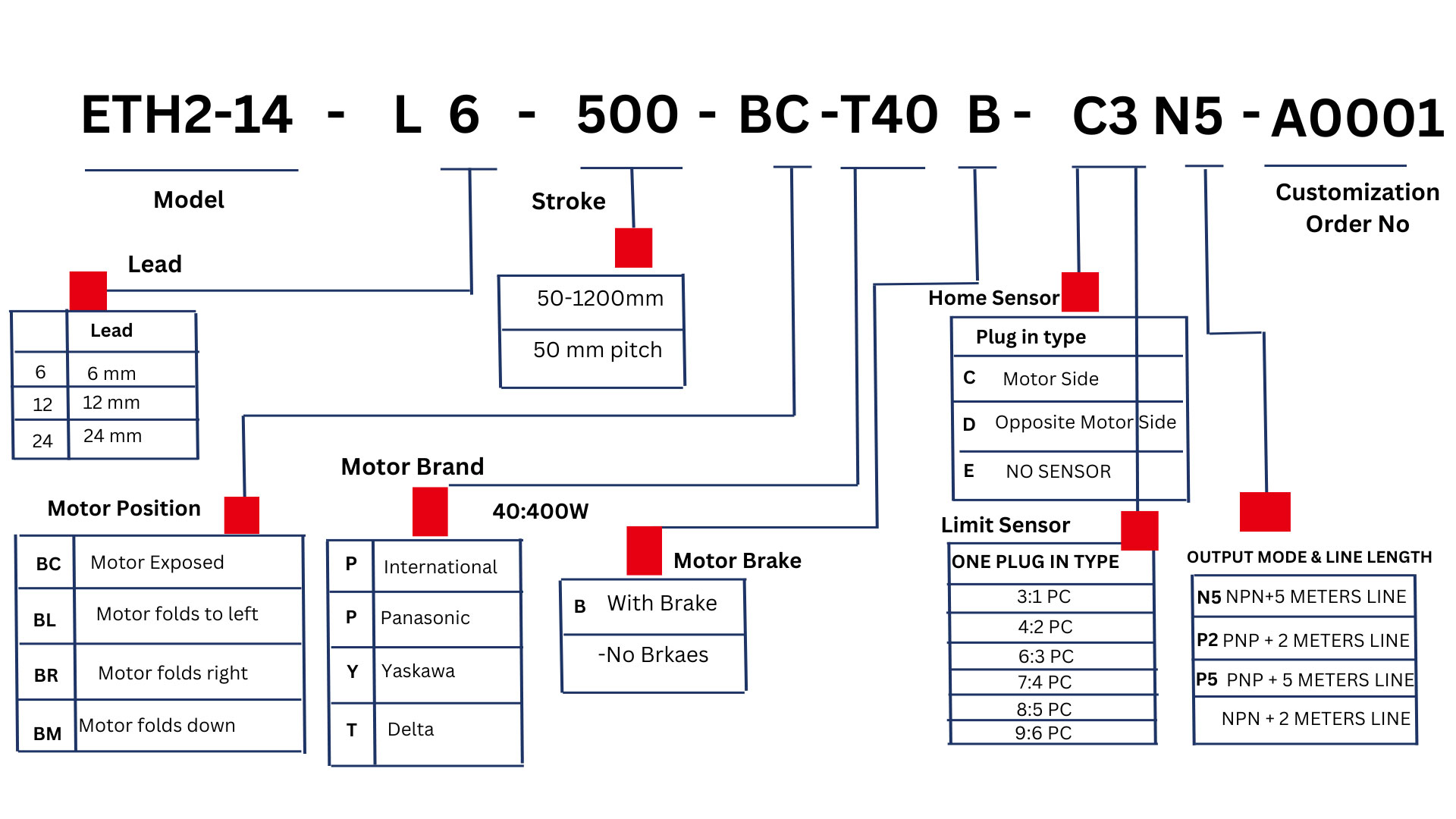

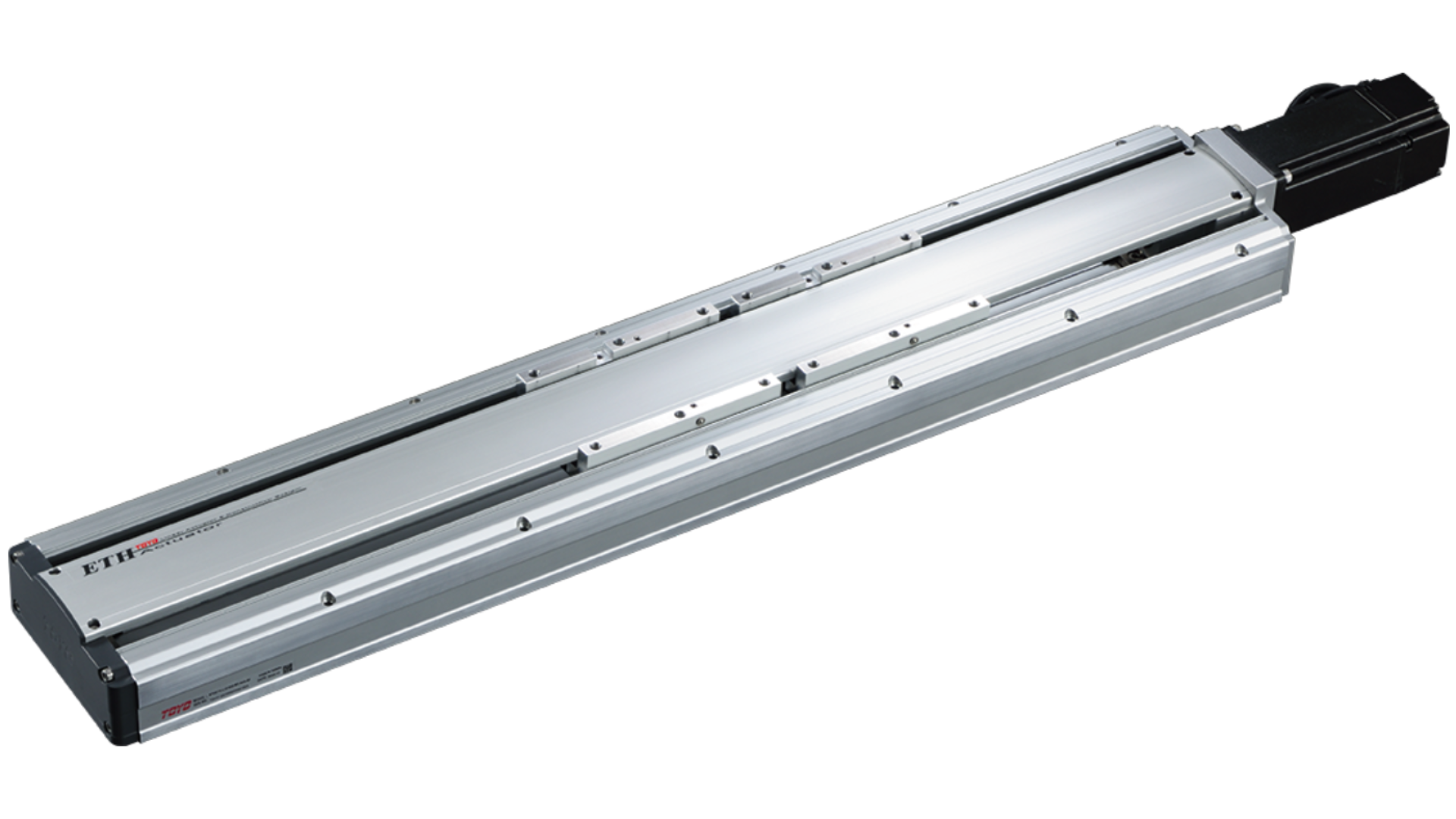

ETH2-14 series

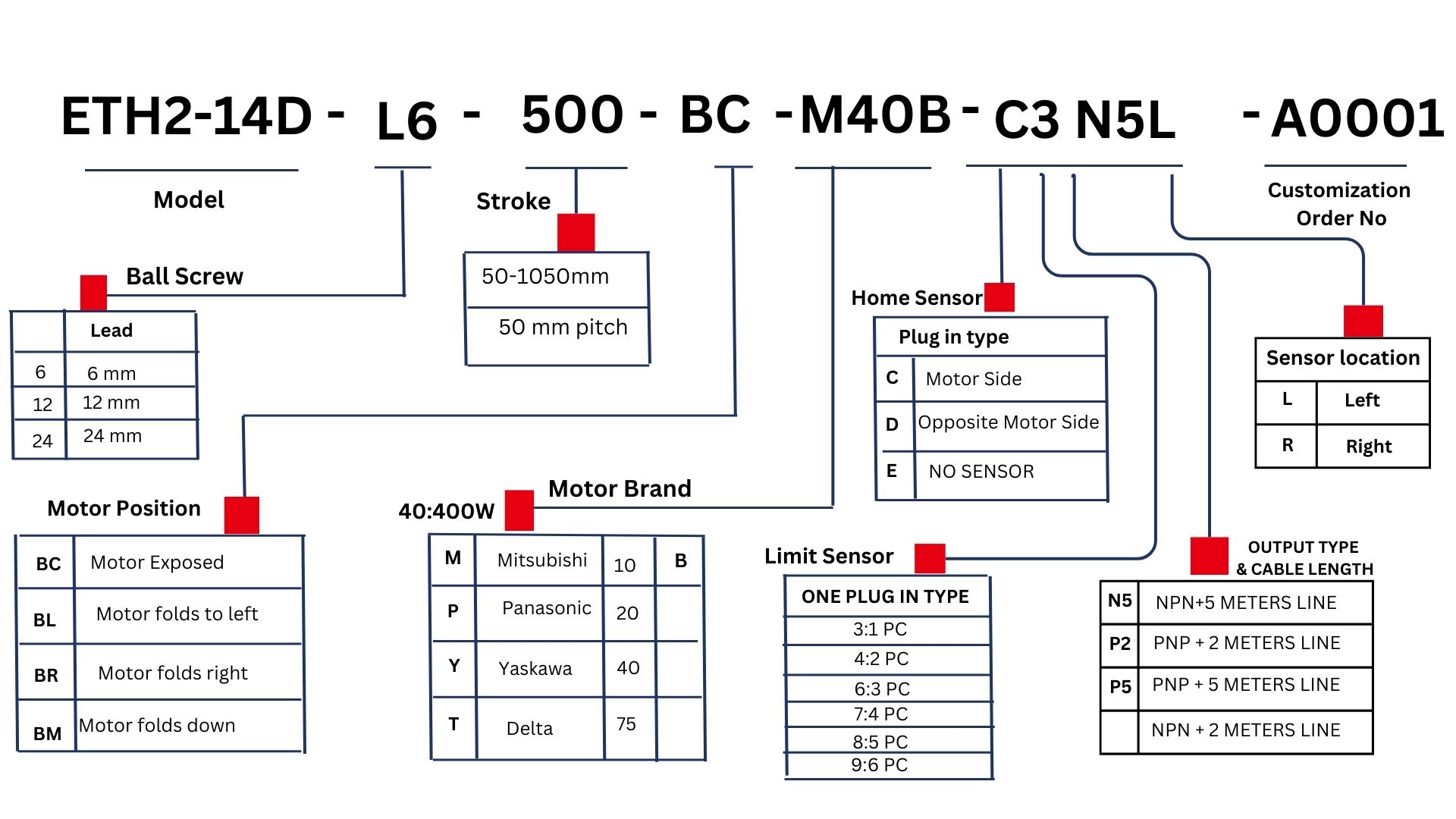

ETH2-14 series specification
| Specification | Repeatability | mm | (+/-0.005) | |||
|---|---|---|---|---|---|---|
| Lead | mm | 6 | 12 | 24 | ||
| Maximum Rotating Speed(mm/s) | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 360 | 720 | 1440 | ||
| Maximum Payload | Horizontal | kg | 110 | 65 | 40 | |
| Vertical (For Non-generative power) | kg | 29 | 16 | 10 | ||
| Verical(external 50W regenerative registor) | Kg | 40 | 26 | 20 | ||
| Rated Thurst | N | 1157 | 579 | 289 | ||
| Stroke Pitch | mm | 50-1200mm/50 intervals(50mm pitch) | ||||
| Maximum Acceleration | G | 0.18 | 0.37 | 0.73 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 7733 | 6072 | 6655 | |
| Basic Static load rating Coa | N | 14200 | 10787 | 12182 | ||
| Linear Guide | Dynamic Horizontal | N | 7866 | |||
| Static Horizontal | N | 78400 | ||||
| Fixed Bearing | Bsic Dynamic load rating Cr | N | 8447 | |||
| Static Load rating Cor | N | 5060 | ||||
| Parts | AC Actuator with Motor Output | W | 400 | |||
| Ball Screw | mm | C7 X θ14 | ||||
| Linear Guide | mm | W15XH12.5 | ||||
| Ball Screw | mm | 14 X10 | ||||
| Home Sensor | Outside | T64N2(NPN) | ||||
Acceleration and declaration value set to 0.2 second

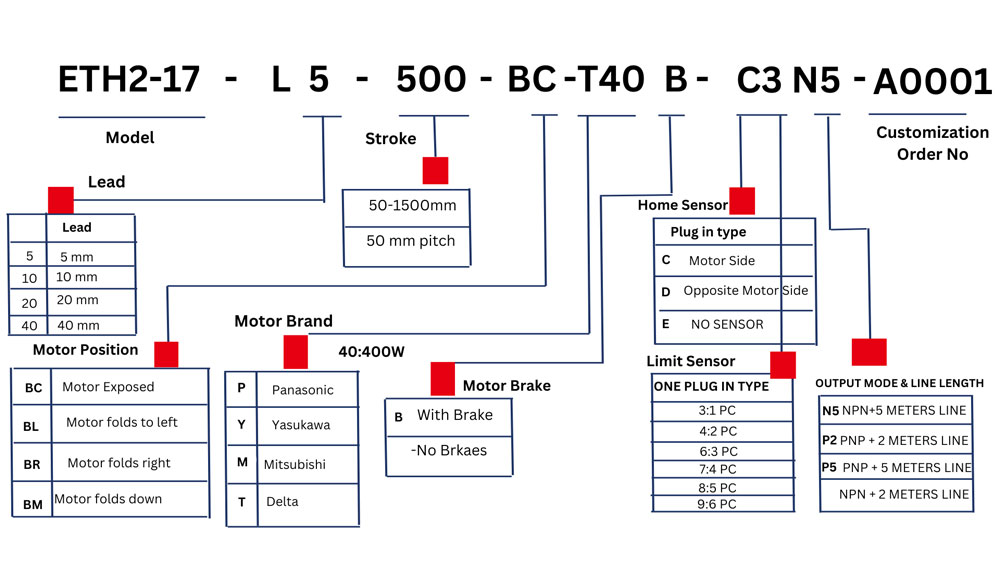

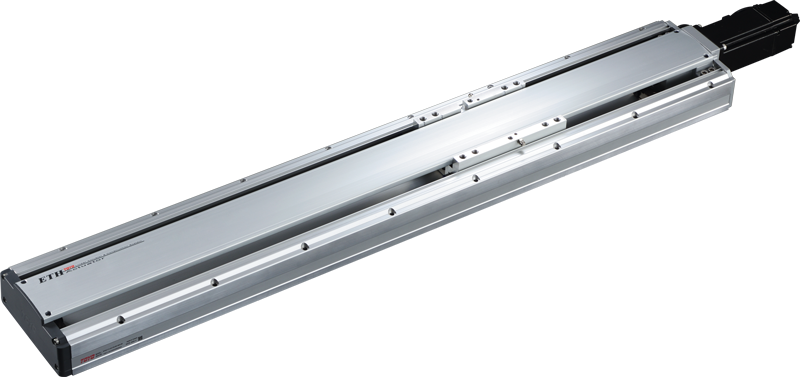

ETH2-17 series
ETH2-17 series specification
| Specification | Repeatability | mm | (+/-0.005) | ||||
|---|---|---|---|---|---|---|---|
| Lead | mm | 5 | 10 | 20 | 40 | ||
| Maximum Rotating Speed(mm/s) | rpm | 3600 | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1200 | 2400 | ||
| Maximum Payload | Horizontal | kg | 120 | 110 | 75 | 16 | |
| Vertical (For Non-generative power) | kg | 40 | 25 | 11 | 9 | ||
| Verical(external 50W regenerative registor) | Kg | 50 | 30 | 18 | 15 | ||
| Rated Thurst | N | 1389 | 694 | 347 | 174 | ||
| Stroke Pitch | mm | 50-1200mm/50 intervals(50mm pitch) | |||||
| Maximum Acceleration | G | 0.15 | 0.31 | 0.61 | 1.22 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 13428 | 11223 | 5667 | 9656 | |
| Basic Static load rating Coa | N | 29671 | 24456 | 11182 | 20274 | ||
| Linear Guide | Dynamic Horizontal | N | 7866 | ||||
| Static Horizontal | N | 78400 | |||||
| Fixed Bearing | Bsic Dynamic load rating Cr | N | 9666 | ||||
| Static Load rating Cor | N | 6400 | |||||
| Parts | AC Actuator with Motor Output | W | 400 | ||||
| Ball Screw | mm | C7 X θ20 | |||||
| Linear Guide | mm | W15XH12.5 | |||||
| Ball Screw | mm | 14 X 12 | |||||
| Home Sensor | Outside | T64N2(NPN) | |||||
Acceleration and declaration value set to 0.2 second

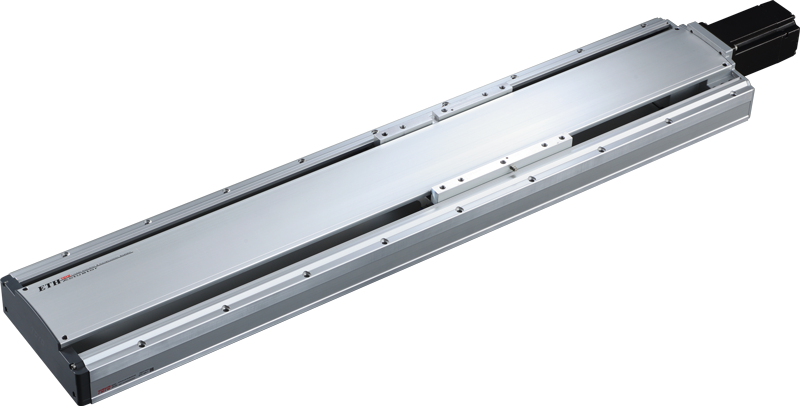

ETH2-22 series
ETH2-22 series specification
| Specification | Repeatability | mm | (+/-0.005) | |||
|---|---|---|---|---|---|---|
| Lead | mm | 5 | 10 | 25 | ||
| Maximum Rotating Speed(mm/s) | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1500 | ||
| Maximum Payload | Horizontal | kg | 150 | 150 | 37 | |
| Vertical (For Non-generative power) | kg | 55 | 30 | 13 | ||
| Verical(external 50W regenerative registor) | Kg | 62 | 35 | 14 | ||
| Rated Thurst | N | 2563 | 1282 | 513 | ||
| Stroke Pitch | mm | 50-1200mm/50 intervals(50mm pitch) | ||||
| Maximum Acceleration | G | 0.15 | 0.31 | 0.76 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 12048 | 11964 | 6153 | |
| Basic Static load rating Coa | N | 29725 | 29566 | 14032 | ||
| Linear Guide | Dynamic Horizontal | N | 12107 | |||
| Static Horizontal | N | 122000 | ||||
| Fixed Bearing | Bsic Dynamic load rating Cr | N | 22093 | |||
| Static Load rating Cor | N | 15100 | ||||
| Parts | AC Actuator with Motor Output | W | 750 | |||
| Ball Screw | mm | C7 X θ25 | ||||
| Linear Guide | mm | W20XH16.3 | ||||
| Ball Screw | mm | 19 X 17 | ||||
| Home Sensor | Outside | T64N2(NPN) | ||||
Acceleration and declaration value set to 0.2 second

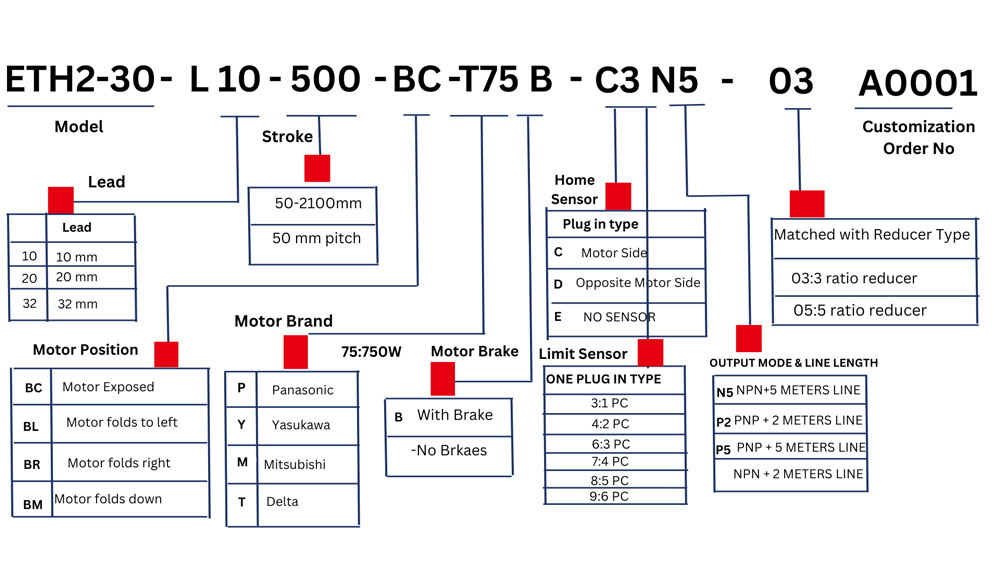

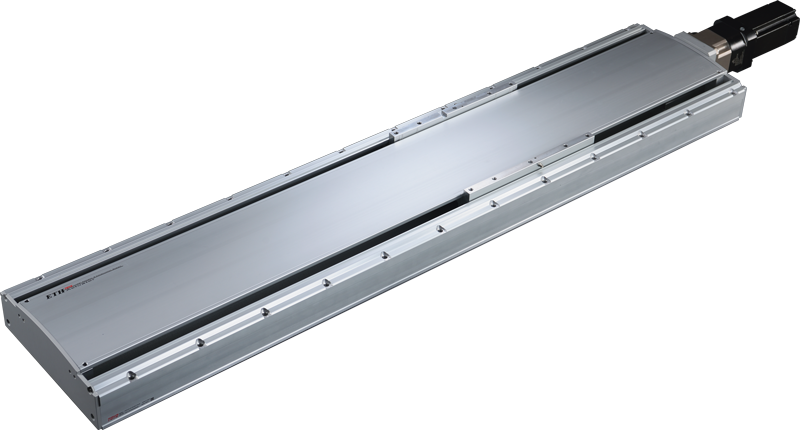

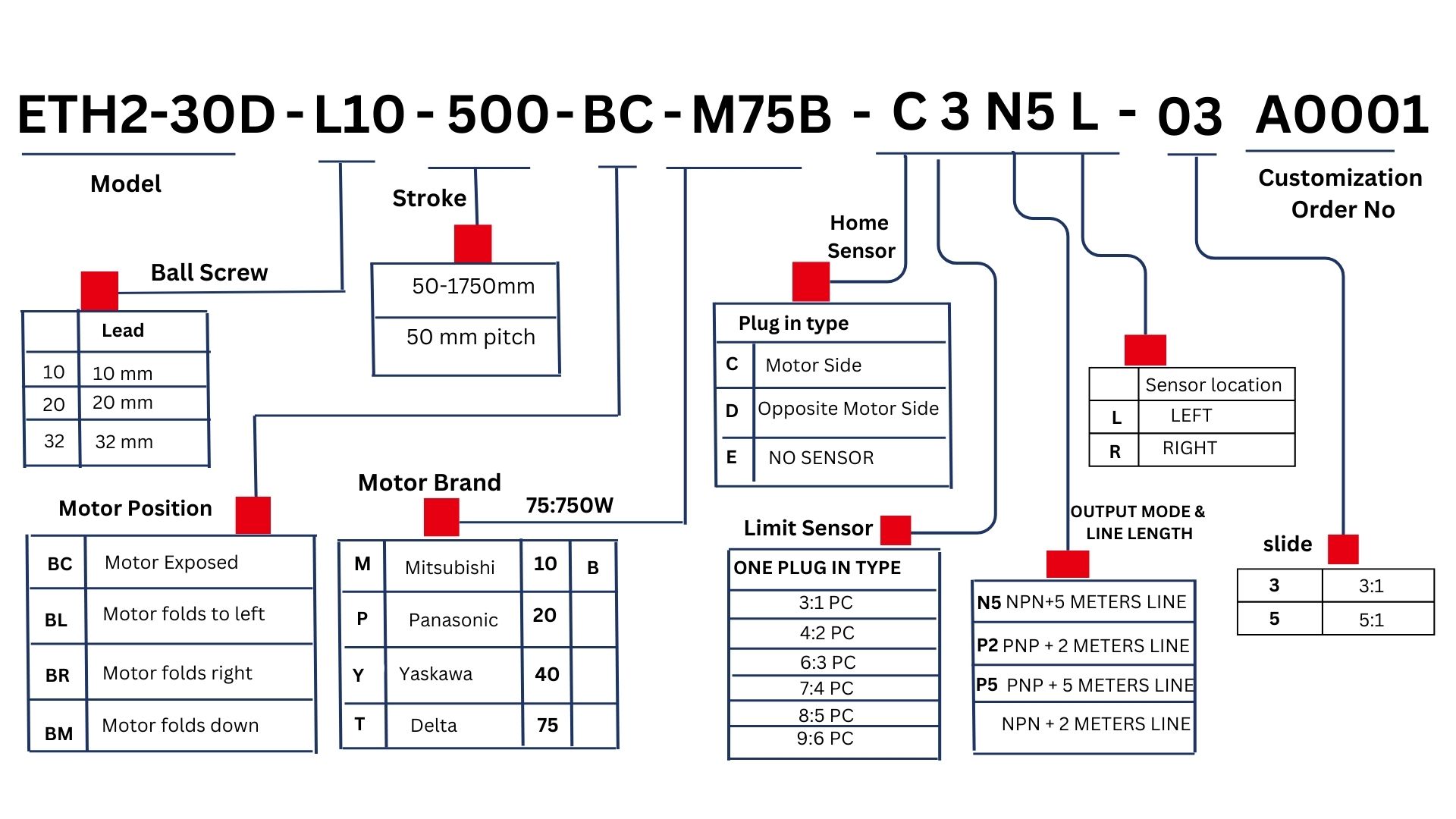

ETH2-30-M75 series
ETH2-30-M75 series specification
| Specification | Repeatability | mm | (+/-0.005) | |||
|---|---|---|---|---|---|---|
| Lead | mm | 10 | 20 | 32 | ||
| Ratio | 03:01 | 03:01 | 03:01 | |||
| Maximum Rotating Speed(mm/s) | rpm | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed | mm/s | 200 | 400 | 640 | ||
| Maximum Payload | Horizontal | kg | 400 | 300 | 180 | |
| Vertical (For Non-generative power) | kg | 110 | 55 | 20 | ||
| Verical(external 50W regenerative registor) | Kg | 130 | 65 | 35 | ||
| Rated Thurst | N | 3824 | 1912 | 1195 | ||
| Stroke Pitch | mm | 50-2100mm/50 intervals(50mm pitch) | ||||
| Maximum Acceleration | G | 0.31 | 0.61 | 0.98 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 47137 | 18708 | 18031 | |
| Basic Static load rating Coa | N | 119760 | 53778 | 52277 | ||
| Linear Guide | Dynamic Horizontal | N | 16963 | |||
| Static Horizontal | N | 164400 | ||||
| Fixed Bearing | Bsic Dynamic load rating Cr | N | 25017 | |||
| Static Load rating Cor | N | 18940 | ||||
| Parts | AC Actuator with Motor Output | W | 750 | |||
| Ball Screw | mm | C7 X θ32 | ||||
| Linear Guide | mm | W23XH19.2 | ||||
| Ball Screw | mm | 22 X 22 | ||||
| Home Sensor | Outside | T64N2(NPN) | ||||
Acceleration and declaration value set to 0.2 second

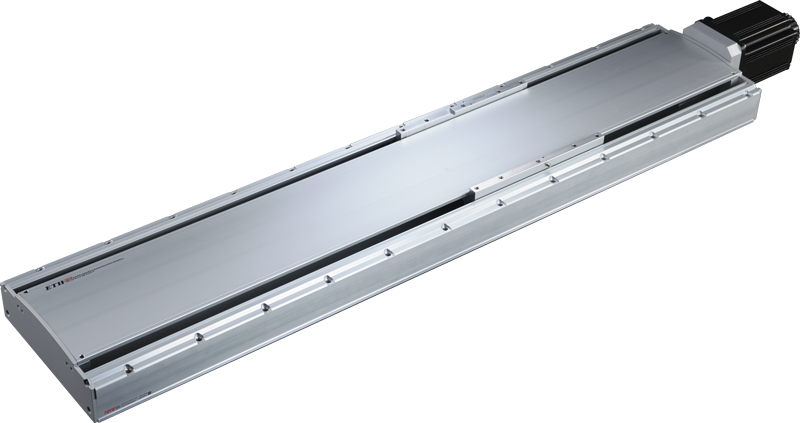

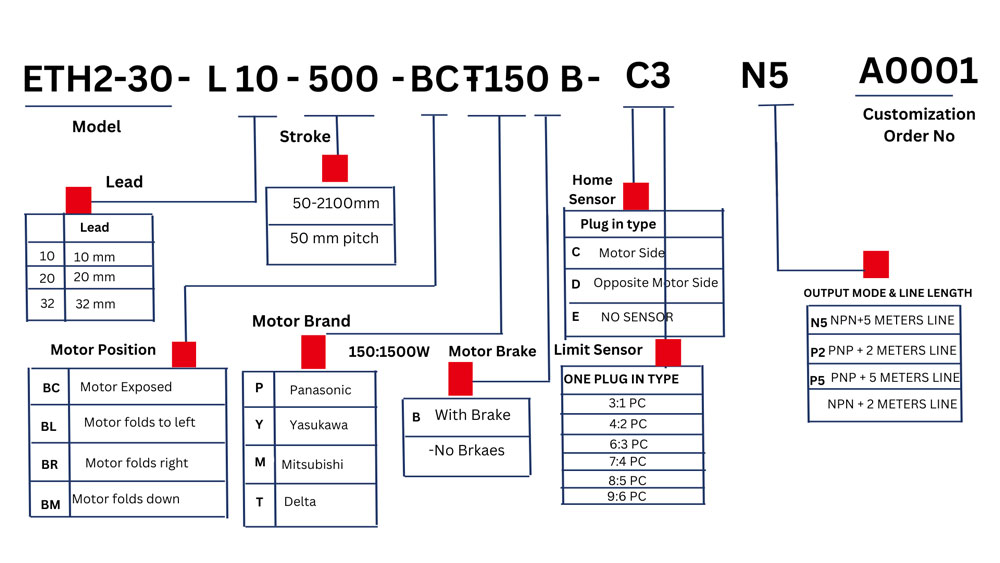

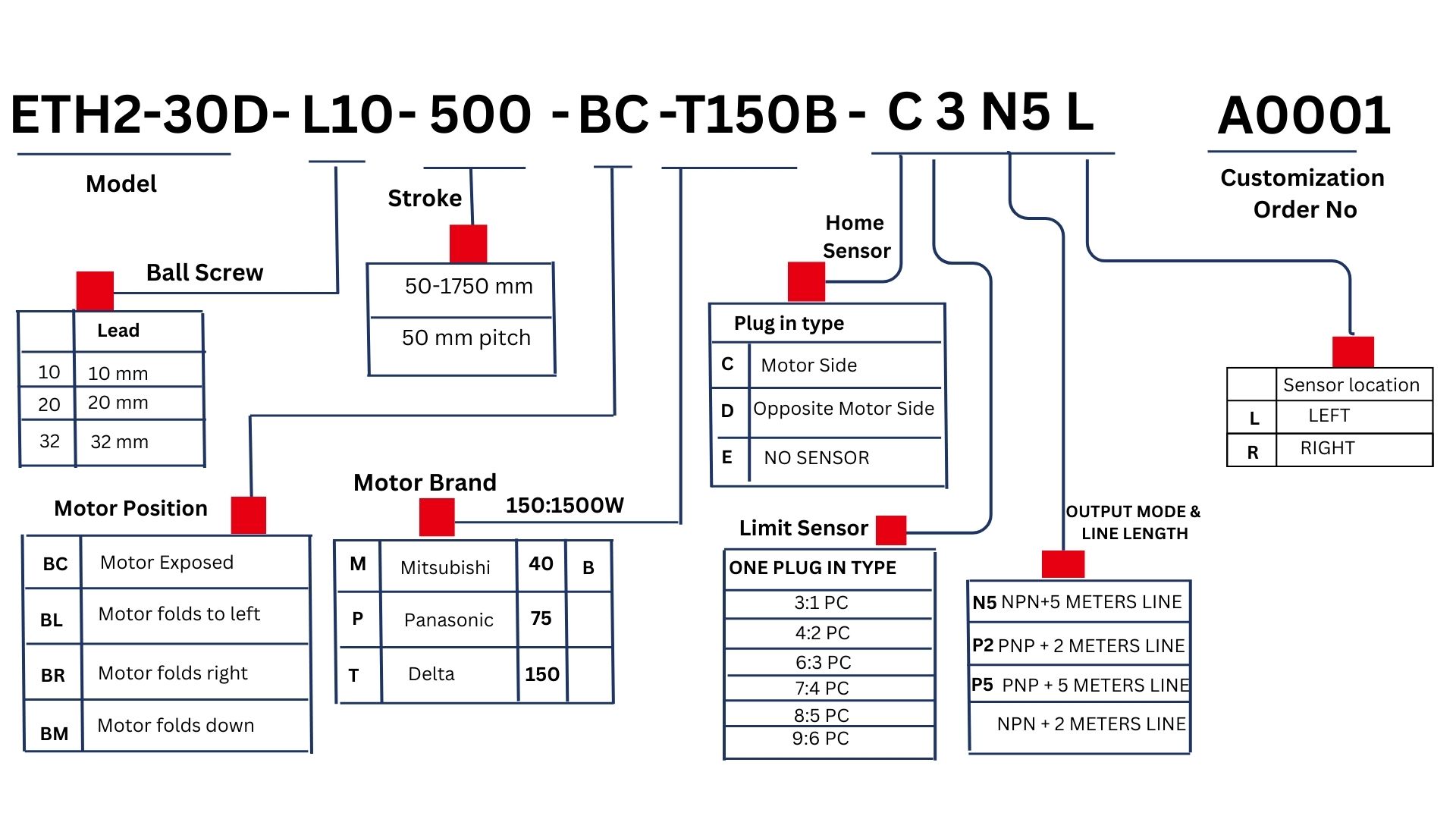

ETH2-30-M75 series
ETH2-30-M75 series specification
| Specification | Repeatability | mm | (+/-0.005) | |||
|---|---|---|---|---|---|---|
| Lead | mm | 10 | 20 | 32 | ||
| Maximum Rotating Speed(mm/s) | rpm | 2400 | 2400 | 2400 | ||
| Maximum Linear Speed | mm/s | 400 | 800 | 1280 | ||
| Maximum Payload | Horizontal | kg | 300 | 220 | 65 | |
| Vertical (For Non-generative power) | kg | 35 | 20 | 10 | ||
| Verical(external 50W regenerative registor) | Kg | 45 | 23 | 12 | ||
| Rated Thurst | N | 3824 | 1912 | 1195 | ||
| Stroke Pitch | mm | 50-2100mm/50 intervals(50mm pitch) | ||||
| Maximum Acceleration | G | 0.31 | 0.61 | 0.98 | ||
| Ball Screw | Basic Dynamic load rating Ca | N | 47137 | 18708 | 18031 | |
| Basic Static load rating Coa | N | 119760 | 53778 | 52277 | ||
| Linear Guide | Dynamic Horizontal | N | 16963 | |||
| Static Horizontal | N | 164400 | ||||
| Fixed Bearing | Bsic Dynamic load rating Cr | N | 25017 | |||
| Static Load rating Cor | N | 18940 | ||||
| Parts | AC Actuator with Motor Output | W | 1500 | |||
| Ball Screw | mm | C7 X θ32 | ||||
| Linear Guide | mm | W23XH19.2 | ||||
| Ball Screw | mm | 22 X 22 | ||||
| Home Sensor | Outside | T64N2(NPN) | ||||
Acceleration and declaration value set to 0.2 second
