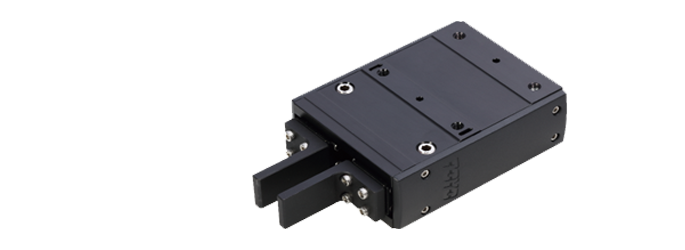

Gripper
The Toyo worm gear gripper is a specialized tool used in industrial automation and robotics for gripping and manipulating objects with precision. Grippers are often integrated into larger automation systems, controlled by programmable logic controllers (PLCs), industrial robots, or computer numerical control (CNC) systems. They may communicate with other components in the system through interfaces such as digital inputs/outputs (IOs), fieldbus protocols (e.g., Profibus, Modbus), or Ethernet/IP.
Features
- The worm gear system enables smooth and accurate gripping, allowing for precise positioning of the gripper fingers.
- The gripper is designed to be adaptable to different object shapes and sizes, offering flexibility in various industrial applications.
- The gripper's construction and materials prioritize durability, ensuring consistent performance over time.
Applications
Assembly line robotics, Material handling, Packaging, Pick and place applications
Industries
TFT display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining, Textile machinery, Printing and labelling, Laboratory automation, Material handling.

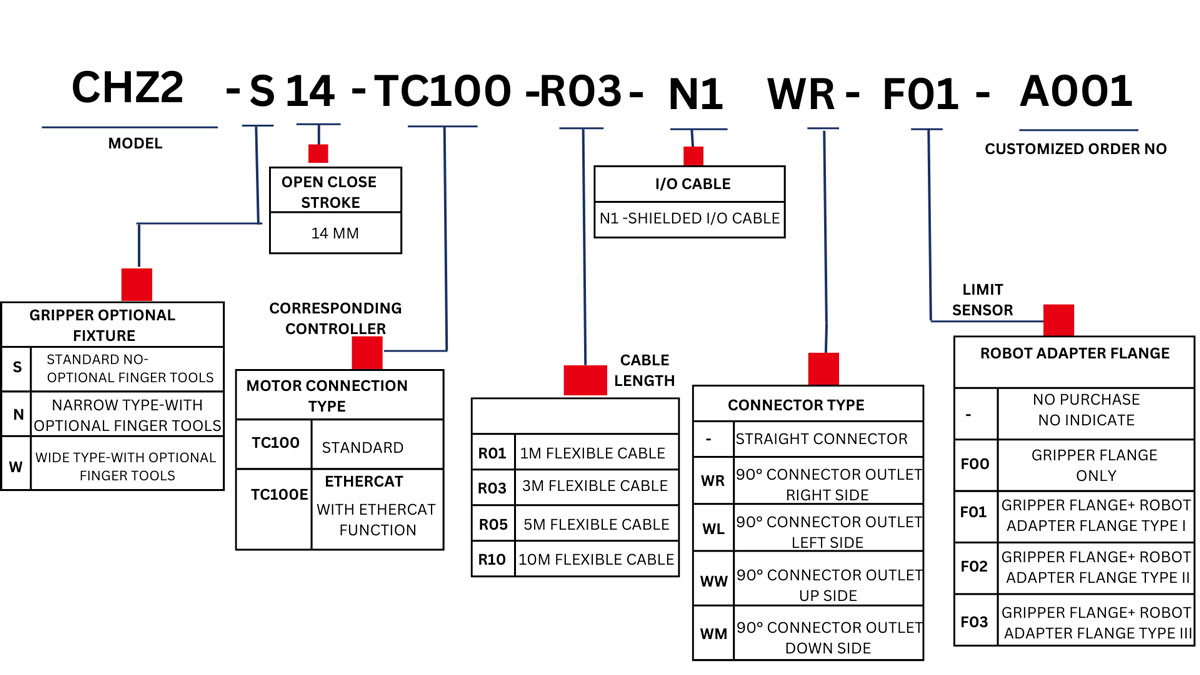

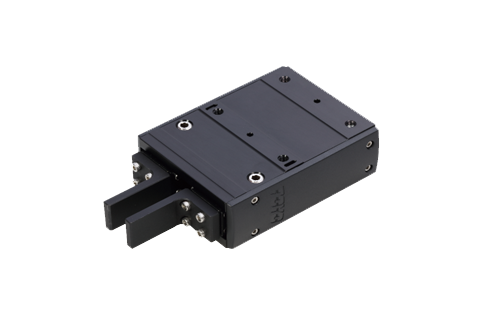

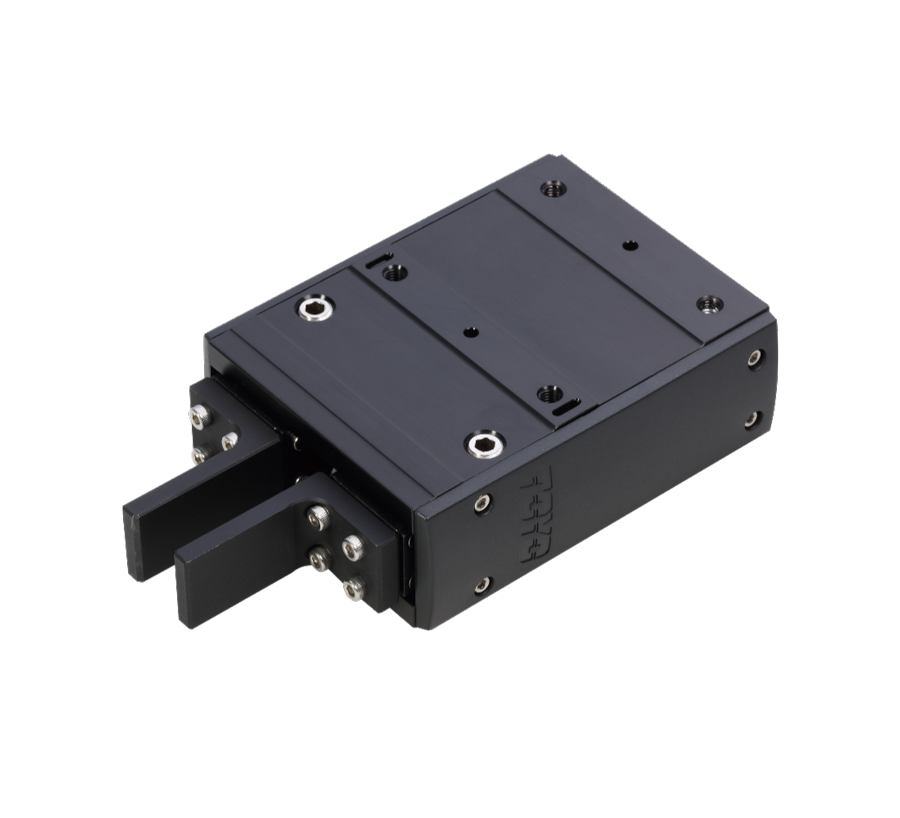

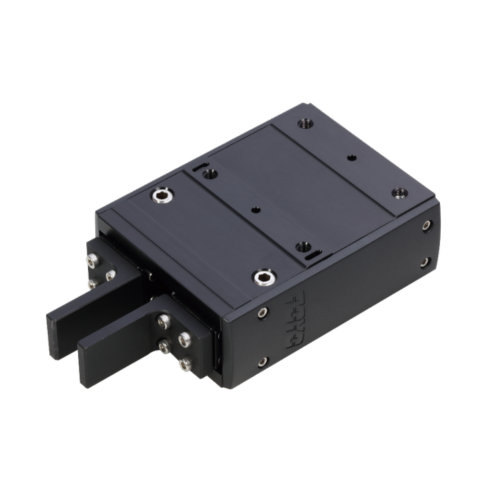

CHZ2 series
CHZ2 series specification
| Specification | Shock/vibration resistance (m/s2) | 50/20 |
|---|---|---|
| Weight (kg) | 0.98 | |
| Gripping force(N) | 92.5 | |
| Open/Close stroke(mm) | 14 | |
| Open/Close Speed(mm/s) | 35.5 | |
| Repeatbility(mm) | (+/-0.02) | |
| Guide Structure | Linear Guide | |
| Operating Temprature Range(°C) | 5~45(Avoid freezing) | |
| Operating humidity range(%) | Below RH-35~85 Dew free | |
| Parts | Motor Dimension (mm) | 25□ |
| Weight (g) | 573(+/-)5 |
1. Total stroke of both sides.
2. The weight includes the body and motor, excluding optional accessories.
3. 92.5=100% current
4. The clamping capacity is affected by factors such as the material, shape and clamping method of the fixture / clamping object, so this value is reference only.
