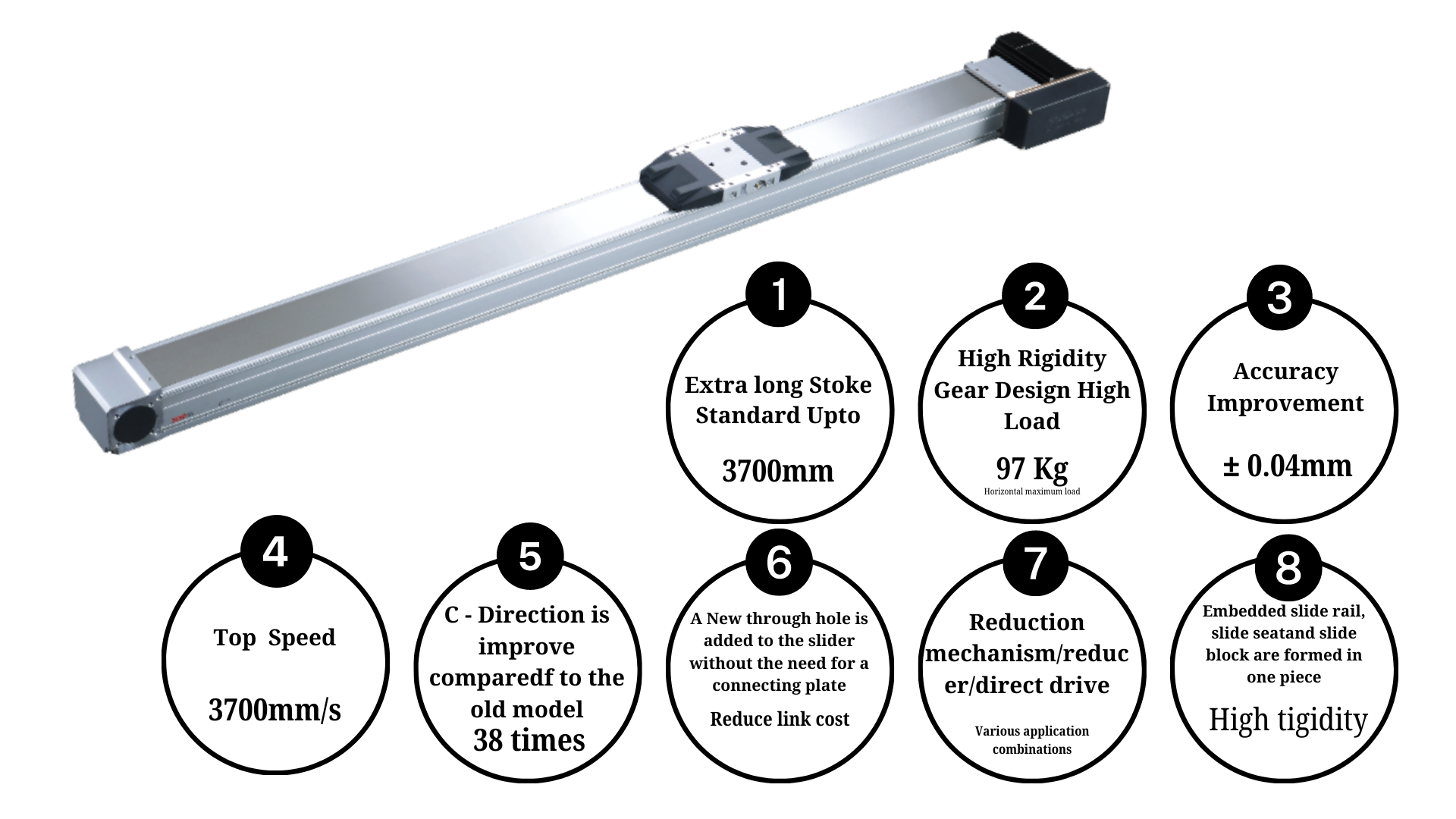

Europe Type Belt Actuator
Toyo’s europe belt type actuator i.e. MG series especially support roller design which can reduce the particle caused from the steel stripe cover and carriage where as in traditional belt type actuator LM guide is used. In this type of series, you can adjust the belt tension with disassembling the unit. It can be used in vertical applications. For achieving higher speed belt type actuator is used than another type.

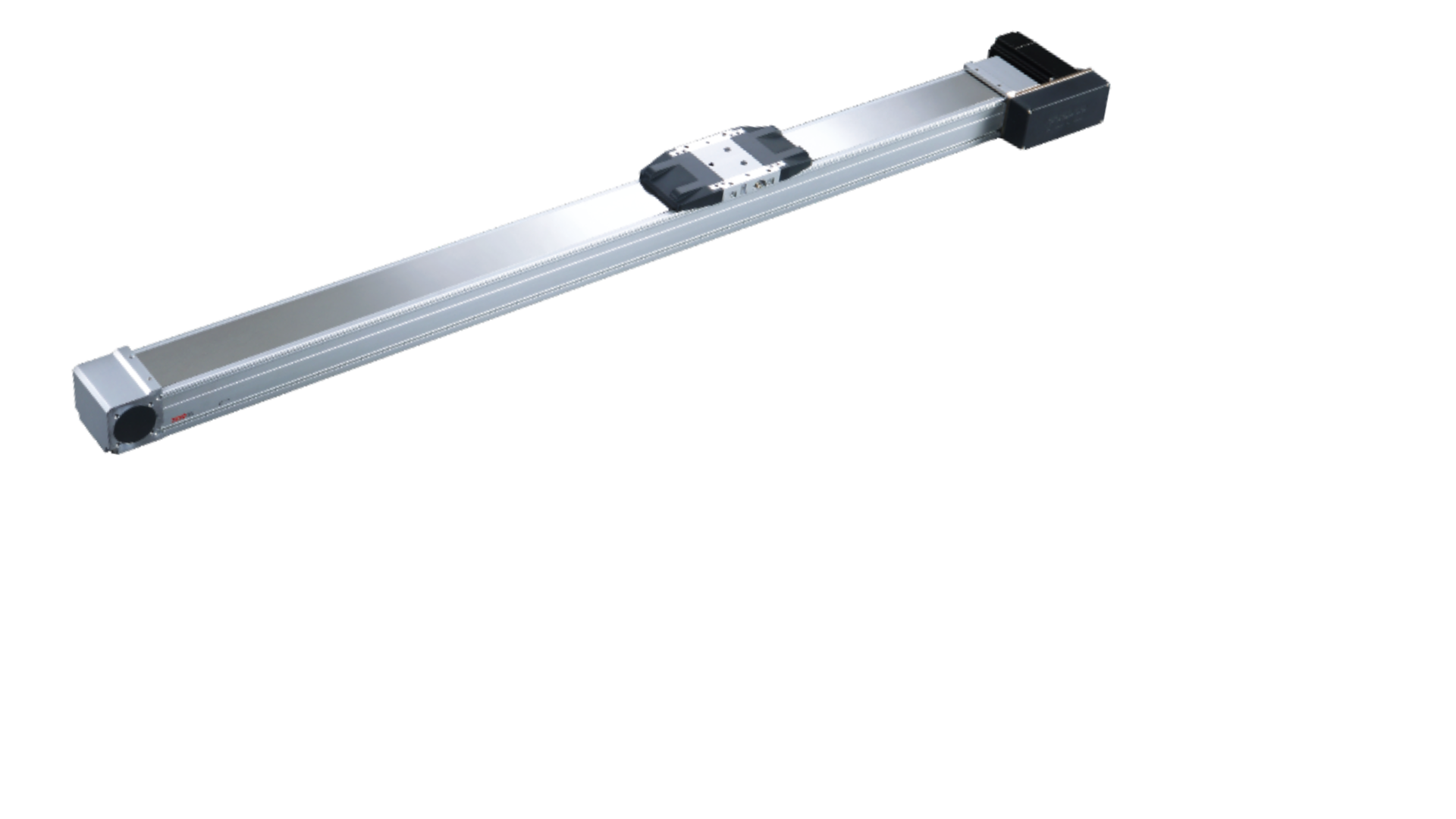

Features
- High-speed, longer stroke, can be applied in a long-distance movement required application
- Belt actuators are often more affordable compared to ball screw actuators.
- Belt actuators produce less noise during operation.
- Belt-type actuators utilize a flexible belt or timing belt driven by a pulley system to transmit motion.
Applications
High-speed conveyor, Tape cutting device, Parts shifting between CNC machine, Printer, Adhesive dispenser
Industries
TFT display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining, Textile machinery, Printing and labelling, Laboratory automation and Material handling.

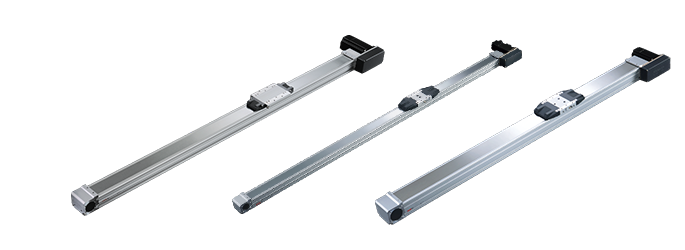

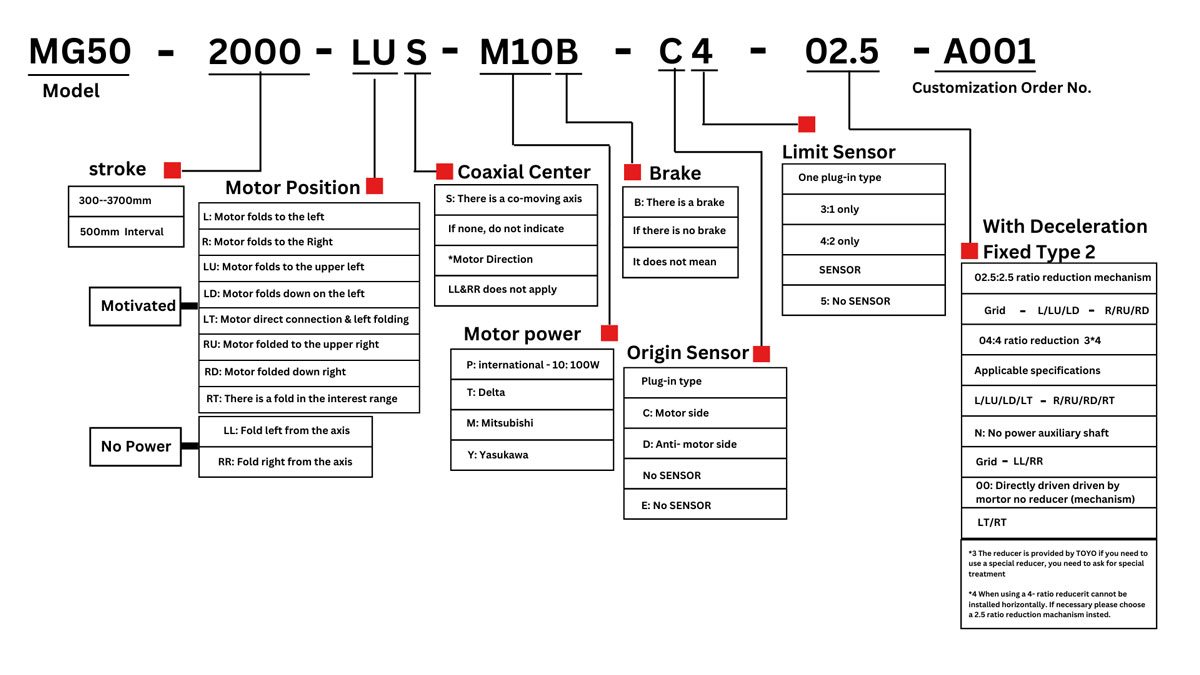

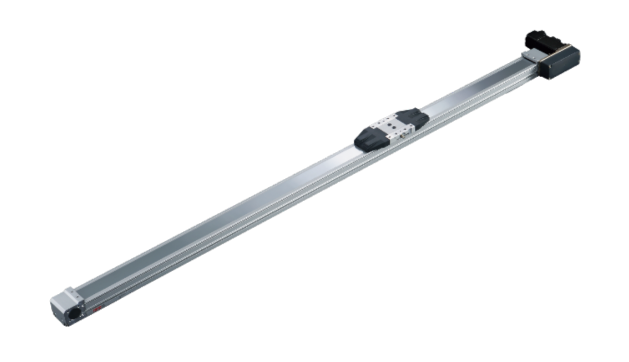

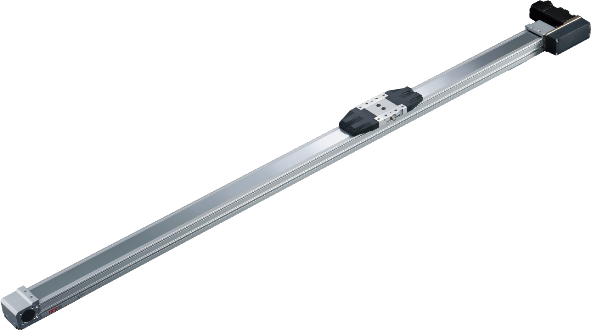

MG50 series
MG50 series specification
| Performance | Repeatability | mm | (+/-0.01) | ||||
|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 03:01 | 05:01 | 08:01 | 10:01 | ||
| Motor Maximum Speed | rpm | 1500 | |||||
| Maximum Linear Speed | mm/s | 42 | 25 | 16 | 13 | ||
| Maximum Payload | Horizontal | kg | 1080 | 1500 | 2400 | 3000 | |
| Vertical | kg | 360 | 600 | 960 | 1200 | ||
| Rated Thurst | N | 6150 | 10250 | 16400 | 20500 | ||
| Stroke (increments) | mm | 50-800mm/50 intervals(50mm increments) | |||||
| Parts | AC Actuator with Motor Output | W | 750 | ||||
| Planetary Roller screw outer diameter | mm | ⌀20 | |||||
| Screw Lead | 5 | ||||||
| Coupler | ⌀58 x 53.4L | ||||||
| Home Sensor | Outside | CS-6T(NPN/PNP+2 CABLE) | |||||

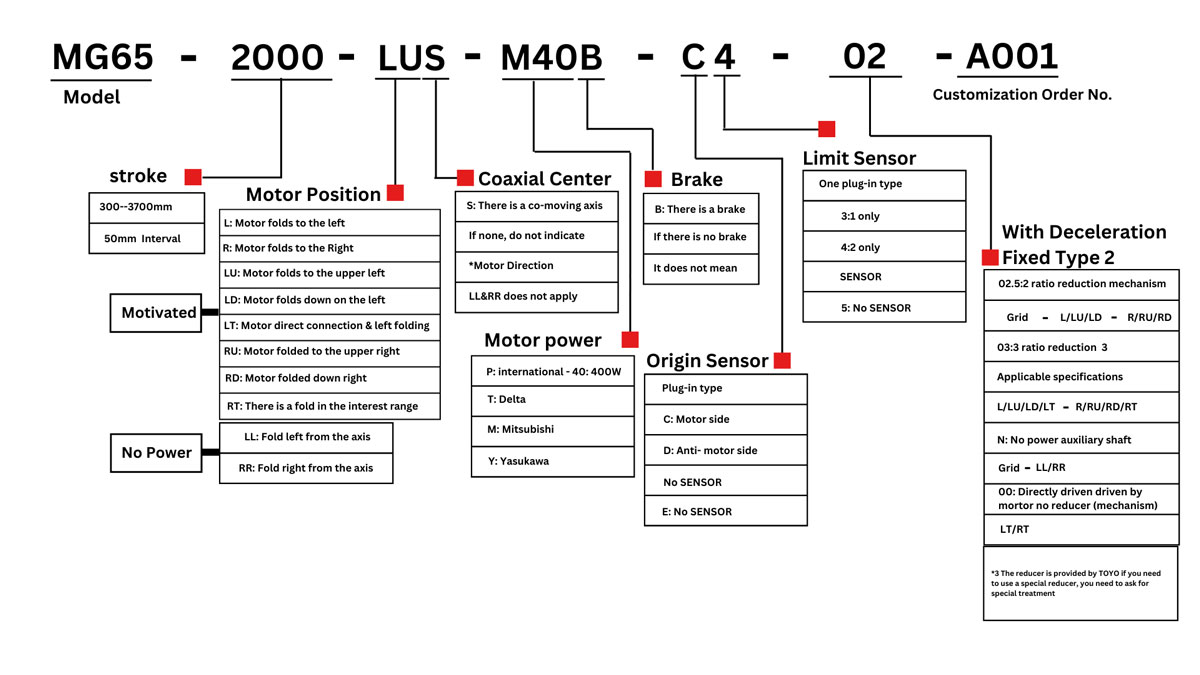

MG65 series
MG65 series specification
| Specification | Repeatability (mm) | (+/-0.04) | ||
|---|---|---|---|---|
| Lead(mm) | 40 | |||
| Maximum Speed(mm/s) | 2000 | |||
| Maximum Payload | Horizontal | 25 | ||
| Vertical | ||||
| Rated Thurst (N) | 100 | |||
| Stroke Pitch(mm) | 50-3050mm/ 50 mm pitch | |||
| Parts | AC Actuator with Motor Output(w) | 200 | ||
| Blet Width | 22 | |||
| High Rigidity Linear Guide(mm) | W15XH12.5 | |||
| Home Sensor | Outside | EE-SX672(NPN) | ||
Acceleration and declaration value set to 0.4 second
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | Driver Model |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No brake(Horizontal Type) | 400 | 220 | HG-KR43 | MR-J4-40A |
| Panasonic | P | No Brake(Horizontal Type) | 400 | 220 | MHMD042G1U | MBDHT2510 |
| Delta | T | No Brake(Horizontal Type) | 400 | 220 | ECMA-C20604ES | ASD-B20421-B |

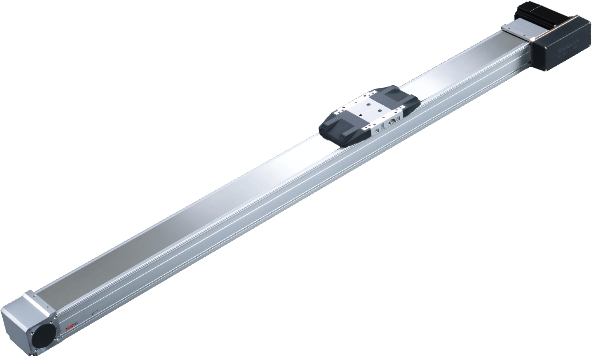

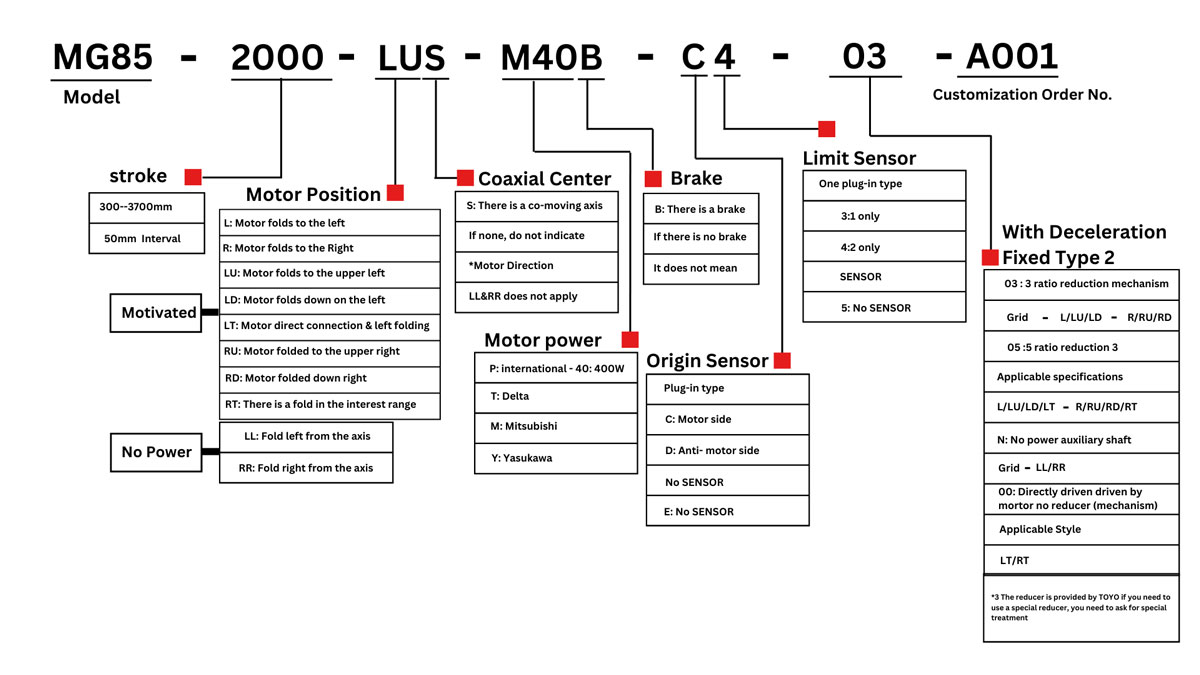

MG85 series
MG85 series specification
| Specification | Repeatability (mm) | (+/-0.04) | ||
|---|---|---|---|---|
| Lead(mm) | 40 | |||
| Maximum Speed(mm/s) | 2000 | |||
| Maximum Payload | Horizontal | 85 | ||
| Vertical | ||||
| Rated Thurst (N) | 367 | |||
| Stroke Pitch(mm) | 50-3050mm/ 50 mm pitch | |||
| Parts | AC Actuator with Motor Output(w) | 750 | ||
| Blet Width | 50 | |||
| High Rigidity Linear Guide(mm) | W23XH18 | |||
| Home Sensor | Outside | EE-SX672(NPN) | ||
Acceleration and declaration value set to 0.4 second
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | Driver Model |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No brake(Horizontal Type) | 400 | 220 | HG-KR43 | MR-J4-40A |
| Panasonic | P | No Brake(Horizontal Type) | 400 | 220 | MHMD042G1U | MBDHT2510 |
| Delta | T | No Brake(Horizontal Type) | 400 | 220 | ECMA-C20604ES | ASD-B20421-B |

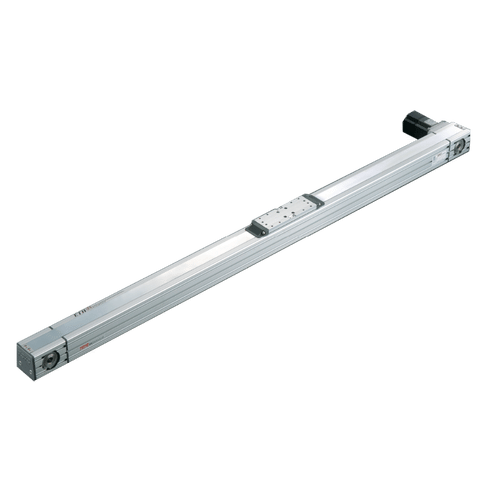

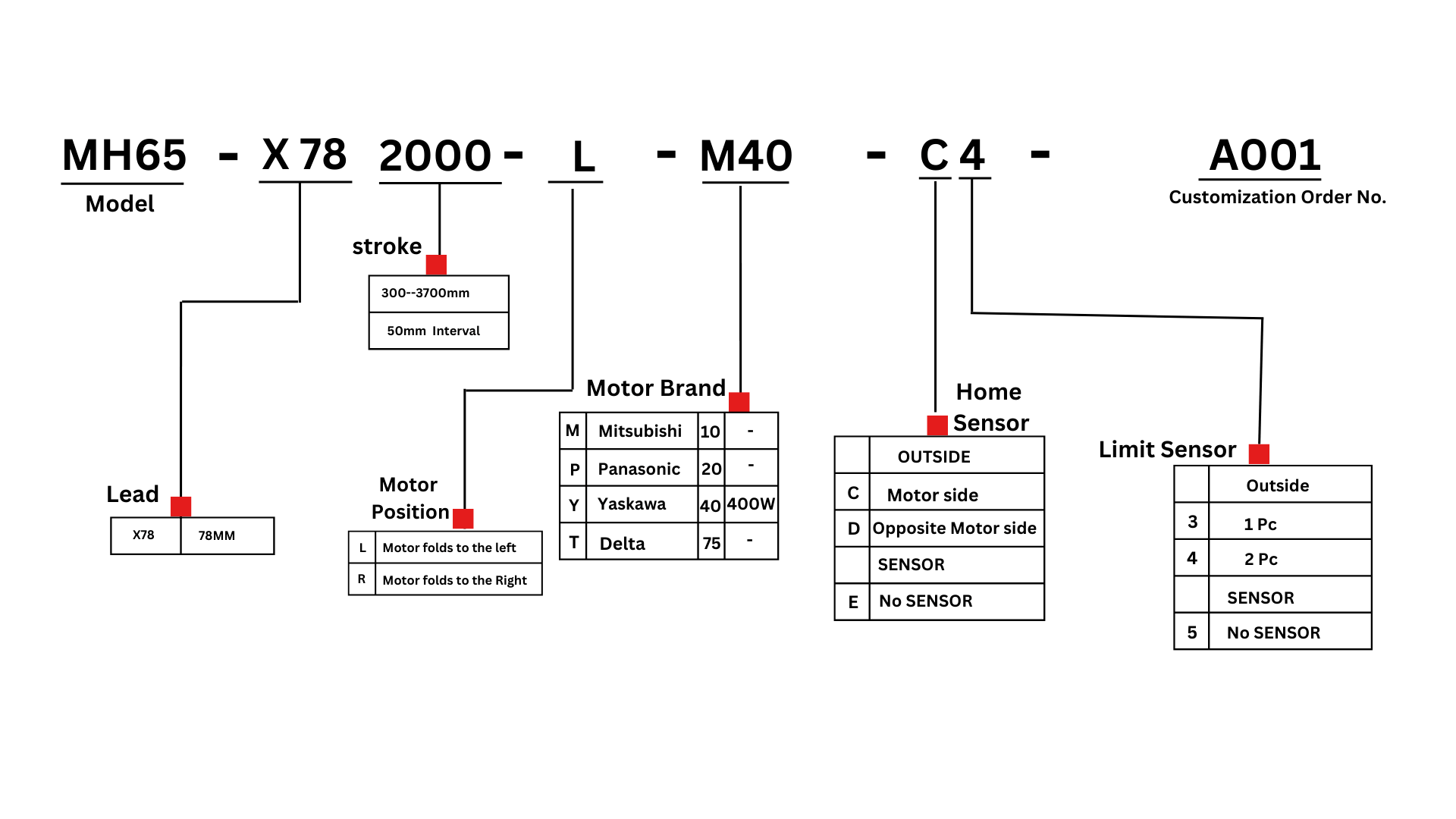

MH65 series
MH65 series specification
| Specification | Rated Speed | rpm/m | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | |
|---|---|---|---|---|---|---|---|---|---|
| Maximum Speed | mm/s | 650 | 1300 | 1950 | 2600 | 3250 | 3900 | ||
| Maximum Payload | Horizontal | Kg | 15 | 10 | 7 | 6 | 5 | 4 | |
| Repeatability | mm | ±0.1 | |||||||
| Lead | mm | 78 | |||||||
| Rated Thurst | N | 92 | |||||||
| Stroke Pitch | mm | 100-3000mm/ 50 mm pitch | |||||||
| Parts | AC Servo Motor Output | W | 400 | ||||||
| Belt Width | mm | 20 | |||||||
| High Rigidity Linear Guide | mm | W12SX7.5 | |||||||
| Home Sensor | Outside | EE-SX672(NPN) | |||||||
Acceleration and declaration value set to 0.4 second
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | Driver Model |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No brake(Horizontal Type) | 400 | 220 | HG-KR43 | MR-J4-40A |
| Panasonic | P | No Brake(Horizontal Type) | 400 | 220 | MHMD042G1U | MBDHT2510 |
| Delta | T | No Brake(Horizontal Type) | 400 | 220 | ECMA-C20604ES | ASD-B20421-B |

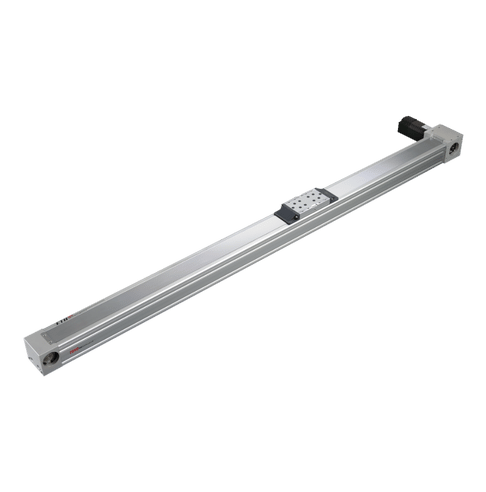

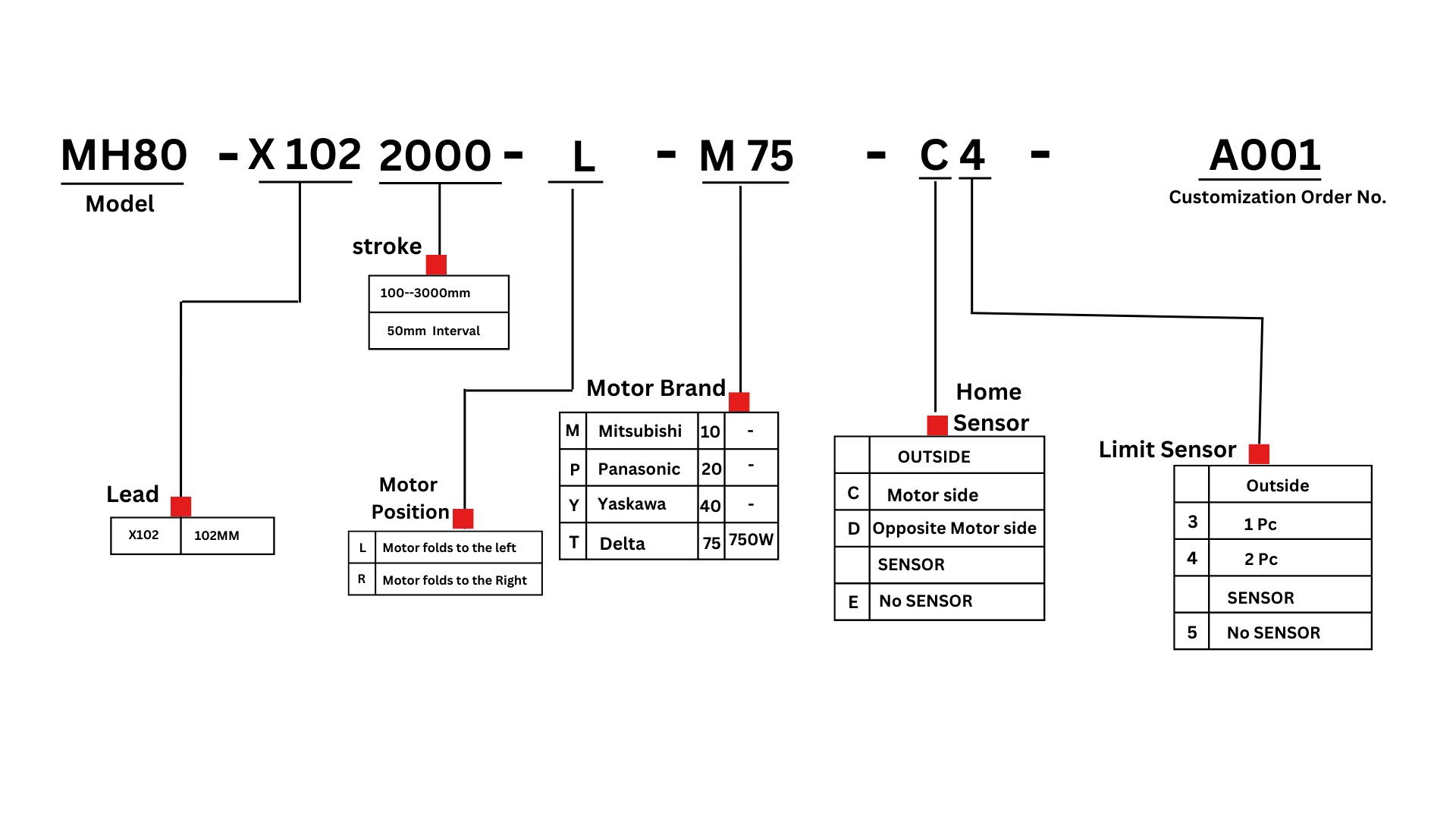

MH80 series
MH80 series specification
| Specification | Rated Speed | rpm/m | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | |
|---|---|---|---|---|---|---|---|---|---|
| Maximum Speed | mm/s | 850 | 1700 | 2550 | 3400 | 4250 | 5000 | ||
| Maximum Payload | Horizontal | Kg | 25 | 16 | 13 | 10 | 7 | 6 | |
| Repeatability | mm | ±0.1 | |||||||
| Lead | mm | 102 | |||||||
| Rated Thurst | N | 132 | |||||||
| Stroke Pitch | mm | 100-3000mm/ 50 mm pitch | |||||||
| Parts | AC Servo Motor Output | W | 750 | ||||||
| Belt Width | mm | 30 | |||||||
| High Rigidity Linear Guide | mm | W15XH9.5 | |||||||
| Home Sensor | Outside | EE-SX672(NPN) | |||||||
Acceleration and declaration value set to 0.4 second
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | Driver Model |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No brake(Horizontal Type) | 750 | 220 | HG-KR43 | MR-J4-70A |
| Panasonic | P | No Brake(Horizontal Type) | 750 | 220 | MHMD082G1U | MBDHT3520 |
| Delta | T | No Brake(Horizontal Type) | 750 | 220 | ECMA-C20807ES | ASD-B20721-B |

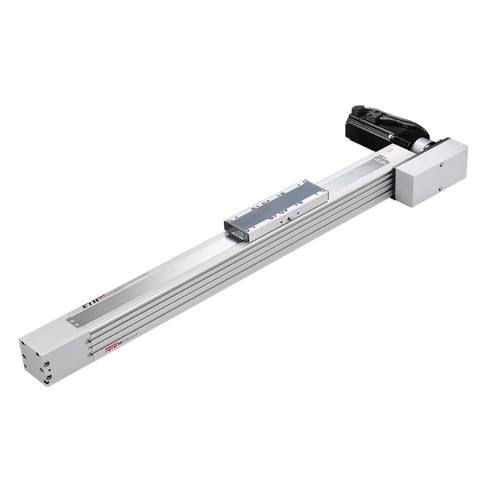

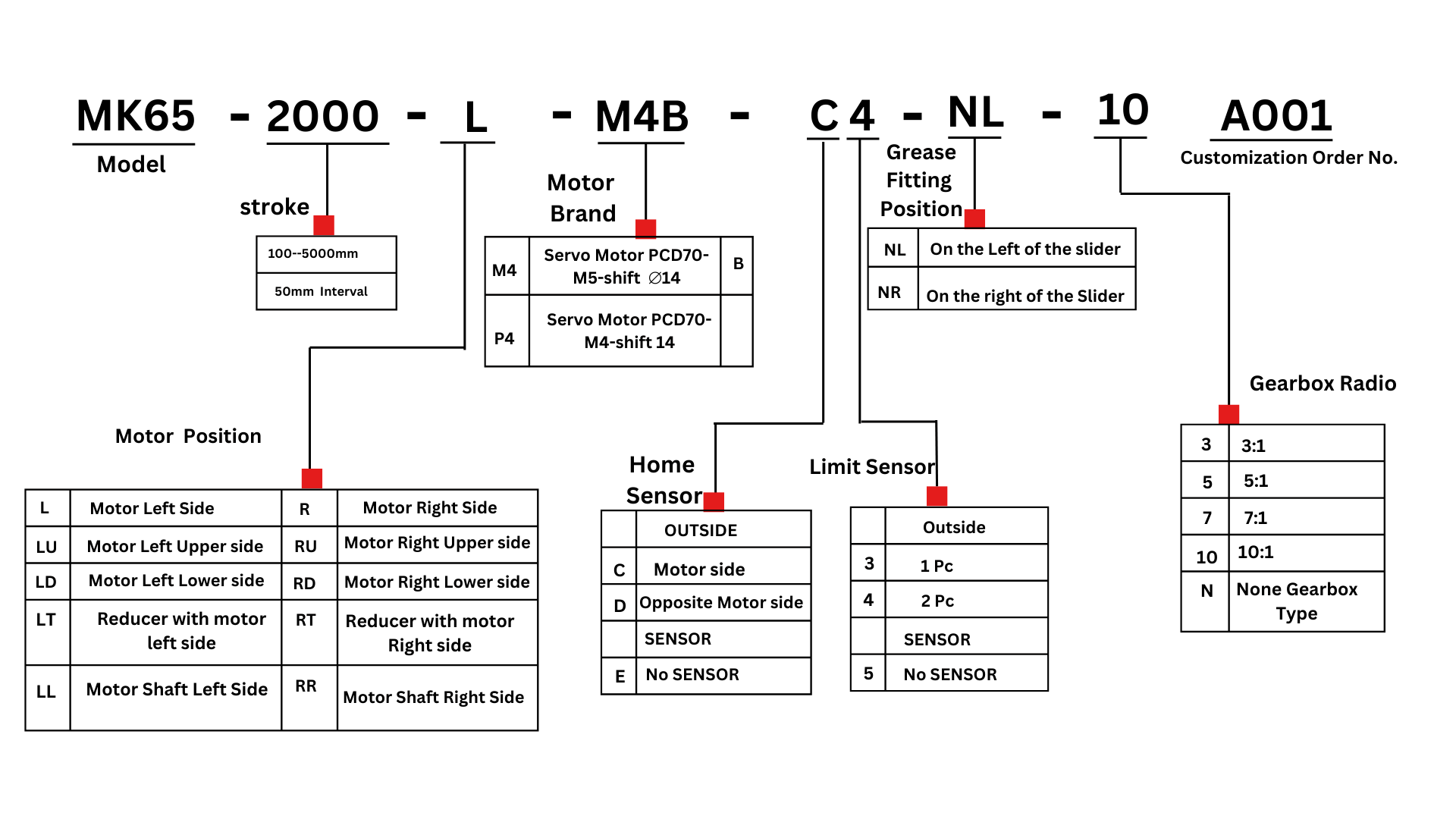

MK65 series
MK65 series specification
| Specification | Rated Speed | rpm/m | 3:1 | 5:1 | 7:1 | 10:1 | |
|---|---|---|---|---|---|---|---|
| Maximum Speed | mm/s | 1833 | 1100 | 785 | 550 | ||
| Maximum Payload | Horizontal | Kg | 30 | 45 | 55 | 60 | |
| Veritcal | Kg | 9 | 15 | 16 | 17 | ||
| Repeatability | mm | ±0.1 | |||||
| Rated Thurst | N | 220 | |||||
| Stroke Pitch | mm | 100-5000mm/ 100 mm pitch | |||||
| Parts | AC Servo Motor Output | W | 400 | ||||
| Belt Width | mm | 32 | |||||
| High Rigidity Linear Guide | mm | W15Xh12.5 | |||||
| Home Sensor | Outside | EE-SX672(NPN) | |||||
Acceleration and declaration value set to 0.4 second

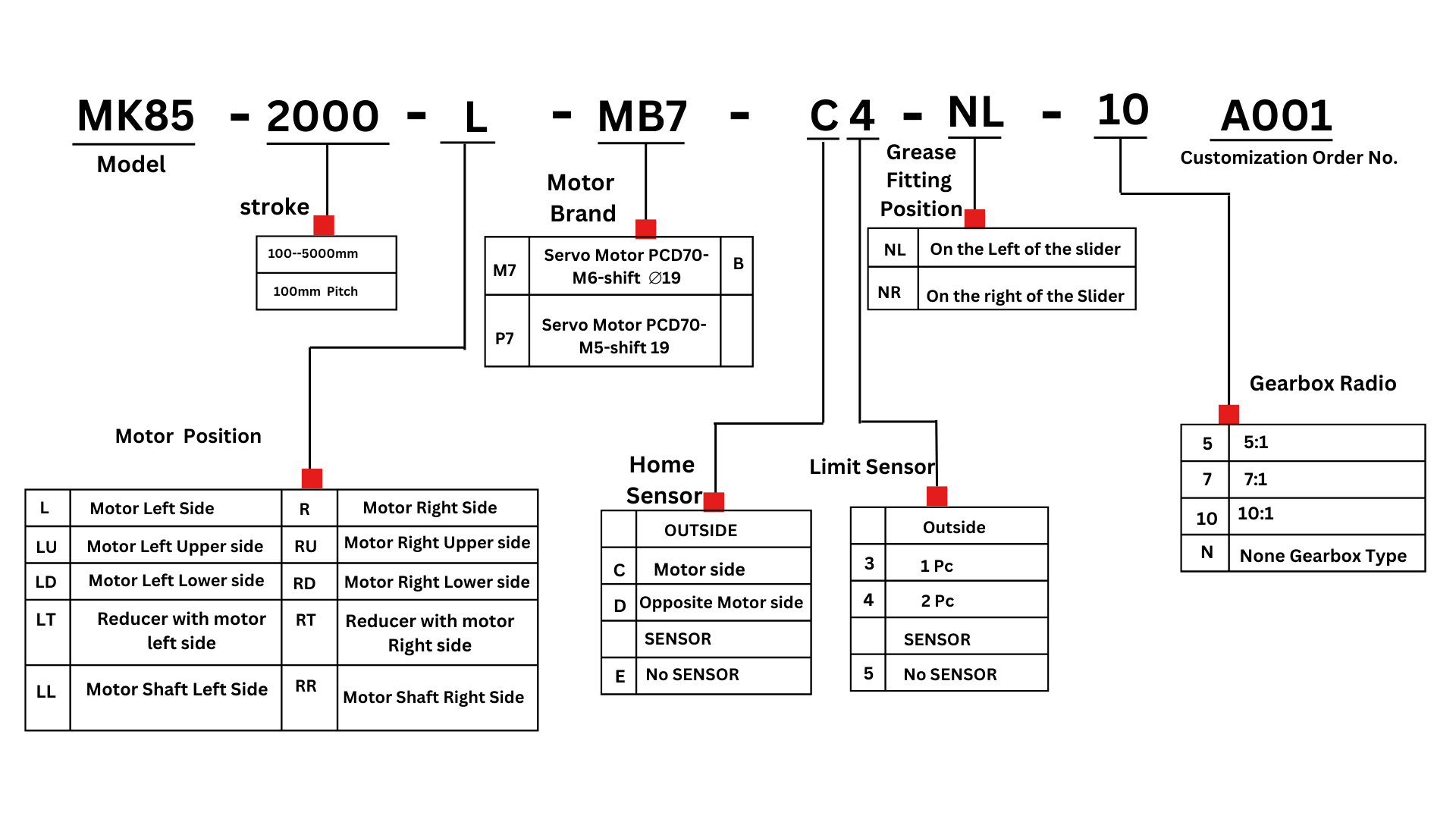

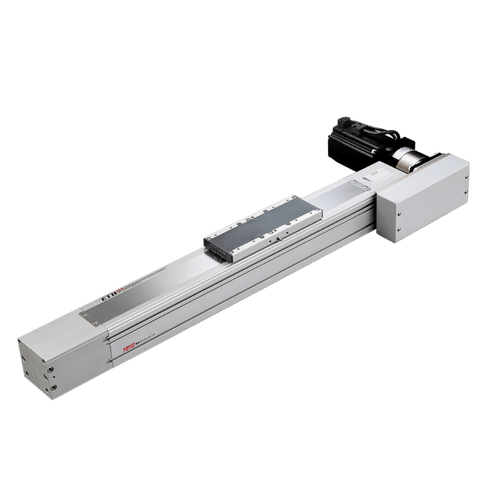

MK85 series
MK85 series specification
| Specification | Rated Speed | rpm/m | 5:1 | 7:1 | 10:1 | |||
|---|---|---|---|---|---|---|---|---|
| Maximum Speed | mm/s | 2000 | 1428 | 1000 | ||||
| Maximum Payload | Horizontal | Kg | 40 | 60 | 100 | |||
| Vertical | Kg | 14 | 21 | 24 | ||||
| Repeatability | mm | ±0.1 | ||||||
| Rated Thurst | N | 340 | ||||||
| Stroke Pitch | mm | 100-5000mm/ 50 mm pitch | ||||||
| Parts | AC Servo Motor Output | W | 750 | |||||
| Belt Width | mm | 46 | ||||||
| High Rigidity Linear Guide | mm | W20XH15 | ||||||
| Home Sensor | Outside | EE-SX672(NPN) | ||||||
Acceleration and declaration value set to 0.4 second

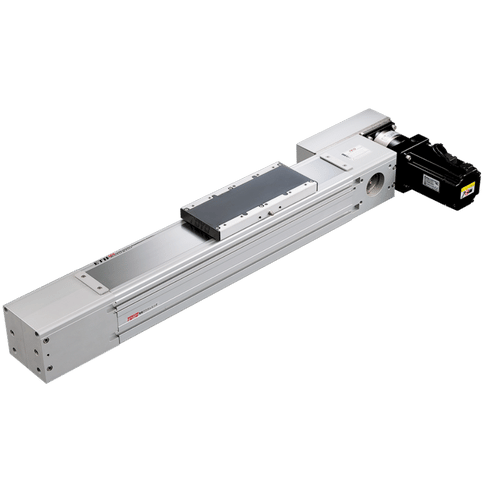

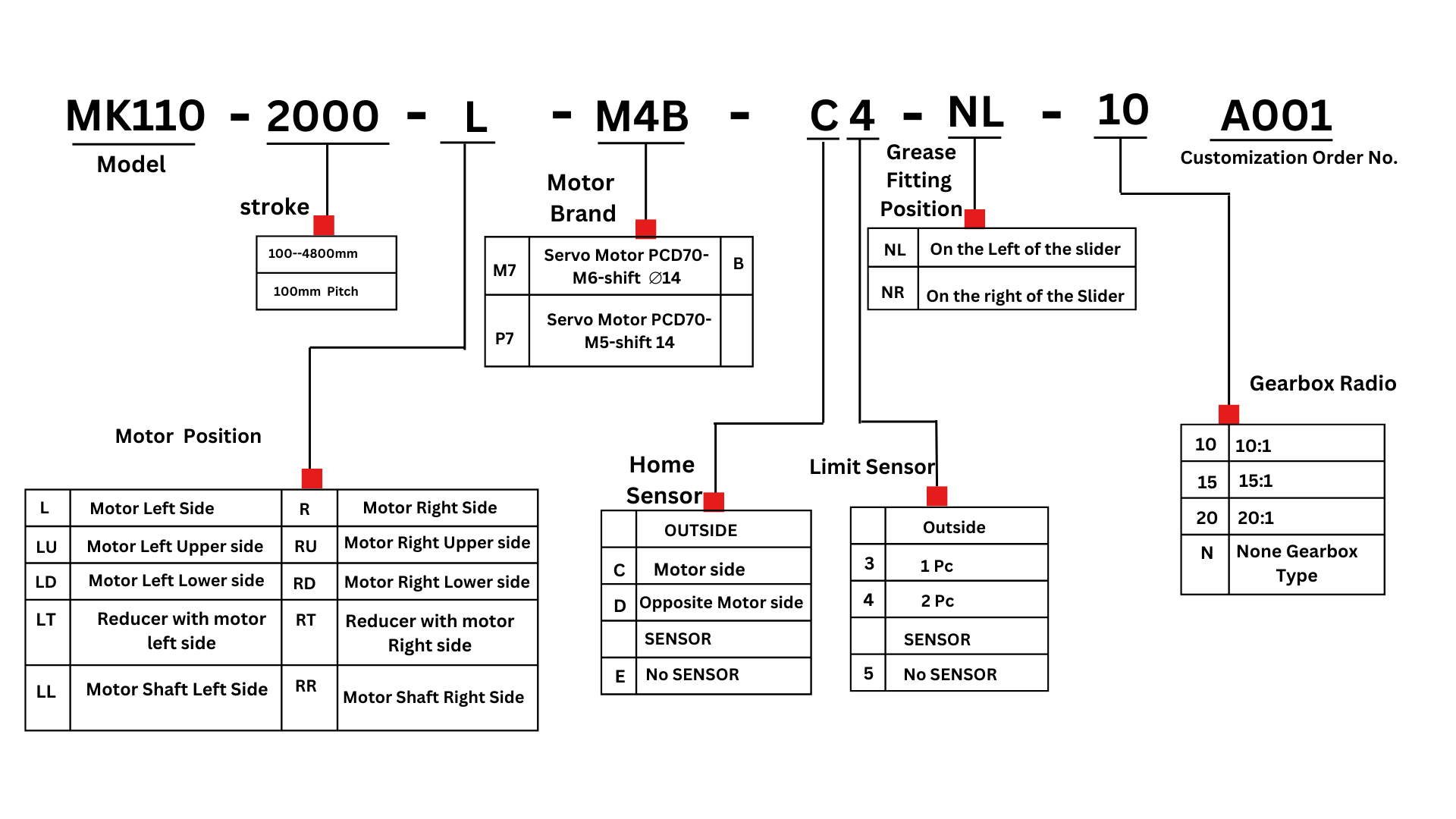

MK110 series
MK110 series specification
| Specification | Rated Speed | rpm/m | 10:1 | 15:1 | 20:1 | |||
|---|---|---|---|---|---|---|---|---|
| Maximum Speed | mm/s | 1250 | 833 | 625 | ||||
| Maximum Payload | Horizontal | Kg | 100 | 150 | 200 | |||
| Vertical | Kg | 23 | 36 | 50 | ||||
| Repeatability | mm | ±0.1 | ||||||
| Rated Thurst | N | 765 | ||||||
| Stroke Pitch | mm | 100-4800mm/ 100 mm pitch | ||||||
| Parts | AC Servo Motor Output | W | 750 | |||||
| Belt Width | mm | 50 | ||||||
| High Rigidity Linear Guide | mm | W23XH18 | ||||||
| Home Sensor | Outside | EE-SX672(NPN) | ||||||
Acceleration and declaration value set to 0.4 second
