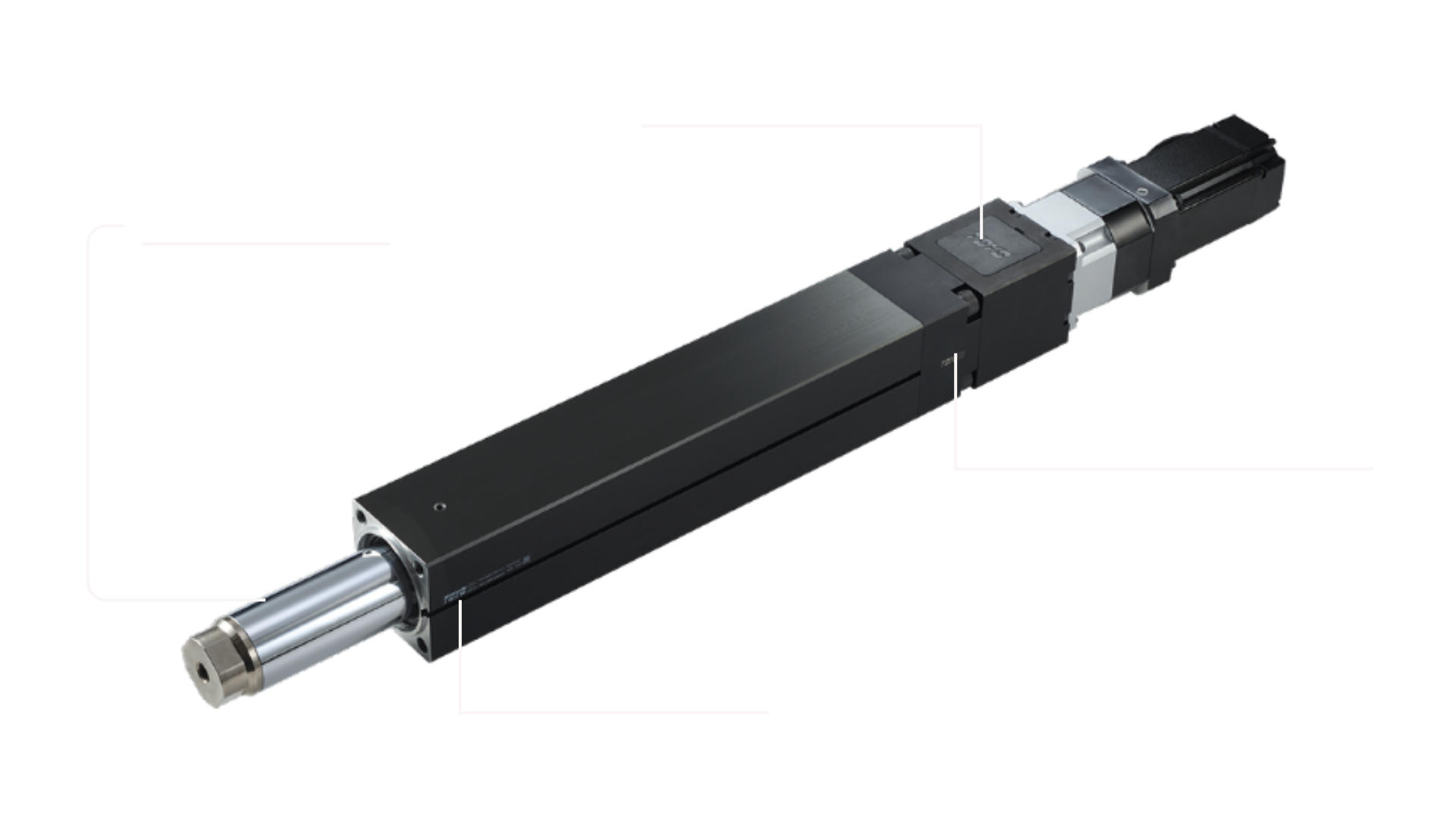

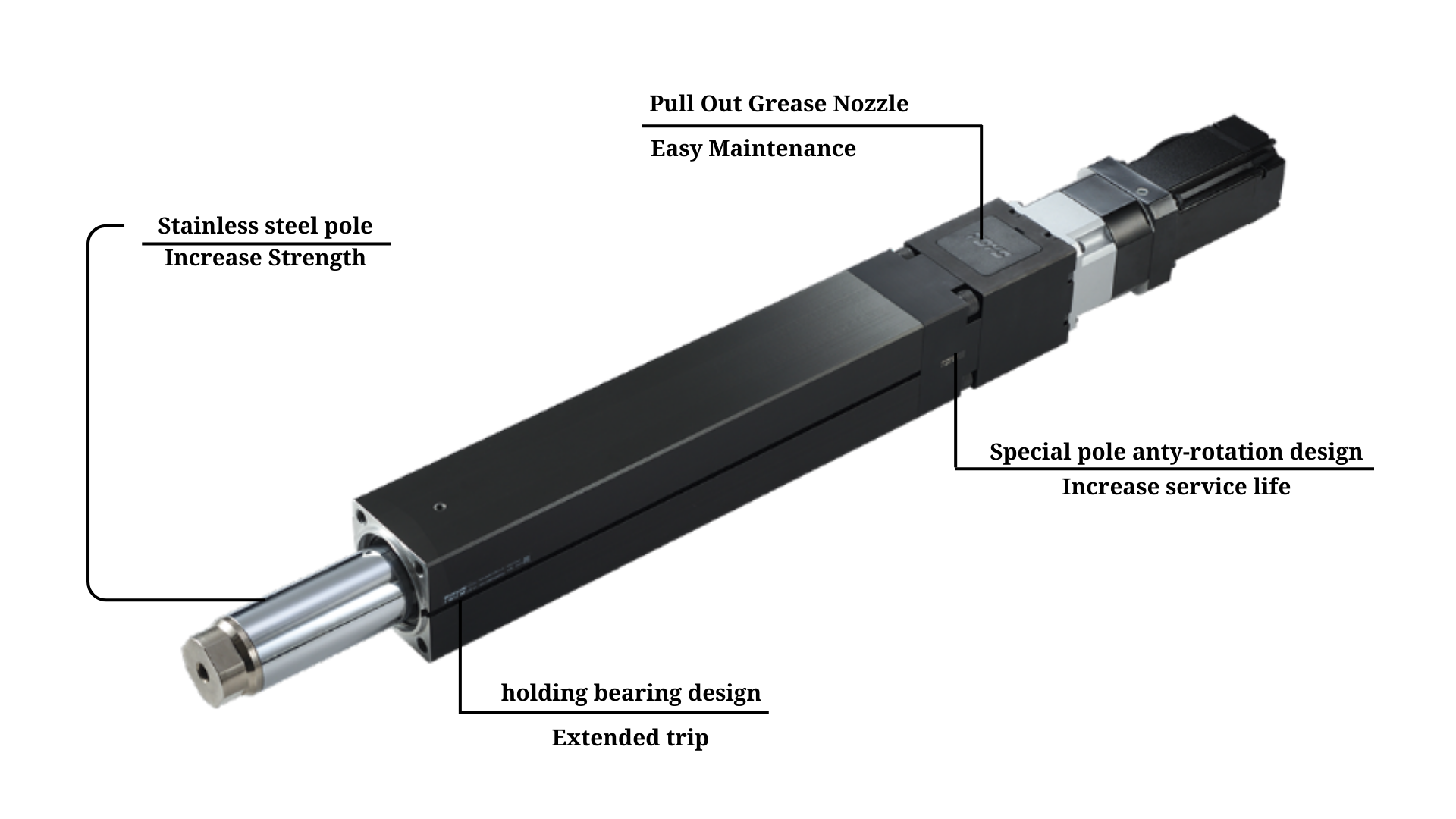

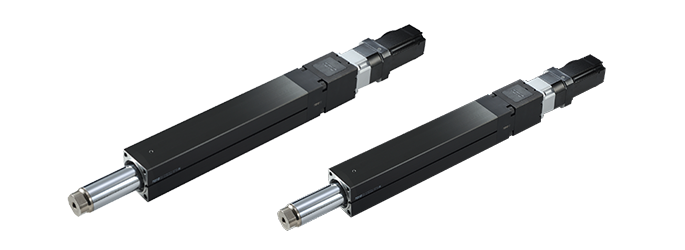

Rod Type Actuator
A rod type actuator is a type of linear actuator that converts rotational motion into linear motion. It typically consists of a rod or piston attached to a motor or other rotary actuator, which moves in and out of a cylindrical housing.
The electric motor is connected to a lead screw drive mechanism. When the motor rotates, it drives the lead screw or, converting the rotational motion into linear motion. The lead screw drive is attached to a rod or piston, which moves linearly as the lead screw rotates.
Features
- Standard stroke 50-800 mm.
- Reduction ratio up to 10
- Motor max speed 1500 rpm.
- Motor capacity 100W to 750W
- Ensured repeatability of +/- 0.01 mm.
Applications
Positioning, Pick and place, Carrying, Press fitting
Industries
Industrial robot industry, TFT display manufacturing, Semi-conductor manufacturing, LED manufacturing, Material handling industry

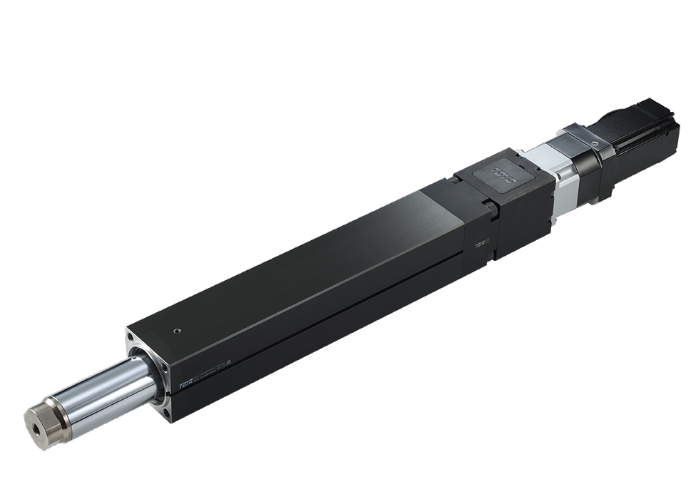

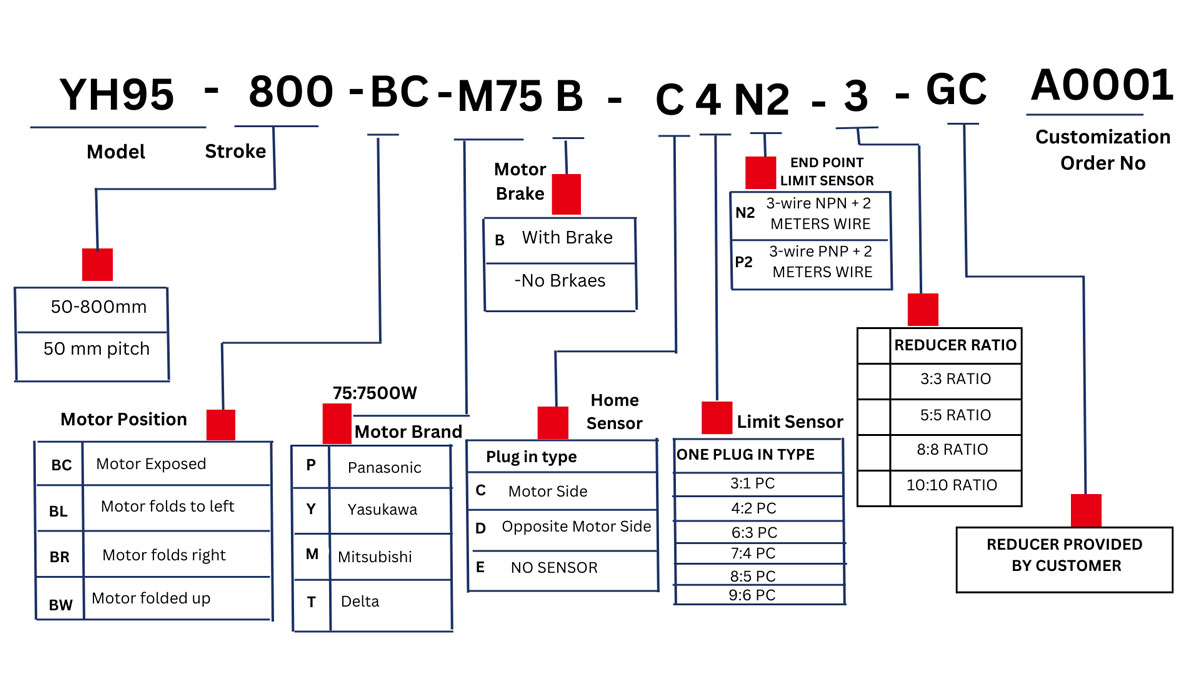

YH95 series
YH95 series specification
| Performance | Repeatability | mm | (+/-0.01) | ||||
|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 03:01 | 05:01 | 08:01 | 10:01 | ||
| Motor Maximum Speed | rpm | 1500 | |||||
| Maximum Linear Speed | mm/s | 42 | 25 | 16 | 13 | ||
| Maximum Payload | Horizontal | kg | 1080 | 1500 | 2400 | 3000 | |
| Vertical | kg | 360 | 600 | 960 | 1200 | ||
| Rated Thurst | N | 6150 | 10250 | 16400 | 20500 | ||
| Stroke (increments) | mm | 50-800mm/50 intervals(50mm increments) | |||||
| Parts | AC Actuator with Motor Output | W | 750 | ||||
| Planetary Roller screw outer diameter | mm | θ20 | |||||
| Screw Lead | 5 | ||||||
| Coupler | θ58 x 53.4L | ||||||
| Home Sensor | Outside | CS-6T(NPN/PNP+2 CABLE) | |||||
ETB17M series
ETB17M series specification
| Specification | Repeatability (mm) | (+/-0.04) | ||
|---|---|---|---|---|
| Lead(mm) | 40 | |||
| Maximum Speed(mm/s) | 2000 | |||
| Maximum Payload | Horizontal | 25 | ||
| Vertical | ||||
| Rated Thurst (N) | 100 | |||
| Stroke Pitch(mm) | 50-3050mm/ 50 mm pitch | |||
| Parts | AC Actuator with Motor Output(w) | 200 | ||
| Blet Width | 22 | |||
| High Rigidity Linear Guide(mm) | W15XH12.5 | |||
| Home Sensor | Outside | EE-SX672(NPN) | ||
Acceleration and declaration value set to 0.4 second
ETB22M series
ETB22M series specification
| Specification | Repeatability (mm) | (+/-0.04) | ||
|---|---|---|---|---|
| Lead(mm) | 40 | |||
| Maximum Speed(mm/s) | 2000 | |||
| Maximum Payload | Horizontal | 85 | ||
| Vertical | ||||
| Rated Thurst (N) | 367 | |||
| Stroke Pitch(mm) | 50-3050mm/ 50 mm pitch | |||
| Parts | AC Actuator with Motor Output(w) | 750 | ||
| Blet Width | 50 | |||
| High Rigidity Linear Guide(mm) | W23XH18 | |||
| Home Sensor | Outside | EE-SX672(NPN) | ||
Acceleration and declaration value set to 0.4 second
