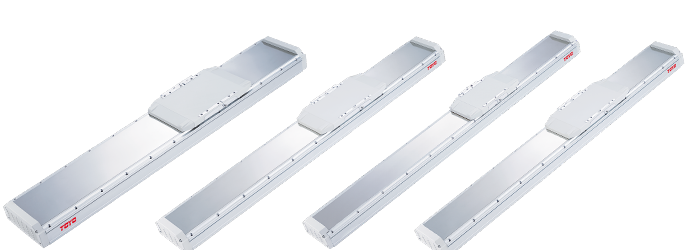

Linear Motor Actuator
Magnets in LNF Series Linear Motor Actuators primarily function by creating a magnetic field that interacts with other components to generate linear motion. These magnet assemblies consist of powerful permanent magnets, carefully configured to optimize their magnetic properties and enhance the actuator’s performance. When an electrical current is applied to a coil surrounding the armature, it creates a temporary magnetic field that interacts with the permanent magnets.
Features
- Due to direct drive, the backlash caused by many additional converter devices and accumulated errors is eliminated.
- Using high-density coil design, if dual axis synchronous drive is selected.
- The stroke of Linear Motor Actuator can be 8000mm and can be increased according to customer needs.
- It does not have driving elements such as couplings etc. so the service life is about 2 times longer than a traditional ball screw module.
- Standard controller also provides PULSE, communication and other two control interfaces and can be equipped with CAN Open and EtherCAT networks.
- Low noise and easy maintenance.
Applications
Spray printing device for PCB board, Aligning device for pick and place of IC boards, Barcode scanning device, CCD inspection machine
Industries
TFT display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining, Textile machinery, Printing and labelling, Laboratory automation and Material handling.

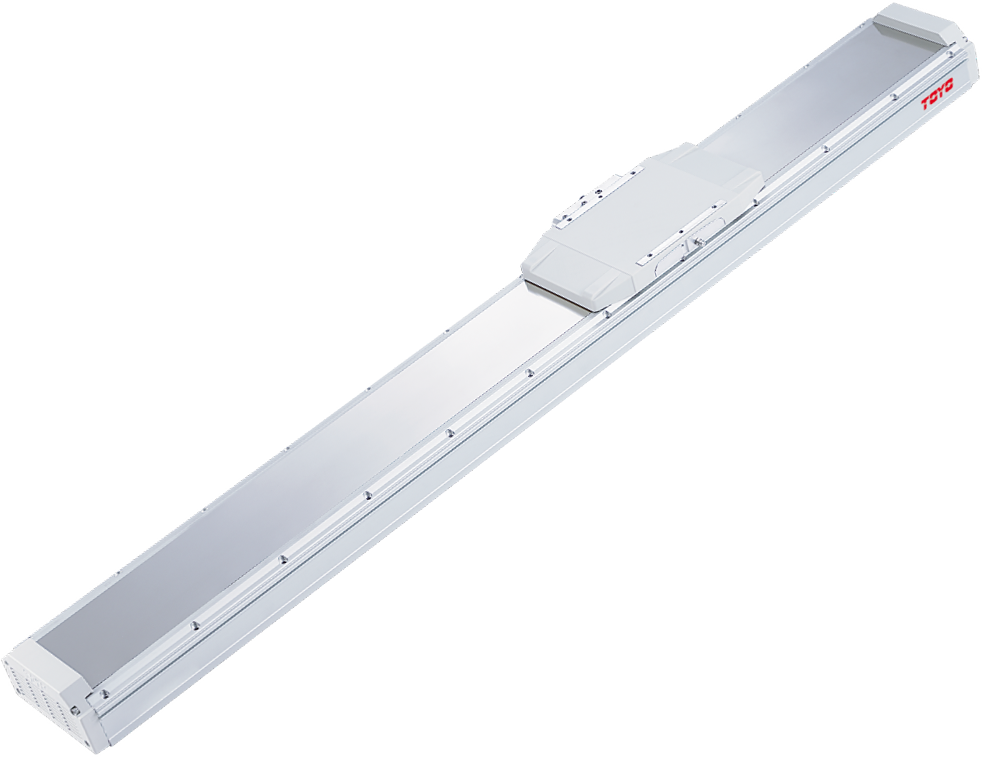

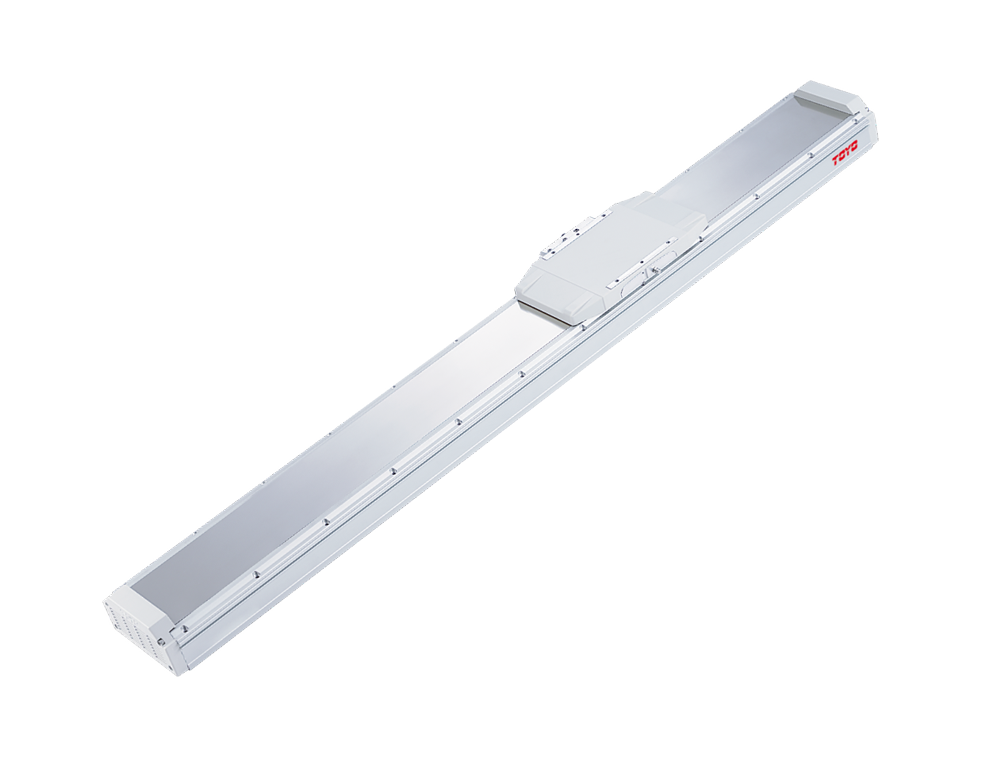

LNF2-15 series
LNF2-15 series specification
| Performance | Model | mm | LTF2-15 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 266 | ||
| Stroke(mm) | N | 208-3024/64 Pitch | ||
| D | 332-3020/64 Pitch | |||
| Rated Force | N | 59 | ||
| Max Payload | Kg | 20 | ||

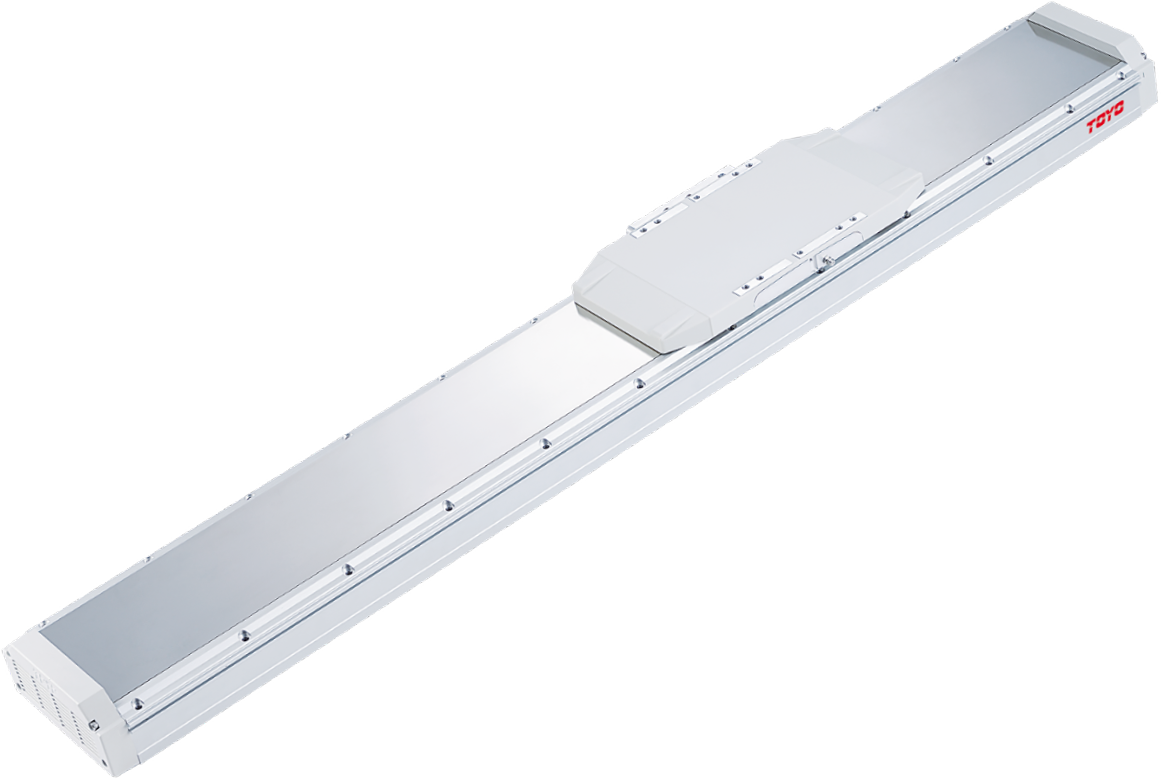

LNF2-20 series
LNF2-20 series specification
| Performance | Model | mm | LTF2-20 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 510 | ||
| Stroke(mm) | N | 202-3018/64 Pitch | ||
| D | 320-3008/64 Pitch | |||
| Rated Force | N | 113 | ||
| Max Payload | Kg | 40 | ||

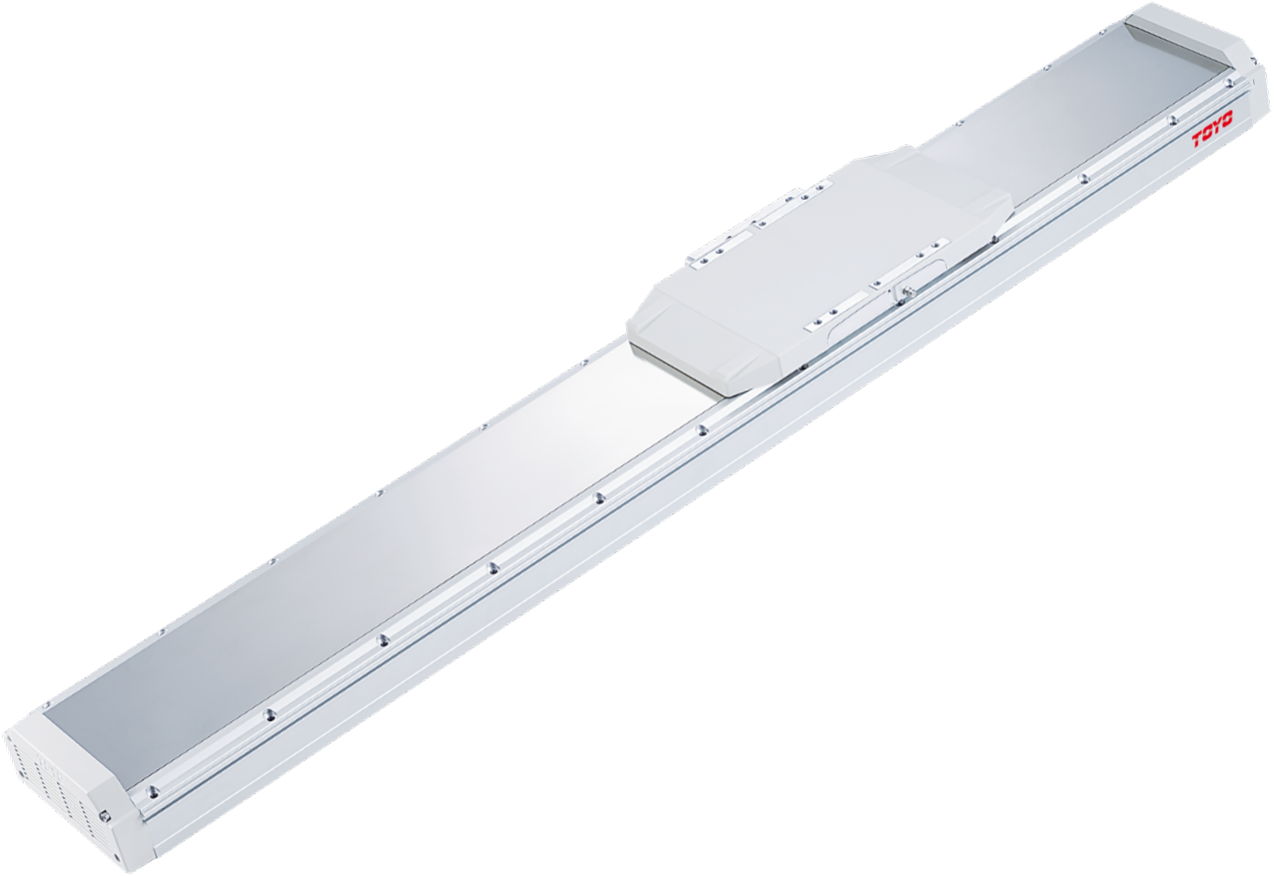

LNF2-30 series
LNF2-30 series specification
| Performance | Model | mm | LTF2-30 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 713 | ||
| Stroke(mm) | N | 202-3018/64 Pitch | ||
| D | 320-3008/64 Pitch | |||
| Rated Force | N | 158 | ||
| Max Payload | Kg | 54 | ||

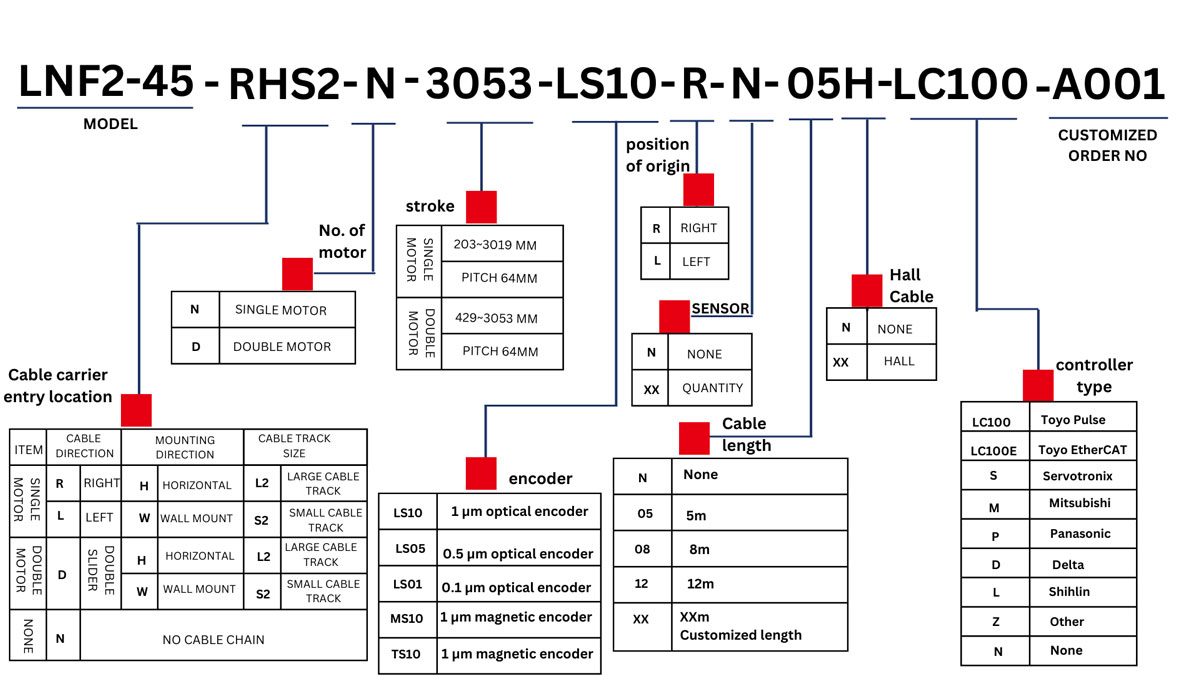

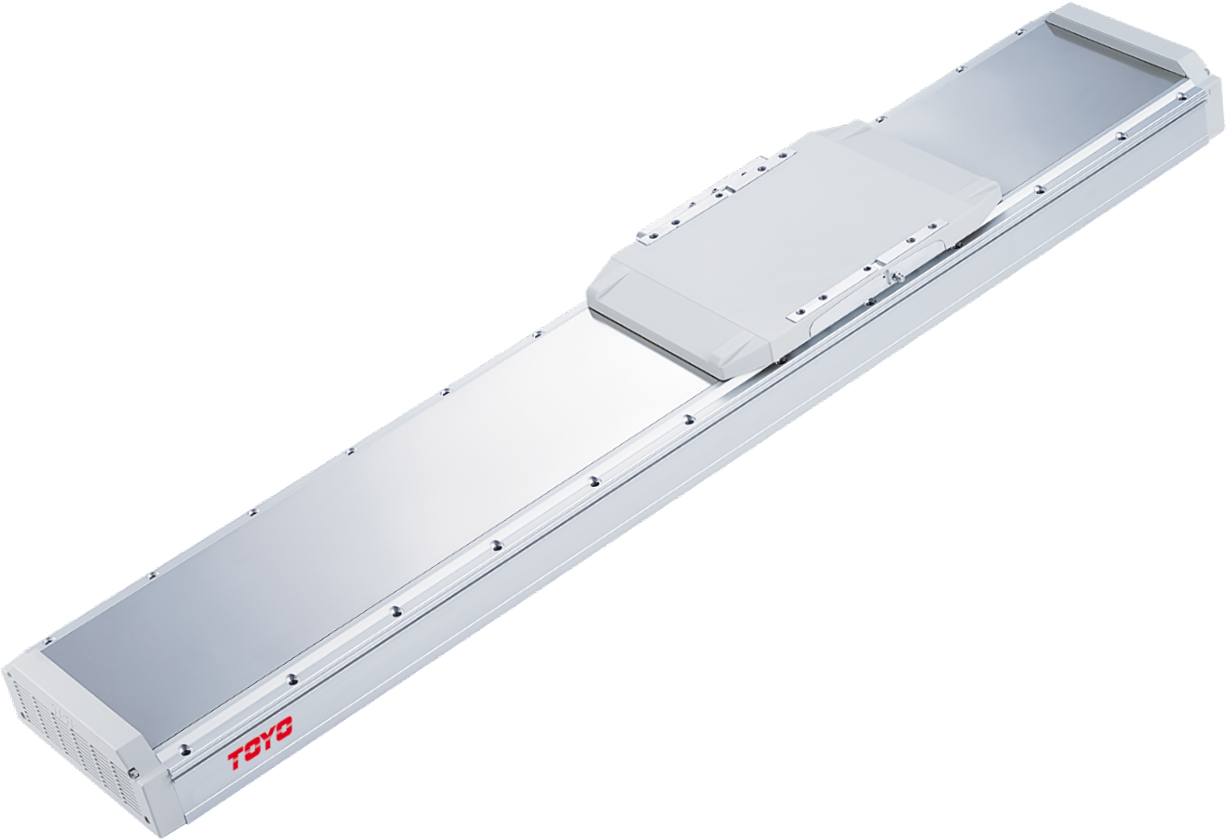

LNF2-45 series
LNF2-45 series specification
| Performance | Model | mm | LTF2-45 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 1128 | ||
| Stroke(mm) | N | 203-3019/64 Pitch | ||
| D | 429-3053/64 Pitch | |||
| Rated Force | N | 251 | ||
| Max Payload | Kg | 90 | ||

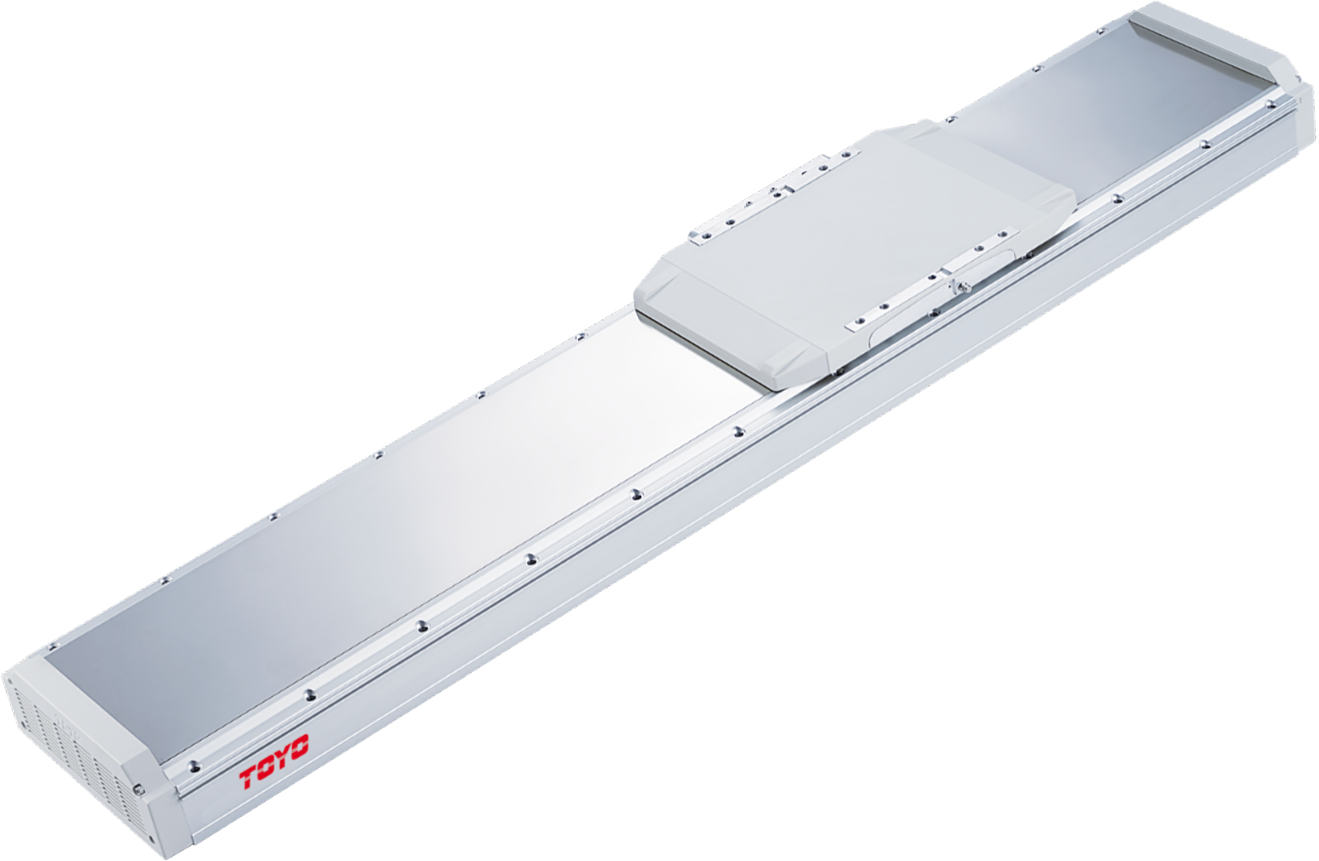

LNF2-75 series
LNF2-75 series specification
| Performance | Model | mm | LTF2-75 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 1532 | ||
| Stroke(mm) | N | 203-3019/64 Pitch | ||
| D | 429-3053/64 Pitch | |||
| Rated Force | N | 340 | ||
| Max Payload | Kg | 120 | ||
