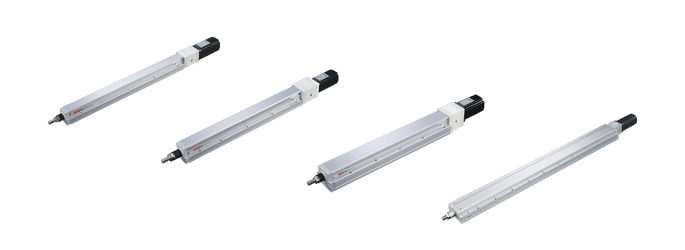

Rod Type Linear Actuator

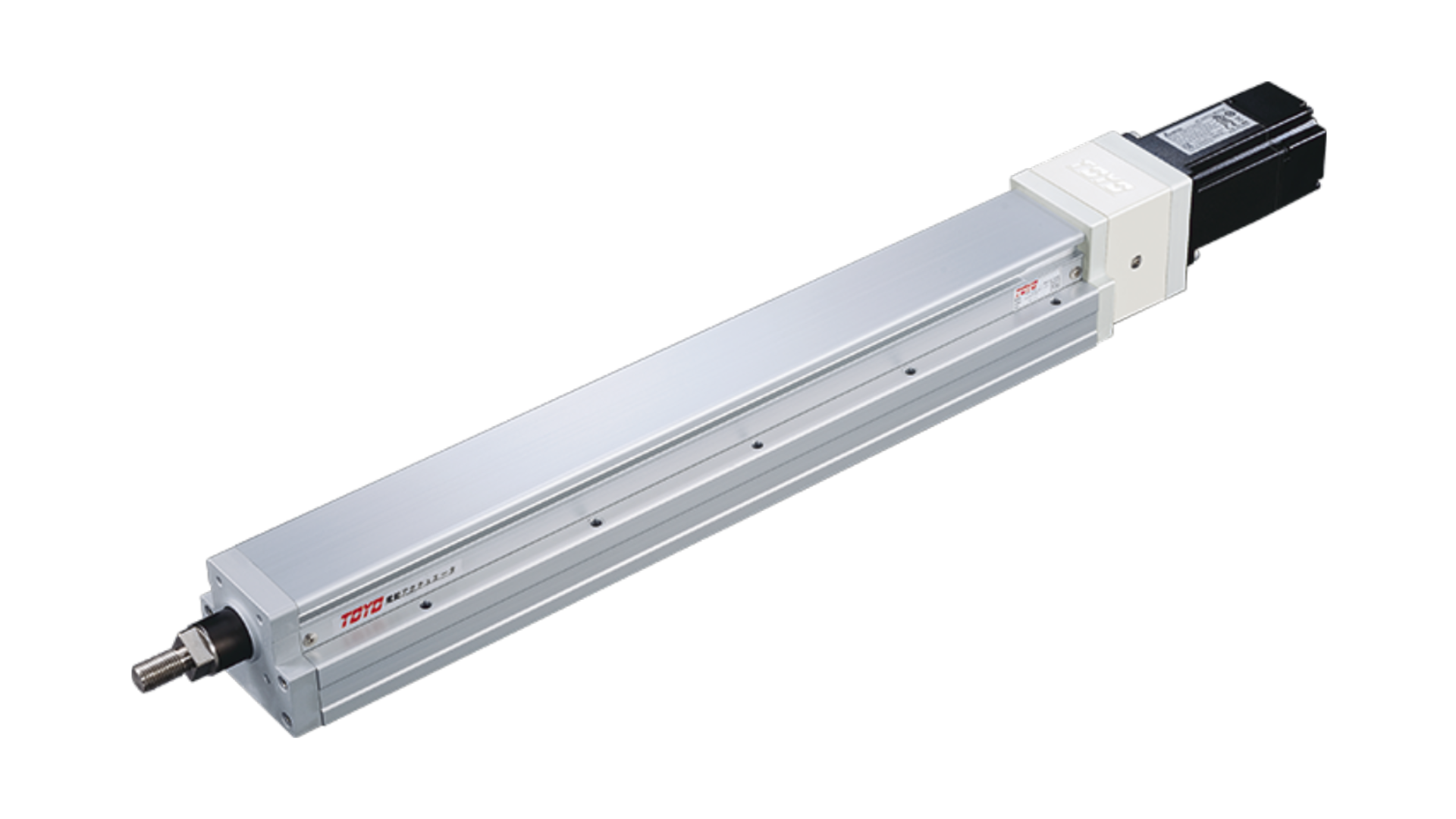

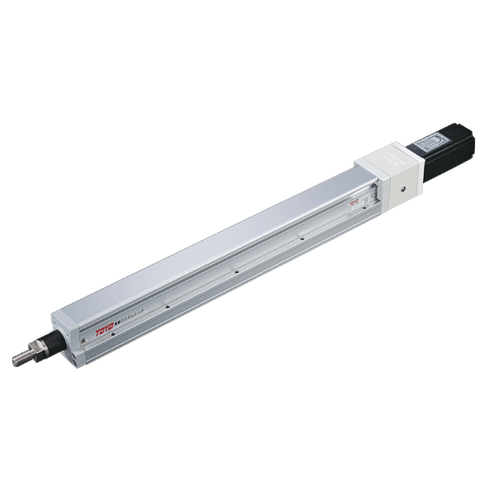

A rod-type electric actuator GTY Series is a device that converts electrical energy into linear mechanical motion using a rod mechanism. Rod-type actuators typically have a motor attached to a lead screw or similar mechanism that extends or retracts a rod. The design allows for compact installations and straightforward integration into existing systems.
When choosing a rod-type electric actuator, consider factors such as load capacity, speed requirements, operating environment (temperature, humidity), and any specific control requirements. It can be utilized in devices like hospital beds and surgical tables for adjusting height and position also used in machineries for tasks such as lifting, pushing, and positioning.
Features
- Precision Control: They provide accurate movement control, essential for applications requiring high accuracy.
- Maintenance-Free Operation: Electric actuators often require less maintenance compared to pneumatic or hydraulic systems, thanks to fewer moving parts and no fluid systems.
- Energy Efficiency: Electric actuators are typically more efficient than their hydraulic counterparts, making them a more environmentally friendly option.
Applications
Positioning or height adjustment, lifting, Pushing , Press, Fitting
Industries
Industrial Robot Industry, TFT Display manufacturing, Semi-conductor manufacturing, LED Manufacturing, Material handling industry, Surgical bed adjustment

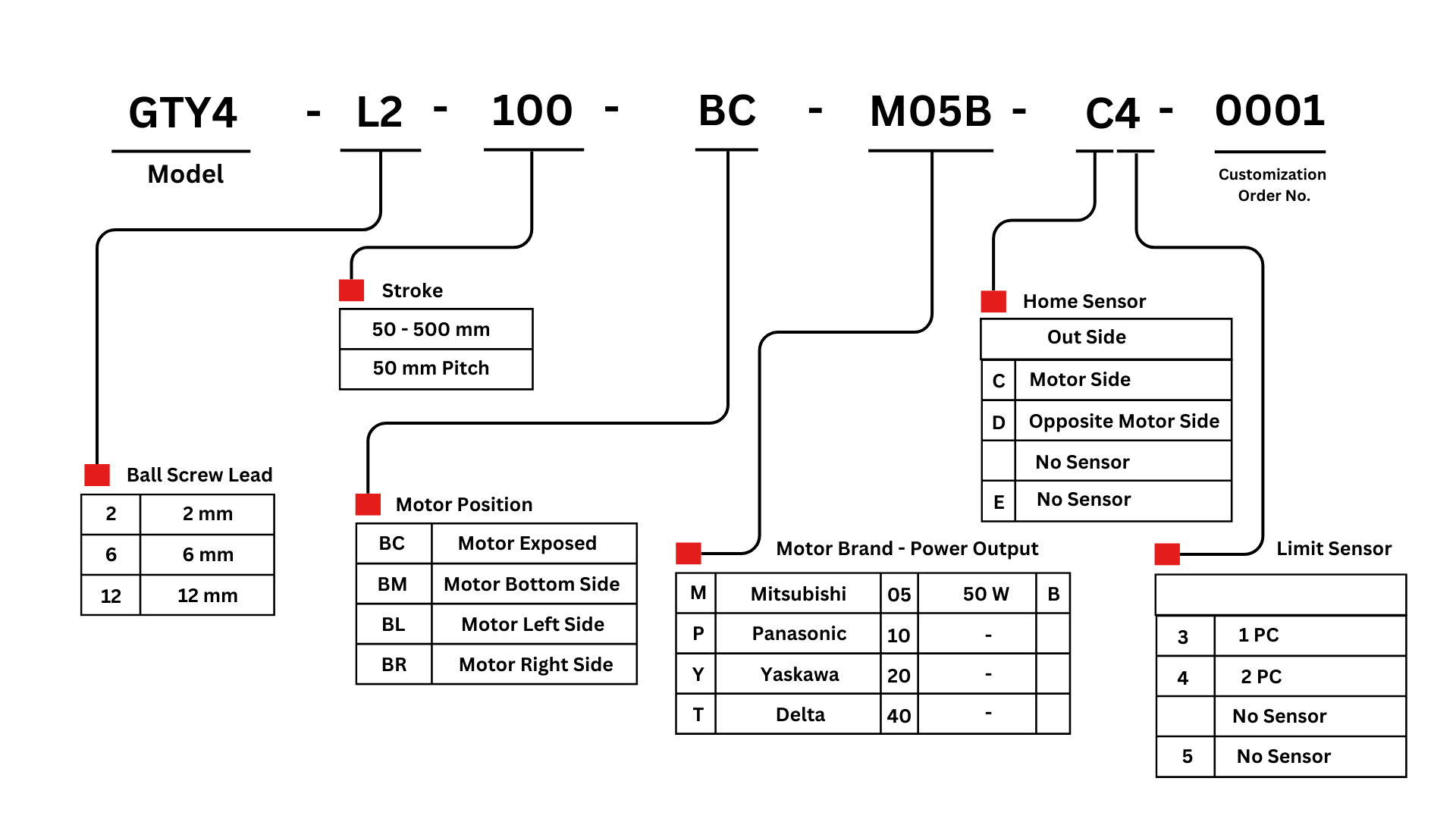

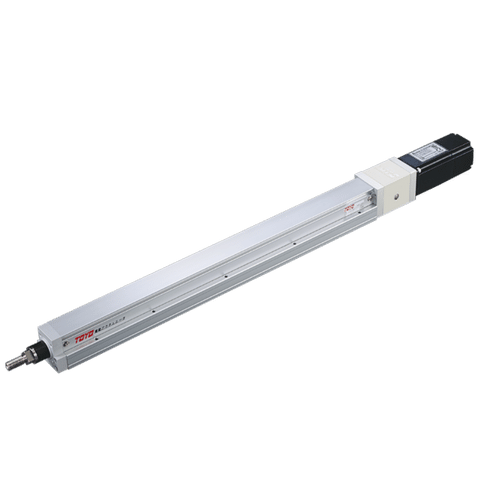

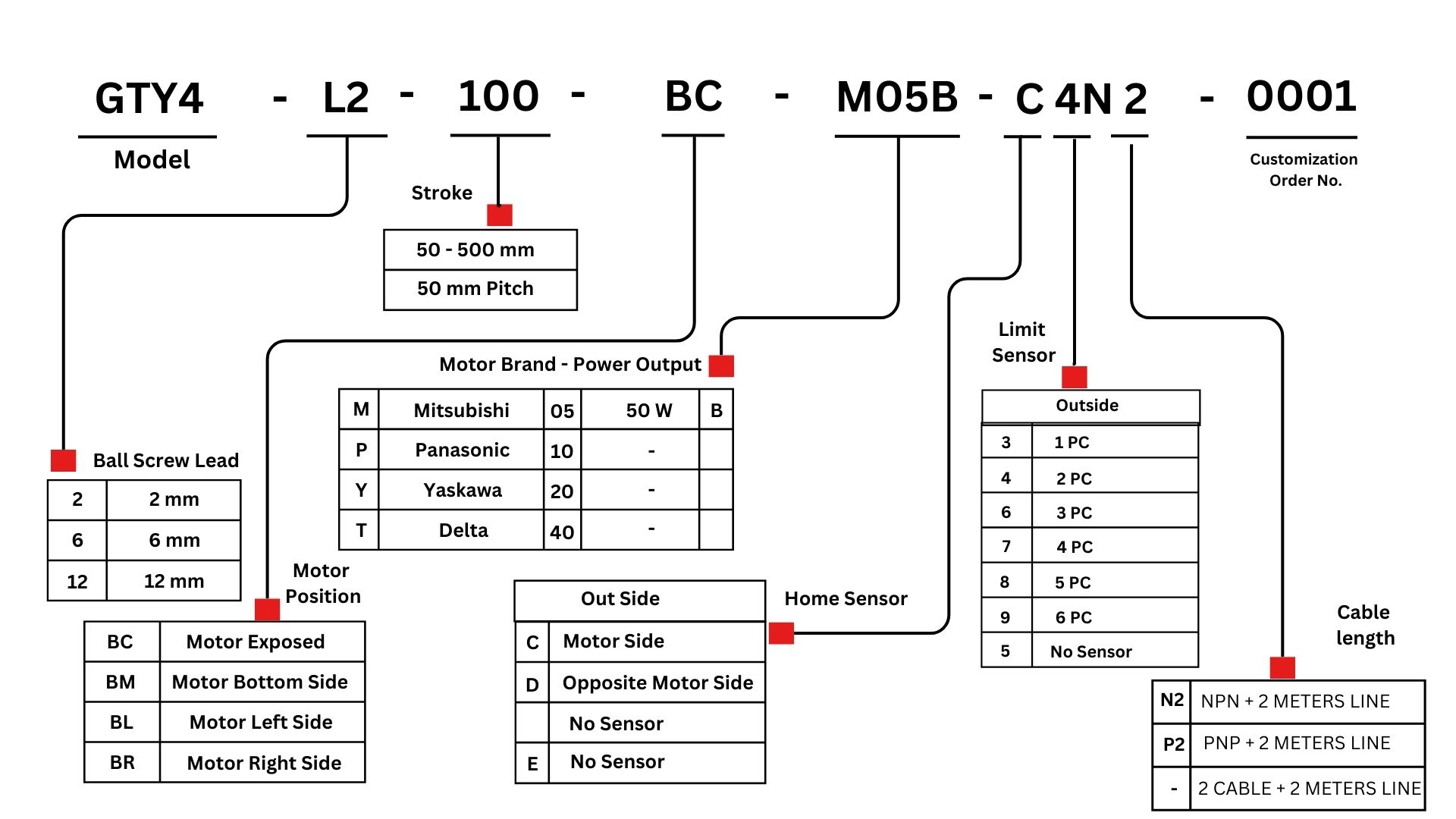

GTY4-50W series
GTY4-50W series specification
| Specification | ||||
|---|---|---|---|---|
| Repeatability(mm) | ±0.01 | |||
| Ball Screw Lead(mm) | 2 | 6 | 12 | |
| Maximum Rotating Speed(mm/s) | 3000 | 3600 | 3600 | |
| Maximum Linear Speed(mm/s) | 100 | 360 | 720 | |
| Maximum Payload | Horizontal(kg) | 25 | 20 | 12 |
| Vertical(kg) | 8 | 5 | 2 | |
| Rated Thrust(N) | 424 | 141 | 71 | |
| Stroke pitch(mm) | 50-500mm/50 intervals (50 Increments) | |||
| AC Servo Moter Output(W) | 50 | |||
| Ball Screw ⌀ (mm) | C7⌀10 | |||
| Coupling(mm) | 7X8 | |||
| Home Sensor | Outside | CS-6T(NPN) | ||
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | DriverModel |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No Brake (Horizontal Type) |
50 | 220 | HG -KR053 | MR-J4-10A |
| With Brake (Vertical type) |
50 | 220 | HG-KR053B | MR-J4-10A | ||
| Panasonic | P | No Brake (Horizontal Type) |
50 | 220 | MSMD5A2G1U | MADHT1505 |
| With Brake (Vertical type) |
50 | 220 | MSMD5A2G1V | MADHT1505 | ||
| Delta | T | No Brake (Horizontal Type) |
50 | 220 | ECMA-C1040FES | ASD-B20121-B |
| With Brake (Vertical type) |
50 | 220 | ECMA-C1040FES | ASD-B20121-B |

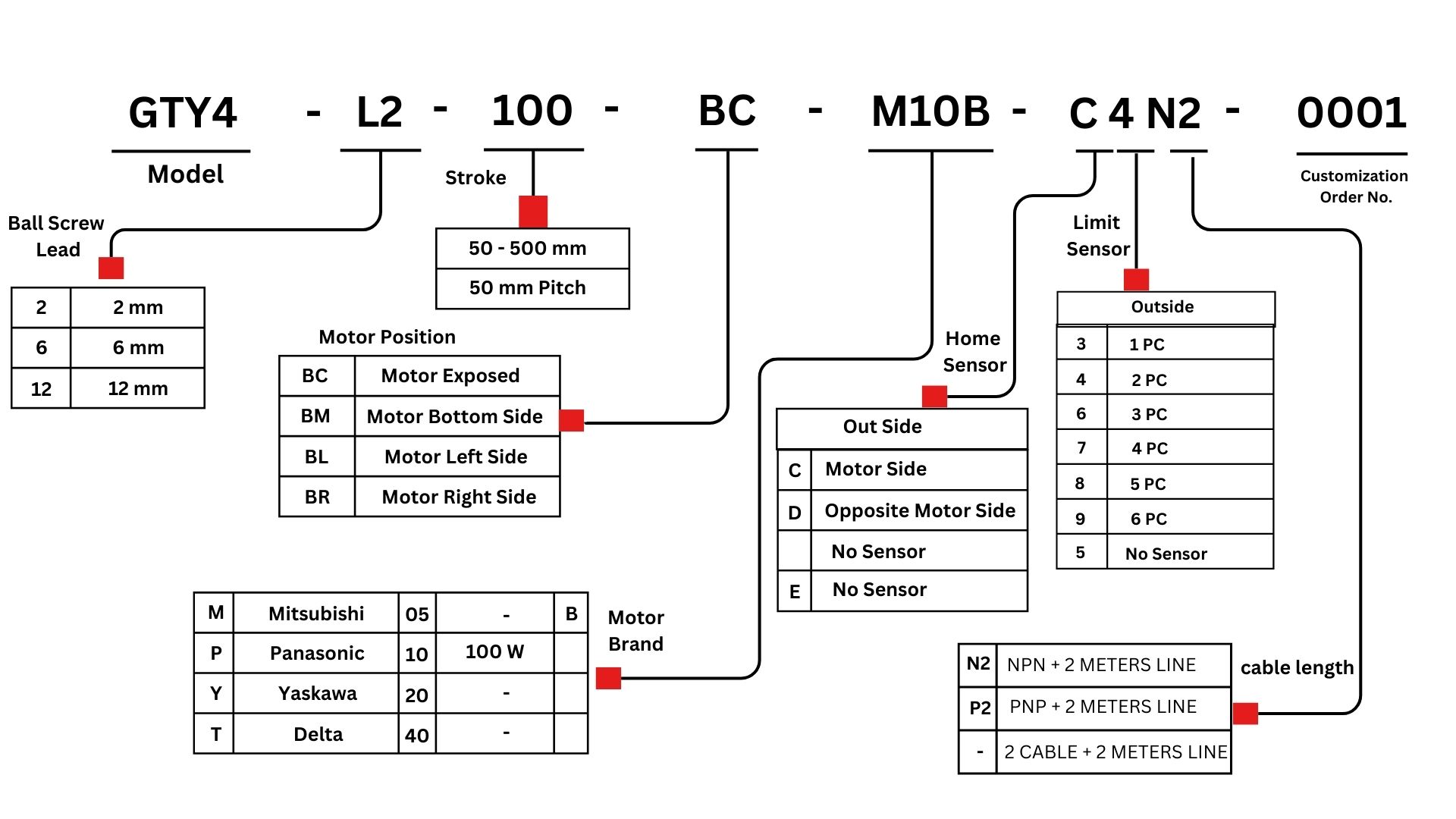

GTY4-100W series
GTY4-100W series specification
| Specification | ||||
|---|---|---|---|---|
| Repeatability(mm) | ±0.01 | |||
| Ball Screw Lead(mm) | 2 | 6 | 12 | |
| Maximum Rotating Speed(mm/s) | 3000 | 3600 | 3600 | |
| Maximum Linear Speed(mm/s) | 100 | 360 | 720 | |
| Maximum Payload | Horizontal(kg) | 25 | 20 | 20 |
| Vertical(kg) | 8 | 8 | 3.5 | |
| Rated Thrust(N) | 854 | 285 | 142 | |
| Stroke pitch(mm) | 50-500mm/50 intervals (50 Increments) | |||
| Maximum acceleration(G) | 0.3 | 0.3 | 0.6 | |
| Ball Screw | Basic Dynamic Load rating Ca(N) | 2265 | 2537 | 1740 |
| Basic Static Load rating Coa(N) | 4839 | 4569 | 3052 | |
| Linear Bearing | Dynamic horizontal(100km) | 4835 | ||
| Static horizontal | 12678 | |||
| Fixed Bearing | Basic Dynamic Load rating(N) | 5361 | ||
| Static Load Rating Cr(N) | 2800 | |||
| AC Servo Moter Output(W) | 100 | |||
| Ball Screw ⌀ (mm) | C7⌀10 | |||
| Coupling(mm) | 7X8 | |||
| Home Sensor | Outside | CS-6T(NPN) | ||
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | DriverModel |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No Brake (Horizontal Type) |
100 | 220 | HG-KR13 | MR-J4-10A |
| With Brake (Vertical type) |
100 | 220 | HG-KR13B | MR-J4-10A | ||
| Panasonic | P | No Brake (Horizontal Type) |
100 | 220 | MSMD012G1U | MADHT1505 |
| With Brake (Vertical type) |
100 | 220 | MSMD012G1V | MADHT1505 | ||
| Delta | T | No Brake (Horizontal Type) |
100 | 220 | ECMA-C20401ES | ASD-B20121-B |
| With Brake (Vertical type) |
100 | 220 | ECMA-C20401FS | ASD-B20121-B |

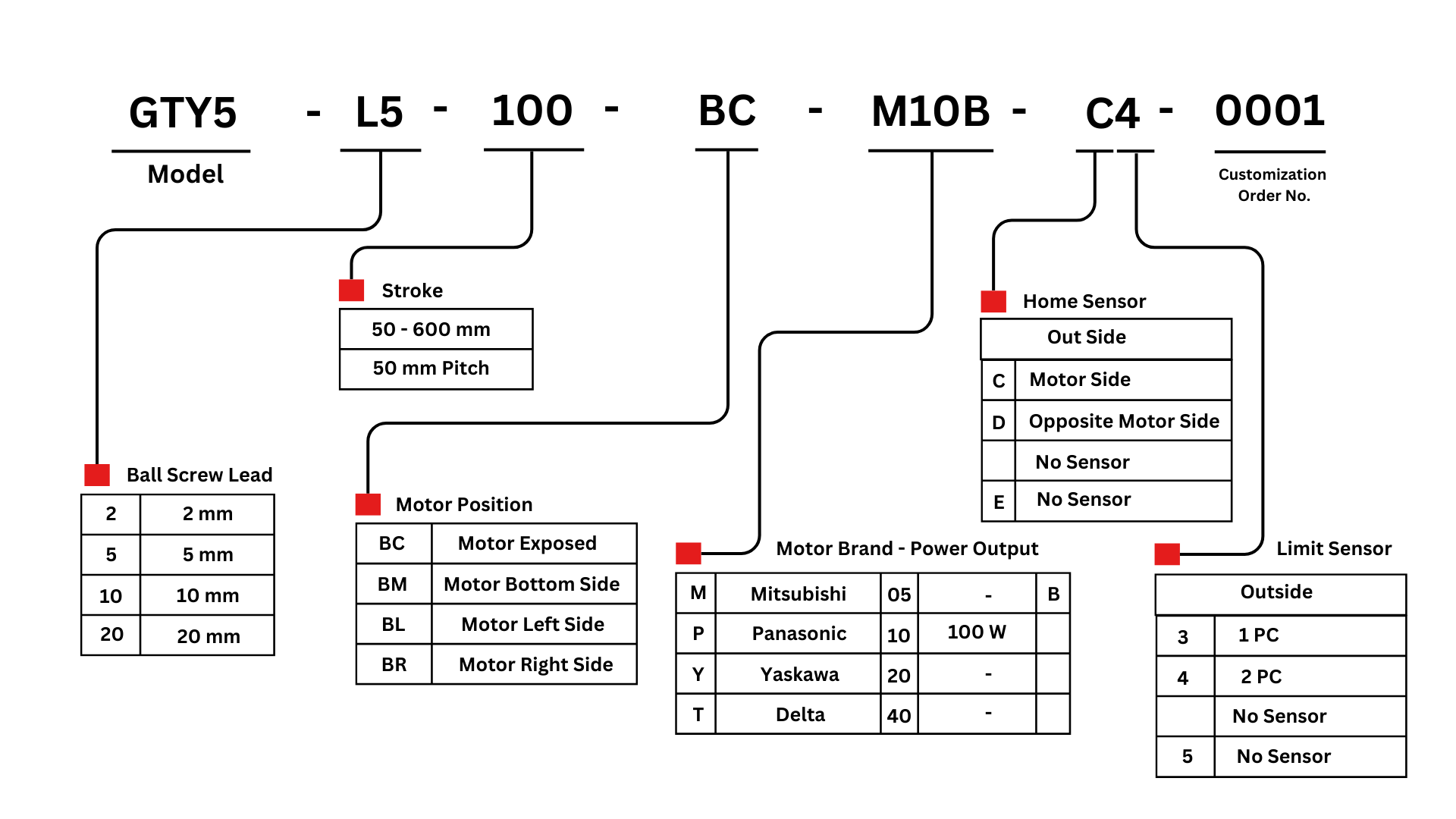

GTY5-100W series

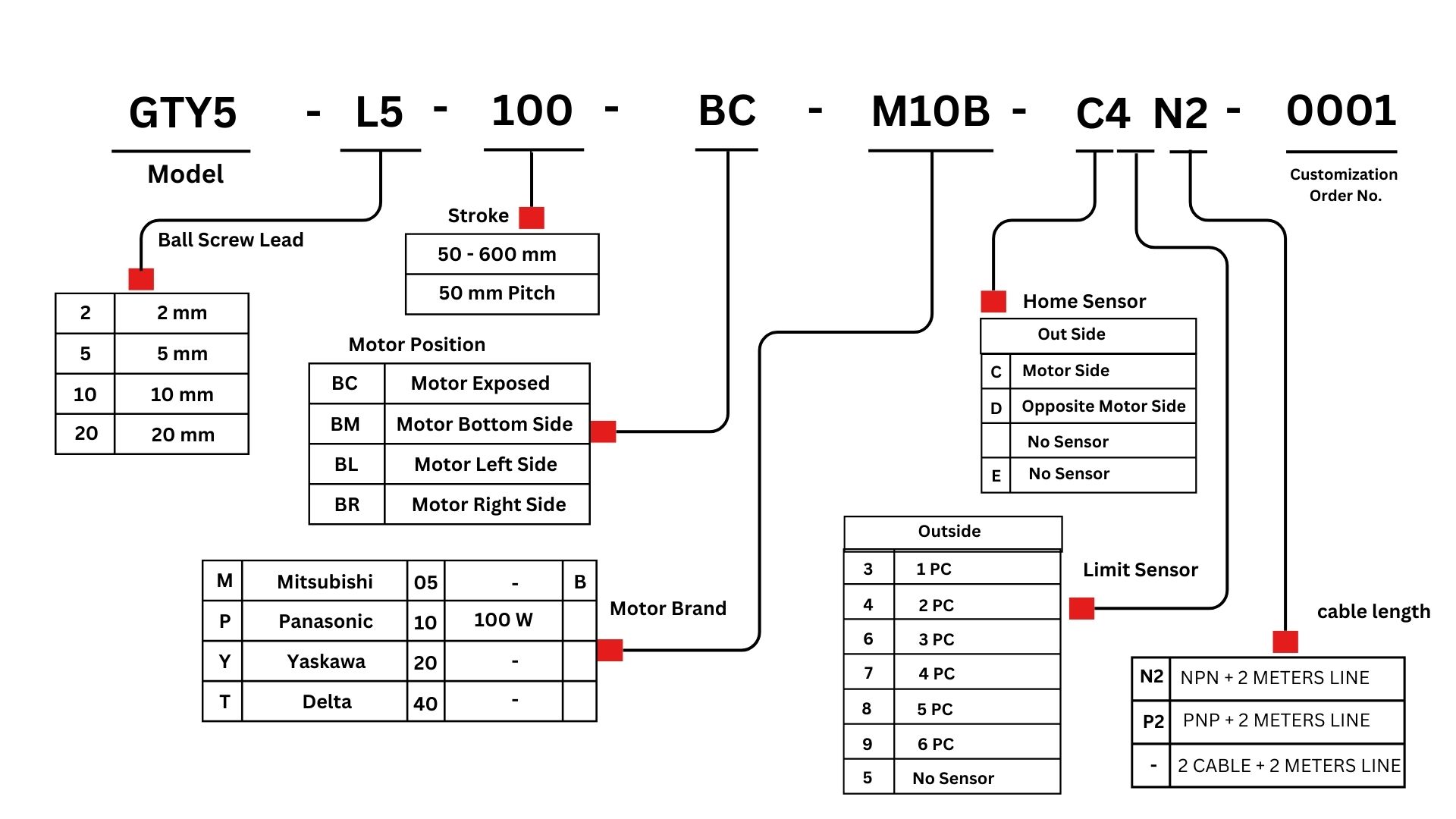

GTY5-100W series specification
| Specification | |||||
|---|---|---|---|---|---|
| Repeatability(mm) | ± 0.01 | ||||
| Ball Screw Lead(mm) | 2 | 5 | 10 | 20 | |
| Maximum Rotating Speed(RPM) | 3000 | 3600 | 3600 | 3600 | |
| Maximum Linear Speed(mm/s) | 100 | 300 | 600 | 1200 | |
| Maximum Payload | Horizontal(kg) | 30 | 40 | 24 | 12 |
| Vertical(kg) | 10 | 10 | 5 | 2.5 | |
| Rated Thrust(N) | 854 | 341 | 170 | 85 | |
| Stroke pitch(mm) | 50-600mm/50 intervals (50 Increments) | ||||
| Maximum acceleration(G) | 0.1 | 0.3 | 0.3 | 0.6 | |
| Ball Screw | Basic Dynamic Load rating Ca(N) | 2411 | 4829 | 4680 | 11284 |
| Basic Static Load rating Coa(N) | 5779 | 7836 | 7649 | 20410 | |
| Linear Guide | Dynamic horizontal(100km) | 5904 | |||
| Static horizontal | 16904 | ||||
| Fixed Bearing | Basic Dynamic Load rating(N) | 5361 | |||
| Static Load Rating Cr(N) | 2800 | ||||
| AC Servo Moter Output(W) | 100 | ||||
| Ball Screw ⌀ (mm) | C7⌀12 | ||||
| Coupling(mm) | 7X8 | ||||
| Home Sensor | Outside | CS-6T(NPN) | |||
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | DriverModel |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No Brake (Horizontal Type) |
100 | 220 | HG-KR13 | MR-J4-10A |
| With Brake (Vertical type) |
100 | 220 | HG-KR13B | MR-J4-10A | ||
| Panasonic | P | No Brake (Horizontal Type) |
100 | 220 | MSMD012G1U | MADHT1505 |
| With Brake (Vertical type) |
100 | 220 | MSMD012G1V | MADHT1505 | ||
| Delta | T | No Brake (Horizontal Type) |
100 | 220 | ECMA-C20401ES | ASD-B20121-B |
| With Brake (Vertical type) |
100 | 220 | ECMA-C20401ES | ASD-B20121-B |

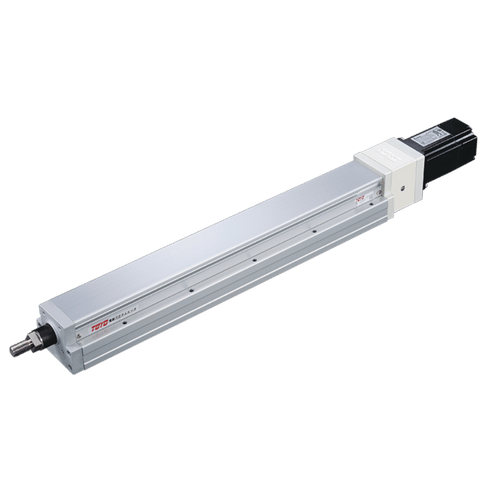

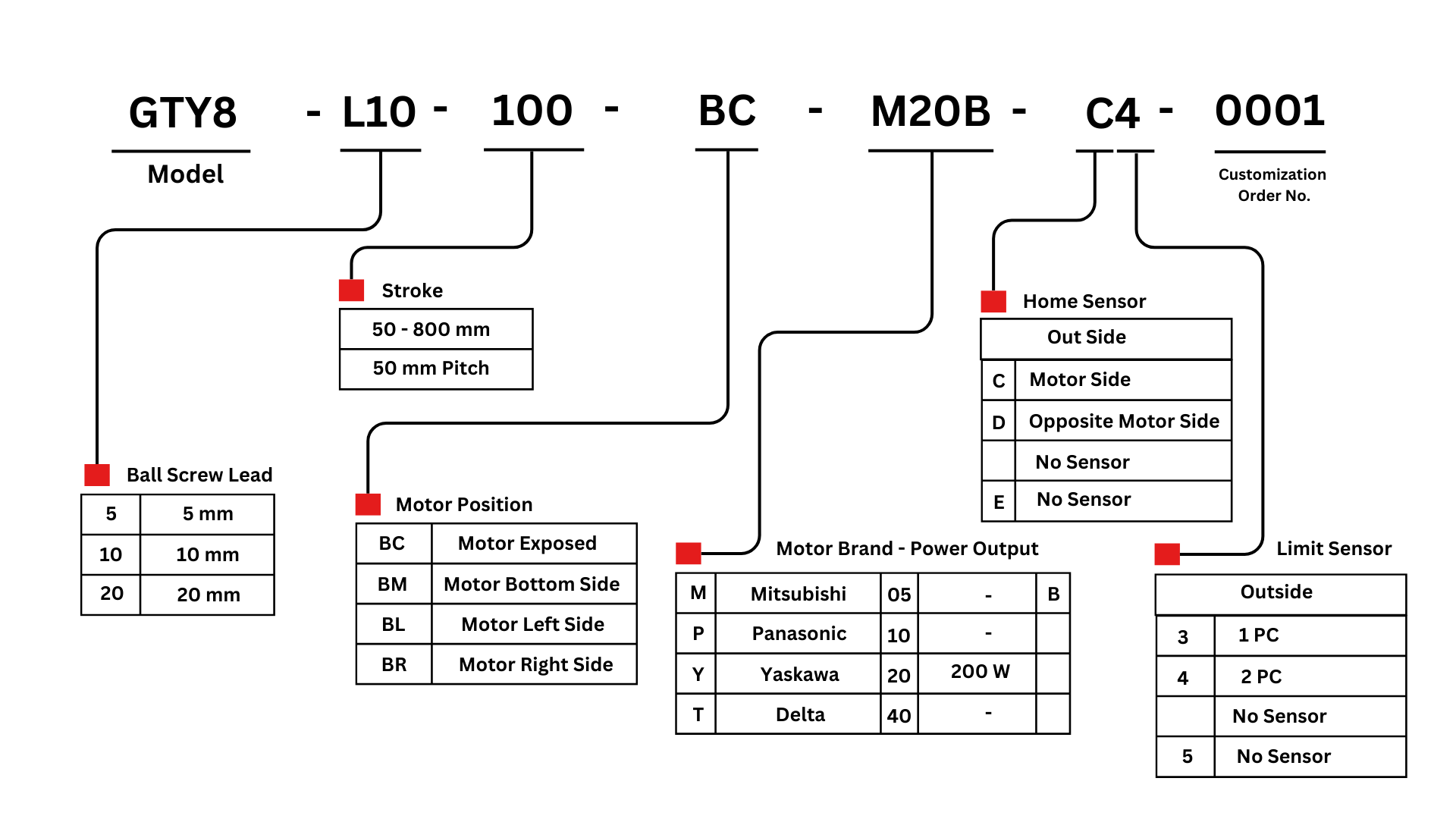

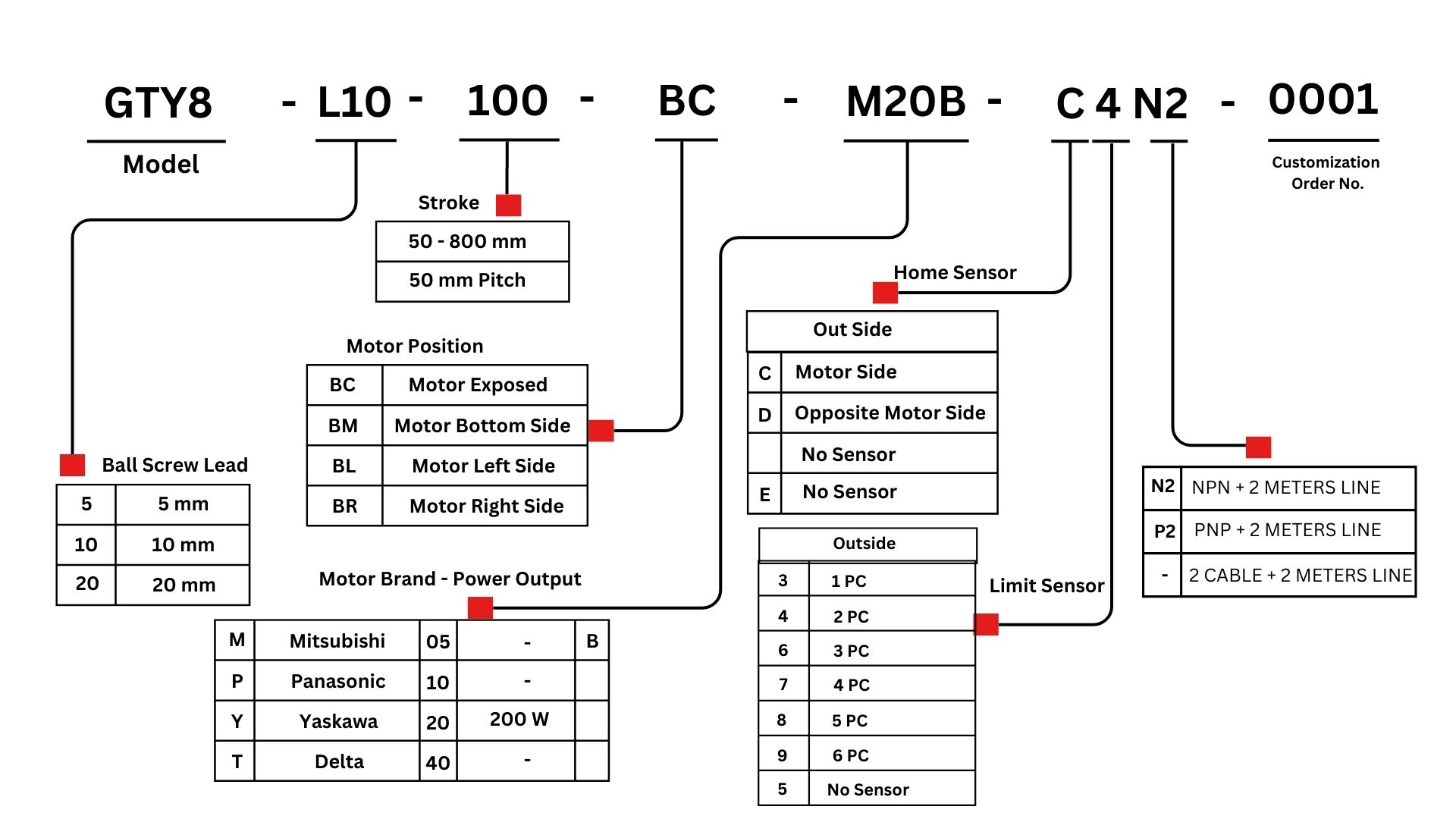

GTY8-200W series
GTY8-200W series specification
| Specification | ||||
|---|---|---|---|---|
| Repeatability(mm) | ± 0.01 | |||
| Ball Screw Lead(mm) | 5 | 10 | 20 | |
| Maximum Rotating Speed(mm/s) | 3600 | 3600 | 3600 | |
| Maximum Speed(mm/s) | 300 | 600 | 1200 | |
| Maximum Payload | Horizontal(kg) | 100 | 80 | 40 |
| Vertical(kg) | 15 | 8 | 3 | |
| Rated Thrust(N) | 683 | 341 | 174 | |
| Stroke pitch(mm) | 50-800mm/50 intervals (50 Increments) | |||
| Maximum acceleration(G) | 0.3 | 0.3 | 0.6 | |
| Ball Screw | Basic Dynamic Load rating Ca(N) | 8042 | 6300 | 4152 |
| Basic Static Load rating Coa(N) | 15088 | 11596 | 7439 | |
| Linear Guide | Dynamic horizontal(100km) | 18620 | ||
| Static horizontal | 34230 | |||
| Fixed Bearing | Basic Dynamic Load rating(N) | 8447 | ||
| Static Load Rating Cr(N) | 5060 | |||
| AC Servo Moter Output(W) | 200 | |||
| Ball Screw ⌀ (mm) | C7⌀16 | |||
| Coupling(mm) | 10X14/11 | |||
| Home Sensor | Outside | CS-6T(NPN) | ||
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | DriverModel |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No Brake (Horizontal Type) |
200 | 220 | HG-KR23 | MR-J4-20A |
| With Brake (Vertical type) |
200 | 220 | HG-KR23B | MR-J4-20A | ||
| Panasonic | P | No Brake (Horizontal Type) |
200 | 220 | MHMD022G1U | MADHT1507 |
| With Brake (Vertical type) |
200 | 220 | MHMD022G1V | MADHT1507 | ||
| Delta | T | No Brake (Horizontal Type) |
200 | 220 | ECMA-C20602ES | ASD-B20221-B |
| With Brake (Vertical type) |
200 | 220 | ECMA-C20602FS | ASD-B20221-B |

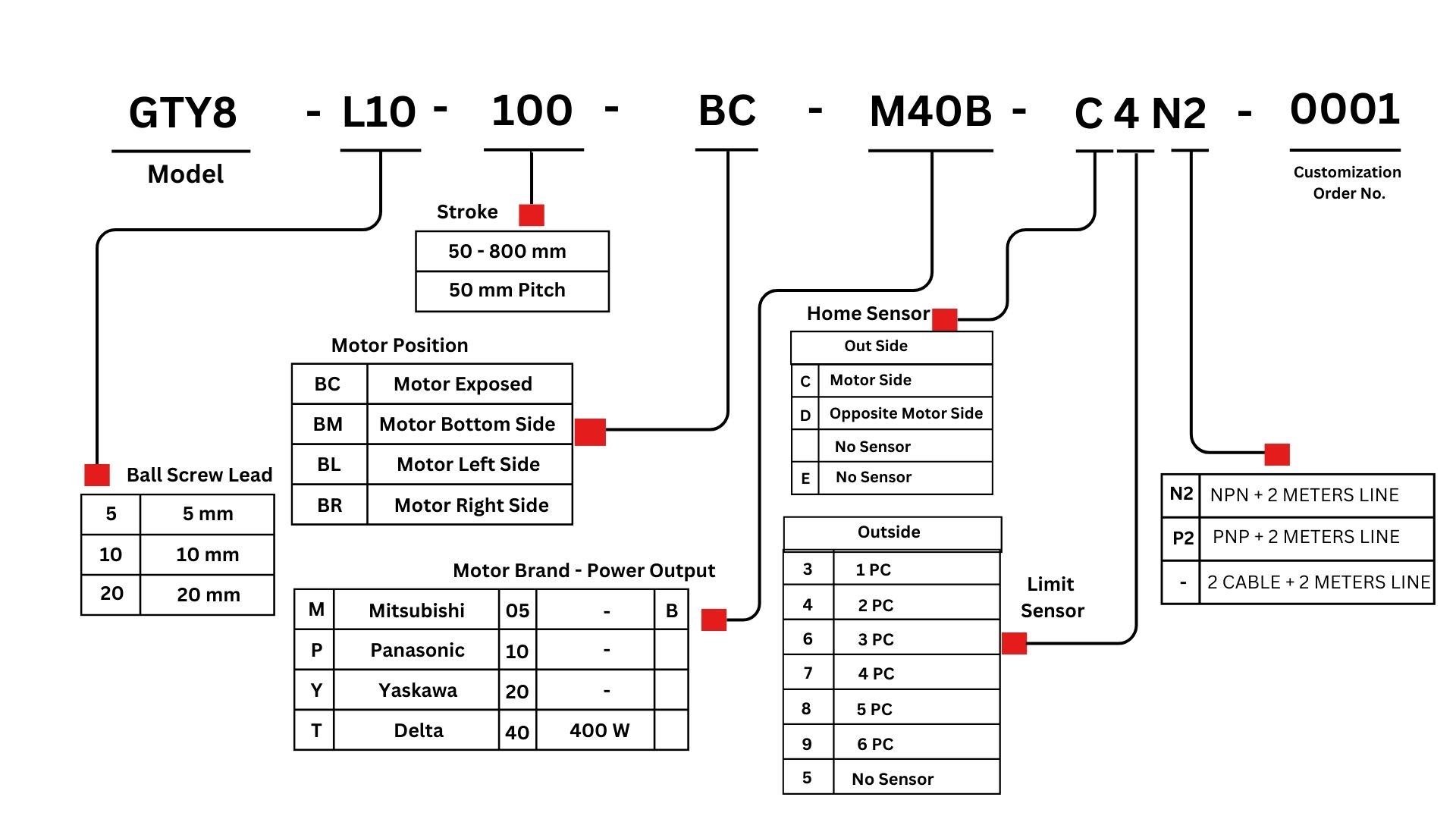

GTY8-400W series
GTY8-400W series specification
| Specification | ||||
|---|---|---|---|---|
| Repeatability(mm) | ±0.01 | |||
| Ball Screw Lead(mm) | 5 | 10 | 20 | |
| Maximum Rotating Speed(RPM) | 3600 | 3600 | 3600 | |
| Maximum Speed(mm/s) | 300 | 600 | 1200 | |
| Maximum Payload | Horizontal(kg) | 110 | 88 | 40 |
| Vertical(kg) | 33 | 21 | 8 | |
| Rated Thrust(N) | 1388 | 694 | 374 | |
| Stroke pitch(mm) | 50-800mm/50 intervals (50 Increments) | |||
| Maximum acceleration(G) | 0.3 | 0.3 | 0.6 | |
| Ball Screw | Basic Dynamic Load rating Ca(N) | 8042 | 6300 | 4152 |
| Basic Static Load rating Coa(N) | 15088 | 11596 | 7439 | |
| Linear Guide | Dynamic horizontal(100km) | 18620 | ||
| Static horizontal | 34230 | |||
| Fixed Bearing | Basic Dynamic Load rating(N) | 8447 | ||
| Static Load Rating Cr(N) | 5060 | |||
| AC Servo Moter Output(W) | 400 | |||
| Ball Screw ⌀ (mm) | C7⌀16 | |||
| Coupling(mm) | 10X14 | |||
| Home Sensor | Outside | CS-6T(NPN) | ||
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | DriverModel |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No Brake (Horizontal Type) |
400 | 220 | HG -KR053 | MR-J4-10A |
| With Brake (Vertical type) |
400 | 220 | HG-KR053B | MR-J4-10A | ||
| Panasonic | P | No Brake (Horizontal Type) |
400 | 220 | MSMD5A2G1U | MADHT1505 |
| With Brake (Vertical type) |
400 | 220 | MSMD5A2G1V | MADHT1505 | ||
| Delta | T | No Brake (Horizontal Type) |
400 | 220 | ECMA-C1040FES | ASD-B20121-B |
| With Brake (Vertical type) |
400 | 220 | ECMA-C1040FES | ASD-B20121-B |

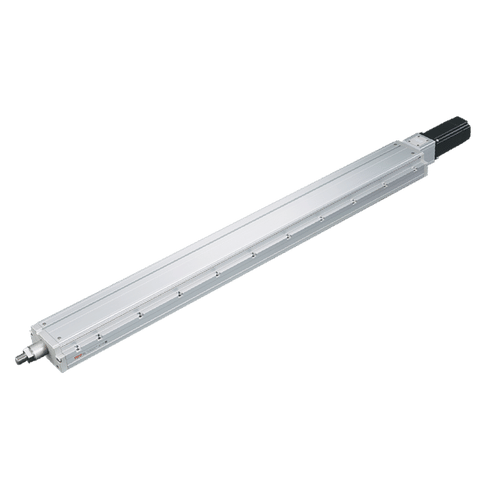

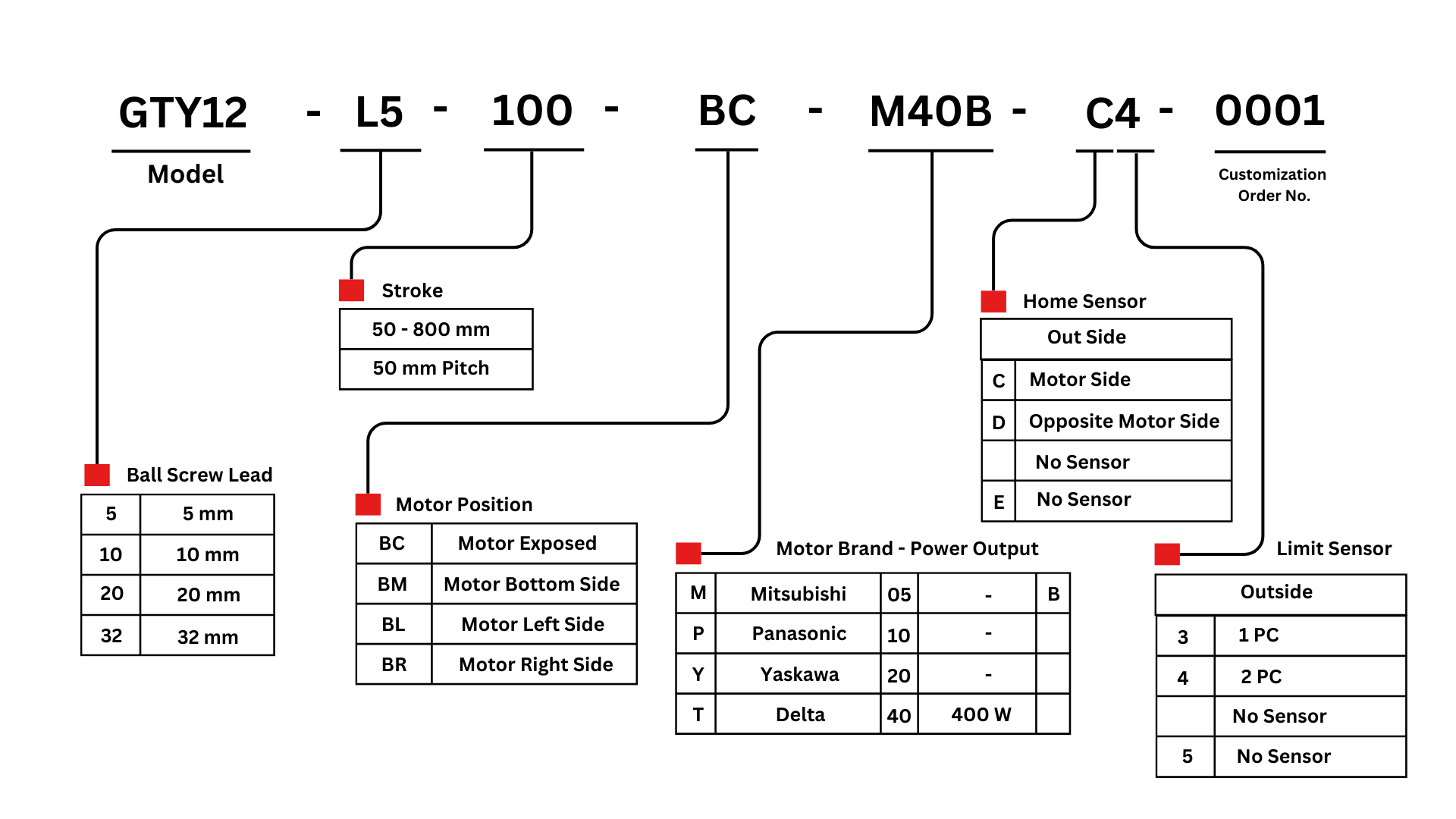

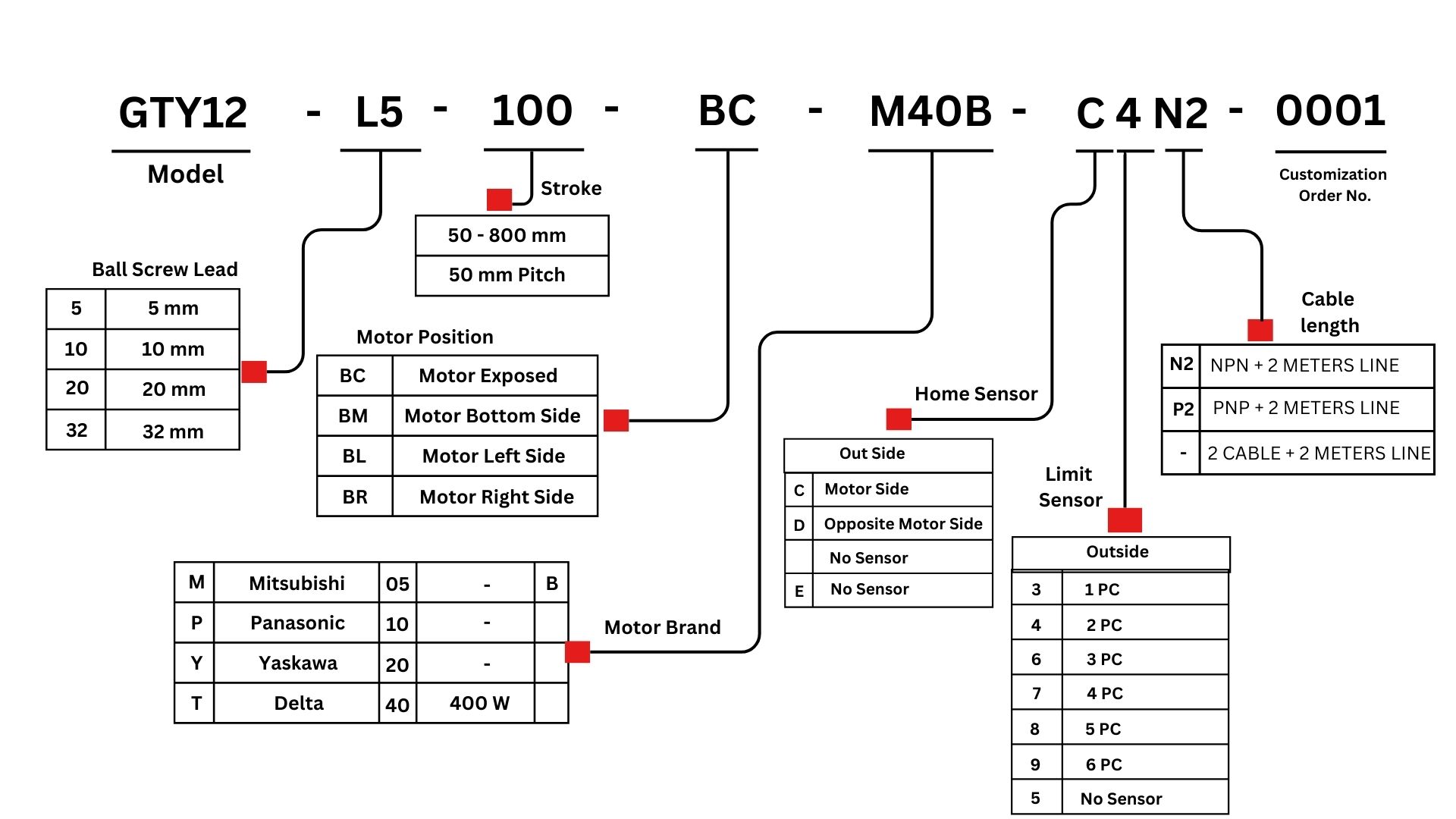

GTY12-400W series
GTY12-400W series specification
| Specification | |||||
|---|---|---|---|---|---|
| Repeatability(mm) | ± 0.01 | ||||
| Ball Screw Lead(mm) | 5 | 10 | 20 | 32 | |
| Maximum Rotating Speed(RPM) | 3600 | 3600 | 3600 | 3600 | |
| Maximum Linear Speed(mm/s) | 300 | 600 | 1200 | 1920 | |
| Maximum Payload | Horizontal(kg) | 110 | 88 | 40 | 30 |
| Vertical(kg) | 33 | 22 | 10 | 8 | |
| Rated Thrust(N) | 1388 | 694 | 347 | 218 | |
| Stroke pitch(mm) | 50-800mm/50 intervals (50 Increments) | ||||
| Maximum acceleration(G) | 0.3 | 0.3 | 0.6 | 0.6 | |
| Ball Screw | Basic Dynamic Load rating Ca(N) | 11570 | 6300 | 4152 | 7326 |
| Basic Static Load rating Coa(N) | 23030 | 11596 | 7439 | 14157 | |
| Linear Guide | Dynamic horizontal(100km) | 51128 | |||
| Static horizontal | 84518 | ||||
| Fixed Bearing | Basic Dynamic Load rating(N) | 8447 | |||
| Static Load Rating Cr(N) | 5060 | ||||
| AC Servo Moter Output(W) | 400 | ||||
| Ball Screw ⌀ (mm) | C7⌀16 | ||||
| Coupling(mm) | 10X14 | ||||
| Home Sensor | Outside | CS-6T(NPN) | |||
| Brand | Mark | Brake | Watt | AC-Voltage | Motor Model | DriverModel |
|---|---|---|---|---|---|---|
| Mitsubishi | M | No Brake (Horizontal Type) |
400 | 220 | HG-KR43 | MR-J4-40A |
| With Brake (Vertical type) |
400 | 220 | HG-KR43B | MR-J4-40A | ||
| Panasonic | P | No Brake (Horizontal Type) |
400 | 220 | MSMD042G1U | MBDHT2510 |
| With Brake (Vertical type) |
400 | 220 | MSMD042G1V | MBDHT2510 | ||
| Delta | T | No Brake (Horizontal Type) |
400 | 220 | ECMA-C20604ES | ASD-B20421-B |
| With Brake (Vertical type) |
400 | 220 | ECMA-C20604FS | ASD-B20421-B |
