Linear Motor Actuator
LGF series is a cleanroom type actuator which is integrated with linear bearings. The magnets create a magnetic flux path, which allows the magnetic field to interact with the armature. The precise control of linear motion is achieved by manipulating the magnetic field strength and polarity.
This interaction results in a repulsive or attractive force, depending on the magnetic polarities, pushing or pulling the armature in a linear direction. This interaction results in a repulsive or attractive force, depending on the magnetic polarities, pushing or pulling the armature in a linear direction.
Features
- Long stroke can ensure repeatability within +/- 0.002mm. Maximum speed 3500mm/s and low noise.
- The self-developed special heat dissipation mechanism is wrapped on the outside of the coil so that the motor can quickly dissipate heat during operation and increase the efficiency of motor.

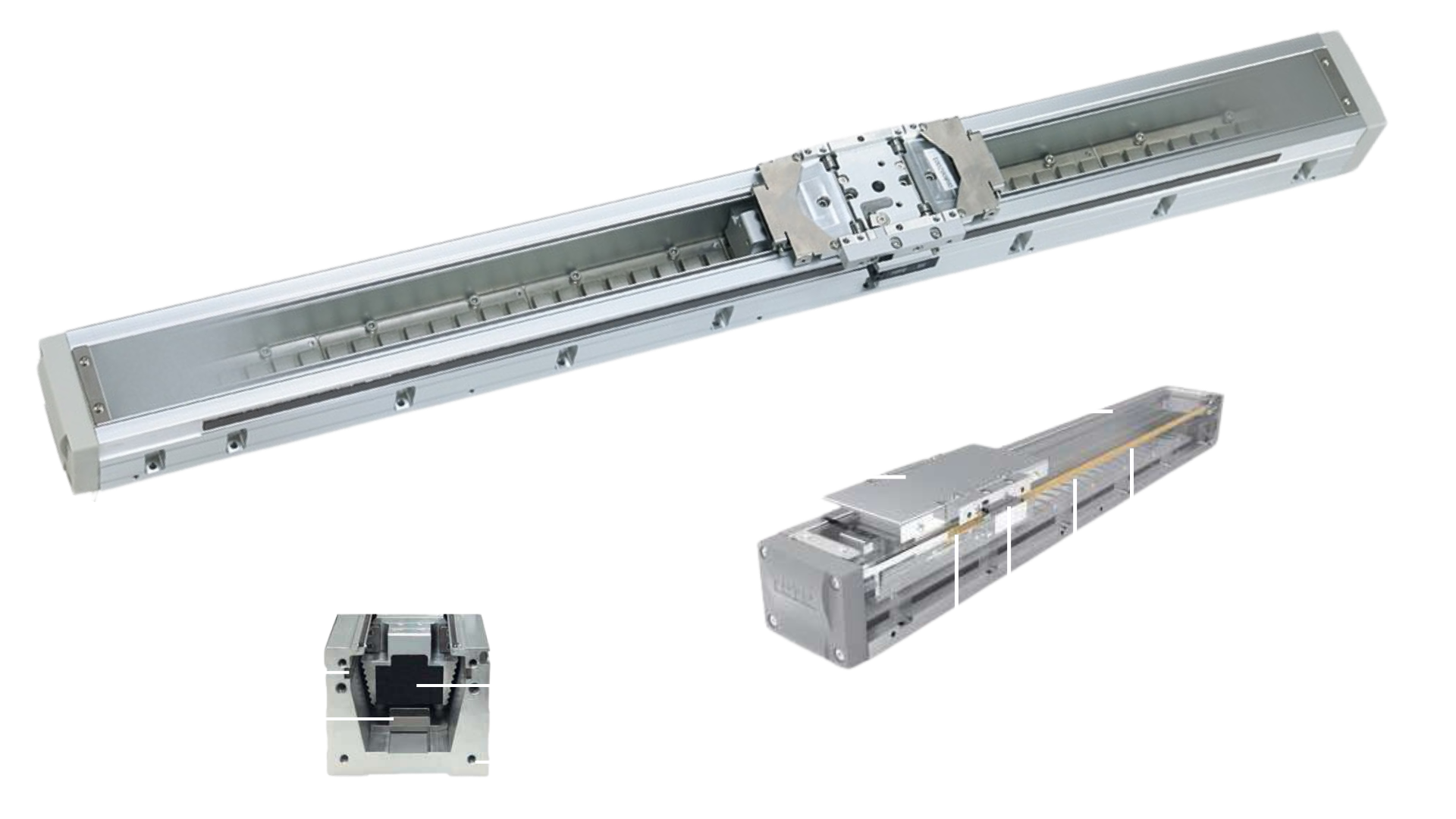

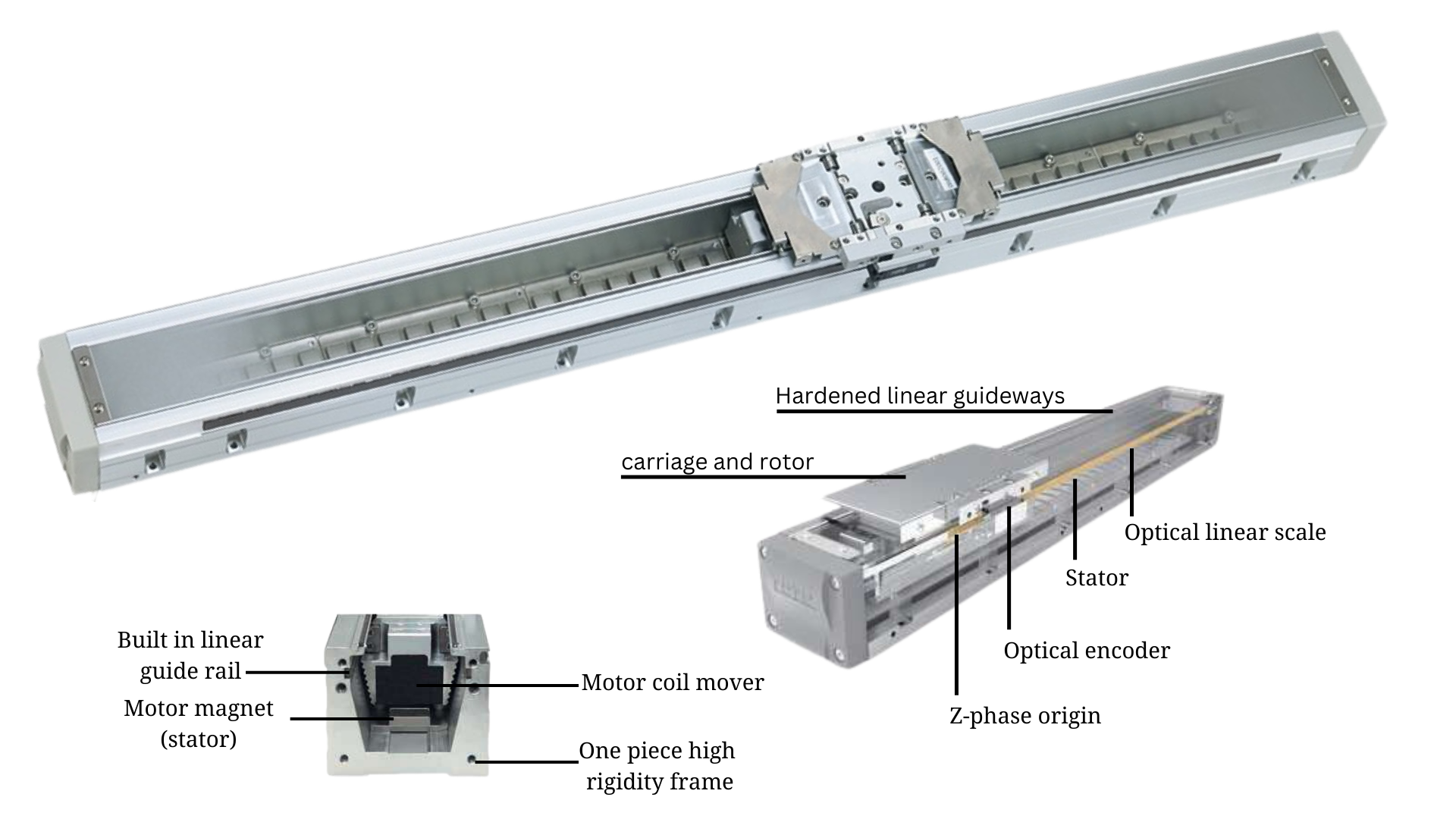

- The carriage covers the mover, and the aluminium teeth design with fast heat conduction increases the heat dissipation area.
- Long stroke/ high precision/ high speed/ low noise can be achieved at the same time.
Applications
Spray printing device for PCB board, Aligning device for pick and place of IC boards, Barcode scanning device
Industries
TFT Display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining, Textile machinery, Printing and labelling, Laboratory automation, Material handling

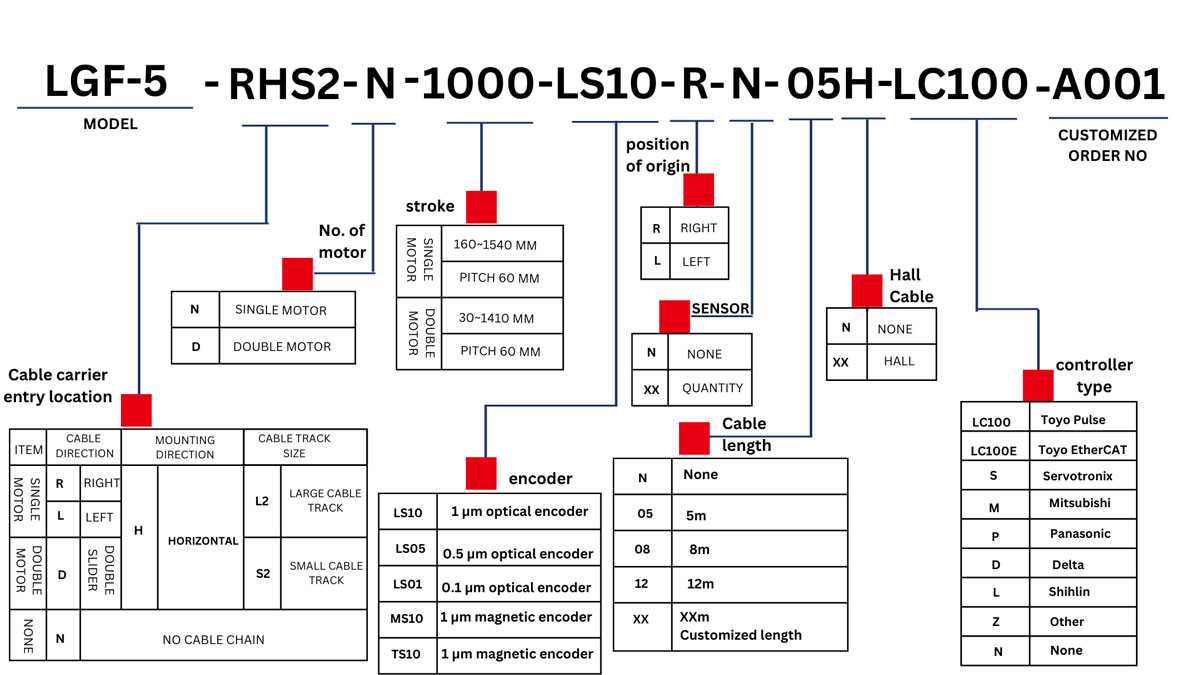

LGF5 series
LGF5 series specification
| Model | mm | LGF-5 | ||
| Repeatability | mm | +/-0.002 | ||
| Performance | Maximum Speed | mm/s | 2500 | |
|---|---|---|---|---|
| Max. Force | N | 25 | ||
| Stroke(mm) | N | 160-1540/60 Pitch | ||
| D | 30-1410/60 Pitch | |||
| Rated Force | N | 14 | ||
| Max Payload | Kg | 3 | ||

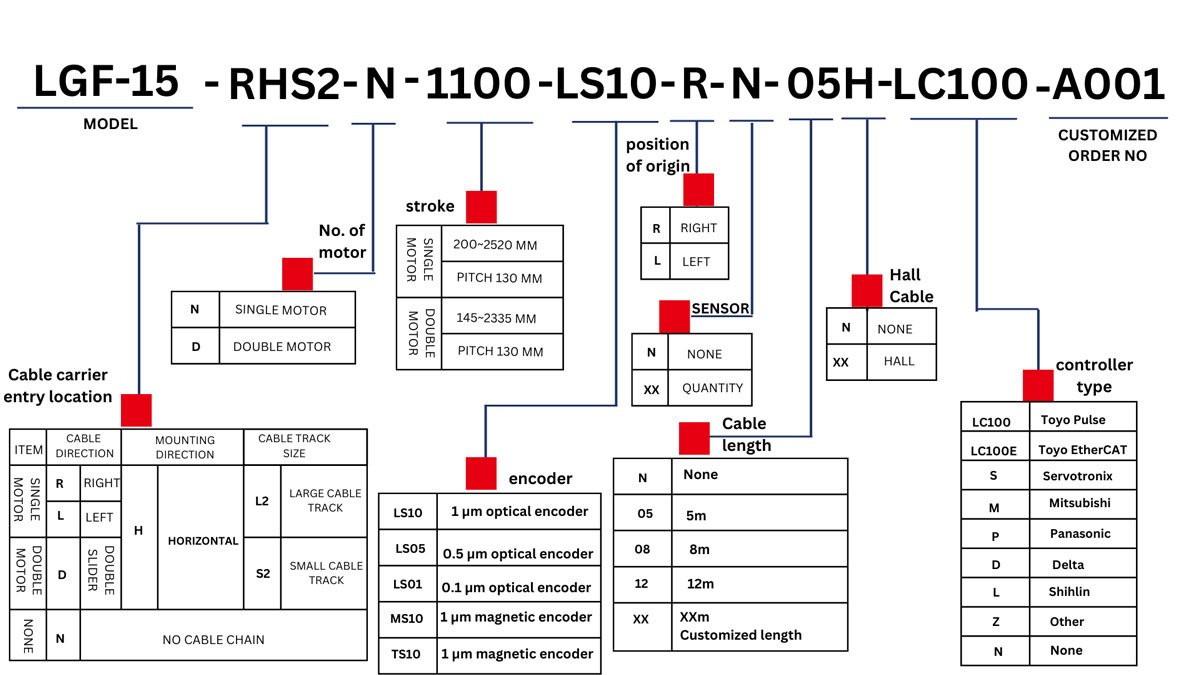

LGF-15 series
LGF-15 series specification
| Model | mm | LGF-15 | ||
| Repeatability | mm | +/-0.002 | ||
| Performance | Maximum Speed | mm/s | 2500 | |
|---|---|---|---|---|
| Max. Force | N | 266 | ||
| Stroke(mm) | N | 200-2520/130 Pitch | ||
| D | 145-2335/130 Pitch | |||
| Rated Force | N | 59 | ||
| Max Payload | Kg | 15 | ||
