Linear Motor Actuator
The iron cord Linear Motor Actuator is typically used in situations where precise and consistent linear motion is required over a range of distances. The iron cord is a non-conductive material that transfers force from the linear motor actuator to the linear guide. The actuator is commonly used in various applications, such as automation, robotics, and industrial machinery. It is known for its high accuracy, efficiency, and reliability.
For fine-tuning the speed, acceleration, and positioning of the linear actuator, ensuring precise and controlled movement in a wide range of applications.
By and large there are three types of Linear Motor Actuators are used
- Iron Core – Highest thrust and most cost effective magnets are a flat track, Mover (coil) wound inside steel sheet with silicon
- Core Less – Very smooth, used for scanning and vision application magnet is U-shaped, Mover (coil) is fixed with resin/epoxy
- Shaft Bar – Specific performance advantages due to packaging and heat dissipation.
Magnet stack is a round bar type, also a type of ironless Linear Motor Actuator
Applications
Spray printing device for PCB board, Aligning device for pick and place of IC boards, Barcode scanning device
Industries
TFT Display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining, Textile machinery, Printing and labelling, Laboratory automation, Material handling.

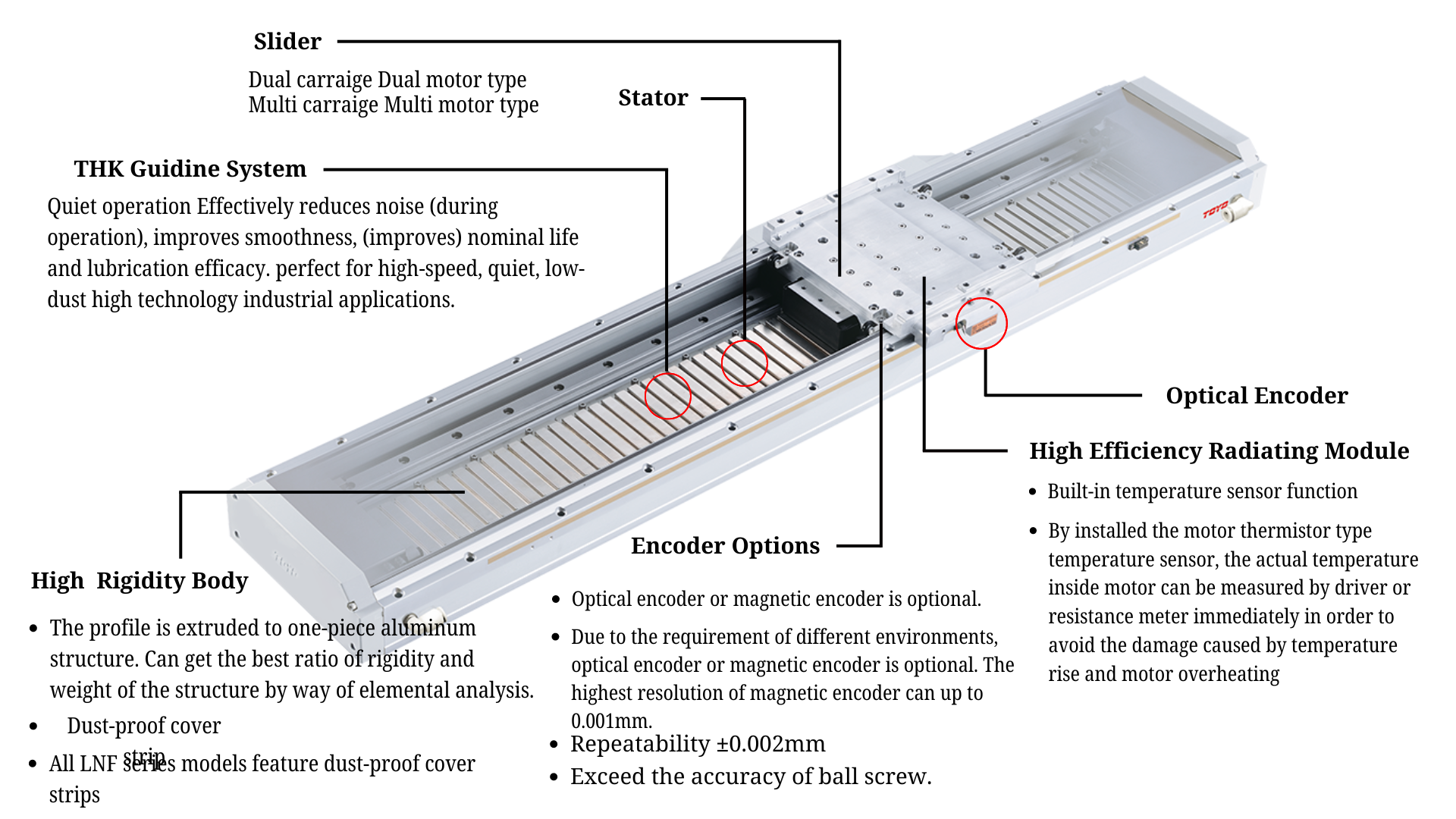

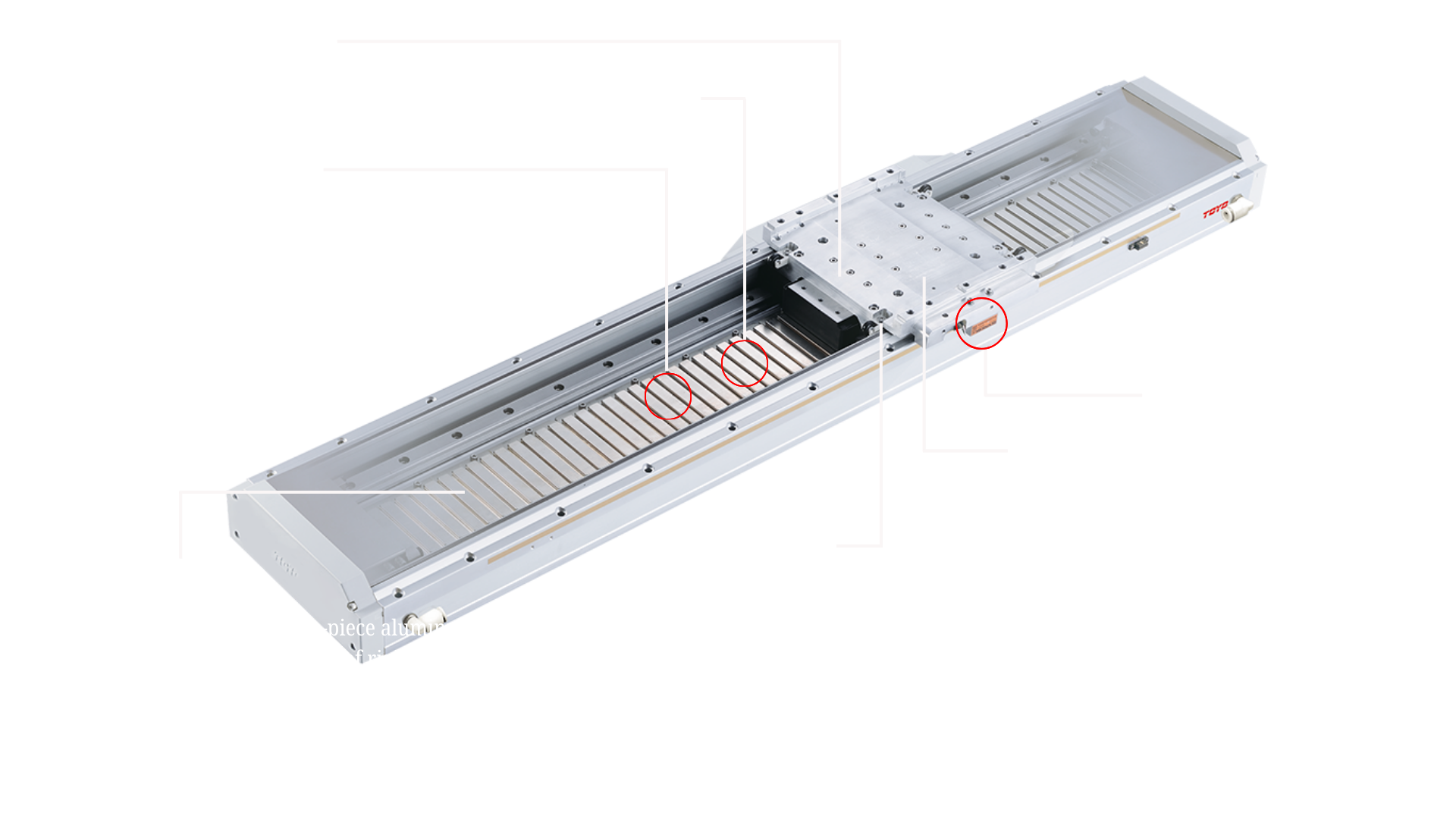

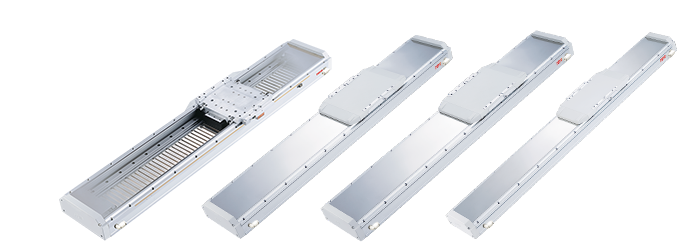

LCF2-15 series

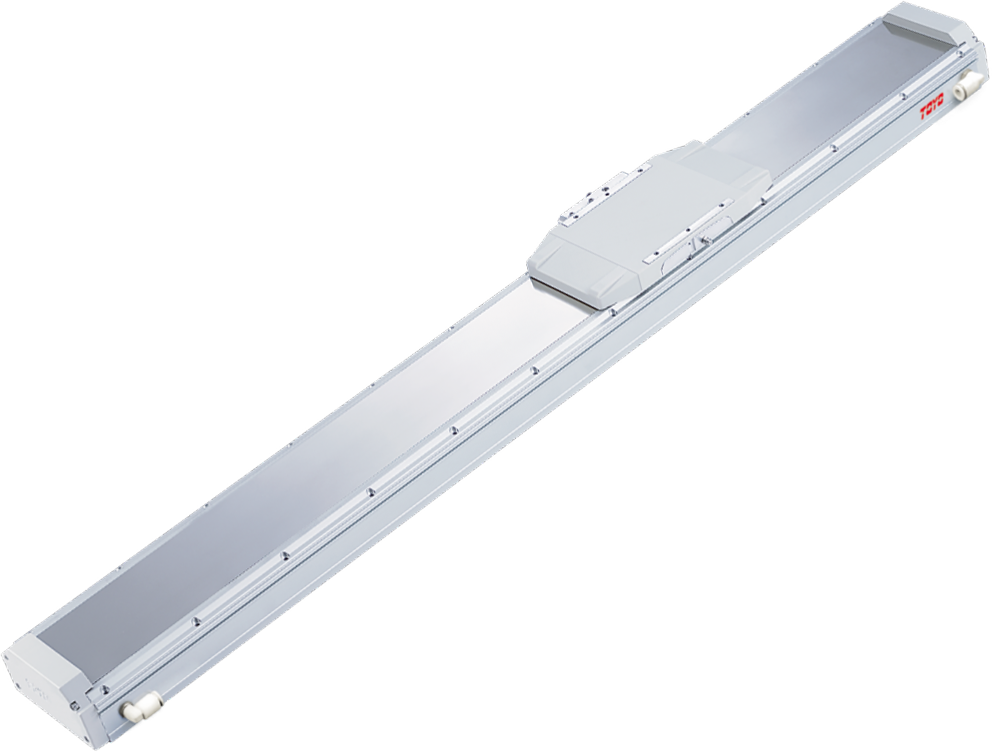

LCF2-15 series specification
| Model | mm | LCF2-15 | ||
| Repeatability | mm | +/-0.002 | ||
| Performance | Maximum Speed | mm/s | 1500 | |
|---|---|---|---|---|
| Max. Force | N | 266 | ||
| Stroke(mm) | N | 208-3024/64 Pitch | ||
| D | 332-3020/64 Pitch | |||
| Rated Force | N | 59 | ||
| Max Payload | Kg | 20 | ||
LCF2-20 series

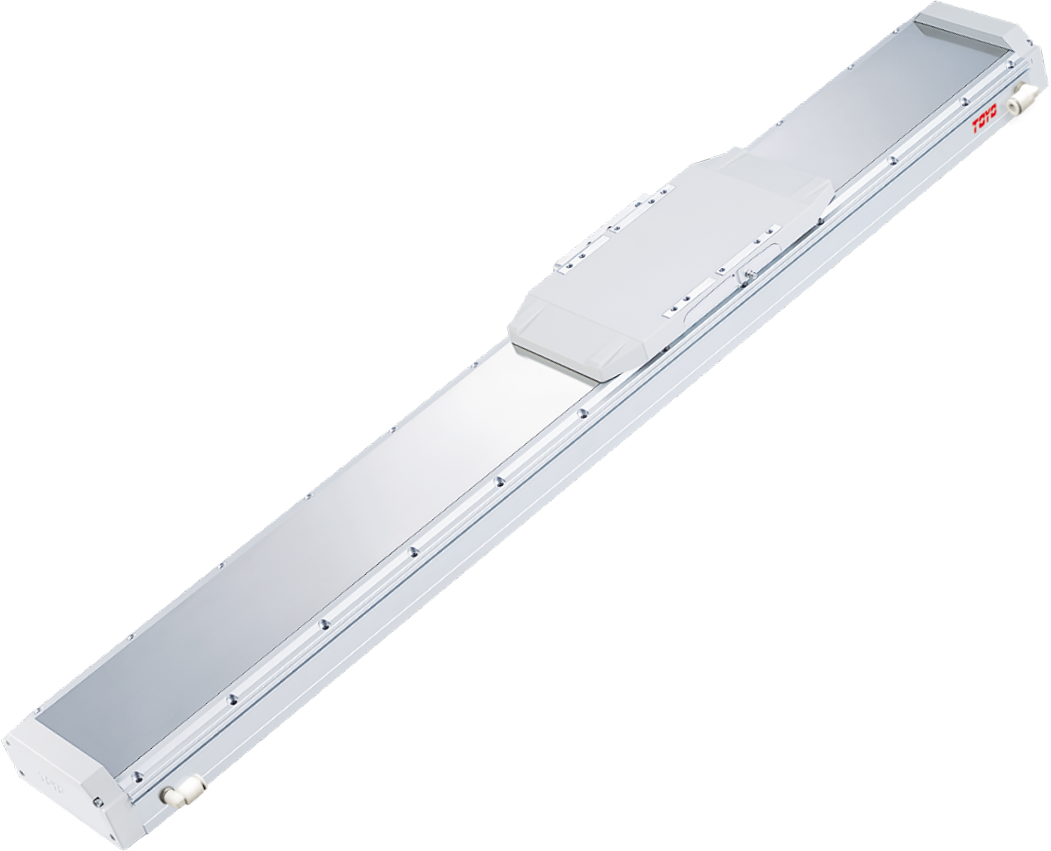

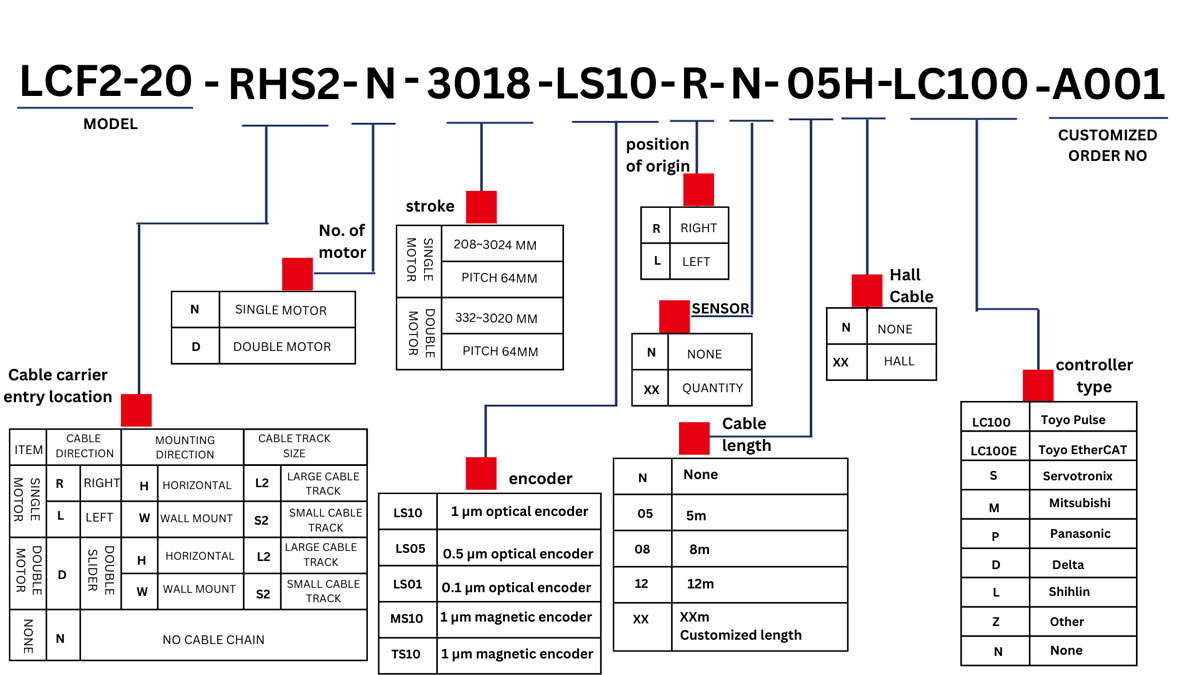

LCF2-20 series specification
| Model | mm | LCF2-20 | ||
| Repeatability | mm | +/-0.002 | ||
| Performance | Maximum Speed | mm/s | 1500 | |
|---|---|---|---|---|
| Max. Force | N | 510 | ||
| Stroke(mm) | N | 202-3018/64 Pitch | ||
| D | 320-3008/64 Pitch | |||
| Rated Force | N | 113 | ||
| Max Payload | Kg | 40 | ||
LCF2-30 series

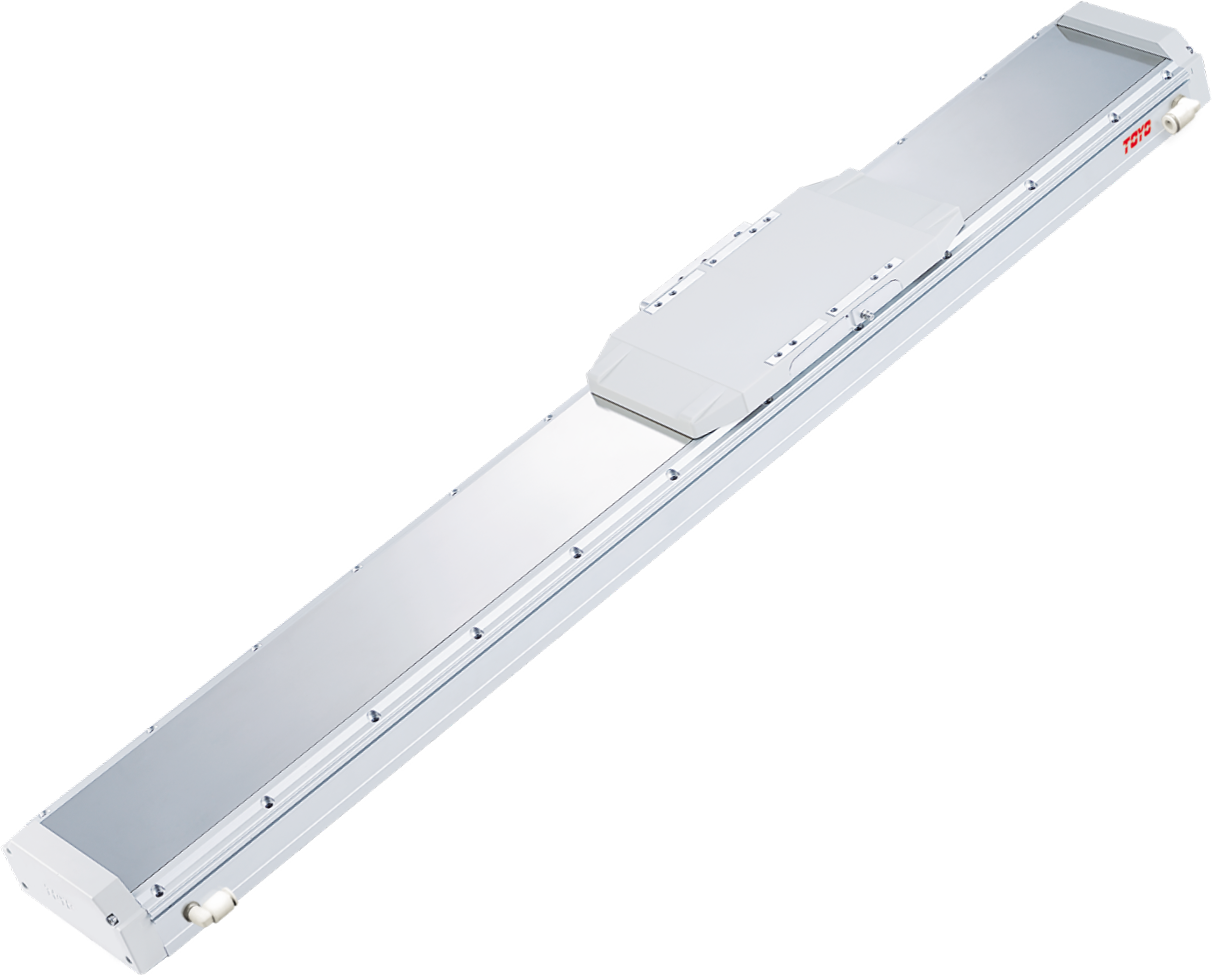

LCF2-30 series specification
| Model | mm | LCF2-30 | ||
| Repeatability | mm | +/-0.002 | ||
| Performance | Maximum Speed | mm/s | 1500 | |
|---|---|---|---|---|
| Max. Force | N | 713 | ||
| Stroke(mm) | N | 202-3018/64 Pitch | ||
| D | 320-3008/64 Pitch | |||
| Rated Force | N | 158 | ||
| Max Payload | Kg | 54 | ||
LCF2-45 series

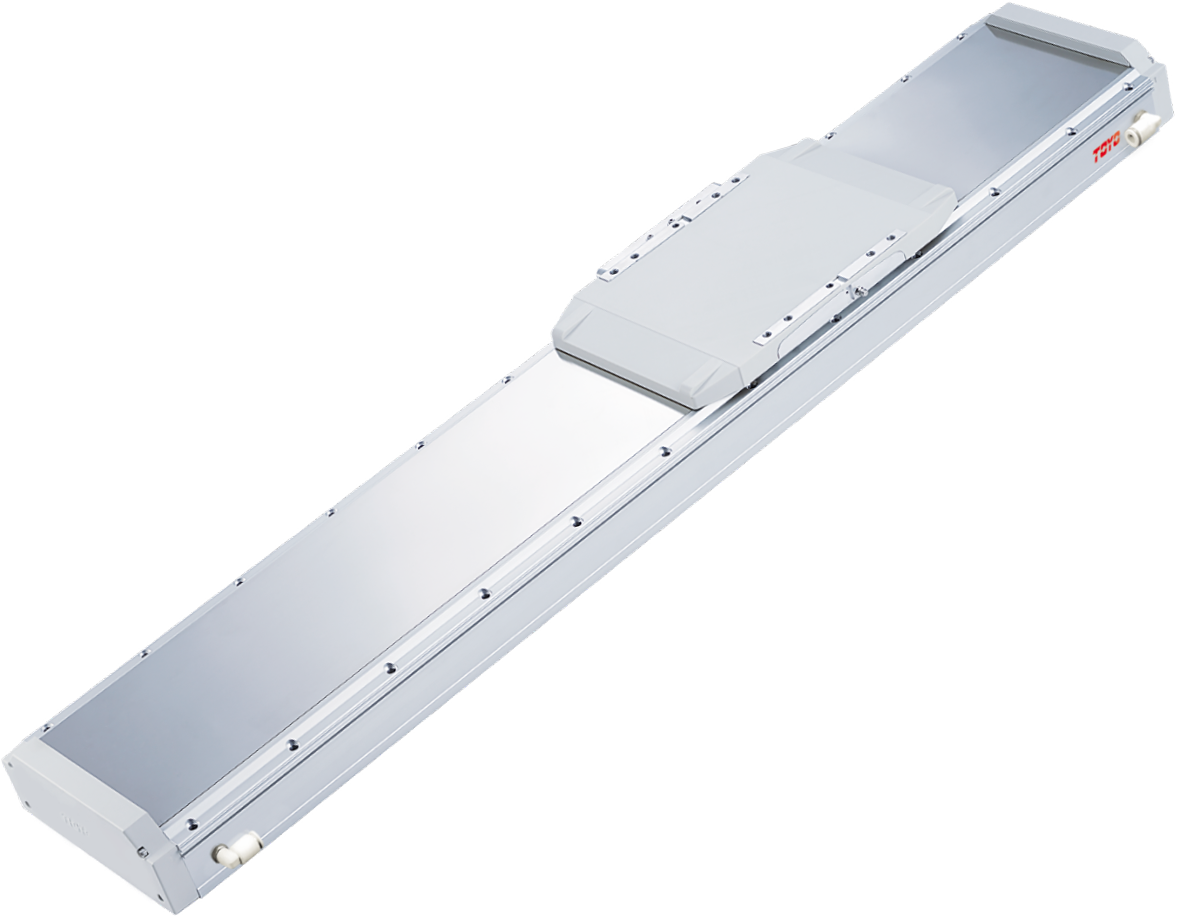

LCF2-45 series specification
| Model | mm | LCF2-45 | ||
| Repeatability | mm | +/-0.002 | ||
| Performance | Maximum Speed | mm/s | 1500 | |
|---|---|---|---|---|
| Max. Force | N | 1128 | ||
| Stroke(mm) | N(Single Mover) | 203-3019/64 Pitch | ||
| D(Double Mover | 429-3053/64 Pitch | |||
| Rated Force | N | 251 | ||
| Max Payload | Kg | 90 | ||
LCF2-75 series

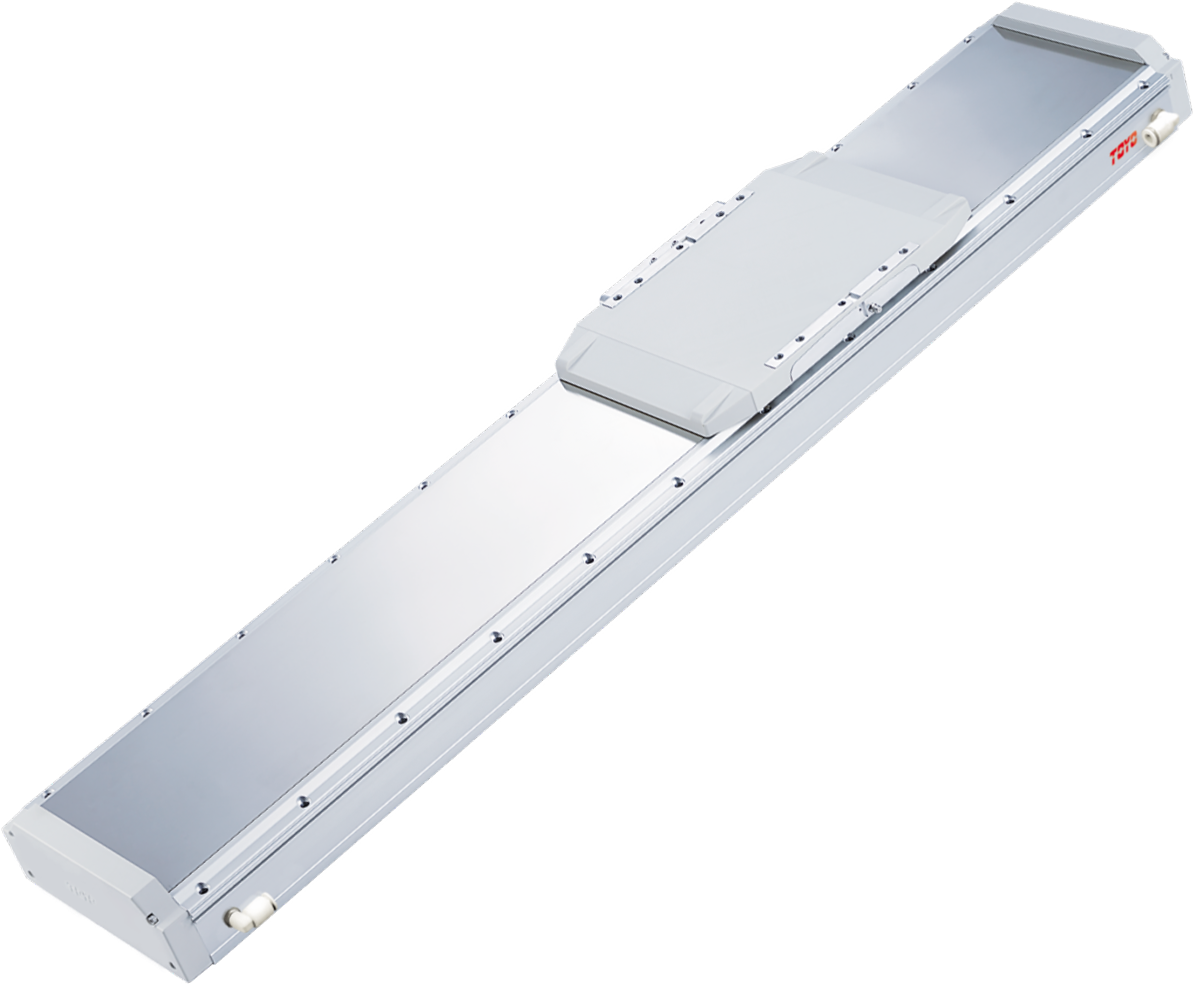

LCF2-75 series specification
| Model | mm | LCF2-75 | ||
| Repeatability | mm | +/-0.002 | ||
| Performance | Maximum Speed | mm/s | 1500 | |
|---|---|---|---|---|
| Max. Force | N | 1532 | ||
| Stroke(mm) | N(Single Mover) | 203-3019/64 Pitch | ||
| D(Double Mover | 429-3053/64 Pitch | |||
| Rated Force | N | 340 | ||
| Max Payload | Kg | 120 | ||
