Gripper

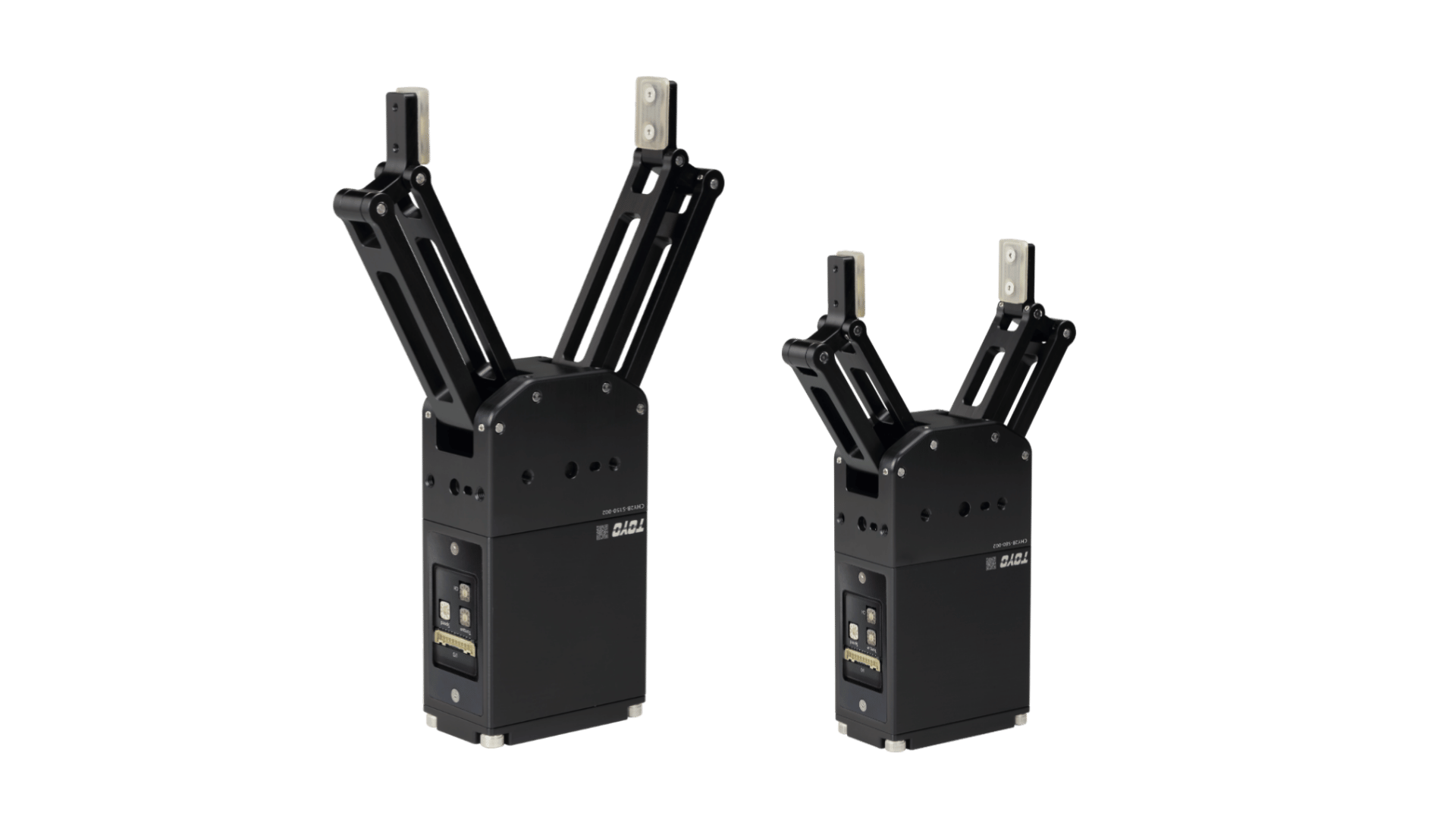

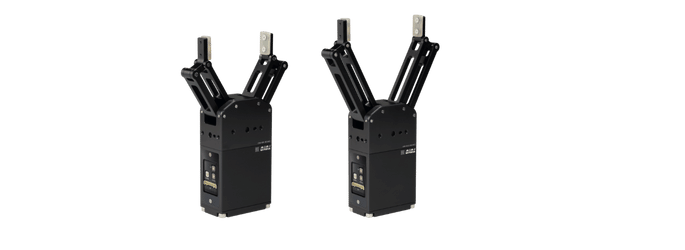

CHY2 series Linkage grippers are mechanical devices designed to grasp and manipulate objects in various industrial applications. They use a system of mechanical linkages to convert input motion into the precise opening and closing of gripping fingers. Linkage grippers are widely employed in automation, robotics, and material handling for their reliability and precision.
Features
- Maximum acceleration speed: 300m/s2
- Action Time: 3 times for each XYZ at 11ms
- Acceleration 30m/s2 Frequency range 10 ～ 55Hz
- Frequency scan cycle 1min (single direction) 2H for each of the XYZ axis
- Vibration conducted does not exceed 0.5G
- No strong electromagnetic wave, ultra-violet wave or radiation
Applications
Assembly line robotics, Material handling, Packaging, Pick and place applications
Industries
TFT display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining, Textile machinery, Printing and labelling, Laboratory automation, Material handling.

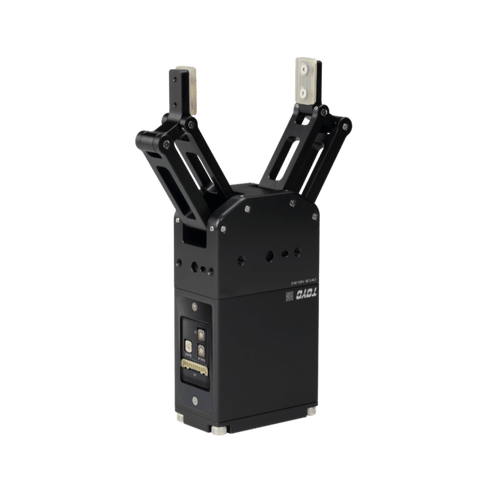

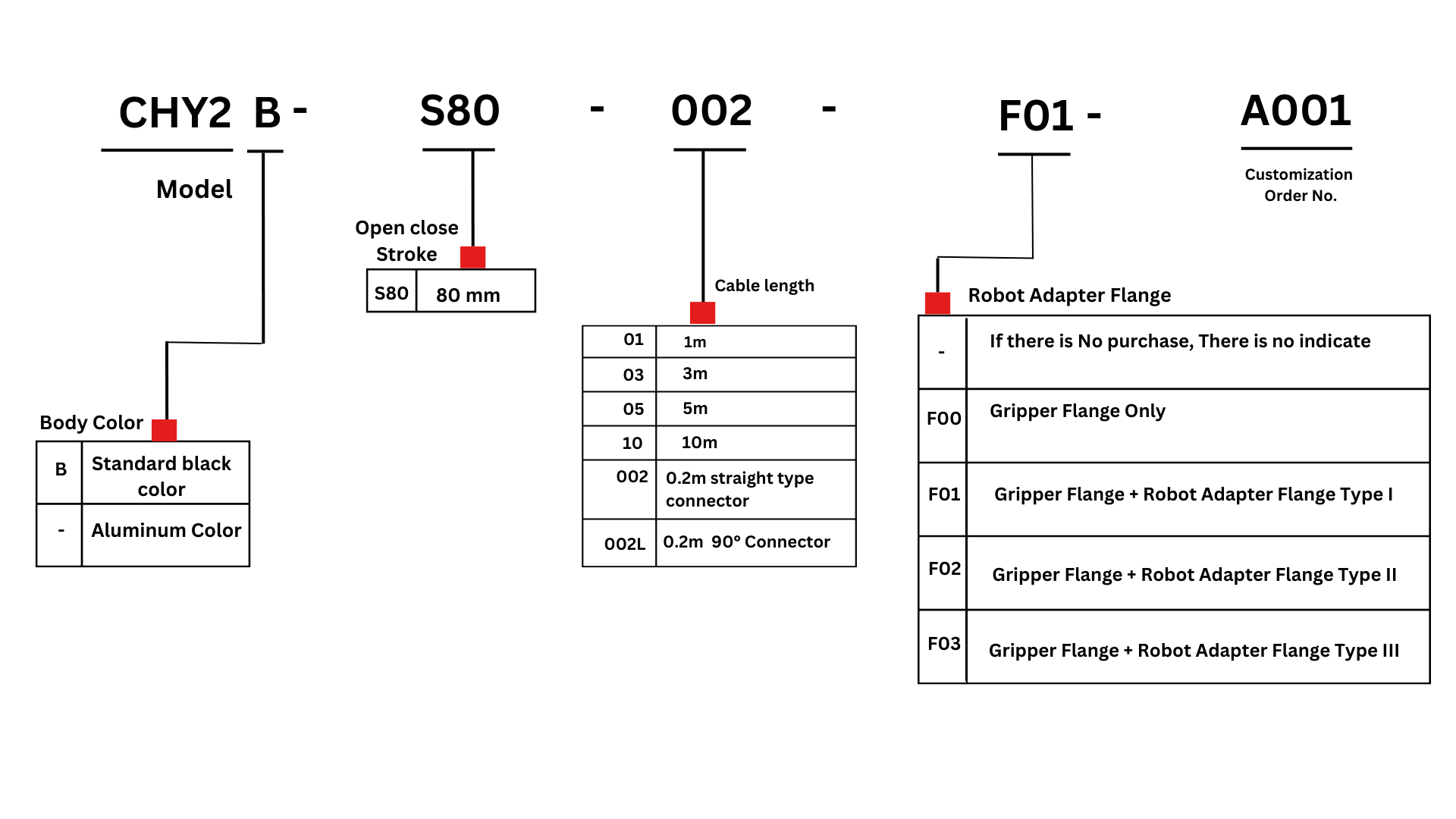

CHY2B-S80 series
CHY2B-S80 series specification
| Specification | Weight(Kg) | 3*3 |
|---|---|---|
| Gripping force(N) | 40~90(30-100%) | |
| Open/Close stroke(mm) | 80 | |
| Open/Close Speed(mm/s) | 40~200 | |
| Repeatbility(mm) | ±0.05 | |
| Guide Structure | Shaft | |
| Operating Temprature Range(°C) | 0~+40 | |
| Operating humidity range(%) | RH90(Below RH90 Dew free) | |
| Parts | Motor Dimension (mm) | 35□ |
| Weight (g) | 450 |

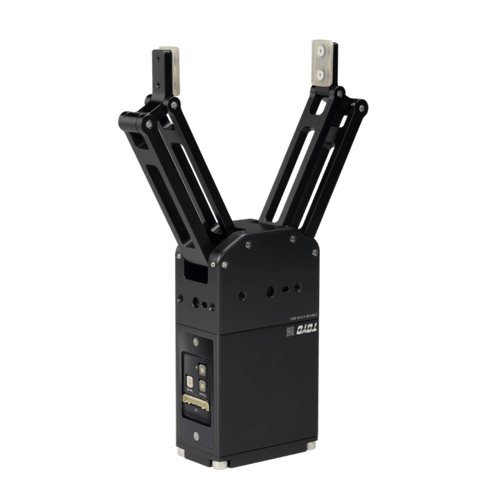

CHY2B-S150 series
CHY2B-S150 series specification
| Specification | Weight(Kg) | 1*3 |
|---|---|---|
| Gripping force(N) | 15~30(30-100%) | |
| Open/Close stroke(mm) | 150 | |
| Open/Close Speed(mm/s) | 40~200 | |
| Repeatbility(mm) | ±0.05 | |
| Guide Structure | Shaft | |
| Operating Temprature Range(°C) | 0~+40 | |
| Operating humidity range(%) | Below RH90 90 Dew free | |
| Parts | Motor Dimension (mm) | 35□ |
| Weight(g) | 940 |
