Linear Motor Actuator
Linear motor actuators are mechanical devices that convert rotational motion into linear motion, enabling precise and controlled movement along the axis being driven. At the center of these efficient devices lies the smart application of magnet assemblies. By using the effect of magnetism, linear actuators offer exceptional force, accuracy, and reliability in various applications.

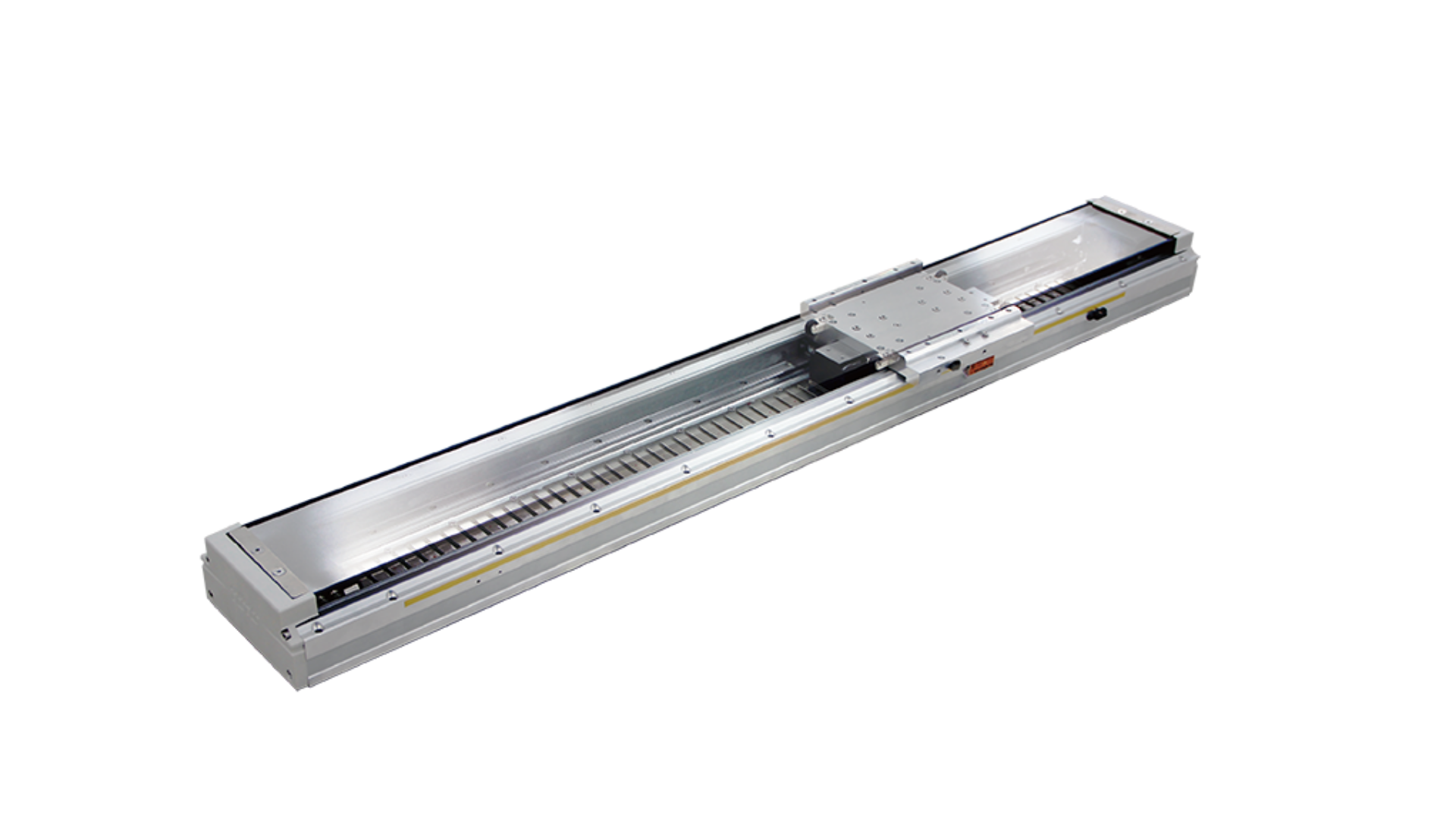

LTF Series comes with an iron core whose maximum stroke is up to 4700 mm. It is specially designed for high payload. The magnetic field generated induces a force that drives the linear movement of the actuator.
Features
- LTF Series comes with iron core which leads to highest thrust with cost effectiveness
- With the use of magnetism Linear Motor Actuators offers exceptional force, accuracy and reliability.
- Suitable for high-speed transportation of large-volume objects.
- Suitable for precise assembly of IT equipment and transmission positioning of test equipment.
- Structure wear is small, and accuracy can be maintained for long time.
Applications
Spray printing device for PCB board, Aligning device for pick and place of IC boards, Barcode scanning device
Industries
TFT Display manufacturing, Food industry, Packing machinery, LED manufacturing, CNC machining, Textile machinery, Printing and labelling, Laboratory automation, Material handling.

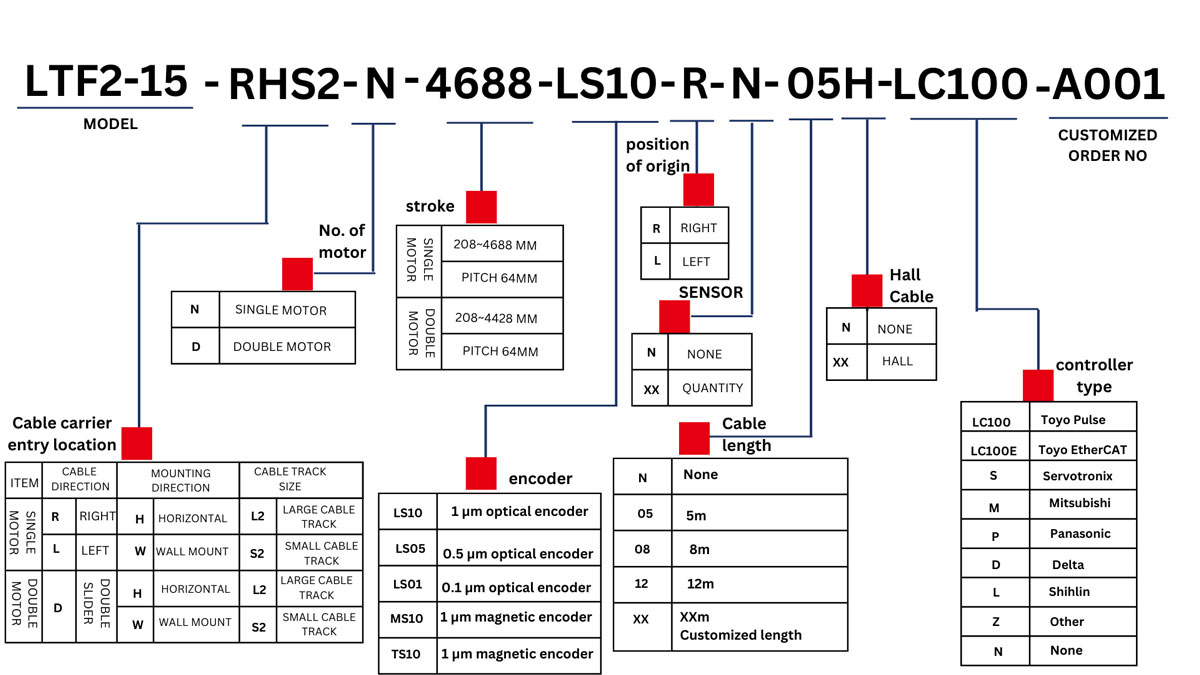

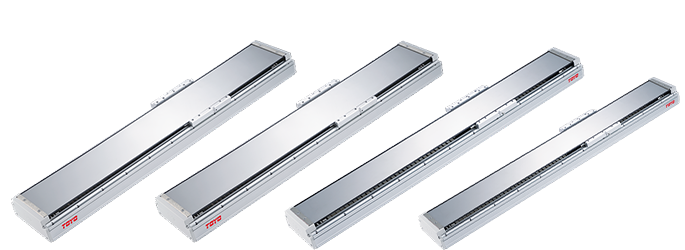

LTF2-15 series
LTF2-15 series specification
| Performance | Model | mm | LTF2-15 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 266 | ||
| Stroke(mm) | N | 208-4688/64 Pitch | ||
| D | 204-4428/64 Pitch | |||
| Rated Force | N | 59 | ||
| Max Payload | Kg | 20 | ||

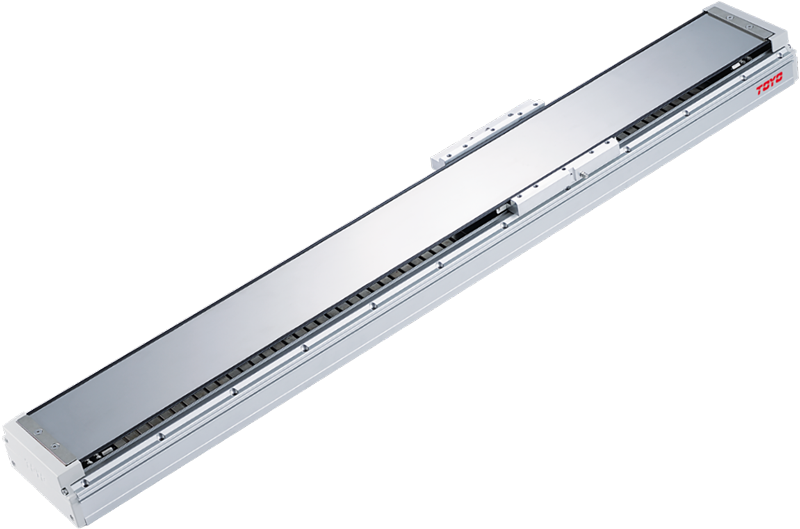

LTF2-20 series
LTF2-20 series specification
| Performance | Model | LTF2-20 | |
|---|---|---|---|
| Repeatability | mm | +/-0.002 | |
| Maximum Speed | mm/s | 3500 | |
| Max. Force | N | 510 | |
| Stroke(mm) | N | 202-4682/64 Pitch | |
| D | 260-4420/64 Pitch | ||
| Rated Force | N | 113 | |
| Max Payload | Kg | 40 | |

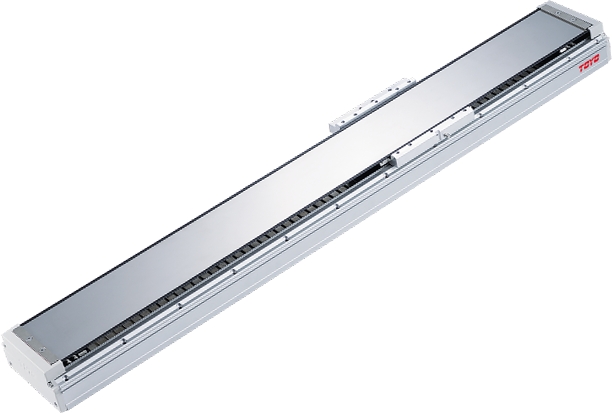

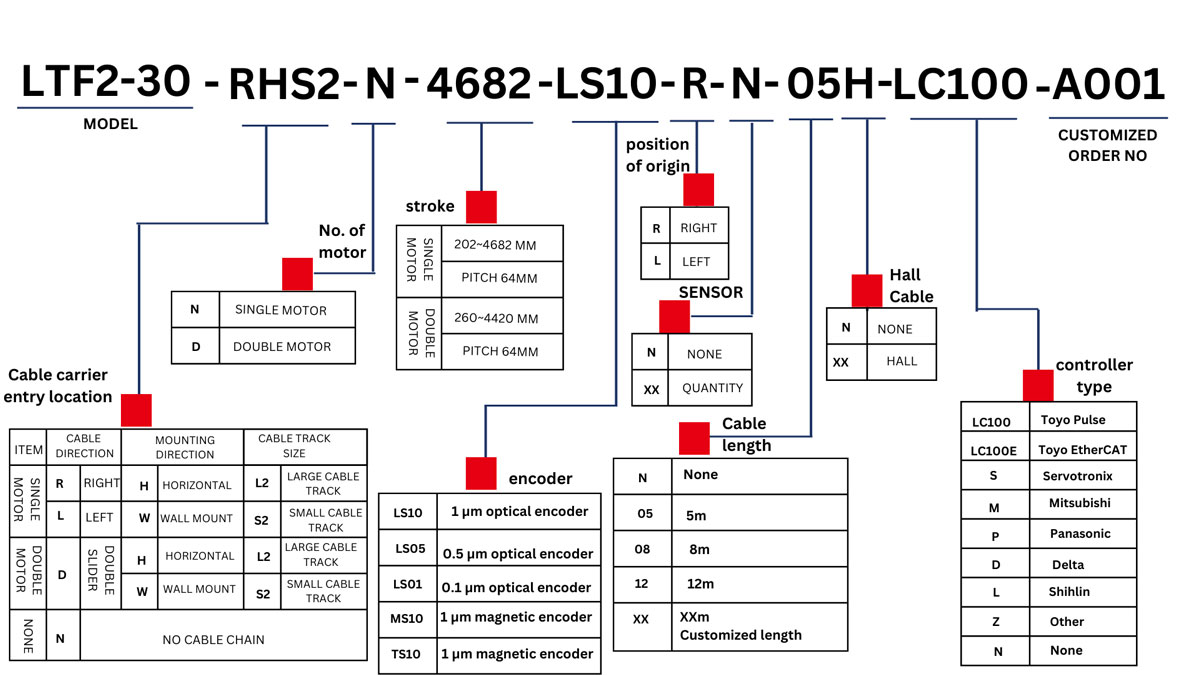

LTF2-30 series
LTF2-30 series specification
| Performance | Model | mm | LTF2-30 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 713 | ||
| Stroke(mm) | N | 202-4682/64 Pitch | ||
| D | 260-4420/64 Pitch | |||
| Rated Force | N | 158 | ||
| Max Payload | Kg | 54 | ||

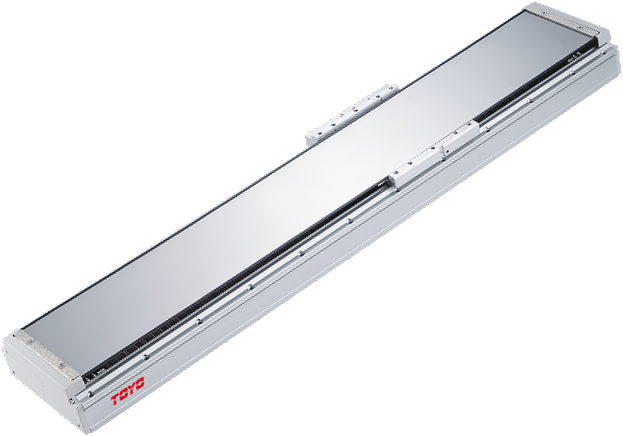

LTF2-45 series
LTF2-45 series specification
| Performance | Model | mm | LTF2-45 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 1128 | ||
| Stroke(mm) | N | 203-4235/64 Pitch | ||
| D | 301-3885/64 Pitch | |||
| Rated Force | N | 251 | ||
| Max Payload | Kg | 90 | ||

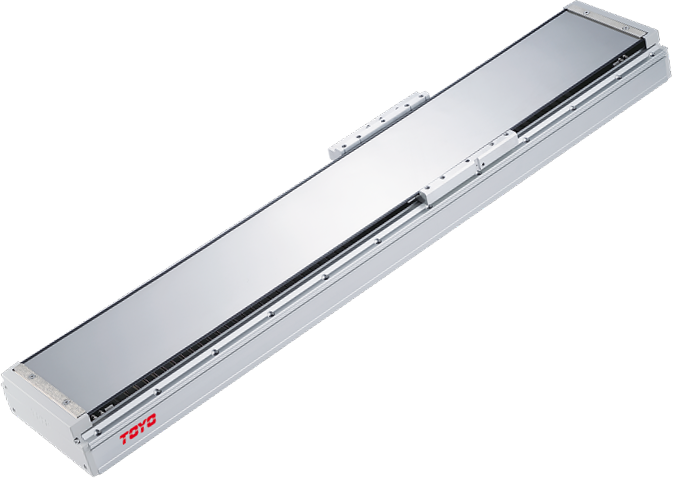

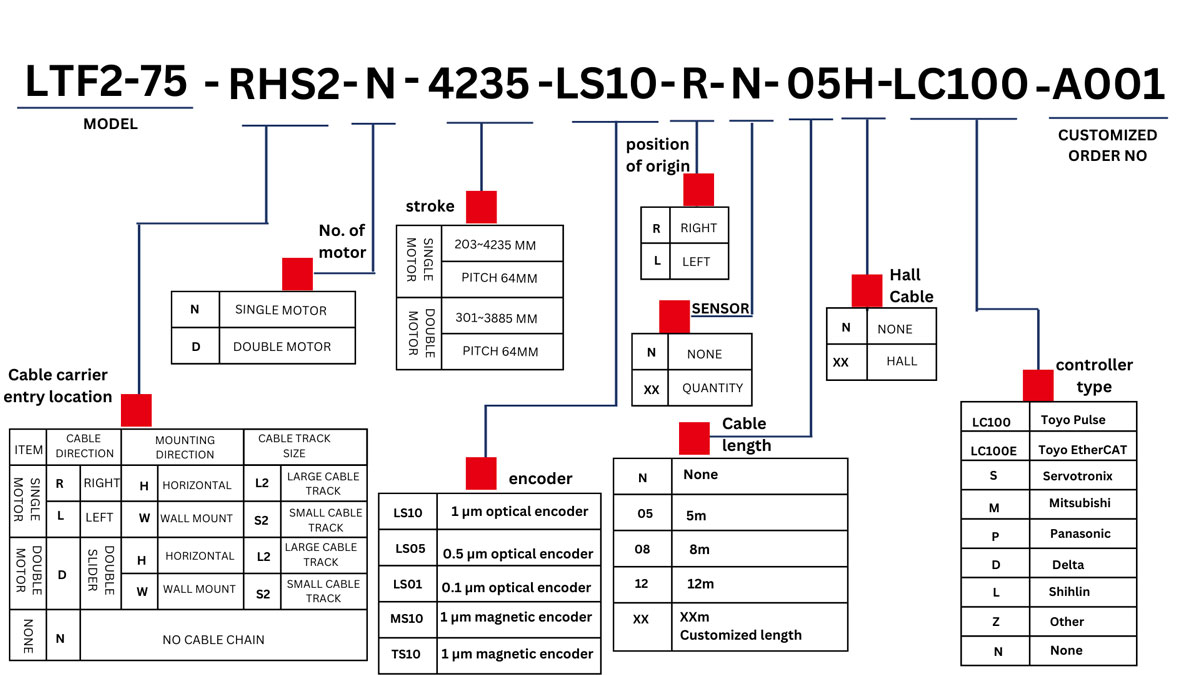

LTF2-75 series
LTF2-75 series specification
| Performance | Model | mm | LTF2-75 | |
|---|---|---|---|---|
| Repeatability | mm | +/-0.002 | ||
| Maximum Speed | mm/s | 3500 | ||
| Max. Force | N | 1523 | ||
| Stroke(mm) | N | 203-4235/64 Pitch | ||
| D | 301-3885/64 Pitch | |||
| Rated Force | N | 340 | ||
| Max Payload | Kg | 120 | ||
