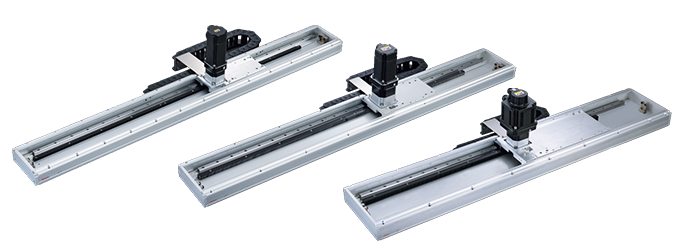

Rack and Pinion Actuator

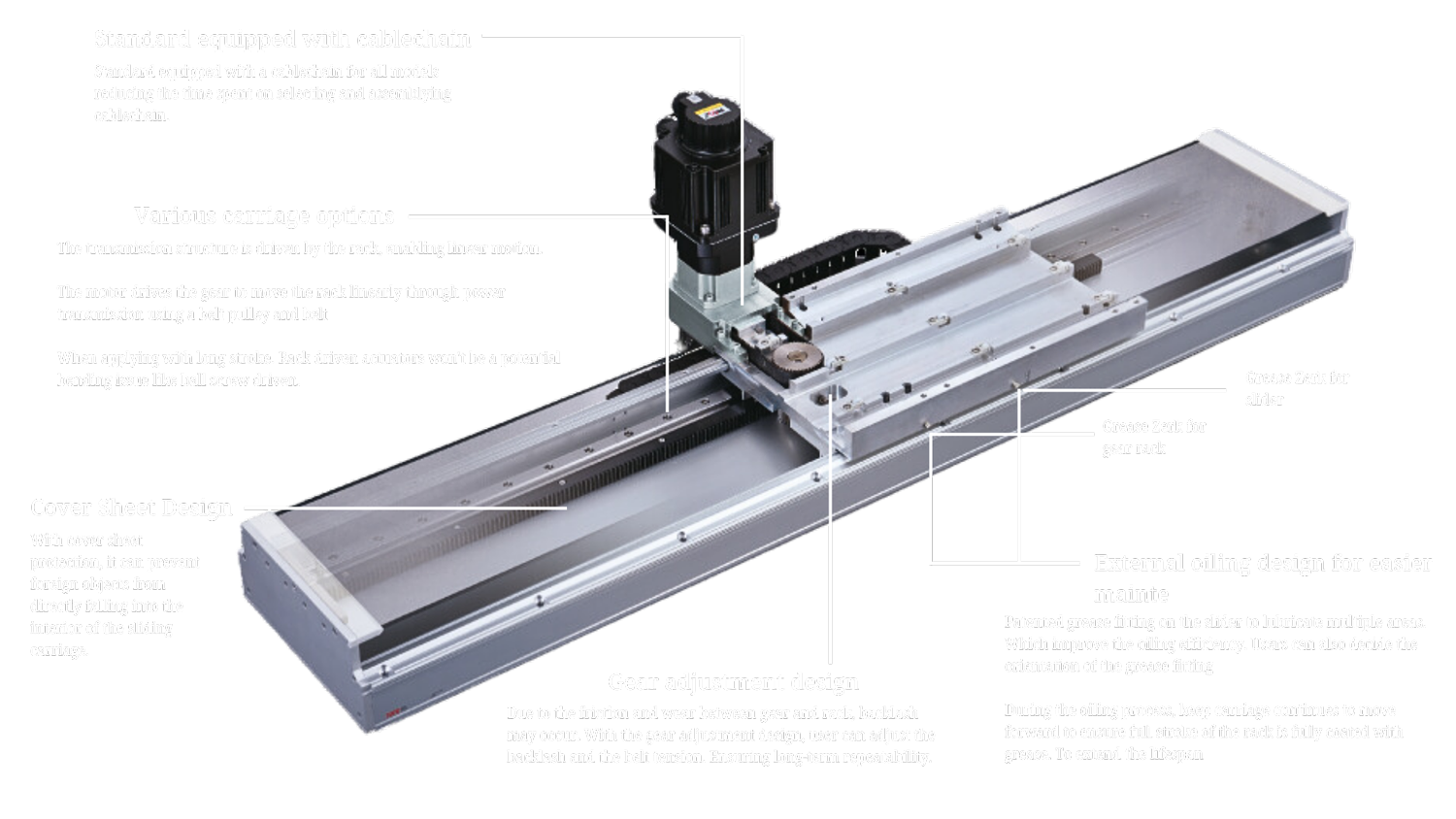

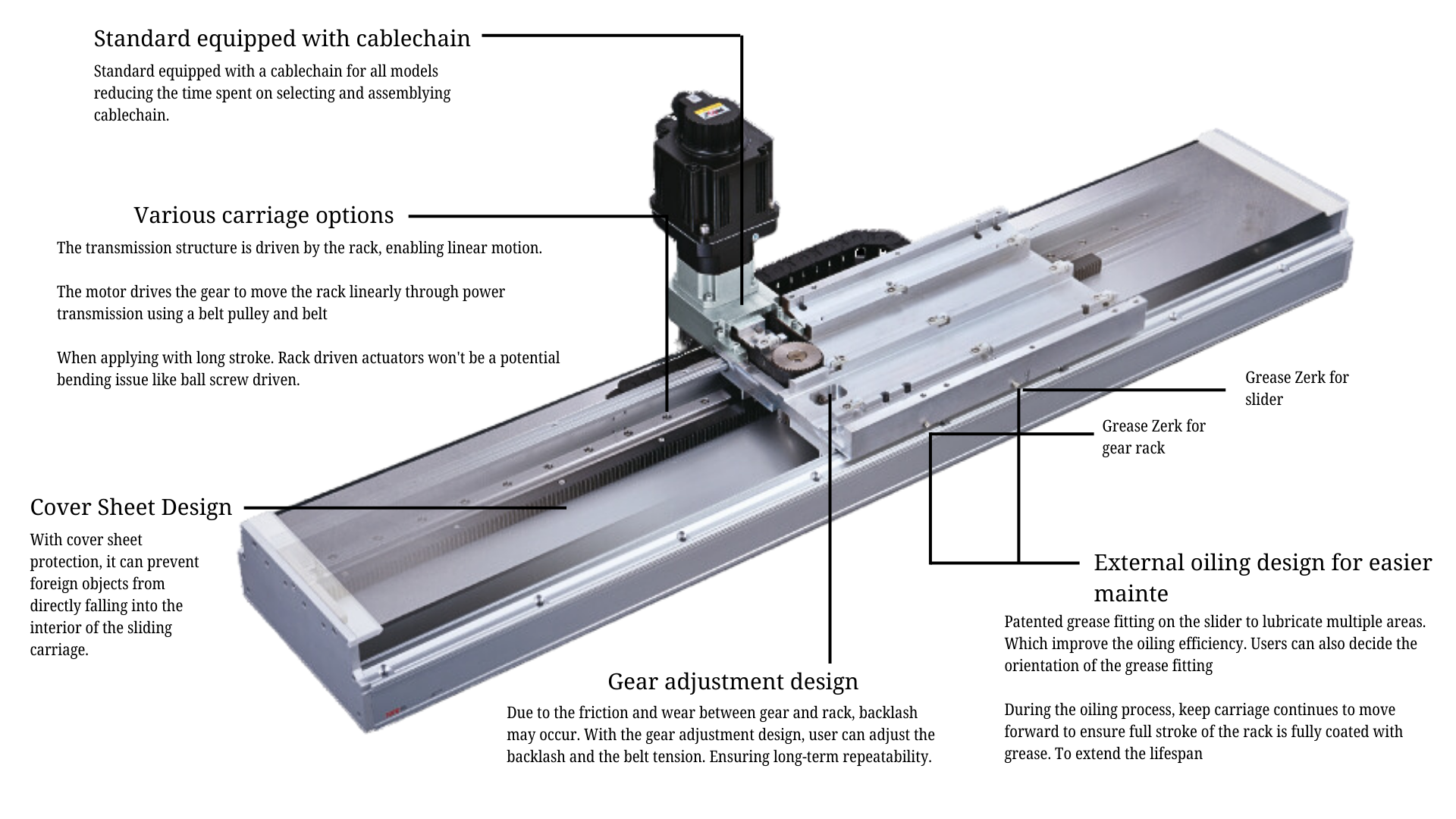

An electric rack and pinion actuator is a mechanism used for converting rotary motion into linear motion. It typically consists of a rack (a straight bar with teeth along its length) and a pinion gear (a small gear that meshes with the teeth of the rack). When the pinion gear rotates, it moves the rack linearly along its axis.
The electric aspect refers to the use of an electric motor to drive the pinion gear. By controlling the rotation of the motor, you can precisely control the linear movement of the rack.
Features
- Standard stroke upto 5700 mm. Extended stroke can be achieved by connecting rack gear, guideway and aluminium extrusion
- Direct mount onto rack gear without pulley and belt. Reducing power lost.
- Smooth and precise movement due to rack and pinion mechanism. Ensured repeatability of +/- 0.08 mm.
- High speed and acceleration up to 2010 mm/s.
- Maximum payload up to 185 Kg.
- ENK series for more flexible designed for lower height applications.
Applications
Industrial automation, Robotics, Automotive steering systems, Cobots, Wafer handling robot, Scara robot
Industries
Industrial robot industry, TFT display manufacturing, Semi-conductor manufacturing, LED manufacturing, Material handling industry

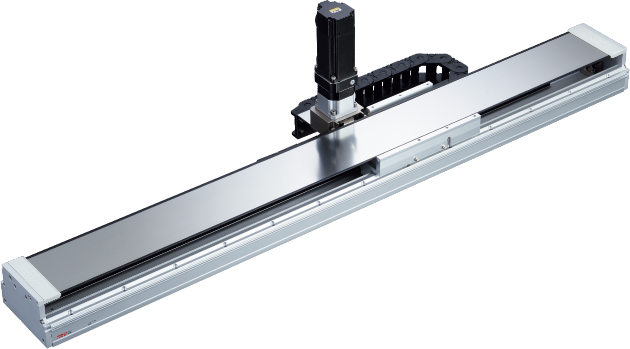

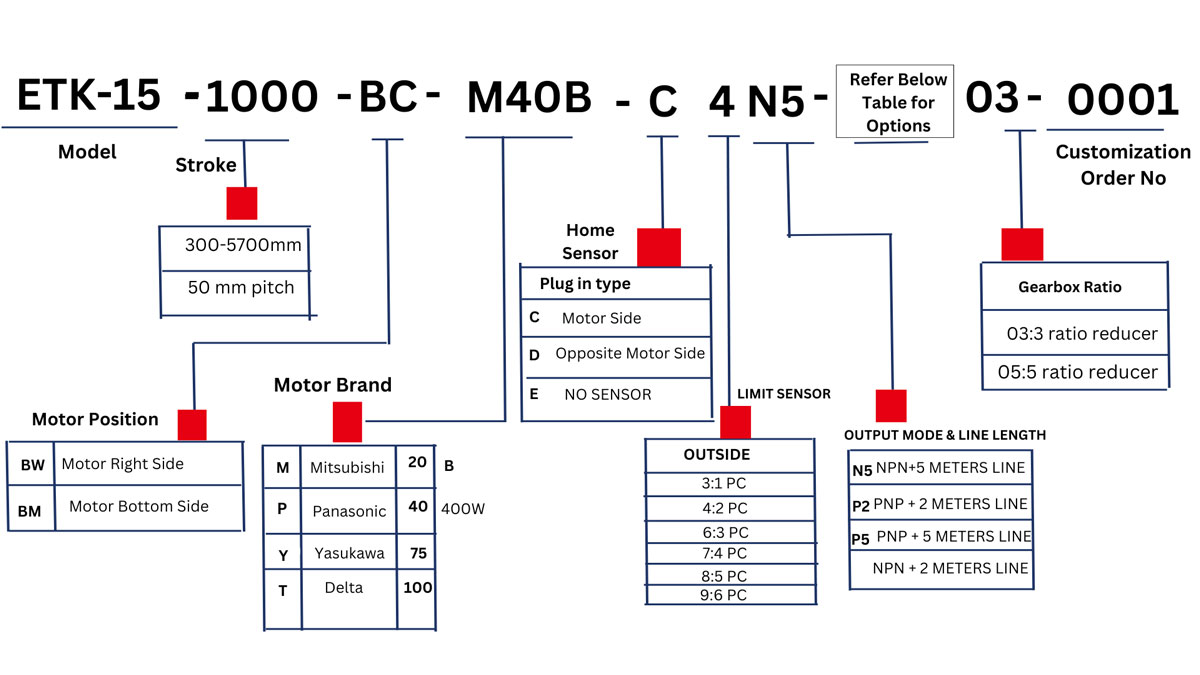

ETK-15 series
ETK-15 series specification
| Outer Layer is Treated with Black Oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Gearbox Provided by Customer | ||
|---|---|---|
| GC | The size of the customer supplied gearbox must be same as standard fixed size | |
| Performance | Repeatability | mm | (+/-0.08) | ||||
|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 03:01 | 04:01 | ||||
| Maximum Rotating Speed | mm | 3600 | 3600 | ||||
| Lead | rpm | 25.15 | 18.86 | ||||
| Maximum Linear Speed | mm/s | 1509 | 1132 | ||||
| Maximum Payload | Horizontal | kg | 39 | 53 | |||
| Vertical | kg | 12 | 16 | ||||
| Rated Thurst | N | 276 | 368 | ||||
| Stroke (increments) | mm | 300-5700mm/50 intervals(50mm increments) | |||||
| Maximum Acceleration | G | 0.51 | 0.38 | ||||
| Gears | Modulus | M | 1 | ||||
| Gear Teath | T | 32 | |||||
| Pitch Circle Diameter | mm | 32 | |||||
| Parts | AC Actuator with Motor Output | W | 400 | ||||
| Home Sensor | Outside | T62N2(NPN+2M Cable) | |||||

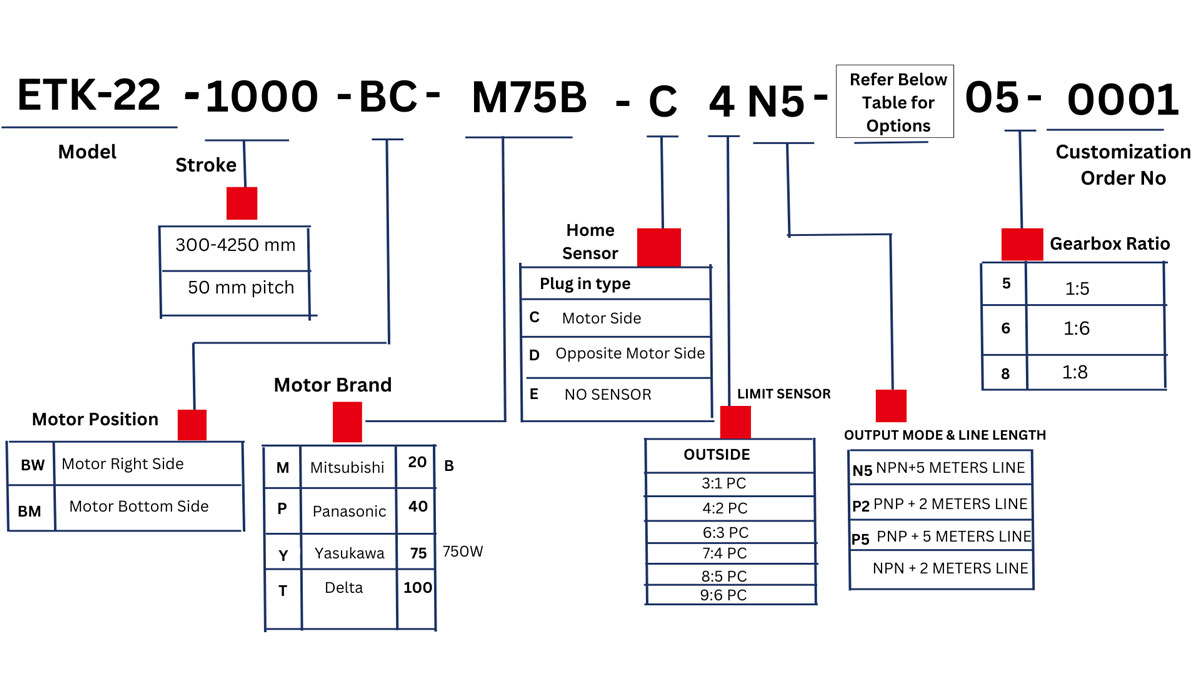

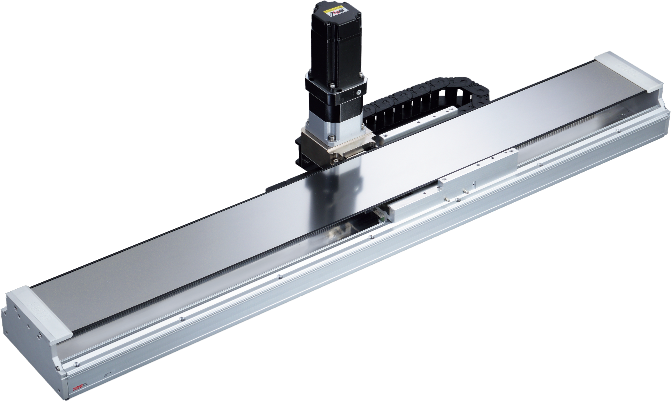

ETK-22 series
ETK-22 series specification
| Outer Layer is treated with black oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Gearbox Provided by Customer | ||
|---|---|---|
| GC | The size of the customer supplied gearbox must be same as standard fixed size | |
| Performance | Repeatability | mm | (+/-0.08) | ||||
|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 05:01 | 06:01 | 08:01 | |||
| Maximum Rotating Speed | mm | 3600 | 3600 | 3600 | |||
| Lead | rpm | 24.5 | 20.42 | 15.31 | |||
| Maximum Linear Speed | mm/s | 1470 | 1225 | 918 | |||
| Maximum Payload | Horizontal | kg | 54 | 67 | 90 | ||
| Vertical | kg | 17 | 21 | 29 | |||
| Rated Thurst | N | 523 | 627 | 836 | |||
| Stroke (increments) | mm | 300-4250mm/50 intervals(50mm increments) | |||||
| Maximum Acceleration | G | 0.49 | 0.41 | 0.31 | |||
| Gears | Modulus | M | 1.5 | ||||
| Gear Teath | T | 26 | |||||
| Pitch Circle Diameter | mm | 19 | |||||
| Parts | AC Actuator with Motor Output | W | 750 | ||||
| Home Sensor | Outside | T62N2(NPN+2M Cable) | |||||

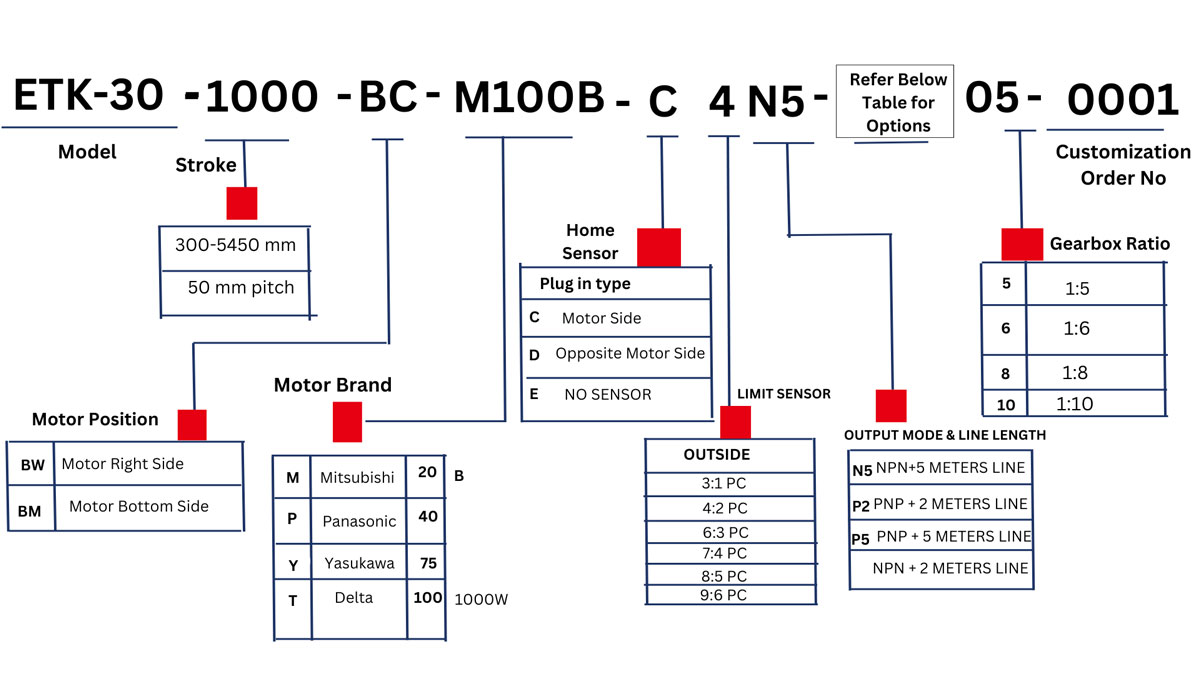

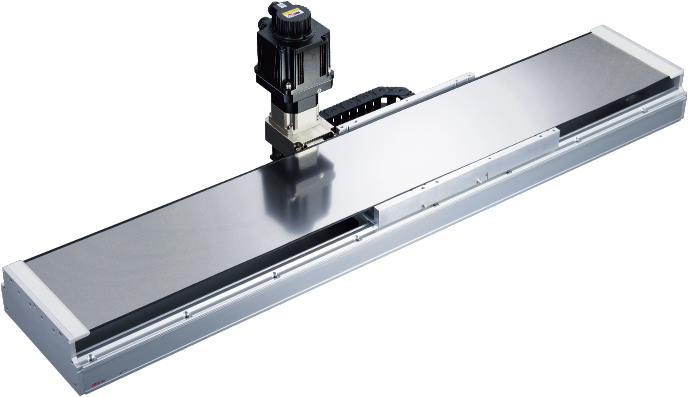

ETK-30 series
ETK-30 series specification
| Outer Layer is treated with black oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Gearbox Provided by Customer | ||
|---|---|---|
| GC | The size of the customer supplied gearbox must be same as standard fixed size | |
| Performance | Repeatability | mm | (+/-0.08) | |||||
|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 05:01 | 06:01 | 08:01 | 10.01 | |||
| Maximum Rotating Speed | mm | 2400 | 2400 | 2400 | 2400 | |||
| Lead | rpm | 28.9 | 24.8 | 18.06 | 14.45 | |||
| Maximum Linear Speed | mm/s | 1156 | 963.2 | 722.4 | 576 | |||
| Maximum Payload | Horizontal | kg | 95 | 114 | 150 | 185 | ||
| Vertical | kg | 30 | 35 | 48 | 60 | |||
| Rated Thurst | N | 887 | 1064 | 1419 | 1773 | |||
| Stroke (increments) | mm | 300-5450mm/50 intervals(50mm increments) | ||||||
| Maximum Acceleration | G | 0.39 | 0.32 | 0.24 | 0.19 | |||
| Gears | Modulus | M | 2 | |||||
| Gear Teath | T | 23 | ||||||
| Pitch Circle Diameter | mm | 46 | ||||||
| Parts | AC Actuator with Motor Output | W | 1000 | |||||
| Home Sensor | Outside | T62N2(NPN+2M Cable) | ||||||

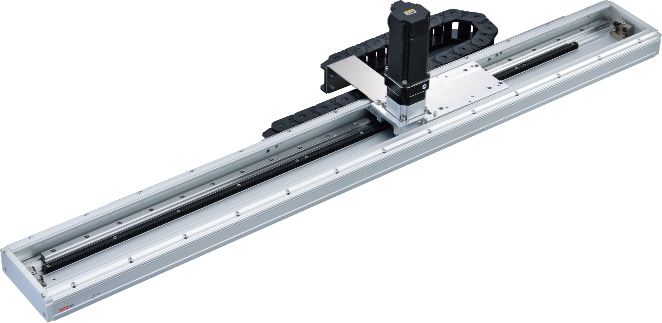

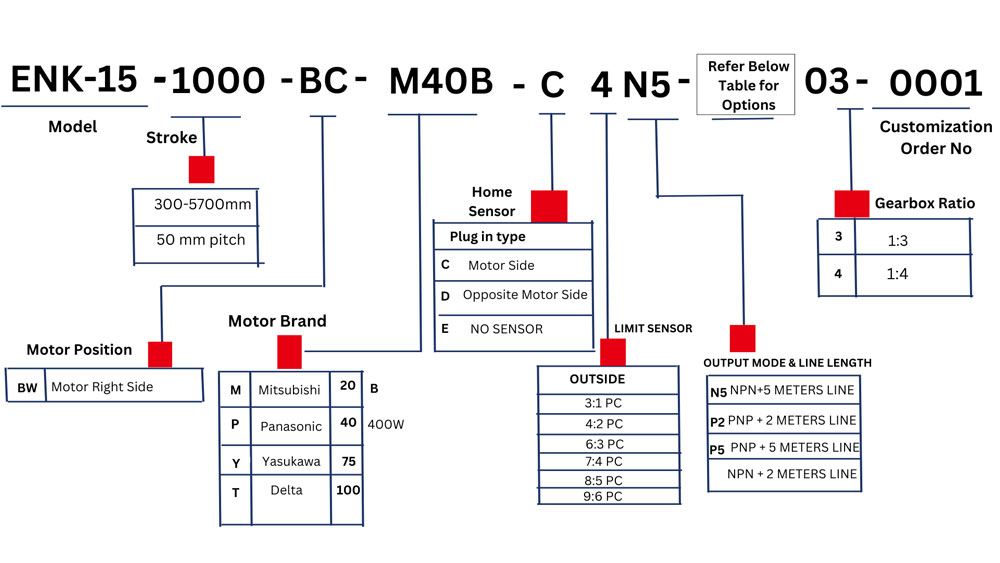

ENK-15 series
ENK-15 series specification
| Outer Layer is treated with black oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Gearbox Provided by Customer | ||
|---|---|---|
| GC | The size of the customer supplied gearbox must be same as standard fixed size | |
| Performance | Repeatability | mm | (+/-0.08) | ||||
|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 03:01 | 04:01 | ||||
| Maximum Rotating Speed | mm | 3600 | 3600 | ||||
| Lead | rpm | 35.51 | 25.13 | ||||
| Maximum Linear Speed | mm/s | 2010 | 1507 | ||||
| Maximum Payload | Horizontal | kg | 35 | 50 | |||
| Vertical | kg | 7 | 9 | ||||
| Rated Thurst | N | 207 | 276 | ||||
| Stroke (increments) | mm | 300-5700mm/50 intervals(50mm increments) | |||||
| Maximum Acceleration | G | 0.72 | 0.51 | ||||
| Gears | Modulus | M | 1 | ||||
| Gear Teath | T | 32 | |||||
| Pitch Circle Diameter | mm | 32 | |||||
| Parts | AC Actuator with Motor Output | W | 400 | ||||
| Home Sensor | Outside | T62N2(NPN+2M Cable) | |||||

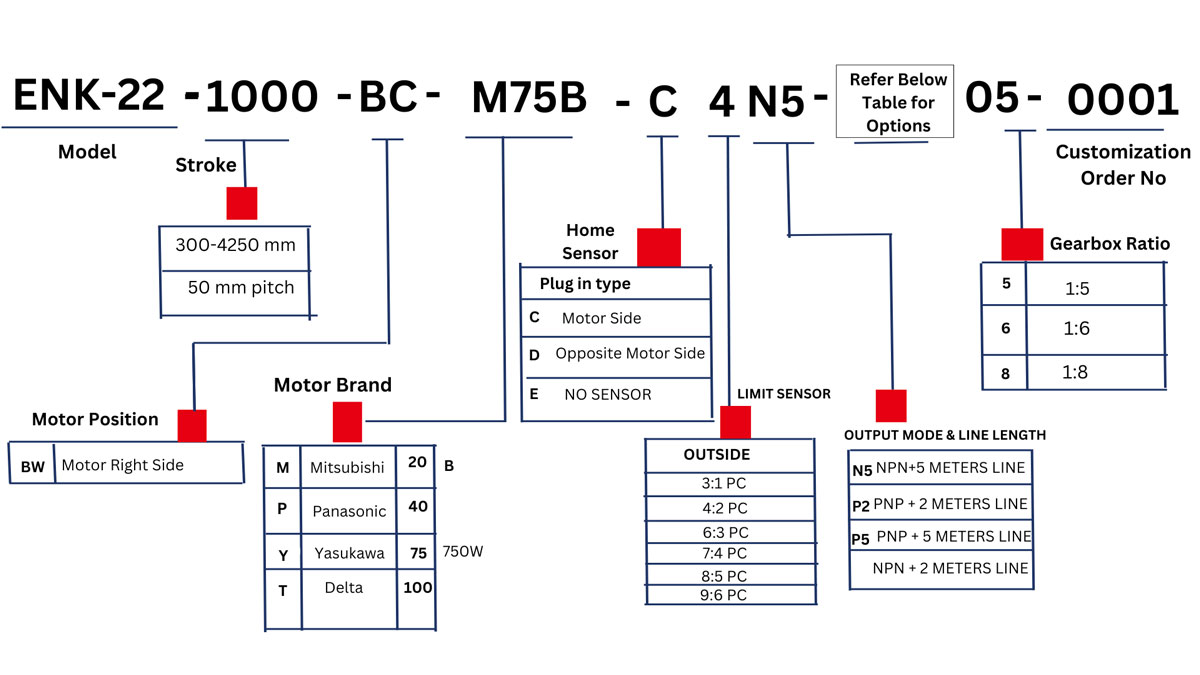

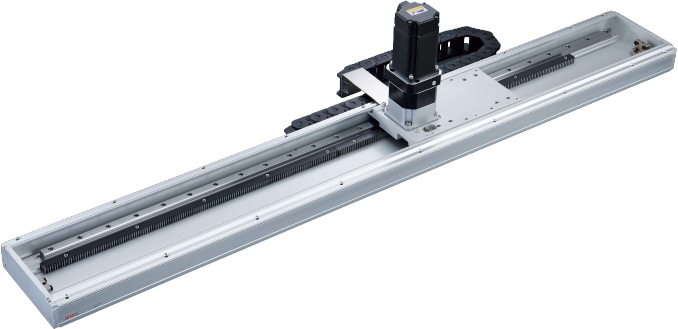

ENK-22 series
ENK-22 series specification
| Outer Layer is treated with black oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Gearbox Provided by Customer | ||
|---|---|---|
| GC | The size of the customer supplied gearbox must be same as standard fixed size | |
| Performance | Repeatability | mm | (+/-0.08) | ||||
|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 05:01 | 06:01 | 08:01 | |||
| Maximum Rotating Speed | mm | 3600 | 3600 | 3600 | |||
| Lead | rpm | 24.5 | 20.42 | 15.31 | |||
| Maximum Linear Speed | mm/s | 1470 | 1225 | 918 | |||
| Maximum Payload | Horizontal | kg | 54 | 67 | 90 | ||
| Vertical | kg | 17 | 21 | 29 | |||
| Rated Thurst | N | 523 | 627 | 836 | |||
| Stroke (increments) | mm | 300-4250mm/50 intervals(50mm increments) | |||||
| Maximum Acceleration | G | 0.49 | 0.41 | 0.31 | |||
| Gears | Modulus | M | 1.5 | ||||
| Gear Teath | T | 26 | |||||
| Pitch Circle Diameter | mm | 39 | |||||
| Parts | AC Actuator with Motor Output | W | 750 | ||||
| Home Sensor | Outside | T62N2(NPN+2M Cable) | |||||

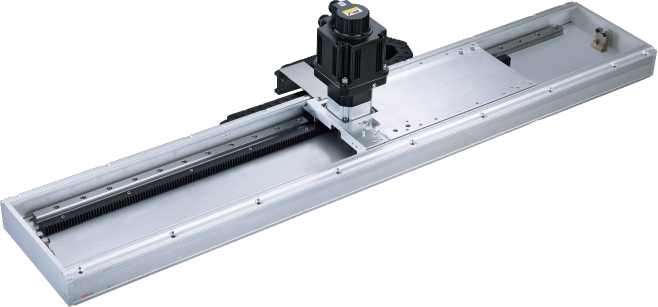

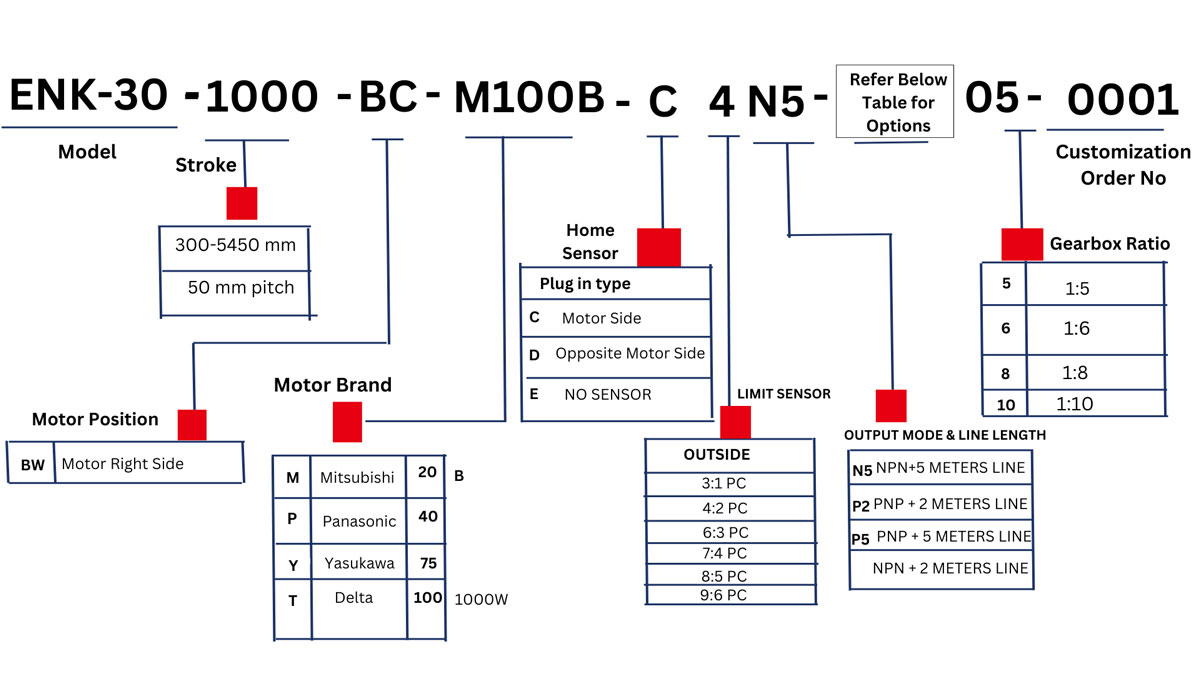

ENK-30 series
ENK-30 series specification
| Outer Layer is treated with black oxide | ||
|---|---|---|
| Color | Range | |
| Black | Main Body | |
| Original Color | Stainless Steel Plate | |
| Screw | ||
| Support Rod | ||
| Gearbox | ||
| Selectable Cable Leading Direction | ||
|---|---|---|
| Code | Instructions | |
| MW | Upper Side | |
| MM | Bottom Side | |
| ML | Left Side | |
| MR | Right Side | |
| Gearbox Provided by Customer | ||
|---|---|---|
| GC | The size of the customer supplied gearbox must be same as standard fixed size | |
| Performance | Repeatability | mm | (+/-0.08) | |||||
|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 05:01 | 06:01 | 08:01 | 10.01 | |||
| Maximum Rotating Speed | mm | 2400 | 2400 | 2400 | 2400 | |||
| Lead | rpm | 28.9 | 24.8 | 18.06 | 14.45 | |||
| Maximum Linear Speed | mm/s | 1156 | 963.2 | 722.4 | 576 | |||
| Maximum Payload | Horizontal | kg | 95 | 114 | 150 | 185 | ||
| Vertical | kg | 30 | 35 | 48 | 60 | |||
| Rated Thurst | N | 887 | 1064 | 1419 | 1773 | |||
| Stroke (increments) | mm | 300-5450mm/50 intervals(50mm increments) | ||||||
| Maximum Acceleration | G | 0.39 | 0.32 | 0.24 | 0.19 | |||
| Gears | Modulus | M | 2 | |||||
| Gear Teath | T | 23 | ||||||
| Pitch Circle Diameter | mm | 46 | ||||||
| Parts | AC Actuator with Motor Output | W | 1000 | |||||
| Home Sensor | Outside | T62N2(NPN+2M Cable) | ||||||
