Cast Iron Axis Stage
Toyo Cast Iron Axis Stage is a high-performing, heavy-duty machine tool platform designed for precision machining of carbon steel, highway and structural milling, and turning operations. It is equipped with leading edge technology such as automatic tool changes, high-speed CNC controllers, and real-time monitoring systems. With a lead screw travel of 120 inches, a spindle speed of 2,000 rpm, and a max bolt torque of 148,000 lbs, the Toyo Cast Iron Axis Stage is a versatile and reliable solution for a wide range of machine shop requirements.
The precision platform is precision ground and paired with extremely low SSR slide rails. Through multiple restriction structures high precision guidance is achieved.
Repeat : ±0.5μm/300 mm accuracy
Flatness : <5 μm/300 mm
Coreless Module : 85 mm
Features
- Adopt high rigidity cast iron structure with good vibration damping effect.
- The thermal expansion coefficient is ½ of aluminum material, which can reduce accuracy errors.
- It can reduce the setting time and has high torque performance.
- Multiple drive modes to choose from.
- Flexibility of drive control system, can be used with various servo and stepper system.
Applicable industries
- Semiconductor
- Detection
- Automated precision measurement and laser cutting.
- Ideal for cleanroom and medical applications.

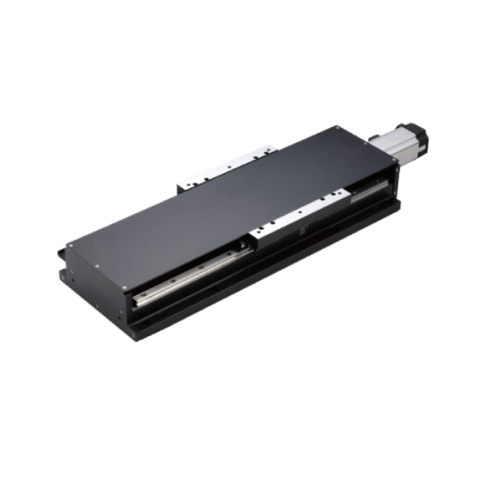

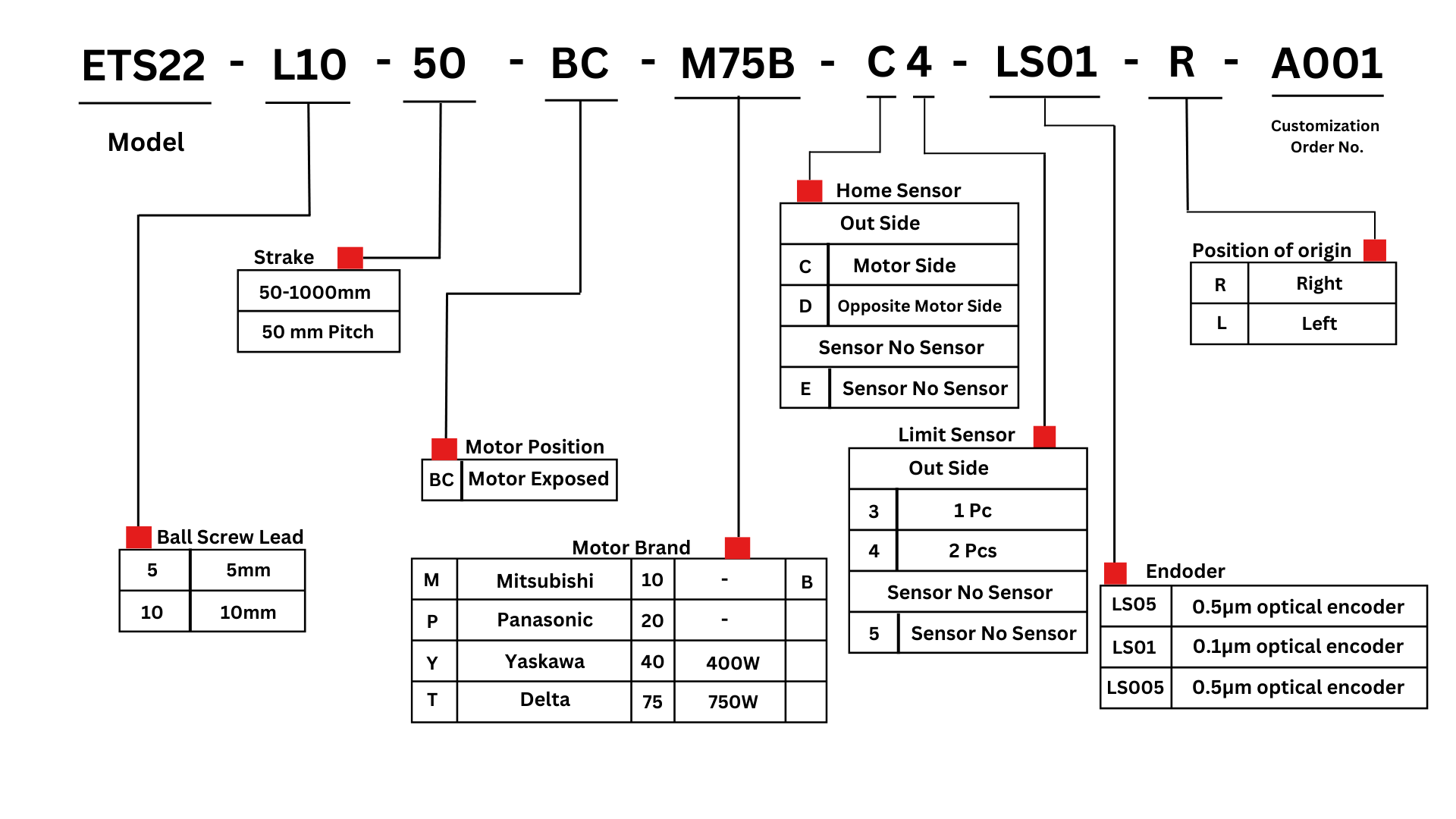

ETS-22 series
ETS-22 series specification
| Model | ||||
| Table Size(mm) | ||||
| Travel(mm) | 50~300 | 350~600 | 650~1000 | |
| Accuracy(μm) | ±2 | ±4 | ±6 | |
| Repeatability | ±1 | ±2 | ±3 | |
| Straightness(μm) | ±3 | ±5 | ±7 | |
| Flatness(μm) | ±5 | ±7 | ±9 | |
| Ball Screw Lead(mm) | 10 | |||
| Maximum Speed(m/s) | 500 | |||
| Maximum Load Capacity | 70 | |||
| 30 | ||||

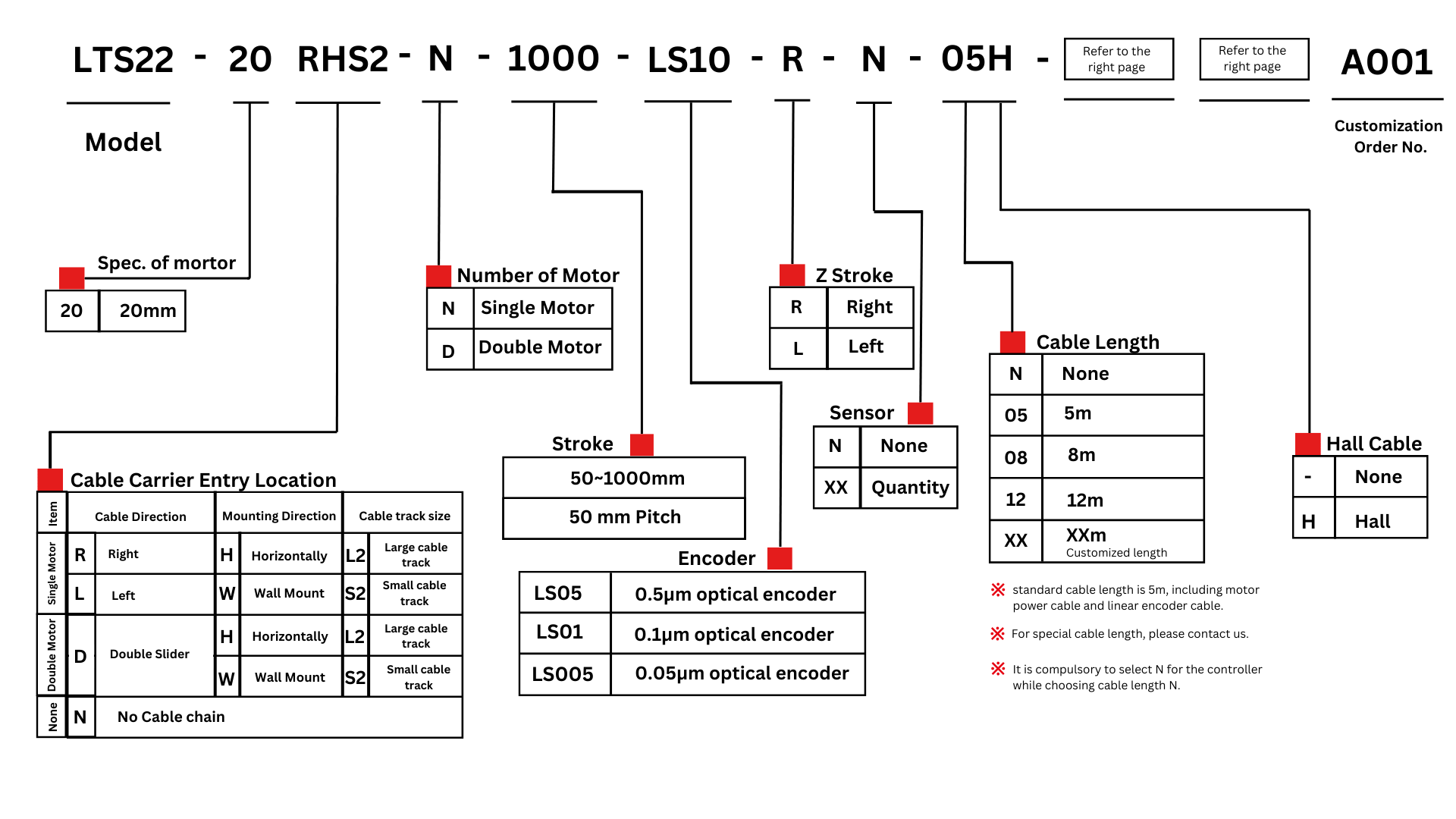

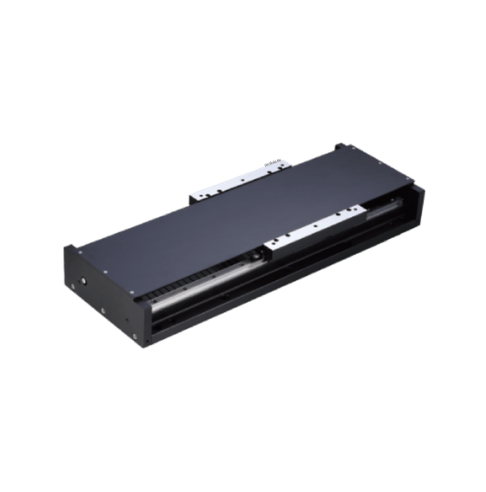

LTS-22 series
LTS-22 series specification
| Model | ||||
| Table Size(mm) | ||||
| Travel(mm) | 50~300 | 350~600 | 650~1000 | |
| Accuracy(μm) | ±2 | ±4 | ±6 | |
| Repeatability | ±0.5 | ±1 | ±2 | |
| Straightness(μm) | ±3 | ±5 | ±7 | |
| Flatness(μm) | ±5 | ±7 | ±9 | |
| Maximum Speed (m/s) | ||||
| Maximum Acceleration(m/s2) | ||||
| Continous Force(N) | ||||
| Peek Force(N) | ||||
| Max. Payload(kg) | ||||

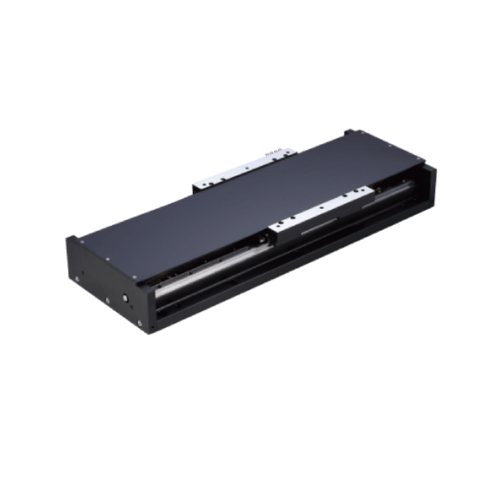

LTSU-22 series
LTSU-22 series specification
| Model | ||||
| Table Size(mm) | ||||
| Travel(mm) | 50~300 | 350~600 | 650~1000 | |
| Accuracy(μm) | ±2 | ±4 | ±6 | |
| Repeatability | ±0.5 | ±1 | ±2 | |
| Straightness(μm) | ±3 | ±5 | ±7 | |
| Flatness(μm) | ±5 | ±7 | ±9 | |
| Maximum Speed (m/s) | ||||
| Maximum Acceleration(m/s2) | ||||
| Continous Force(N) | ||||
| Peek Force(N) | ||||
| Max. Payload(kg) | ||||
