Linear Actuator with Oriental Stepper Motor
Oriental Motor, a renowned name in the motion control and automation industry, specializes in designing and manufacturing high-quality motors, drivers, actuators, and control solutions. With a legacy of over half a century, from driving conveyor systems to enhancing robotic arms' precision, Oriental Motor products are integral to achieving automation efficiency and excellence.

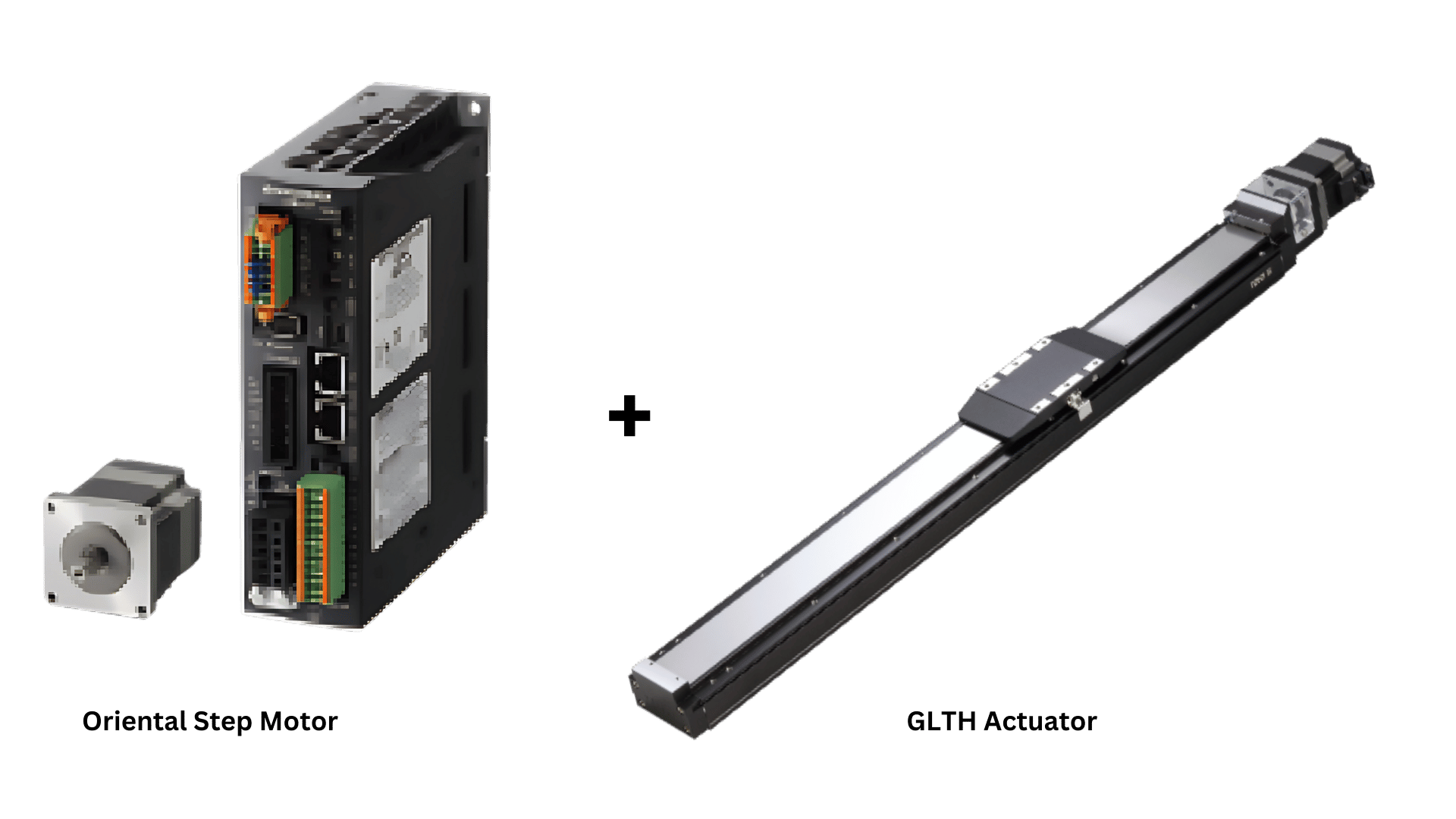

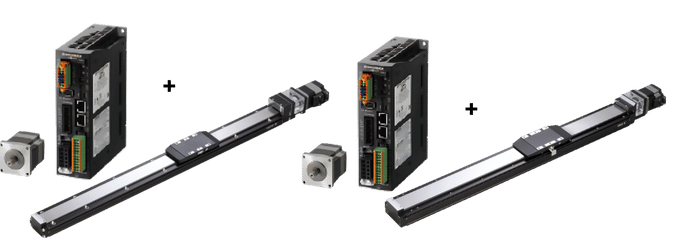

TOYO has made a strong co-branding with Oriental Motor for providing cost effective low profile integrate bearing motorized actuator. CGLTH series is nothing but a combination of cost-effective combined solution of TOYO’s best mechanically designed ballscrew actuator along with Oriental Motor’s high performance stepper motor.
Features
- An integrated design featuring a proprietary technology aluminium body with embedded rails and a specially integrated nut.
- High speed and acceleration up to 1600 mm/s.
- Integrated rail design for better moment load capacity.
- Longest ball screw stroke 2500mm W
- Multi loop absolute encoder, No batteries required
Applications
Positioning, Pick and place, Carrying, Press fitting
Industries
Industrial robot industry, TFT display manufacturing, Semi-conductor manufacturing, LED manufacturing, Material handling industry

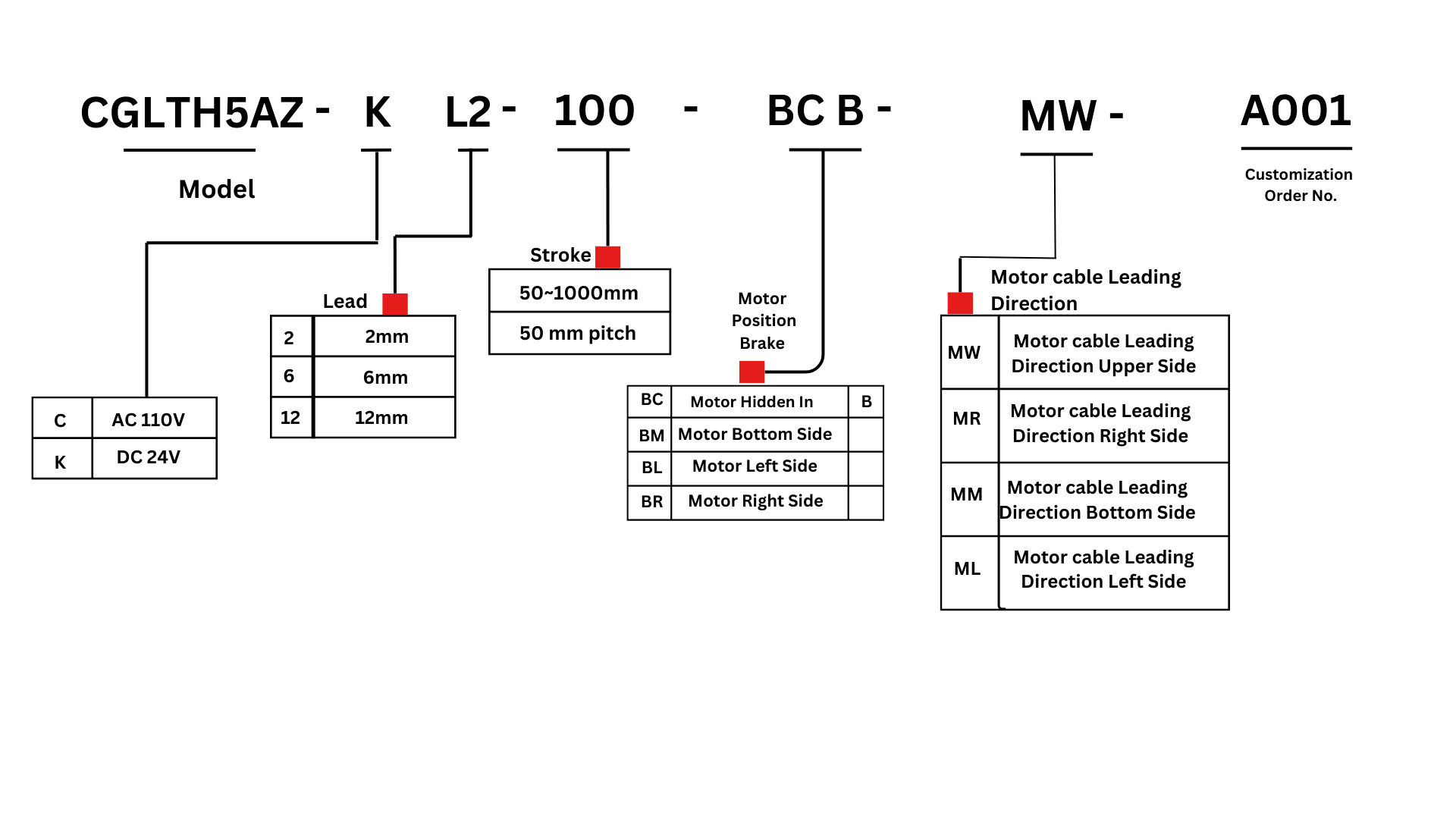

CGLTH5AZK series
CGLTH5AZK series specification
| Specification | Repeatability | mm | ±0.005 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Motor | AZM46AK | AZM46AC*2 | |||||||
| Lead | mm | 2 | 6 | 12 | 2 | 6 | 12 | ||
| Maximum Rotating Speed | rpm | 3000 | 3000 | 2100 | 3000 | 3000 | 3000 | ||
| Maximum Linear Speed | mm/s | 100 | 300 | 420 | 100 | 300 | 600 | ||
| Maximum Payload | Horizontal | Kg | 40 | 35 | 29 | 40 | 40 | 35 | |
| Vertical | Kg | 15 | 14 | 8 | 15 | 14 | 8 | ||
| Rated Thurst | N | 879 | 350 | 166 | 857 | 327 | 176 | ||
| Stroke Pitch(mm) | 50-1000mm/ 50 mm pitch | ||||||||
| Mamimum Acceleration | G | 0.03 | 0.1 | 0.14 | 0.03 | 0.1 | 0.2 | ||
| Motor Size | mm | 42□ | |||||||
| Ball Screw | mm | C7⌀10 | |||||||
CGLTH8AZK series
CGLTH8AZK series specification
| Specification | Repeatability | mm | ±0.005 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Motor | AZM66AK | AZM66AC | |||||||
| Lead | mm | 6 | 12 | 24 | 6 | 12 | 24 | ||
| Maximum Rotating Speed | rpm | 3000 | 3000 | 2500 | 3000 | 3000 | 3000 | ||
| Maximum Linear Speed | mm/s | 300 | 600 | 1000 | 300 | 600 | 1200 | ||
| Maximum Payload | Horizontal | Kg | 80 | 60 | 40 | 100 | 70 | 50 | |
| Vertical | Kg | 45 | 25 | 10 | 45 | 30 | 15 | ||
| Rated Thurst | N | 1112 | 540 | 278 | 1357 | 590 | 338 | ||
| Stroke Pitch(mm) | 50-1250mm/ 50 mm pitch | ||||||||
| Mamimum Acceleration | G | 0.1 | 0.2 | 0.34 | 0.1 | 0.2 | 0.41 | ||
| Motor Size | mm | 60□ | |||||||
| Ball Screw | mm | C7⌀14 | |||||||
